Title: 240-373 Image Processing


1

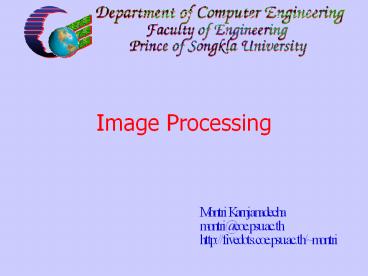

240-373 Image Processing
Montri Karnjanadecha montri_at_coe.psu.ac.th http//f
ivedots.coe.psu.ac.th/montri
2
Chapter 12
  • Image Compression

3
Image Compression
  • Purposes
  • To minimize storage space
  • To maximize transfer speed
  • To minimize hardware costs
  • Requirements
  • Speedy operation (compression and unpacking)
  • Significantly reduction in required memory
  • No significant loss of quality
  • Format of output suitable for transfer and storage

4
Image Compression
  • Types
  • Statistical compression--based on pixels in whole
  • Spatial compression--based on the spatial
    relationship of pixels of similar type
  • Quantizing compression--reducing number of gray
    levels and resolution
  • Fractal compression--based on fractal generating
    functions

5
Statistical Compression
  • The Huffman Coding
  • Based on the assumption that the histogram is not
    normally flat
  • If 4 of 16 colors are used 60 of the time, 4
    more for a further 30 and the rest for 10, then
    we could use the following scheme
  • four frequently used colors
  • 000
  • 001
  • 010
  • 011

6
Statistical Compression
  • next most frequently used colors
  • 1000
  • 1001
  • 1010
  • 1011
  • the rest
  • 11000
  • 11001
  • 11010
  • 11011
  • 11100
  • 11101
  • 11110
  • 11111

7
Statistical Compression
  • This means that the length (for an 640x480 image
    150K) is reduced to
  • (0.63)(0.34)(0.15) 640 480 131.25K

8
  • The average length has been reduced from 4 bits
    to 3.5 bits
  • It can be shown that with M gray levels, each
    with probability of P0, P1, .. PM-1 , The number
    of bits required to code them is at least

9
Huffman Coding
  • Technique 1 The Huffman Code
  • USE To reduce the space that an image uses on
    disk or in transit
  • OPERATION
  • Order the gray levels according to their
    frequency of use, most occurrence first
  • Combine the two least used gray levels into one
    group, combine their frequencies and reorder the
    gray levels

10
Huffman Coding
  • OPERATION (contd)
  • Continue to do this until only two gray levels
    are left
  • Now allocate a 0 to one of these gray-level
    groups and a 1 to the other
  • Work back through the groupings so that where two
    groups have been combined to form a new, larger,
    group which is currently coded as ccc
  • Code one of the smaller groups as ccc0 and the
    other as ccc1

11
Huffman coding example
  • Example For a nine-color system, we obtain the
    following coding
  • 0 100000 5 01
  • 1 10001 6 000
  • 2 101 7 1001
  • 3 001 8 100001
  • 5 11
  • Storage has improved from 190003 bits (57000)
    to 51910 bits.

12
(No Transcript)
13
Run Length Encoding
  • Technique 2 Run length encoding
  • USE To reduce the space required by an image
  • OPERATION
  • The run is encoded by creating pairs of values
    the first representing the gray level and the
    second how many of them are in the run

14
Run Length Encoding
  • Example image
  • giving a sequence 1 2 1 1 1 1 1 3 4 4 4 4 1 1
    3 3 3 5 1 1 1 1 3 3
  • (24 values)
  • with run length encoding
  • (1,1) (2,1) (1,5) (3,1) (4,4) (1,2) (3,3)
    (5,1) (1,4) (3,2)
  • this would give 1 1 2 1 1 5 3 1 4 4 1 2 3
    3 5 1 1 4 3 2
  • (20 values)

15
Run Length Encoding
  • Notes
  • Huffman coding can be performed after Run length
    encoding
  • It might be possible to implement the Huffman
    code only on the run lengths

16
Run Length Encoding
  • Contour Coding
  • Reducing the areas of pixels of the same gray
    levels to a set of contours that bound those
    areas
  • Consider the following image

17
(No Transcript)
18
(No Transcript)
19
Changing the Domain
  • Technique 3 Compression using the frequency
    domain
  • USE To reduce space required for an image
  • OPERATION
  • Convert the image to the frequency domain using
    FFT or FHT
  • Threshold this new image removing all values less
    than k

20
Changing the Domain
  • OPERATION (contd)
  • If what is left is significantly less than the
    original image, using one of the spatial region
    techniques, store the rest of the image
  • If it is not significantly less, increase k--
    more information will be lost

21
Quantizing Compression
  • Involves reducing number of gray levels
  • The easiest way is to divide all the gray levels
    by a factor
  • Technique 4 Quantizing compression
  • USE To reduce storage space by limiting number
    of colors or gray levels

22
Quantizing Compression
  • OPERATION
  • Let P be the number of pixels in an original
    image to be compressed to N gray levels
  • Create a histogram of the gray level in the
    original image
  • Identify N ranges in the histogram such that
    approximately P/N lie in each range
  • Identify the median (the gray level with 50 of
    the pixels in the range on one side of it and 50
    on the other) gray level in each range. These
    will be the N gray levels used to quantize the
  • Store the N gray levels and allocate to each
    pixel a group (0 to n -1) according to which
    range it lies in

23
Quantizing compression example
  • Consider the following image
  • which is to be compressed to 2 bits/pixel, i.e.
    N 4

24
Quantizing compression example
  • histogram
  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9

25
Quantizing compression example
  • 65 pixels, down to 4 gray levels 16.24 in each
    range. The best range are
  • 0
  • 13 1
  • 2
  • 3
  • 20 4
  • 5
  • 17 6
  • 7
  • 8
  • 15 9

26
Example Contd
  • With median gray levels 2,3,6 and 8, the new
    image become
  • Note that this technique is similar to the
    histogram equalization technique.

27
Fractal Compression
  • Fractal Compression
  • Yields 100001 compression ratio
  • Can also yield 10000001 compression ration with
    conventional algorithm added
  • Based on very simple functions to generate (in
    multi-dimensional space) highly complex and
    totally predictable pattern
  • Fractal graphics workstations a 640x480 VGA
    image requires 5800 bytes of storage

28
Real-Time Image Transmission
  • Compressing and sending a sequence of images in
    real-time
  • Most of real-time vision systems send many images
    of the same type before changing the image to a
    new scene
  • For example, most television program will dwell
    on a scene for at least 5 seconds

29
Real-Time Image Transmission
  • Approach the full first frame is sent, then only
    the differences of the next frames will be sent
  • Run length encoding or simple vector encoding can
    be used for data reduction
  • Example
  • 3 bits/pixel x 48 pixels
    144 bits/image

30
Example (contd)
  • If the first frame is sent, then the differences
    (mod 8) are now
  • vector encoded
  • (2,2)2, (2,5)5, (3,2)3, (3,5)5,
    (4,2)3, (4,5)6
  • 6 vectors, 6 bits/position, 4
    bits/difference 60 bits

31
Example (contd)
  • Modified run length encoded
  • 18 2 2 2 5 4 3 2 5 4 3 2
    6 10
  • 6 bits/0 count, 4 bits/difference 66 bits
  • Difficulties arise when the scene does change,
    then the information may be too much to be
    transmitted in one frame time
  • Solution The receiver has a series of buffers
    for images to be displayed. The differences image
    must take less than the minimum uncompressed
    frame time

32
Motion Prediction
  • The image may still have the same constituent
    parts but they may have all shifted in one
    direction
  • Technique 5 Block matching for motion
    prediction
  • USE Saving space by estimating what motion has
    occurred between past and present images, then
    only saving the changes.

33
Motion Prediction
  • OPERATION
  • 1. Tile off the latest frame into blocks
  • 2. Each of these blocks is then compared with
    blocks of the same size from the previous frame
    that are near in position to the block on the
    latest frame.
  • 3. This has to be done for all blocks in the
    latest frame. Then the best match (and the
    corresponding predicted movement vector) is
    determined. This is called full-search block
    matching

34
Motion Prediction
35
Quadtrees
  • A quadtree is a recursive segmenting of an image
    into four parts
  • A suitable compression method for an image that
    has large area of the same colored pixels and
    rectangular in character

36
Quadtrees
  • Operation
  • the original image is cut into 4 equal quarter
    images and theses are cut into four, and so on
  • consider each quarter image, break the image that
    has more than one color (non-homogeneous) and
    combine similar quarter
  • build a tree structure to store sub-images
    relationship
  • 2
  • 1
  • 2
  • 1 2 1
  • Image standard
  • .BMP, .PIC, .PCX, .PIG, .TIFF, .GIF, .JPG, etc.

37
Quadtrees
  • 2
  • 1
  • 2
  • 1 2 1

38
Standard Image File Format
  • .BMP
  • .PIC
  • .PCX
  • .PIG
  • .TIFF
  • .GIF
  • .JPG
  • etc.

39
Image Compression Exercise
  • Compare the compression of the following image
    using (a) Huffman coding (b) run length coding.
    The image has a gray level range of 0-7.
