Introduction to Engineering Dimensioning - 2

1

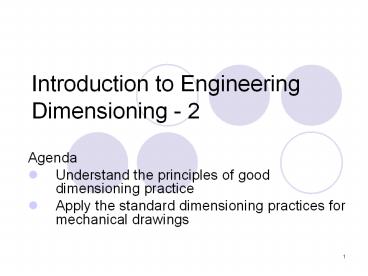

Introduction to EngineeringDimensioning - 2

• Agenda
• Understand the principles of good dimensioning
  practice
• Apply the standard dimensioning practices for
  mechanical drawings

2
Dimensioning

• Orthographic and isometric views define the shape
  and general features of the object
• Dimensioning adds information that specifies
• Size of the object
• Location of features (e.g. holes)
• Characteristics of features (e.g. depth and
  diameter of hole)
• Dimensions also communicate the Tolerance (or
  accuracy) required

3
Dimensions include notes for construction or
manufacturing

• Type of material to use
• How smooth or rough the surface should be
• Etc

4
Standards for Dimensioning

• Defined Standards have been developed
• Available from ANSI
• American National Standards Institute

5
Scaling vs. Dimensioning

• Drawings can be of different scales, but
  dimensions are ALWAYS at full scale.

6
Dimensioning - Terminology
(Study 4.2.1 and 4.2.2 of text, carefully)
7
Dimensioning - Text Height and Standard
Configurations
8
Dimensioning Basic Shapes -Assumptions

• Perpendicularity
• Symmetry

9
Dimensioning Basic Shapes -Simple Shapes

• Rectangular Prism (Principal Dimensions H,W,D)

D
W
H
10
Video on Dimensioning
11
Assignment

• Drawing 2
