Ahead, way ahead!

1

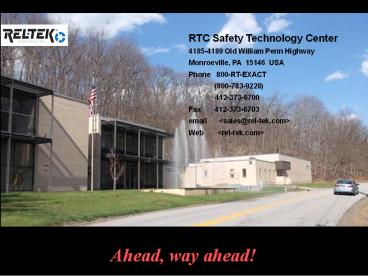

RTC Safety Technology Center 4185-4189 Old
William Penn Highway Monroeville, PA 15146
USA Phone 800-RT-EXACT
(800-783-9228) 412-373-6700 Fax
412-373-6703 email ltsales_at_rel-tek.comgt Web
ltrel-tek.comgt
Ahead, way ahead!
2
Gas/Oil Well --Leak Detection System
Higher-sensitivity NG sensors N-S-E-W gas/oil
well site coverage Precision detection,
covers all well gases No-maintenance MagiKal
auto-calibrates Reactive video
surveillance Solar/Battery powered
Off-site communications WiFi for on site
digital network Cell phone, land-line, or
20-mile radio Satellite link (NASA) off-site
Global access for Internet and
Email Rel-Tek has 36 yrs of NG monitoring
technology Supplied sensors to gas well since
96 Intrinsic Safety, Class I, Div 12
approvals Plus MSHA-approvals assure
durability All-weather design robust
components
WellBoss tm
3
WellBossTM Gas Detection System

• Unique features aid safety and eliminate
  maintenance cost
• Intrinsic Safety Class I, Div 12 approvals, NEC
  permits normal wiring.
• Wide-spectrum NG sensors -- methane, ethane,
  propane, hydrogen
• Proven over decades for life support in US
  coal mines.
• Expand system safety by adding toxic and smoke
  detectors.
• Monitors natural gas without the ethane
  exaggeration with optical sensors.
• MagiKal - automatic sensor calibration Computer
  scheduled and Cal-Now for 2- years, unattended.
• Rel-Tek has the first and only MSHA
  approval to use auto-cal in mines.
• AC plus 100W solar panel includes ample battery
  backup.
• PLC-Express controller monitors sensors, displays
  values, detects alarms, transmits messages.
• Spot-FireTM flame detectors can alarm by a
  candle at 60 ft in broad daylight.
• Global communications land-line, cell, radio,
  and satellite options via Internet.

WMATA, Wash, DC
4
Many Types of Rel-Tek Sensors
FireBoss NG and ToxiBoss CO sensors
Spot-FireTM flame detector

SmokeBossTM Optical Density
5
The Biggest Cost Savings of All ...!
Over stating your methane, greenhouse
gas emissions is not a good thing.

• Rel-Teks wide-spectrum GasBoss sensors properly
  account for all combustible constituents of NG,
  including methane, ethane, propane and hydrogen
  -- as they actually contribute to the LEL. There
  is no over-reaction to ethane.
• The ethane catastrophe was discovered by the
  British decades ago wherein optical sensors
  inherently overreact to ethane. The worlds coal
  mines use catalytic bead sensor technology to
  avoid such errors from optical (NDIR) devices.
• Optical (NDIR) sensors widely used on Marcellus
  gas wells typically over-react to the inevitable
  ethane content of NG, exaggerating the methane
  greenhouse gas emission by a factor of 20x. This
  is due to the huge optical footprint of ethane
  making just 1 ethane read as 20 methane.
• Solution Eliminate undeserved fines and
  assessments for ethane-inflated greenhouse gas
  (methane) emissions.
• Total cost savings can be very large figures,
  even exceeding the initial price.

6
Side-by Side Testing of NDIR and Cat-Bead Sensors
Using Methane with Methane/Ethane Mixtures
2.5 CH4 .25 Ethane
1.875 CH4 .1875 Ethane
NDIR Pegged at 96 LEL
Ref 2.5 CH4 No Ethane
1.25 CH4 .125 Ethane
.625 CH4 .0625 Ethane
Cat-Bead performs perfectly with
ethane. NDIR is bizarre -- high/low false
alarms
Rel-Tek NDIR Optical
Blue Red
NDIR has /- 18 transients
7
Cat-Bead and NDIR Sensors With Low-Level Methane
-- Shows 2.2 Noise Masking Used to Enhance NDIR
One minute
Cat-Bead Green
LEL
NDIR Blue
2.2 cut-off level for NDIR
8
Typical Well-Boss Oil/Gas Well Application
9
WellBossTM Gas/Oil Well Leak Detection System
Saves Lives Saves Money

• All good things
• Integrated, stand-alone gas and fire detection
  system
• NFPA approvals for Class I, Divisions 1 and 2,
  Group B, C and D , as required.
• Wide spectrum combustible and toxic hazard
  coverage 5 accuracy
• No ethane exaggeration true LEL reaction and
  alarming for all NG constituents
• Includes toxic sensors CO, plus H2S and SO2
  (also UL approved)
• Intrinsic safety approvals simplify installation
  and service NFPA-70
• Optional TV camera adds off-site video
  transmission covering any gas or fire alarm.
• MagiKal -- Fully automatic monthly calibration
  utility maintains accuracy at no cost.
• Extreme flame detection one candle at 60 ft
  test Immune to sun, lightning, headlights, etc.
• Local alarm annunciators loud warble horn and
  flashing strobe.
• 110VAC and 100W solar power -- two weeks of
  battery backup, rechargeable.
• Off-site communication data and display via
  phone or cell
• Optional satellite link via secure (NASA) global
  Internet On-line to office PC or cell phone
• Weatherproof design -- WiFi on-site networking
  UL MSHA approvals
• Two years of on-site gas detection operation,
  unattended, with annual inspection.
• Cost savings -- Pays back dividends recover
  initial cost in two years or less.
• Gas detection hardware and software are made in
  Monroeville, PA, USA.

800-783-9228
10
RTC Safety Technology Center 4185-4189 Old
William Penn Highway Monroeville, PA 15146
USA Phone 800-RT-EXACT
(800-783-9228) 412-373-6700 Fax
412-373-6703 email ltsales_at_rel-tek.comgt Web
ltrel-tek.comgt
Ahead, way ahead!
