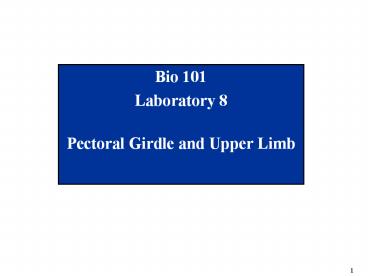

Bio 101

1

• Bio 101
• Laboratory 8
• Pectoral Girdle and Upper Limb

2
Objectives of Lab

• Become familiar with the bones and structures of
  the
• Pectoral girdle (clavicles, scapula)
• Upper limbs (humerus, radius, ulna, bones of
  hand)
• Know the definition of the major landmarks as
  they apply to the bones we cover today
• Be able to recognize the skeletal structures
  listed on your Laboratory Guide handout, Exercise
  8 and 9 (up to and including phalanges of hand
  for today)

3
Skeletal Organization
4
Landmarks of Bones

• Border Outer part or edge (lateral border of
  scapula)
• Epicondyle Projection situated above (proximal
  to) a condyle (lateral and medial humeral
  epicondyles)
• Tuberosity A rough, elevated surface, (deltoid
  tuberosity of humerus)

5
Landmarks of Bones

• Hiatus Opening gap or cleft (sacral hiatus)
• Notch Deep indentation or narrow gap in the
  edge of a structure (radial notch)
• Tubercle Small, knoblike process (lesser
  tubercle of humerus)
• Tuberosity A rough, elevated surface, (deltoid
  tuberosity of humerus)

6
Pectoral Girdle
7
The Clavicles
From Martini, Fundamentals of Anatomy
Physiology, 6th ed., Benjamin Cummings, 2004
8
Scapula
(Supra)scapular notch
Superior Border
Angle
Inferior Angle
Orientation
9
Scapula
Figure from Saladin, Anatomy Physiology,
McGraw Hill, 2007
10
Upper Limb
11
Humerus
Orientation
Radial fossa
Anterior, right
Posterior, right
12
Radius and Ulna
U shaped trochlear notch Ulna
Anterior, right
13
The Hand
Proximal phalanx
Distal phalanx
Right hand, palmer surface
Right hand, dorsal surface
14
The Carpals (Wrist)
Thumb is 1st metacarpal (anatomical position)
T
L
S
P
Right hand, palmer surface
T
C
T
H
Hook
Scared Lovers Try Positions That They Cannot
Handle
Scaphoid Lunate Triquetrum Pisiform Trapezium
Trapezoid Capitate Hamate
Lateral (Thumb side) -gt Medial
15
Hook of the Hamate
Remember, this will appear on the palmar surface
of the hand (like the pisiform)
16
What you should do in lab today

• Mariebs Laboratory Manual
• Pages 146 150.
• Handle the bones. Use your labeled figures as
  guides to the names of the bones and structures.
  Be sure to look at how these bones articulate in
  a skeleton.
• REVIEW THE SKULL AND VERTEBRAL COLUMN from last
  two labs!!
• Make no bones about it you should get tested on
  todays bones before you leave today! ?

17
What you should be able to do after lab today

• Know the names of all the bones and structures we
  covered today (in Laboratory Guide Exercises 8
  and 9 up to and including phalanges of hand
  only)
• Be able to give the definition of the bone
  landmarks described for todays and last the lab
• You should be able to recognize and distinguish
  disarticulated bones based on their unique
  characteristics!!

DONT GET BEHIND!! Theres a lot to know.
18
For next lab

• For Bones Pelvic Girdle and Lower Limb
• Read pp. 150 156 in Mariebs Lab Manual
• Suggestion Do Exercise Review Sheet 11, numbers
  1 through 6 for the bones of the pectoral girdle
  and upper limb youll do today.
