Sales Guide

1

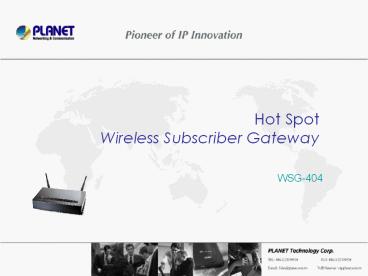

Hot SpotWireless Subscriber Gateway
WSG-404
2
Presentation Outline

• Product Overview
• Product Features
• Product Application
• Web UI
• Product Comparison

3
Product Overview

• Top Panel

Public LAN1 / LAN2 LED
Private LAN3 / LAN4 LED
Power LED
WAN LED
WLAN LED
4
Product Overview

• Rear Panel

WAN 10/100 Base-T x 1
Reset Button
Console RJ-11 x 1
12VDC IN
Private LAN3/LAN4 10/100 Base-T x 2
Public LAN1/LAN2 10/100 Base-T x 2
5
Product Overview

• Dimension
• 230 x 150 x 45.5 mm
• Weight
• 1.4 kg
• Environmental Spec.
• Operating Temperature Humidity
• 5 45 degree C / 10 80 (non-condensing)
• Storage Temperature Humidity
• -25 55 degree C / 5 90 (non-condensing)
• Power Consumption
• 15 VDC, 1.5A

6
Product Overview

• The Account Generator WSG-ACG4

Cover
Enter Button
Power Switch
Feed Paper Button
DB25 Connector
Function LED
RJ-11 Connector
Power LED
DC Power IN
Function Selection Button
7
Product Features

• Ideal Hot Spot solution
• Via the integrated 802.11g wireless
  interface, mobile users can establish high speed
  Internet access without any configuration.
• Zero configuration (Plug-n-Play) Internet access
• WSG-404 translates proper IP address
  information for Internet access. Subscribers
  wont feel the difference, and no need to face to
  the inconvenience of IP reconfigurations.
• Built-in proprietary AAA mechanism and billing
  system
• WSG-404 integrates Web-based
  Authentication, selective Web-based Accounting,
  and proprietary billing mechanism, which can help
  you to prepare a billing mechanism in a very
  short time and bring most convenience, the least
  efforts for billing applications.

8
Product Features

• RADIUS AAA support
• WSG-404 provides standard based Radius
  Client to communicate with any standard based
  Radius server, in order to support AAA
  (Authentication, Authorization and Accounting).
• Exclusive Printer Accounting (Optional)
• Machine operators may customize the
  printout information for different billing
  application.
• Security and Firewall
• With built-in WEP Encryption, subscriber
  SSL Login Page / Admin Page, VPN (IPSec/PPTP)
  Pass throughvarious security features, WSG-404
  bring you an ease-of-use and most comfort safe
  Internet access environment.

9
Product Features

• Ease-of-Use and Management
• The built-in web management interface in
  WSG-404 brings most convenience to system
  administrators or machine operators.
• Virtual Server DMZ Capability
• The standard and user-defined Virtual
  server gives the WSG-404 has the most flexibility
  to share local resources like Email, FTP or HTTP
  servers to the Internet in a more secure way. The
  DMZ (De-Militarized Zone) capability helps LAN
  users to act like an independent Internet node
  that communicates to the Internet in both
  directions while maintaining security for LAN
  users.

10
Product Application
Plug-and-Play Internet AccessWSG-404s unique IP
PlugPlay (IP PnP) technology allows subscribers
to connect with ease for broadband access without
having to re-configure any of their device IP
settings including DHCP, DNS, Proxy and dynamic
and static IP address assignments.
xDSL/Cable Modem
WSG-404
Dynamic IP
Fixed Global IP
Fixed Private IP
DHCP Client
HTTP Proxy
11
Product Application
Multiple Authentication Methods Local user ,
On-demand user, RADIUS, POP3(s), LDAP, NT Domain.
LDAP / AD
POP3 / POP3s
Secondary AAA server
12
Product Application

• Can be installed _at_
• Campus, library
• Cyber Café
• Public area such as Restaurant / Hotel / Airport
• Enterprise office / guest room

13
Web UI Home page

• Main Function
• System Configuration
• User Authentication
• Network Configuration
• Utility
• Status

14
Web UI Authentication
Authentication Configuration Enable and
configure the Authentication Servers.
15
Web UI On-Demand User Server

• On-Demand User
• Server Configuration
• User List
• Billing Configuration
• Create On-demand User
• Billing Report
• Credit Card

16
Web UI On-Demand Accounts
You have two ways to choose the accounts 1.
Clicking the button on the Account Generator
Printer connected with WSG-404s Printer port. 2.
Clicking the create button from the Web-based
Account Operator.
Click

• 10 Billing Plans support

17
Web UI Login Page
User Login Page
Username ?????? Password ??????
SSL Login Page Support
Successful Page
18
Product Comparison Internal
Model WSG-404 WSG-403 WSG-402
Hardware Hardware Hardware Hardware
CPU Intel IXP 420 Intel IXP 420 Intel IXP 422
SDRAM 64M 64M 16M
FLASH 32M 16M 4M
Dimension (W x D x H) 230 x 150 x 45.5 mm 242 x 131 x 77 mm 242 x 131 x 77 mm
WAN Port 1x 10/100Mbps 1x 10/100Mbps 1x 10/100Mbps
LAN Port 4x 10/100Mbps 4x 10/100Mbps 4x 10/100Mbps
Wireless Port Built-in 802.11g 54Mbps Wireless AP, Antenna detachable with RP-SMA connector Built-in 802.11g 54Mbps Wireless AP, Antenna detachable with RP-SMA connector Built-in 802.11g 54Mbps Wireless AP, Antenna detachable with RP-SMA connector
Printer Port 1x RJ-11 port for thermal printer, WSG-ACG4 RJ-45 port for thermal printer, WSG-ACG3 1x RS-232 port for thermal printer, WSG-ACG
Regulatory Compliance FCC, CE Class B FCC, CE Class B FCC, CE Class B
Power 12V DC, 1.5A external power adapter 5VDC, 2.0A, external power adapter 5VDC, 2.0A, external power adapter
RoHS Compliance Yes Yes No
19
Product Comparison Internal
Software Software Software Software
Maximum Concurrent users 50 50 50
Management Web, Console Web Web
Internet Connection Type Static IP, DHCP, PPPoE, PPTP Static IP, DHCP, PPPoE, PPTP Static IP, DHCP, PPPoE, PPTP
Dynamic DNS Yes Yes Yes
Any IP Connection (IP PnP) Yes Yes Yes
Proprietary Authentication Server Yes Yes Yes
RADIUS Authentication Yes Yes Yes
Local user Authentication Yes No No
POP3 Authentication Yes No No
NT Domain Authentication Yes No No
LDAP Authentication Yes No No
20
Product Comparison Internal
Billing profile and Price plan Yes Yes Yes
Exclusive printer Accounting Yes Yes Yes
Web-based Accounting Yes Yes Yes
Credit card Support Yes Yes Yes
SMTP Redirection Yes Yes Yes
Walled Garden Yes Yes Yes
Customized Login Page Yes Yes Yes
DMZ Yes No No
SNMP V2 Yes No No
Target Customers Internet connecting services for Internet Gaming room, Cyber Café, Wireless Hot spot Internet connecting services for Internet Gaming room, Cyber Café, Wireless Hot spot Internet connecting services for Internet Gaming room, Cyber Café, Wireless Hot spot
21
Product Comparison External
Model PLANET WSG-404 ZyXEL G-4100 D-LINK DSA-3200
Hardware Hardware Hardware Hardware
Dimension (W x D x H) 230 x 150 x 45.5 mm 212.5 x 138.5 x 52 mm 234 x 160 x 35 mm
WAN Port 1x 10/100Mbps 1x 10/100Mbps 1x 10/100Mbps
LAN Port 4x 10/100Mbps 4x 10/100Mbps 4x 10/100Mbps
Wireless Port Built-in 802.11g 54Mbps Wireless AP, Antenna detachable with RP-SMA connector Built-in 802.11g 54Mbps Wireless AP, Antenna detachable with REV-SMA connector Built-in 802.11g 54Mbps Wireless AP, Antenna detachable with R-SMA connector
Printer Port 1x RJ-11 port for thermal printer, WSG-ACG4 1x RS-232 port for thermal printer, SP-200 1x RS-232 port for thermal printer, DSA-3100P
Regulatory Compliance FCC, CE Class B FCC, CE-EMC, C-Tick Class B FCC, CE Class B
Power 12V DC, 1.5A external power adapter 5VDC, external power adapter 5VDC, 3.0A, external power adapter
22
Product Comparison External
Software Software Software Software
Maximum Concurrent users 50 Unlimited, estimated 50 50
Management Web, Console Web Web, Console
Internet Connection Type Static IP, DHCP, PPPoE, PPTP Static IP, DHCP, PPPoE, PPTP Static IP, DHCP, PPPoE, PPTP
Dynamic DNS Yes Yes Yes
Any IP Connection (IP PnP) Yes Yes Yes
Proprietary Authentication Server Yes Yes Yes
RADIUS Authentication Yes Yes Yes
Local user Authentication Yes No Yes
POP3 Authentication Yes No No
NT Domain Authentication Yes No No
LDAP Authentication Yes No No
23
Product Comparison External
Billing profile and Price plan Yes Yes Yes
Exclusive printer Accounting Yes Yes Yes
Web-based Accounting Yes Yes Yes
Credit card Support Yes Yes Yes
SMTP Redirection Yes Yes Yes
Walled Garden Yes Yes Yes
Customized Login Page Yes Yes Yes
DMZ Yes No Yes
SNMP V2 Yes No Yes
Target Customers Internet connecting services for Internet Gaming room, Cyber Café, Wireless Hot spot Internet connecting services for Internet Gaming room, Cyber Café, Wireless Hot spot Internet connecting services for Internet Gaming room, Cyber Café, Wireless Hot spot
24
Pioneer of IP Innovation
PLANET Technology Corp.
