A Software Skeleton for the Full Front-End Crate Test at BNL

1

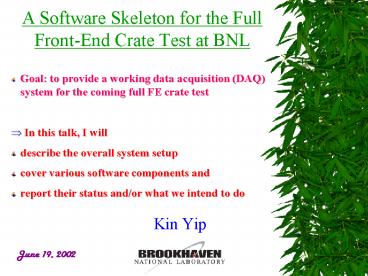

A Software Skeleton for the Full Front-End Crate
Test at BNL

• Goal to provide a working data acquisition (DAQ)
  system for the coming full FE crate test
• In this talk, I will
• describe the overall system setup
• cover various software components and
• report their status and/or what we intend to do

• Kin Yip

2
(No Transcript)
3
DAQ-1
trigger
FE Crate
Trigger Tower Board
Calib. board
trigger
veto
PU
FEB
Read?Out Card
VME
memory
Host 2
Signal from a pulser (triggered by TTC)
Data (through optical link)

• Host 2 single board in the same crate as the
  Read Out Card is a diskless node booted from
  Host 1 through the network

4
Control Crate (Wiener VME with CERN extension)

• To control Workstation ? Control Crate ?
  configure various boards in
• the FEC
• By using a PCI/VME bridge Bit3, the PCI bus on
  the workstation maia and the remote VMEbus in
  the Control Crate share memory and I/O
• Programmed IO (PIO)
• Dynamic Memory Access (DMA)
• We have upgraded the operating system and the
  software driver for Bit3 (now from SBS). We have
  tested
• PIO ? 3 MBytes per second
• DMA 15-16 Mbytes per second ? the obvious way
  to go
• PTG (Pulse Trigger Generator, BNL-made) has been
  used to generate triggers in this new set of OS
  and Bit3 driver.
• Other electronic components including TTC (with
  TTCvx and TTCvi) and the SPAC will have to be
  integrated into this system.

5
Read-Out Crate Wiener VME (9U/6U)

• Different from before, the CPU (VMIC) board is in
  the same crate as the electronic boards (2
  Read-Out Cards)
• Similarly, there is also a PCI/VME bridge
  Tundra-Universe that we have used to allow the
  CPU board to communicate with the electronic
  boards through the VME backplane
• We have also upgraded the operating system and
  the software driver for this PCI/VME bridge. We
  have also tested
• DMA 15-16 Mbytes per second
• PIO almost the same as above
• We will have to develop the software to configure
  and read from the two Read-Out Cards when they
  are available, presumably with the help from the
  board maker ? in a similar way that we have done
  with the ROD Demo Board

6
Two controllers in two different crates
7
Controlling trigger rate
8
Data volume and storage

• A very rough estimate
• No. of channels 16 ? 128 2048
• 128 channels ? 2 K bytes
• 16 FEB ? 32K bytes per event
• In a very rough estimation, if we take about 100
  K events a day for 5 months, we will end up with
  500 GB of data.
• Well use Magda (a distributed data manager
  prototype for Grid-resident data developed at
  BNL) to manage data transfer and storage
• http//atlassw1.phy.bnl.gov/magda/info
• We have tested and transferred data from our
  workstation through the USATLAS cluster to the
  HPSS (High Performance Storage System) at BNL.
• The automatic procedures require two endless
  loops, one in our workstation (the one connected
  to the Control Crate) and one in the USATLAS
  cluster that has the appropriate read/write
  privilege from/to the HPSS
• If desirable, we can replicate the data from BNL
  to CERN (Castor) which is said to have a cost of
  2 SF per Gbyte.

9
Event Monitoring in DAQ-1

• Basically, the Event Sampler process/interface
  in DAQ-1 gets the data and pass the data to the
  Monitoring Task process/interface
• The Monitoring Task would unpack the data and
  analyze to produce, say, (Root) histogram and
  then
• use the Histogram Provider to publish the
  histograms
• The User Histogram Task would receive the
  histogram so that any user can examine

10
(No Transcript)
11
Possible realistic monitoring plots
12
Data format, channel mapping and analysis

• Data format will be essentially whatever the
  Read-Out Card maker provides
• Each run will start with a new file and the run
  no. is part of the filename
• We expect to have some configuration information
  in the header/trailer
• For Channel mapping, we want to put the mapping
  in the database and I have started with the one
  in Athena
• We have to take care of all the hardware
  components such as FeedThrough, preamplier,
  motherboard etc.
• Anaysis code in the framework of a simple C
  program will materialize at the debugging stage,
  as we need to check whether the data read out is
  correct, just like what happened to the ROD Demo
  exercise
• For the general users, we provide the I/O
  unpacking routine and 3 stage skeleton interface,
  namely, initialization, execution and
  finalization so that the users can develop their
  analysis code easily in this framework

13
Runbook, Bookkeeping and DCS

• Through the Web and Database server, we will
  provide the Runbook from which users may search
  for the system configuration for each run.
• We will set up a simple report logging system for
  the run shifters to write down their concern or
  any special features or problems at certain run
  or time.
• We will probably use the OBK (Online BookKeeing)
  feature in the DAQ-1 as it has easy access to all
  the run information.
• The OBK experts have promised to provide an
  updated version which provides a Web-based
  interface.
• In any case, the information will be available
  through the Web server
• The DCS (Detector Control System) measurements
  taken from the FEC will be done asynchronously
  with respect to the rest of data acquisition
• We have sent a PC to CERN and the DCS software
  system is being set up
• We have to figure out what parameters we need to
  measure
• The DCS information will be transferred to the
  Database and Web servers so that it is readily
  available to all users
