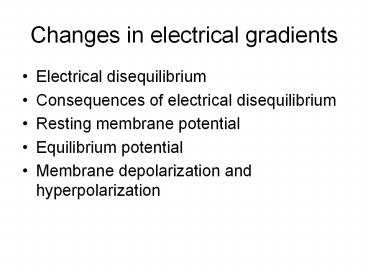

Changes in electrical gradients

• Electrical disequilibrium
• Consequences of electrical disequilibrium
• Resting membrane potential
• Equilibrium potential
• Membrane depolarization and hyperpolarization

2
Cell in the body are

• In chemical disequilibrium
• In osmotic equilibrium
• In electrical disequilibrium few extra negative
  ions inside cells and their matching positive
  ions are outside

3
Na Cl- Organic Anions K
Na Cl- Organic anions K
Distribution of main ions
4
3 Na
Na Cl- Organic Anions K
Na Cl- Organic anions K
ATPase
2 K
Anionic proteins are trapped Inside the cell
Electrical disequilibrium across the cell
membrane ? membrane potential difference
5
How does electrical charge separation occur?
6
The cell membrane Is an insulator
There are more positive charges outside and more
negative charges inside
7
Na Cl- Organic Anions K
Na Cl- Organic anions K
Electrochemical gradient is a combination of the
electrical and chemical gradients
8
Electrochemical gradient

• Electrical gradients and chemical gradients
  across the cell membrane
• Electrical force moves K into the cell (cell has
  more neg. charges)
• Chemical gradient favors K to leave the cell (K
  concentration is low outside)
• These forces reach a steady state

9
Membrane Resting Potential

• The voltage difference across the cell membrane
  when there is an electrochemical gradient at a
  steady state
• There is a voltage difference between the inside
  and the outside (potential difference)

10
The value for the resting membrane potential
11
Membrane Potential

• Vm is the membrane potential (millivolts)
• Resting membrane potential for nerves and muscles
  is -40 mV to -90 mV
• The resting membrane potential is determined by
  K

12
K channels are open during the resting membrane
potential.
13
If K channels are open.
14
Equilibrium Potential

• The membrane potential when the channels for a
  particular ion are open is called the equilibrium
  potential for that particular ion.
• At EK the rate of ions moving in due to the
  electrical gradient equals the rate of ions
  leaving because of the concentration gradient.
• EK is close to the resting membrane potential

15
Factors that are important for the equilibrium
potential for an ion

• Only channels for that ion are open
• The charge of the ion
• Concentration of the ion inside the cell
• Concentration of the ion outside the cell

16
At the equilibrium potential for Na
Artificial cell, Na is leaving because the
inside became after the inward Movement of Na
17
Currents during resting membrane potential
K outward current is much stronger than Na
inward current. Lots of K channels are open,
few Na channels are open at rest.
