Title: Chapter 2 Minerals


1

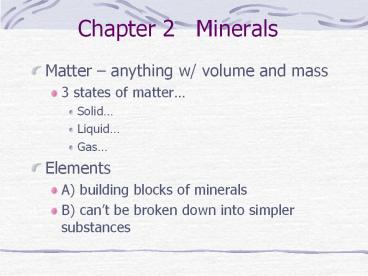

Chapter 2 Minerals
  • Matter anything w/ volume and mass
  • 3 states of matter
  • Solid
  • Liquid
  • Gas
  • Elements
  • A) building blocks of minerals
  • B) cant be broken down into simpler substances

2
  • C) each element represented by 1-2 letters
  • D) 8 elements make up most of earths crust.
  • Metals malleable, ductile, good conductors of
    heat/electricity
  • left side of periodic table
  • Non-metals brittle and poor conductors
  • right side of the periodic table

3
(No Transcript)
4
Atoms
  • Atom the first man
  • Atom smallest particle of matter that contains
    the characteristics of the element
  • Are neutral
  • Equal s protons and electrons

5
Atom Parts
  • Protons positively charged
  • 1 amu mass
  • Found in nucleus
  • Neutrons no charge (neutral)
  • 1 amu mass
  • Found in nucleus
  • Electrons negatively charged
  • Very little mass
  • Outside of nucleus in energy levels

6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
  • Each peak is 7 nm across

11
  • C2(CN)4

12
  • Atomic number of protons in the nucleus
  • Sequentially numbered
  • Mass number - of protons and neutrons in the
    nucleus
  • Isotope atom with same of protons but a
    different of neutrons
  • Used for dating rocks/fossils/etc
  • EX 12C and 14C
  • Ion atoms that gained or lost electrons giving
    them a charge ( or -)

13
(No Transcript)
14
Mixtures, Solutions, Compounds
  • Mixture combination of substances
  • Dont lose identities (of components)
  • Easy to separate components
  • Not in a set ratio
  • Solutions special type of mixture
  • Compounds 2 or more elements chemically
    combined
  • Components lose their identity
  • Components cant be separate out easily
  • Components in a specific, set ratio

15
Atomic Bonds
  • Atoms without a full outer energy level are
    likely to bond chemically. 3 types
  • Ionic formed when electrons are transferred
    between atoms
  • - between metals and non-metals
  • Covalent when electrons are shared between the
    atoms of non-metals
  • Metallic when electrons are shared by metal
    ions.

16
Minerals
  • 5 characteristics
  • Naturally occurring (not man-made)
  • Solid at normal surface temperatures
  • Inorganic (not from living things)
  • Definite and orderly crystal structure
  • Definite chemical composition

17
Mineral Formation
  • Crystallization from magma
  • From cooling magma
  • Precipitation from water
  • Like evaporated salt water
  • Pressure and temperature
  • Forms new minerals (metamorphism)
  • Hydrothermal solutions
  • From hot solutions

18
Mineral Groups
  • Silicates
  • Most common group
  • Must contain silicon and oxygen
  • Silicon-oxygen tetrahedron (SiO4)
  • Non silicates
  • Cannot contain both silicon and oxygen
  • Much less common
  • 6 subgroups
  • Carbonates, oxides, sulfates, sulfides, halides,
    native elements

19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
Mineral Properties
  • Color its color!
  • Poor test alone
  • Minerals may be many colors
  • Many minerals can be the same color
  • Streak color of the powdered mineral
  • Produced by rubbing mineral on the streak plate
  • Cleavage tendency of a mineral to cleave
    (split) along flat, even surfaces
  • Fracture jagged, uneven breaking of a mineral

32
Mineral Properties
  • Luster the way light reflects from its surface
  • Metallic
  • Non-metallic
  • Glassy (vitreous)
  • Pearly
  • Earthy
  • Greasy
  • waxy

33
Mineral Properties
  • Crystal form geometric shape of minerals
  • Density the ratio of its mass to its volume
  • Hardness resistance of a mineral to being
    scratched, like, dude, scratchability
  • Mohs hardness scale from 1 10
  • See table page 52talc, quartz, diamond
  • Fingernail 2.5
  • Penny 3.5
  • Glass plate 5.5
  • Streak plate 7

34
Unusual Mineral Properties
  • Taste salty (halite)
  • Smell rotten eggs (sulfur)
  • Feel greasy/slick (talc, graphite)
  • Writes on paper (graphite)
  • Magnetic magnetite (lodestone)
  • Radioactive triggers a Geiger counter,
    (uranium)
  • Reactive reacts with HCl acid (calcite)
  • Double refraction see 2 images through it
    (calcite Icelandic spar)
  • Optical fiber can see through it (ulexite TV
    rock)
  • Fluorescent changes color under UV light
    (fluorite)
  • Gemstones precious or semi-precious, page 56/57
