Title: Software Engineering Principles


1

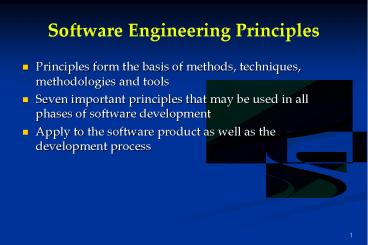

Software Engineering Principles
  • Principles form the basis of methods, techniques,
    methodologies and tools
  • Seven important principles that may be used in
    all phases of software development
  • Apply to the software product as well as the
    development process

2
Key principles
  • Rigor and formality
  • Separation of concerns
  • Modularity
  • Abstraction
  • Anticipation of change
  • Generality
  • Incrementally

3
Rigor and formality
  • Software engineering is a creative design
    activity, BUT It must be practiced systematically
  • Rigor is a necessary complement to creativity
    that increases our confidence in our developments
  • Formality is rigor at the highest degree

4
Examples Rigor and formality
  • Product
  • Formal-Mathematical analysis of program
    correctness
  • Rigorous-Systematic test data derivation
  • Process
  • Rigorous- detailed documentation of each
    development step in waterfall model
  • Formal- automated transformational process to
    derive program from formal specifications

5
Separation of concerns
  • To dominate complexity, separate the issues to
    concentrate on one at a time
  • "Divide conquer"
  • Supports parallelization of efforts and
    separation of responsibilities

6
Examples
  • Process Go through phases one after the other as
    in waterfall Model
  • Do separation of concerns by separating
    activities with respect to time
  • Product Keep different types of product
    requirements separate
  • Functionality discussed separately from the
    performance constraints

7
Modularity
  • A complex system may be divided into simpler
    pieces called modules
  • A system that is composed of modules is called
    modular
  • Supports application of separation of concerns
  • when dealing with a module we can ignore
    details of other modules

8
Modularity Cohesion and coupling
  • Each module should be highly cohesive
  • module understandable as a meaningful unit
  • Components of a module are closely related to
  • one another
  • Modules should exhibit low coupling
  • modules have low interactions with others
  • understandable separately

9
An Example
10
Abstraction
  • Identify the important aspects of a phenomenon
    and ignore its details
  • Special case of separation of concerns
  • The type of abstraction to apply depends on
    purpose
  • Example the user interface of a watch (its
    buttons) abstracts from the watch's internals for
    the purpose of setting time other abstractions
    needed to support repair

11
Anticipation of change
  • Ability to support software evolution requires
    anticipating
  • potential future changes
  • It is the basis for software evolvability

12
Generality
  • While solving a problem, try to discover if it is
    an instance of a more general problem whose
    solution can
  • be reused in other cases
  • Sometimes a general problem is easier to solve
    than a special case
  • Carefully balance generality against performance
    and cost

13
Incrementality
  • Process proceeds in a stepwise fashion
    (increments)
  • Examples (process)
  • deliver subsets of a system early to get early
    feedback from expected users, then add new
    features incrementally
  • deal first with functionality, then turn to
    performance

14
Process A Generic View
15
A Layered Technology
Software Engineering
tools
methods
process model
a quality focus
16
A Process Framework
Process framework Framework activities work
tasks work products milestones deliverables QA
checkpoints Umbrella Activities
17
Framework Activities
  • Communication
  • Planning
  • Modeling
  • Analysis of requirements
  • Design
  • Construction
  • Code generation
  • Testing
  • Deployment

18
Umbrella Activities
  • Software project management
  • Formal technical reviews
  • Software quality assurance
  • Software configuration management
  • Work product preparation and production
  • Reusability management
  • Measurement
  • Risk management

19
The Process Model Adaptability
  • the framework activities will always be applied
    on every project ... BUT
  • the tasks (and degree of rigor) for each activity
    will vary based on
  • the type of project
  • characteristics of the project
  • common sense judgment concurrence of the project
    team

20
The CMMI
  • Capability Maturity Model Integration (CMMI)
    developed by The Software Engineering Institute
    (SEI)
  • The CMMI defines each process area in terms of
    specific goals and the specific practices
    required to achieve these goals.
  • Specific goals establish the characteristics
    that must exist if the activities implied by a
    process area are to be effective.
  • Specific practices refine a goal into a set of
    process-related activities.

21
The CMMI
  • Level 0 Incomplete - Process goals not satisfied
  • Level 1 Performed - Process goals satisfied
  • Level 2 Managed - Process areas conforms to
    organizationally defined policy, resources are
    available, work tasks are monitored
  • Level 3 Defined - Tailored according to the
    organizations standard processes
  • Level 4 Quantitatively managed - Quantitative
    assessment
  • Level 5 Optimized - Processes are optimized

22
Process Patterns
  • Process patterns define a set of activities,
    actions, work tasks, work products and/or related
    behaviors
  • A template is used to define a pattern
  • Typical examples
  • Customer communication (a process activity)
  • Analysis (an action)
  • Requirements gathering (a process task)
  • Reviewing a work product (a process task)
  • Design model (a work product)

23
Process Assessment
  • The process should be assessed to ensure that it
    meets a set of basic process criteria that have
    been shown to be essential for a successful
    software engineering.
  • Many different assessment options are available
  • SCAMPI
  • CBA IPI
  • SPICE
  • ISO 90012000

24
Assessment and Improvement
25
Personal Software Process (PSP)
  • Recommends five framework activities
  • Planning
  • High-level design
  • High-level design review
  • Development
  • Postmortem
  • stresses the need for each software engineer to
    identify errors early and as important, to
    understand the types of errors

26
Team Software Process (TSP)
  • Each project is launched using a script that
    defines the tasks to be accomplished
  • Teams are self-directed
  • Measurement is encouraged
  • Measures are analyzed with the intent of
    improving the team process

27
The Primary Goal of Any Software Process High
Quality
Remember High quality project
timeliness Why? Less rework!
