L 36 Modern Physics [2]

1

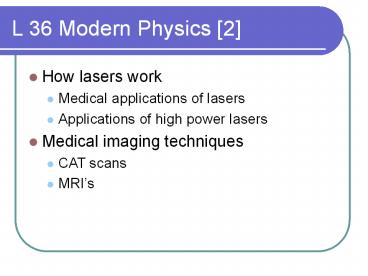

L 36 Modern Physics 2

• How lasers work
• Medical applications of lasers
• Applications of high power lasers
• Medical imaging techniques
• CAT scans
• MRIs

2
How lasers work

• First we must understand the difference between
  incoherent and coherent radiation
• Ordinary light sources (light bulbs, fluorescent
  lights, etc) produce incoherent light
• lasers produce coherent light? all atoms
  radiate in the same manner

3
Spontaneous vs Stimulated Emission

• Coherent radiation is produced when an atom
  undergoes stimulated emission.
• Spontaneous emission occurs when an electron
  makes an unprovoked transition to a lower energy
  level
• Stimulated emission occurs when an incoming
  photon induces the electron to change energy
  levels? amplification

4
Simulated emission

• With stimulated emission, one photon comes in and
  its vibrations cause the electron to fall to the
  lower energy level, emitting another photon (the
  bridge)
• Thus, one photon goes in and 2 come out, moving
  in step and in the same direction
• To get a system of atoms to undergo lasing
  action, we must arrange to have many atoms in the
  excited state ? this is called population
  inversion.

5
Population Inversion

• In a normal situation (a) more atoms are in the
  lower state than the upper state
• If an external energy source is provided to
  excite electrons into a higher energy state, a
  population inversion can be created as in (b)
• this is called pumping

6
The laser medium

• The atoms are pumped into an excited state
• The excited electrons fall into an intermediate
  state (upper laser state) and stay there until a
  photon comes along and causes them to fall down
  to the lower laser state.

7
He Ne Laser (633 nm red)

• A HeNe laser is a gas laser which uses a medium
  of 15 Helium and 85 Neon.
• A high voltage discharge is produced in this gas
  mixture and this produces the population
  inversion.
• The lasing action starts when one atom emits a
  photon which then induces another atom to emit
  and so on.
• The partially silvered mirror keeps most of the
  photons in.
• Photons which are not moving horizontally do no
  become part of the laser beam.

8
A Helium-Neon (HeNe) Laser
9
Medical Applications of Lasers

• Laser surgery to correct for
• nearsightedness, and
• farsightedness

10
Applications of High Power Lasers
Using lasers to Cut metals
11
Laser Fusion
Multiple beams of a powerful laser are focused on
a tiny pellet containing fusion fuel. The laser
energy compresses the pellet producing a
mini-hydrogen bomb that produces energy
12
pellet
13
Solid State Laser Diodes
small
Come in a variety of different colors
14
Lasers Diodes

• Diode lasers use semiconductor materials (tiny
  chips of silicon) as the lasing media
• When current flows through the silicon chip it
  emits an intense beam of coherent light.
• Diode lasers are used to read the information
  embedded in the pits in CDs and DVDs, and also
  to read UPCs in bar code scanners and in laser
  pointers!

15
Medical Imaging Techniques

• x-rays
• CT and CAT scans (Computerized Tomography)
• MRIs (Magnetic Resonance Imaging)

16
X-rays

• very short wavelength (0.01 0.1 nm)
  electromagnetic waves
• produced when energetic electrons slam into a
  metal target
• able to penetrate soft tissue, but not bone
• produces a two dimensional shadow image

17
A pineapple and a bananna

• A shadow image can be misleading
• two shadows taken from different angles provides
  a better picture
• shadows taken at multiple angles gives a more
  complete picture
• this is what a CT or CAT scan does

18
CAT Scans
X ray images are taken at many different
angles passing through the patient. Some of the
cuts overlap. A full three dimensional image can
be reconstructed using computers. ? this
procedure is called tomography.
19
Computerized Tomography

• A computerized tomography or CT scan image is
  formed by analyzing x-ray shadow images taken at
  many different angles and positions
• an x-ray source and an array of electronic
  detectors rotates around the patient as the
  patient slowly moves through the ring.

20
Is there a better medical diagnostic?

• A CAT scan does a good job of imaging bones, but
  it does not provide as good an image of soft
  tissue
• Also, it requires that the patient receives a big
  dose of x-rays, which can be harmful in
  themselves ? it is an invasive diagnostic
• Magnetic resonance imaging (MRI) is a better
  method of imaging soft tissue

21
MRI- how does it work?

• MRI works by locating the hydrogen atoms inside
  the body. Since the body is mostly water, there
  are lots of hydrogen atoms
• the nucleus of a hydrogen atom is a single
  protons. Protons behave like tiny bar magnets
  with a north pole at one end and a south pole at
  the other end.
• If you put a bar magnet in a magnetic field, it
  will try to align itself with the field.

22
A bar magnet in a magnetic field
magnetic field
Solenoid for producing a strong magnetic field
by passing a large current through a set of coils
23
Magnetic Resonance Imaging

• The rules of atomic physics (quantum mechanics)
  require that the atomic hydrogen bar magnets can
  only have 2 orientations when placed in a
  magnetic field ? either parallel or antiparallel
  to it, we call this spin-up or spin-down

24
Magnetic Resonance

• Protons has a spin that can be either up or
  down relative to the direction of the magnetic
  field
• If radio waves (FM) hit the protons, it can
  cause it them to flip from one spin state to the
  other at a frequency that depends on the strength
  of the magnetic field
• These spin flips result in the absorption or
  release of radio wave energy that can be detected
  electronically

25
Magnetic Resonance Imaging

• In effect, the magnetic field makes the protons
  act like tiny radio transmitters that only
  broadcast their signal when the value of the
  magnetic field is just right
• By varying the strength of the magnetic field as
  a function of position in the body, the spin
  flips can be detected in various parts of the
  body
• A computer is used to combine the signals from
  various parts of the body to generate detailed
  cross-sectional images

26
MRI DEVICE
Homer
27
MRI safety considerations

• The magnetic field used in MRI are very strong
  30,000 times the strength of the earths magnetic
  field.
• Because the magnet coils are cooled to liquid
  helium temperatures, they are usually kept on all
  the time
• Because the magnetic field is on, all iron and
  steel objects must not be allowed to enter the
  room. http//www.mercola.com/2001/aug/15/mri.htm
