Title: An Introduction to Software Engineering


1
An Introduction to Software Engineering

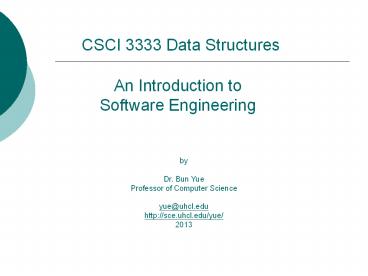

CSCI 3333 Data Structures
by Dr. Bun Yue Professor of Computer
Science yue_at_uhcl.edu http//sce.uhcl.edu/yue/ 201
3
2
Acknowledgement
  • Krishani Abeysekera
  • Wei Ding
  • Charles Moen

3
What is Software Engineering?
  • IEEE definition Software Engineering (1) The
    application of a systematic, disciplines,
    quantifiable approach to the development,
    operation, and maintenance of software that is
    the application of engineering to software. (2)
    The study of approaches as in (1).

4
System Cost
  • The relative cost of hardware and software
    changed drastically in the last 60 years.

Cost
hardware
software
Time
5
Consequences
  • Cost
  • Software cost ?
  • Hardware cost ?? Moores Law, much faster.
  • Earlier day optimizing hardware usage.
  • Assembly language
  • C
  • Software to sell big iron
  • Y2K

6
System Speed
  • Moore Law for hardware.
  • No Moore Law for software?
  • Cloud computing.
  • Wirth Law software speed is decreasing more
    quickly than hardware speed is increasing.
  • This is why efficient programs are always needed.

7
Consequences
  • Hardware is now relatively free?
  • Selling software, not hardware Microsoft.
  • Some software is becoming relatively free?
  • Selling service, advertisement instead of
    software Google.

8
Software Crisis (1965-1985)
  • Budget and Cost Overrun
  • Cancelled Projects
  • Damaged properties
  • Injury and death

9
Software Life Cycle Models
Software Engineering
  • Abstraction of the software life cycle
  • Some examples
  • Waterfall model (Royce)?
  • Spiral model (Boehm)?
  • Rational Unified Process (Booch, Jacobson,
    Rumbaugh)?
  • Extreme Programming
  • SWEN 4432 Software Engineering

10
Waterfall Model
  • In Royce's original waterfall model, the
    following phases are followed perfectly in order
  • Requirements specification
  • Design
  • Construction (aka implementation or coding)
  • Integration
  • Testing and debugging (aka verification)
  • Installation
  • Maintenance

11
Waterfall Model 2
  • Some drawbacks
  • Difficult to make revisions due to unforeseen
    problems no feedback loop
  • Focus on paper documents and distrustful of
    customer-contractor relationships
  • Major contributions identify key activities.

12
Key Software Activities
  • 5 Phases of Software Life Cycle
  • Phase 1 Problem Analysis and Specification
  • Phase 2 Design
  • Phase 3 Implementation (Coding)
  • Phase 4 Testing, Execution and Debugging
  • Phase 5 Maintenance

13
Phase 1 Problem Analysis and Specification
Easy in CS courses, not always in the real world.
Computer Science programming assignment -
specific statement of problem quantitative
description clearly defined requirements
input, output, calculations, test data
14
Phase 1 Problem Analysis and Specification
Real World request - general statement of
problem qualitative not quantitative
precision missing for input, output, processing
15
Statement of specifications
The program should display on the screen a prompt
for an amount to be depreciated and the number of
years over which it is to be depreciated. If
should then read these two values from the
keyboard. Once it has the amount and the number
of years, it should compute the sum of the
integers 1, 2, . . . up to the number of years.
It should then display on the screen a table with
appropriate headings that shows the year number
and the number and the depreciation for that
year, for the specified number of years.
  • the formal statement of the problems
    requirements
  • the major reference document
  • a benchmark used to evaluate the final system

Sometimes stated precisely using a formal method.
16
Phase 2 Design
  • Real world
  • large systems
  • Tens of thousands of lines of code
  • complex
  • many components
  • CS courses
  • small systems
  • few hundred lines of code
  • simple, straightforward
  • self-contained

17
OOD Object-Oriented Design
  1. Identify the objects in the problem's
    specification and their types.
  2. Identify the operations of the objects (methods)
    needed to solve the problem.
  3. Arrange the operations in a sequence of steps,
    called an algorithm, which, when applied to the
    objects, will solve the problem.

18
Phase 3 Implementation (Coding)
  • Select language of implementation
  • Encode the design
  • Verify integration
  • Combining program units into a complete software
    system.
  • Insure quality
  • programs must be correct, readable, and
    understandable, that is, well-structured,
    documented, and stylistic.

19
Phase 4 Testing, Execution, and Debugging
  • Validation "Are we building the right product?"
  • The software should do what the user really
    requires
  • check that documents, program modules, etc. match
    the customer's requirements.
  • Verification "Are we building the product
    right?"
  • The software should conform to its specification
  • check that products are correct, complete,
    consistent with each other and with those of the
    preceding phases.

20
Errors can occur anytime
  • Specifications don't accurately reflect given
    information or the user's needs/requests
  • Logic errors in algorithms
  • Incorrect coding or integration
  • Failure to handle boundary data or test values

21
Different kinds of tests required
  • Unit tests
  • Each individual program unit works?
  • Program components tested in isolation
  • Integration tests
  • Units combined correctly?
  • Component interface and information flow tested
  • System tests
  • Overall system works correctly?

22
The "V" Life Cycle Model
23
Unit testing
  • Probably the most rigorous and time-intensive
  • Surely the most fundamental and important
  • Kinds of errors tested
  • syntax
  • linking
  • run-time
  • logic
  • Two major types Black-box and White-box tests

24
Black box or functional test
  • Outputs produced for various inputs are checked
    for correctness without considering the internal
    structure of the program component itself.
  • Program unit is viewed as a black box that
    accepts inputs and produces outputs, but the
    inner workings of the box are not visible.

25
White box or structural test
  • Performance is tested by examining codes
    internal structure.
  • Test data is carefully selected so that specific
    parts of the program unit are exercised.
  • Boundary test test data with boundary values
  • Statement coverage test test cases that cover
    all the statement in a program
  • Conditional statement coverage test test cases
    that test all the conditions in the conditional
    statements.

26
Phase 5 Maintenance
  • Large of computer center budgets
  • Large of programmer's time
  • Largest of software development cost
  • Why?
  • Includes modifications and enhancements
  • Due to poor structure, poor documentation, poor
    style
  • less likely to catch bugs before release
  • make fixing of bugs difficult and time-consuming
  • impede implementation of enhancements

27
Some Lessons
  • Implementation (Coding)
  • A small part of the software lifecycle.
  • Easy to outsource (or out-shore) than requirement
    analysis and design.
  • A program is not successful if it gives some
    output.
  • Course assignments are usually not a good
    training for the whole software life-cycle.

28
Iterative Process
  • Waterfall model no visible feedback loop.
  • Iterative models/overlapping phases
  • Spiral model
  • Rational Unified Process

29
Rational Unified Process
  • An example of an iterative process

30
New Factors
  • The Internet age (1994-2003)
  • Browsers as the universal client agents.
  • Web 2.0 (2004-present)
  • New software distribution software as a service
  • perpetual beta
  • Machine to machine interaction
  • Mobile applications

31
New Trends Lightweight Methodologies
  • Examples
  • Extreme Programming
  • Agile Software Development
  • Scrum list for software project management

32
What should we do?
  • Aware of the software life-cycle.
  • Aware of the new forces affecting software
    development.
  • Aware of the new software methodologies.
  • Eventually need to learn
  • Modeling Language e.g. UML
  • Software Process

33
Relevance to our course
  • Software will always need to be correct and
    efficient
  • Need to learn data structures and algorithms well.

34
Questions?
