Scanning Electron Microscope (SEM)

1

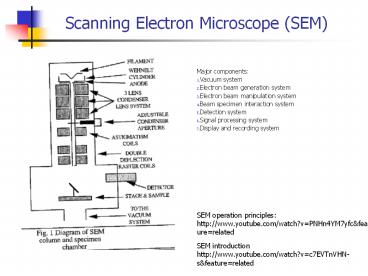

Scanning Electron Microscope (SEM)

• Major components
• Vacuum system
• Electron beam generation system
• Electron beam manipulation system
• Beam specimen interaction system
• Detection system
• Signal processing system
• Display and recording system

SEM operation principles http//www.youtube.com/w
atch?vPNHn4YM7yfcfeaturerelated
SEM introduction http//www.youtube.com/watch?vc7
EVTnVHN-sfeaturerelated
2
Vacuum system

• Low vacuum pump (lt10-3 Torr) (remove 99.99 of
  air), high vacuum pump(gt10-3 Torr)
• SEM operation need 10-4 to 10-6 Torr

3
E beam generation

• Three components
• 1) cathode (filament or field emission)
• 2) grid cap that control the flow of
  electrons
• 3) anode that attracts and accelerates
  electrons
• Voltage ranges from 0.1 to 40 Kv, (10kV the most
  common for biological specimen)
• the higher the voltage the better the
  resoution (but
• greater heat will be generated on the
  specimen)
• On/off switch for high voltage (HV)
• Beam current (the flow of electrons that hit a
  sample), controlled by bias voltage between
  filament and grip cap,
• Increasing beam current results in deeper
  penetration of electron and a larger diameter
  spot)
• Filament current control (adjustment of current
  filament, providing necessary heating current to
  filament)
• Filed emission
• advantages cool cathode, emitted beam is
  smaller in diameter (better resolution), longer
  life time
• disadvantages higher vacuum need (10-7
  Torr), cleaner microscope needed, not many x-rays
  generated (due to low beam currents and small
  beam diameters)

4
E beam manipulation

• E-gun is controlled by electrostatic field, while
  the rest of SEM is controlled by magnetic lenses.

• Electromagnetic lenses
• - condenser lenses reduce spot size
• spherical aberration limit resolution
• - correct astigmatism (non-circular beam
  spot), due to
• beam formed by filament is elliptical,
  dirt in column,
• beam distorted on the aperture
• using stigmator (control strength and
  azimuth)
• - correct alignment
• - two sets of magnetic coils (raster coils)
  that move the
• seam scanning in the X and Y direction
• - magnification ratio of dimension of CRT
  to dimension
• of the area being scanned
• two ways of magnification adjustments
• 1) change scanned area of the specimen
• 2) adjust focal point of the beam and
  working distance
• (move Z-axis to bring sample to focal
  point)
• Aperture a round hole that control the passing
  through of scattered electrons

5
Beam interaction

• Backscattered electrons
• original beam electrons,
• high energy level,
• useful when relative atomic density information
  with
• topographical information is displayed
• Secondary electrons
• generated by dislodging specimen e or other
  secondary e
• a few eV,
• detected near the surface, can obtain
  topographical and
• high solution,
• contrast and soft shadows of image resemble
  specimen
• illuminated with light
• X-rays
• can obtain elemental information (from
  wavelength and
• energy characteristic of elements)
• measurement of wavelength (wavelength dispersive

6

• Cathode Luminescence
• specimen molecules florescence that produces
  light photon
• Specimen current
• e energy decreases after scattering and e
  absorbed by sample
• can build up negative charge and lead to
  charging
• Transmitted electrons
• primary e pass through specimen
• provide atomic density information displayed as
  a shadow
• higher the atomic number the darker the shadow
