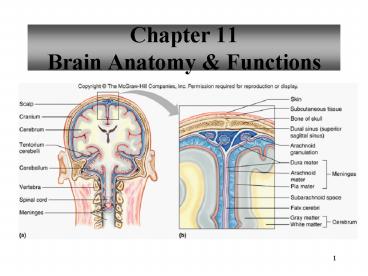

Chapter 11 Brain Anatomy

1
Chapter 11Brain Anatomy Functions
2
Meninges

• Membranes surrounding CNS
• Protect CNS
• Three layers
• Dura mater
• Outer layer
• Adheres to cranial bones
• Tough

3
Meninges

• Arachnoid mater
• Thin, weblike
• Pia mater
• Inner layer
• Adhere directly to brain
• Very thin
• Fibrous and vascular

4
Meninges

• Spinal Cord
• Same three layers
• Provides protection

5
Ventricles

• Interconnected cavities
• Within cerebral hemispheres and brain stem
• Continuous with central canal of spinal cord
• Filled with cerebrospinal fluid (CSF)

6
Ventricles

• Lateral ventricles
• Third ventricle
• Fourth ventricle
• Cerebral aqueduct

7
Ventricles
8
Cerebrospinal Fluid

• Secreted by choroid plexus
• Circulates in ventricles, central canal of
  spinal cord, and subarachnoid space
• Completely surrounds brain and spinal cord
  between the meninges

9
Cerebrospinal Fluid

• Clear liquid
• 80-150 ml in CNS
• Contains proteins, glucose, and salts
• Nutritive and protective
• Shock absorber
• Helps maintain stable ion concentrations in CNS

10
Spinal Cord

• Slender column of nervous tissue continuous with
  brain
• Extends downward through vertebral canal
• Begins at level of foramen magnum terminates
  near first second lumbar

11
Cross Section of Spinal Cord
12
Functions of Spinal Cord

• Center for spinal reflexes

• Conduit for nerve impulses to and from the brain

13
Reflex Arcs
Reflexes automatic, subconscious responses to
stimuli within or outside the body
14
Brain
15
Brain

• Functions
• Interprets sensations
• Determines perception
• Stores memory
• Reasoning
• Makes decisions
• Coordinates muscular movements
• Regulates visceral activities
• Determines personality

• Major Parts
• Cerebrum
• Two hemispheres
• Basal nuclei
• Diencephalon
• Brainstem
• Cerebellum

16
Brain
17
Brain Development

• Three Major Vesicles
• Forebrain
• Midbrain
• Hindbrain

18
Brain Development
19
Cerebrum

• Looks like cap of a mushroom
• Spread over diencephalon
• 7/8 total mass
• Fills most of cranium

20
Clinical Application Cerebrum

• Result from displacement distortion of neurons
  at the moment of impact
• Concussion
• Abrupt but temporary loss of consciousness
  following a blow to the head or the sudden
  stopping of a moving head
• No visible bruising but post traumatic amnesia
  may occur

21
Clinical Application Cerebrum

• Contusion
• Visible bruising of the brain due to trauma and
  blood leaking from microscopic vessels
• Pia mater is torn
• Results in unconsciousness for several minutes to
  many hours

22
Clinical Application Cerebrum

• Laceration
• Tearing of the brain, usually from skull
  fractures or gunshot wound
• Large blood vessels bleed into the brain and can
  cause cerebral hematoma, and increase cranial
  pressure

23
Lobes of Cerebral Hemispheres

• Name of lobe corresponds with name of cranial
  bone
• Frontal
• Parietal
• Temporal
• Occipital
• Insula

24
Functions of the Cerebrum

• Interpreting impulses
• Initiating voluntary movements
• Storing information as memory
• Retrieving stored information
• Reasoning
• Seat of intelligence and personality

25
Functional Regions of Cerebral Cortex
Cerebral Cortex thin layer of gray matter that
constitutes the outermost portion of cerebrum
contains 75 of all neurons in nervous system
26
Structure of Cerebrum

• Cerebral Cortex
• Surface of cerebrum
• Convolutions
• Folds in cerebrum
• Bumps or gyri
• Sulci
• Shallow grooves
• Fissures
• Deep grooves

27
Structure of Cerebrum

• Corpus callosum
• Connects cerebral hemispheres
• Longitudinal fissure
• Separates hemispheres
• Transverse fissure
• Separates cerebrum from cerebellum

28
Sensory Areas

• Cutaneous Sensory Area
• Parietal lobe
• Interprets sensations on skin

• Visual Area
• Medial Occipital lobe
• Interprets vision

29
Sensory Areas

• Primary Gustatory
• Taste
• Near bases of the central sulci
• Primary Olfactory

• Smell
• Arise from centers deep within the cerebrum

30
Sensory Areas

• Auditory Area
• Superior part of temporal lobe near lateral
  cerebral sulcus
• Interprets hearing

31
Sensory Areas
32
Association Areas

• Regions that are not primary motor or primary
  sensory areas
• Widespread throughout the cerebral cortex
• Analyze and interpret sensory experiences
• Provide memory, reasoning, verbalization,
  judgment, emotions

33
Association Areas

• Frontal Lobe Association Areas
• Concentrating
• Planning
• Complex problem solving

• Temporal Lobe Association Areas
• Interpret complex sensory
• experiences
• Store memories of visual scenes,
• music, and complex patterns

• Parietal Lobe Association Areas
• Understanding speech
• Choosing words to express thought

• Occipital Lobe Association Areas
• Analyze and combine visual images with other
  sensory experiences

34
Hemisphere Dominance

• The left hemisphere is dominant is most
  individuals

• Nondominant hemisphere controls
• Nonverbal tasks
• Motor tasks
• Understanding and interpreting musical and
  visual patterns
• Provides emotional and intuitive thought
  processes

• Dominant hemisphere controls
• Speech
• Writing
• Reading
• Verbal skills
• Analytical skills
• Computational skills

35
Hemisphere Differences

• Anatomical
• Frontal lobe of left hemisphere is smaller
• Left handed people
• Right parietal and occipital lobes are narrower

36
Hemisphere Differences

• Right Hemisphere
• Left handed
• Music and artistic awareness
• Space and patter perception
• imagination

• Left Hemisphere
• Right handed
• Numerical and scientific skills
• Sign language and reasoning

37
Memory

• Short Term
• Working memory
• Closed neuronal circuit
• Circuit is stimulated over and over
• When impulse flow ceases, memory does also
• Unless it enters long-term memory via memory
  consolidation

• Long Term
• Changes structure or function of neurons
• Enhances synaptic transmission

38
Motor Areas

• Primary Motor Areas
• frontal lobes
• control voluntary muscles

• Brocas Area
• anterior to primary motor cortex
• usually in left hemisphere
• controls muscles needed for speech

• Frontal Eye Field
• above Brocas area
• controls voluntary movements of eyes and eyelids

39
Motor Areas
40
Functions of the Cerebral Lobes
41
Diencephalon

• Between cerebral hemispheres and above the
  brainstem
• Surrounds third ventricle

• Thalamus
• Hypothalamus
• Optic tracts
• Optic chiasma
• Infundibulum
• Posterior pituitary
• Mammillary bodies
• Pineal gland

42
Diencephalon

• Thalamus
• Oval structure above midbrain
• Gateway for sensory impulses heading to cerebral
  cortex
• Receives all sensory impulses (except smell)
• Channels impulses to appropriate part of
  cerebral cortex for interpretation
• Interpretation of pain, temperature, and pressure

43
Diencephalon

• Hypothalamus
• Small portion inferior to thalamus
• Protected by sella turcica
• Maintains homeostasis by regulating visceral
  activities
• Water concentrations
• Hormone concentrations
• Blood temperature
• Links nervous and endocrine systems

44
Diencephalon

• Homeostatic functions
• Regulates autonomic nervous system
• Reception integration of sensory impulses from
  viscera
• Mind over body (stress--heart rate increases)
• Rage aggression
• Regulates body temperature
• Regulates food intake (hunger full feelings)
• Thirst
• Sleep patterns

45
Diencephalon
Limbic System

• Consists of
• portions of frontal lobe
• portions of temporal lobe
• hypothalamus
• thalamus
• basal nuclei
• other deep nuclei

• Functions
• controls emotions
• produces feelings
• interprets sensory impulses

46
Brain Stem

• Three Parts
• Midbrain
• Pons
• Medulla Oblongata

47
Midbrain

• Mesencephalon
• Between diencephalon and pons
• Contains bundles of fibers that join lower parts
  of brainstem and spinal cord with higher part of
  brain

48
Midbrain

• Cerebral aqueduct
• Connects 3rd 4th ventricles of brain
• Cerebral peduncles bundles of nerve fibers
• Motor pathway between cerebrum lower parts of
  nervous system
• Corpora quadrigemina centers for visual and
  auditory reflexes

49
Pons

• Rounded bulge on underside of brainstem
• Between medulla oblongata and midbrain
• Helps regulate rate and depth of breathing
• Relays nerve impulses to and from medulla
  oblongata and cerebellum

50
Medulla Oblongata

• Enlarged continuation of spinal cord
• Conducts ascending and descending impulses
  between brain and spinal cord
• Contains 3 reflex centers
• Cardiac
• Heart rate force of contraction
• Vasomotor
• Controls diameter of blood vessels
• Respiratory
• Controls breathing patterns

51
Medulla Oblongata

• Contains various nonvital reflex control centers
• Coughing
• Sneezing
• Swallowing
• Vomiting

52
Medulla Oblongata

• Reticular Formation
• Complex network of nerve fibers scattered
  throughout the brain stem
• Extends into the diencephalon
• Connects to centers of hypothalamus, basal
  nuclei, cerebellum, and cerebrum
• Filters incoming sensory information
• Arouses cerebral cortex into state of wakefulness

53
Cerebellum

• Inferior to occipital lobes
• Posterior to pons and medulla oblongata
• Two hemispheres
• Vermis connects hemispheres
• Cerebellar cortex
• Gray matter on surface
• Arbor vitae
• White matter inside
• Tree-like pattern
• Cerebellar peduncles
• nerve fiber tracts

54
Cerebellum

• Dentate nucleus
• Largest nucleus in cerebellum
• Integrates sensory information concerning
  position of body parts
• Coordinates skeletal muscle activity
• Maintains posture

55
Cerebellum

• Damage results in
• Lack of muscle control
• Change of speech pattern
• Severe dizziness
• Disturbances of gait (walking)

56
Life-Span Changes

• Brain cells begin to die before birth
• Over average lifetime, brain shrinks 10
• Most cell death occurs in temporal lobes
• By age 90, frontal cortex has lost half its
  neurons
• Number of dendritic branches decreases
• Decreased levels of neurotransmitters
• Fading memory
• Slowed responses and reflexes
• Increased risk of falling
• Changes in sleep patterns that result in fewer
  sleeping hours

57
Clinical Application
Cerebral Injuries and Abnormalities

• Cerebral Palsy
• Motor impairment at birth
• Caused by blocked cerebral blood vessels during
  development
• Seizures
• Learning disabilities

• Cerebrovascular Accident
• Stroke
• Sudden interruption in blood flow
• Brain tissues die
