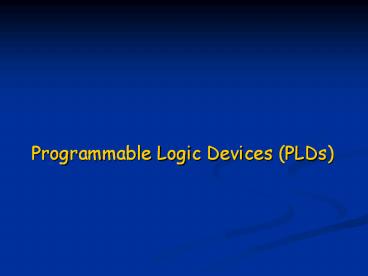

Title: Programmable Logic Devices (PLDs)


1
  • Programmable Logic Devices (PLDs)

2
Overview
  • Three-State Buffers
  • Programmable Logic Technologies
  • Read-Only Memory (ROM)
  • Programmable Logic Arrays (PLAs)
  • Programmable Array Logic (PAL)

3
Three-State Buffers
  • Buffer output has 3 states 0, 1, Z
  • Z stands for High-Impedance ? Open circuit
  • EN 0 ? out Z (open circuit)
  • EN 1 ? out in (regular buffer)

EN in out
0 X Z
1 0 0
1 1 1
EN
out
in
4
Three-state buffer(BUF)/inverter(INV) symbols
EN
EN
out
out
in
in
3-state BUF, EN high
3-state INV, EN high
EN
EN
out
out
in
in
3-state BUF, EN low
3-state INV, EN low
5
Multiplexed output lines using three-state buffers
  • Assume an output line that can receive data from
    either a system (circuit) A or a system B.

A
If A B ? out A B If A ? B ? a large enough
current can be created, that causes excessive
heating and could damage the circuit.
out
B
wiredlogic
6
Multiplexed output lines using three-state
buffers (cont.)
  • Solution

S A B ENA ENB out
0 0 0 1 0 0
0 0 1 1 0 0
0 1 0 1 0 1
0 1 1 1 0 1
1 0 0 0 1 0
1 0 1 0 1 1
1 1 0 0 1 0
1 1 1 0 1 1
A
B
7
Programmable Logic Devices (PLDs)
  • Standard logic devices that can be programmed to
    implement any combinational logic circuit.
  • Standard ? of regular structure
  • Programmed ? refers to a hardware process used
    to specify the logic that a PLD implements

8
Gate Symbols
.
.
.
.
.
.
Conventional AND gate symbol
Array Logic OR gate symbol
One major difference!
a
b
c
F 0
a
F
b
c
F a.c
F a.b.c
9
Read-Only Memory (ROM)
  • Stores binary information permanently
  • Non-Volatile (info is kept even when power is
    turned off)
  • k inputs specify the
    of
    addresses available
  • n outputs specify the size of
    data

ROM 2k x n
m
k
Block Diagram
10
Read-Only Memory (cont.)
Address
8x4 ROM
  • Example k3, n4
  • There are 238 available addresses
  • 4-bits are stored in each address

0
1
2
3
4
5
6
7
3
4
11
ROM construction Example of an 25x8 ROM
  • Use a 5-to-32 decoder to generate the 32
    addresses.
  • Use 8 OR gates, each can be programmed to be
    driven by any of the decoder outputs.

Programmable logic. of interconnectionsis 25x8
12
Programming the ROM, i.e. load desired data at
specified addresses
Address (in decimal) 0 1 2 3 28 29 30 31
ROM addresses
ROM data
13
Programming the ROM (cont.)
Example Let I0I1I3I4 00010 (address 2). Then,
output 2 of the decoder will be 1, the remaining
outputs will be 0, and ROM output becomes
A7A6A5A4A3A2A1A0 11000101.
14
ROM-based circuit implementation
  • Given a 2kxn ROM, we can implement ANY
    combinational circuit with at most k inputs and
    at most n outputs.
  • Why?
  • k-to-2k decoder will generate all 2k possible
    minterms
  • Each of the OR gates must implement a ?m()
  • Each ?m() can be programmed

15
Example
  • Find a ROM-based circuit implementation for
  • f(a,b,c) ab abc
  • g(a,b,c) abc ab bc
  • h(a,b,c) ab c
  • Solution
  • Express f(), g(), and h() in ?m() format (use
    truth tables)
  • Program the ROM based on the 3 ?m()s

16
Example (cont.)
  • There are 3 inputs and 3 outputs, thus we need a
    8x3 ROM block.
  • f ?m(0, 1, 7)
  • g ?m(0, 3, 6, 7)
  • h ?m(0, 1, 3, 5, 7)

a
0 1 2 3 4 5 6 7
3-to-8decoder
b
c
g
f
h
17
Programmable Logic Arrays (PLAs)
  • Similar concept as in ROM, except that a PLA does
    not necessarily generate all possible minterms
    (ie. the decoder is not used).
  • More precisely, in PLAs both the AND and OR
    arrays can be programmed (in ROM, the AND array
    is fixed the decoder and only the OR array
    can be programmed).

18
PLA Example
  • f(a,b,c) ab abc
  • g(a,b,c) abc ab bc
  • h(a,b,c) c
  • PLAs can be more compact
  • implementations than ROMs,
  • since they can benefit from
  • minimizing the number
  • of products required to
  • implement a function

19
Another PLA Example
  • Find a PLA-based circuit implementation for
  • F1(A,B,C) AB AC ABC
  • F2(A,B,C) (AC BC)
  • Solution
  • 3 inputs, 2 outputs ( 2 OR gates)
  • 4 distinct product terms (4 AND gates)
  • Use XOR array to find complements

20
PLA Example (cont.)
XOR array
F1
F2
21
PLA Example (cont.)
  • Tabular Form Specification
  • of interconnection programming

F1 ABACABC
F2 ACBC
22
Determining the size of a PLA
  • Given
  • n inputs
  • p product terms
  • m outputs
  • PLA size is
  • Gates n INV (and maybe n BUF) p ANDs m ORs
    m XORs
  • Programmable interconnections 2np pm 2m

23
Programmable Array Logic (PAL)
  • OR plane (array) is fixed, AND plane can be
    programmed
  • Less flexible than PLA
  • of product terms available per function (OR
    outputs) is limited

24
PAL Example
inputs
1st output section
Only functions with at most four products can be
implemented
2nd output section
3rd output section
4th output section
25
PAL-based circuit implementation
W AB?C? CD X A?BC? A?CD ACD? BCD Y
A?C?D? ACD A?BD
26
Can we implement more complex functions using
PALs?
  • Yes, by allowing output lines to also serve as
    input lines in the AND plane.

27
Example
  • Implement the combinational circuit described by
    the following equations, using a PAL with 4
    inputs, 4 outputs, and 3-wide AND-OR structure.
  • W(A,B,C,D) ?m(2,12,13)
  • X(A,B,C,D) ?m(7,8,9,10,11,12,13,14,15)
  • Y(A,B,C,D) ?m(0,2,3,4,5,6,7,8,10,11,15)
  • Z(A,B,C,D) ?m(1,2,8,12,13)

28
Example (cont.)
  • Use function simplification techniques to derive
  • W ABCABCD
  • X ABCD
  • YABCDBD
  • ZABCABCDACDABCD W ACDABCD

29
Example (cont.)
30
Example (cont.)
Tabular Form Specification of interconnection
programming
