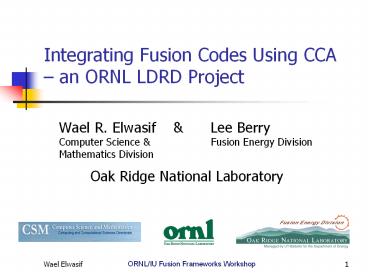

Integrating Fusion Codes Using CCA an ORNL LDRD
Project
  • Wael R. Elwasif Lee BerryComputer
    Science Fusion Energy
    DivisionMathematics Division
  • Oak Ridge National Laboratory

2
Project Goals
  • Gain experience in using CCA components for
    integrated plasma simulation.
  • Explore code integration issues
  • Interface Development.
  • Data Coupling.
  • Have model sufficiently complex to understand
    weaknesses/strengths of CCA.
  • But have it fit within a two year, 1.5 FTE/year
    effort.

3
Project Members - Fusion
  • Lee Berry
  • Overall coordination, driver development,
    integration, design.
  • Wayne Houlberg
  • NTCC-like routines for calculations metrics from
    eqdsk files, advancing ion densities, and
    advancing electron and ion energy.
  • Fred Jaeger
  • Implementations of AORSA and routines for brining
    in equilibrium, plasma profiles into the form
    needed for AORSA

4
Project Members Computer Science Mathematics
  • Wael Elwasif
  • Build system, CVS, implementation strategies
    assistance, component infrastructure.
  • James Kohl
  • State component, Visualization development.
  • David Bernhardt
  • CS coordination.
  • Ed DAzevedo
  • Development of iterative AORSA algorithm.

5
Prototype Components
  • Physics
  • Equilibrium based on EFIT (F95).
  • RF Heating based on AORSA (F95).
  • Transport (F95).
  • Driver
  • Overall time stepping and coordination (Python).
  • State Repository (C).
  • Data couplers and transforms (F95).

6
The Physics
  • Solving a model problem (nothing new vis-à-vis
    fusion).
  • Couple together codes for
  • Equilibrium using EQDSK files.
  • Transport code from Wayne Houlberg.
  • RF - AORSA2D (All Orders Spectral Algorithm)
    code from Fred Jaeger.

7
Code Status Pre-integration
  • Stand alone codes.
  • File-based control and input/output.
  • Code-specific pre-processing (e.g. Coordinate
    translation and re-griding).
  • Implemented in F95, with some language-specific
    features (e.g. optional arguments).

8
Implementation Strategy
  • Getting everybody to know what CCA is, and how to
    use available tools (especially Babel/SIDL).
  • Initial interface specification (keeping it
    intentionally high level).
  • Getting a working component application (that
    doesnt do much).
  • Repeat
  • Refine interfaces and update implementation.
  • Add new capabilities (e.g. remove dependency on
    input files).

9
Prototype Components Physics
10
The Physics Transport
  • DATA_PATH set by driver.
  • Interface evolved over project duration.
  • Implementation wrapped existing F95 module (with
    one-to-one correspondence).
  • Mapping between SIDL arrays and native F95 arrays
    was the most challenging aspect.

interface Xport extends gov.cca.Port int
init( in string DATA_PATH, out
string init_xp_message, out int i_flag,
) /// Advance density
equation int pushN( in double
time, in double dt, in array
ltint, 1gt k_nbc_i, )
/// Advance temperature equation int
pushT( in double time, in double
dt, in double tebc,
)
11
The Physics RF Equilibrium
interface RF extends gov.cca.Port ///
Get RF heating parameters int getRF(
in string DATA_PATH, in double time,
in double power, out string
rf_message, in int k_grid )
  • DATA_PATH set by driver.
  • RF
  • Implementation wrapped re-factored AORSA2d core).
  • Equilibrium
  • Uses EQDSK file.
  • Updates the equilibrium part of the state

interface Eql extends gov.cca.Port /// Get
equilibrium parameters int getEql( in
string DATA_PATH, in string file_name,
in double eq_time, out string
eq_message )
12
Prototype Components State
13
The PlasmaState Component
interface EQState extends gov.cca.Port int
initEQ( in int nx_xy, in int ny_xy,
) .. .. .. // End interface
EQStateinterface RFState extends gov.cca.Port
int initRF( in int n_rgrid, in
int n_zgrid, ) .. ..
..interface XPState extends gov.cca.Port
int initXport( in int n_r, in int
n_I ) .. .. ..
  • One component implements state repository for
    Transport, Equilibrium, and RF.
  • In-memory data repository.
  • Allow centralization of data archiving,
    checkpointing, and restart.
  • No data transform within the state component.
  • Data exchange between physics components happens
    through the state, or the driver (no direct
    coupling).

14
Prototype Components Data Couplers
15
The Need for Data Couplers
  • Data consumers adapt raw data to their
    specific requirements (coordinate transforms, and
    re-gridding).
  • Separate this preprocessing stage into stand
    alone components.
  • NOT VERY SCALABLE.
  • Future goal Evolve towards generalized
    (centralized) data transforms with controllable
    mathematical properties.

16
Prototype Components Driver
17
The Driver Component
  • The brains of the overall simulation.
  • RAD using Python enables speedy experimentation,
    parameter tuning, and quick on-line
    visualization.
  • Can be quite complex.
  • Using Python allows easy access to high level
    matrix operations via the numeric python module
    whenever it makes sense.

18
Coupled Simulation It actually Works!!!
19
Implementation Issues THE BUILD
  • Adopted from CCA template used in CCA tutorial.
  • Was adequate for the scale and scope of this
    project
  • Scaling to accommodate more components with
    varying native build systems is still an issue.
  • Needed tweaking when deployed to different Linux
    platforms (compilers, location of legacy
    libraries).
  • Legacy libraries build system changed as well.

20
Implementation Issues CVS
  • Initially used only for the components.
  • Extended to include a snapshot of the legacy
    codes.
  • Legacy codes re-factored (change into libraries,
    streamline file access).
  • Question How to manage continuous parallel
    development of legacy codes and integration?

21
Lessons Learned
  • Throwing over the fence does NOT work.
  • Interface development was easy We control
    everything.
  • The build system is VERY important.
  • Language interoperability using Babel makes
    things possible, but not necessarily easy.
  • Incorporating independently developed F95 codes
    into a single application has its own pitfalls
    (e.g. compiler flags for code correctness).
  • Integration exercises codes in unforeseen ways
    (bugs found in established codes).

22
Future Plans
  • Next four months.
  • Implement iterative RF module with time varying
    densities.
  • Use HDF5 as back-end for the state component.
  • Run on the Altix at ORNL.
