Particle Counter Monitoring Systems

1

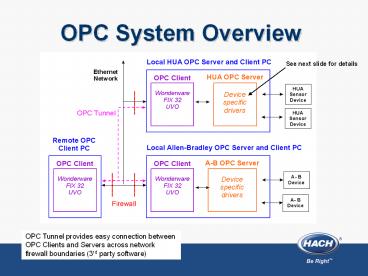

OPC System Overview
See next slide for details
OPC Tunnel provides easy connection between OPC
Clients and Servers across network firewall
boundaries (3rd party software)
2
Hach OPC Server
SQL Database included
The HUA OPC Server provides
bi-directional measurement and control
translations from HUA devices to industry
standard OPC Tags
OPC Client software provides user interface to
OPC Tags
