ZEN Towards Highly Configurable Real-time Object Request Brokers

1

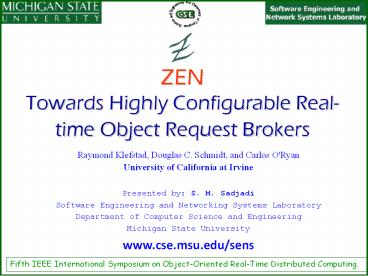

ZENTowards Highly Configurable Real-time Object
Request Brokers
Raymond Klefstad, Douglas C. Schmidt, and Carlos
O'Ryan University of California at Irvine
Presented by S. M. Sadjadi Software
Engineering and Networking Systems
Laboratory Department of Computer Science and
Engineering Michigan State University www.cse.msu.
edu/sens
2
Acknowledgement

• Douglas C. Schmidt
• Raymond Klefstad
• Carlos O'Ryan
• Other DOC members

3
Backgroud

• The purpose
• To support advanced RD on distributed object
  computing middleware using an open source
  software development model.
• The DOC Group is a distributed research
  consortium consisting of
• Vanderbilt University in Nashville, Tennessee.
  (southern office)
• Washington University in St. Louis, Missouri.
  (midwest office)
• University of California in Irvine, California.
  (west coast office)
• Members at
• Siemens ZT in Munich, Germany.
• Bell Labs in Murray Hill, New Jersey.
• OCI in St. Louis, MO.

4
Agenda

• Motivation
• ZEN Solution
• Background
• CORBA and Real-Time CORBA
• Java and Real-Time Java
• ORB Generations
• Micro-ORB vs. Monolithic-ORB
• Virtual Component Pattern
• ZEN Architecture
• Concluding Remarks

5
Motivations

• ZEN Project Goal
• Supporting development of distributed, real-time,
  and embedded (DRE) systems.
• DRE systems
• The right answer delivered too late becomes the
  wrong answer. ZEN
• Examples
• Telecommunication Networks (e.g., wireless phone
  services).
• Tele-medicine (e.g., remote surgery).
• Manufacturing Process Automation (e.g., hot
  rolling mills).
• Defense Applications (e.g., avionics mission
  computing systems).
• DRE Challenging Requirements
• As Distributed Systems
• managing connections and message transfer.
• As Real-Time Systems
• predictability and end-to-end resource control.
• As Embedded Systems
• resource limitations.

6
ZENs Solution

• Integration of the Best Aspects of
• CORBA
• Standards-based distributed applications
• Real-time CORBA
• CORBA with Real-time QoS capabilities
• Java
• Simple, less error-prone, large user-base
• Real-time Java
• Real-time support
• Pattern-Oriented Programming
• Virtual Component Pattern
• Factory Method Pattern
• Proxy Pattern
• Component Configurator Pattern

7
Agenda

• Motivation
• ZEN Solution
• Background
• CORBA and Real-Time CORBA
• Java and Real-Time Java
• ORB Generations
• Micro-ORB vs. Monolithic-ORB
• Virtual Component Pattern
• ZEN Architecture
• Concluding Remarks

8
OMG Reference Model Architecture CORBA-Overview

• Domain Services
• (a.k.a, Domain Interfaces and Vertical
  Facilities)
• are more oriented towards specific app domains.
• Product Data Management (PDM) Enablers for the
  manufacturing domain.
• Application Services
• (a.k.a, Application Interfaces and Application
  Objects)
• are services developed specifically for a given
  application.

• Object Services
• (a.k.a, CORBA Services)
• Domain-independent services.
• Naming Service and Trading Service.
• Common Services
• (a.k.a, Common Facilities and Horizontal
  Facilities)
• are less oriented towards end-user applications.
• Distributed Document Component Facility (DDCF).

9
CORBA ORB Architecture CORBA-Overview

• Object
• A CORBA programming entity.
• Servant
• An implementation programming language entity.
• Server
• is a running program (or process) entity.
• Client
• is a program entity that invokes an operation.
• Object Request Broker (ORB)
• provides transparent comm. Mechanisms.
• ORB Interface
• decouples an application from an ORB impl.

• CORBA IDL stubs and skeletons
• the glue'' between the client and server
  applications, respectively, and the ORB.
• Dynamic Invocation Interface (DII)
• allows generating dynamic requests.
• Dynamic Skeleton Interface (DSI)
• server side's analogue to DII.
• Object Adapter
• assists the ORB with delivering requests.
• associates object with the ORB.
• can be specialized to provide support for certain
  object implementation styles. .

10
Real-Time CORBA ZEN

• Features
• Adds QoS control capabilities to regular CORBA.
• Improve application predictability by bounding
  priority inversion
• Manage system resources end-to-end.
• Processor resources
• Communication resources
• Memory resources

• Shortcommings
• Focuses primarily on fixed-priority real-time
  applications, where priorities are assigned
  statically.
• Steep learning curve
• Cause by the complex C mapping.
• Run-time and memory footprint overhead

11
Java
Real-Time Java

• Features
• Simple
• Growing programmer
• Powerful and standard library
• JVM
• Strong typing
• Portable concurrency
• Lazy class loading
• Shortcomings
• No fine grain memory management
• No precise thread priority
• Garbage collector
• Non-determinism
• Non-predictable

• Features
• New memory management model
• Instead of garbage collector
• Access to physical memory
• A higher resolution time granularity
• Stronger guarantees on thread semantics.
• The highest priority thread will always run
• Shortcomings
• No facilities for distributed applications

12
Agenda

• Motivation
• ZEN Solution
• Background
• CORBA and Real-Time CORBA
• Java and Real-Time Java
• ORB Generations
• Micro-ORB vs. Monolithic-ORB
• Virtual Component Pattern
• ZEN Architecture
• Concluding Remarks

13
ORB Generations and ZEN Design Process

• Static Monolithic ORB
• All code is loaded in one executable.
• Advantages
• Efficient
• Easy to code
• Supports all CORBA services
• Disadvantages
• Excessive memory footprint
• Growth of footprint with each extension
• Monolothic ORB with Compile-Time Configurable
  Flags
• Allows a variety of different configurations
• Advantages
• Reduced footprint
• Disadvantages
• Hard to code the application
• Dynamic Micro-ORB
• Only a small ORB kernel is loaded
• Component Configurator and Virtual Component
• Advantages

• Dynamic Reflective Micro-ORB
• Builds a configuration description for each
  application based on the history.
• Advantages
• Neer minimal footprint adaptively
• Eliminate jitter
• Disadvantages
• Not suitable for some embedded systems
• Static Reflective Micro-ORB
• Source code is generated using the configuration
  description for a new custom ORB
• Advantages
• Fast
• Small footprint
• Easy to code
• Disadvantages
• Automatic customization is still an open
  research issue

• ZEN Design Process
• Dynamic Micro-ORB
• Dynamic Reflective Micro-ORB
• Static Reflective Micro-ORB

14
Micro-ORB vs. Monolithic-ORB

• Context
• Implementing full-service can yield a
  monolithic-ORB with large footprint
• Problem
• Embedded Systems often have severe memory
  limitations

• Solution
• Micro-Kernel pattern
• Virtual Component Pattern
• Identify core ORB services whose behavior may
  vary
• Move each core ORB service out of the ORB

Monolithic-ORB Architecture ZEN
Micro-ORB Architecture ZEN
15
Virtual Component Configurator

• Intent
• to factor out components that may not be needed
• Solution
• Use abstract interfaces for all components
• Upon component-fault load concrete
  implementations using
• Factory Method
• Proxy
• Component Configurator

Virtual Component Static Structure
VirtualComponent
16
Component Loading Strategies
Eager Static Loading Strategy VirtualComponent
Eager Dynamic Loading Strategy VirtualComponent
Lazy Dynamic Loading Strategy VirtualComponent
17
Agenda

• Motivation
• ZEN Solution
• Background
• CORBA and Real-Time CORBA
• Java and Real-Time Java
• ORB Generations
• Micro-ORB vs. Monolithic-ORB
• Virtual Component Pattern
• ZEN Architecture
• Concluding Remarks

18
Pluggable GIOP Message Handling

• Problem
• 823 makes 48 methods
• Space overhead
• Hard to modify

• Context
• GIOP defines 8 types of messages
• Each requires two marshal and demarshal
• Three versions 1.0, 1.1, and 1.2

• Solution
• Virtual Component
• Fine-grain
• 48 separate classes
• Client/Server pairing
• Groups complementary methods into a single class

Pluggable GIOP Message Handling ZEN
19
Pluggable Object Adapter

• Problem
• A POA is just necessary for server applications.
• Space overhead
• Hard to add new standards

• Context
• Maps client requests to the servants
• Different types of POAs
• The Standard POA
• Minimun POA
• Real-Time POA

• Solution
• Virtual Component
• If the application plays the role of a server, at
  most one of POA types will be loaded.

Pluggable Object Adapter ZEN
20
Pluggable Transport Protocols

• Problem
• About 20 to 30 methods required to handle the
  most common protocols.
• Space overhead
• Hard to modify

• Context
• GIOP can run over many transport protocols.
• Each protocol roughly need 5 methods to
  implement.
• Each containing
• Client-oriented classes
• Server-oriented classes

• Solution
• Virtual Component
• Allows one (or more) desired protocol(s) to be
  loaded.
• Only the required subclasses will be loaded
  dynamically.

Pluggable Transport Protocols ZEN
21
Pluggable CDR Stream Reader/Writer

• Problem
• each possible read or write for each data type,
  such as readDouble() and readLong(), needs an if
  statement to check big/little endian.
• Space overhead
• Hard to modify

• Context
• CORBA is platform independent and must handle
  diverse end system instruction set.
• CORBA defines Character Data Representation for
  marshalling and demarshalling.

• Solution
• Virtual Component
• Each CDRInputStream class in divided into two
  classes (for big and little endian).
• Improve in space and performance (if executes
  once).

Pluggable CDR Reader ZEN
22
Pluggable Any Handler

• Problem
• A lot of code is required to support Any.
• To read, write, marshal, demarshal, and to
  insert and extract any from each type.
• Space overhead

• Context
• Any used for generic services
• Each any is preceded by a type code of the value
  it contains.
• Many DRE apps do not use Any at all.

• Solution
• Virtual Component
• Removing Any methods.
• Keep minimal proxy object (AnyReader and
  AnyWriter).
• The rest will be loaded on demand.

Pluggable Any Handler ZEN
23
Pluggable IOR Parsers (cont.)

• Problem
• Parsing every possible format
• Space overhead
• Hard to modify

• Context
• Interoperable ORB References are CORBA object
  pointer.
• Variety of formats
• IOR, FILE, HTTP, CORBALOC, and FTP.

• Solution
• Virtual Component
• Define an interface that parses and handles IORs.
• Derive separate class strategies that handles
  each.
• Load the class on demand.

Example IOR ZEN
Pluggable IOR Parser ZEN
24
Pluggable Object Resolver

• Problem
• Cascade if statements to check each object string
  name.
• Space overhead
• Hard to modify

• Context
• ORBresolve_initial_reference() is used to
  obtain references to ORB objects such as RootPOA
  and Naming.
• The number of objects are large and growing.

• Solution
• Virtual Component
• An abstract base class with a factory method at
  the base.
• Factory method takes a string and returns a ref
  to an object.
• A naming convention is used.

Pluggable Object Resolver ZEN
25
Pluggable Message Buffer Allocators

• Problem
• Must include all possible algorithms for
  flexibility.
• Fast fit, buddy system,
• Space overhead
• Hard to modify

• Context
• To ensure efficient interprocess communication
  and avoid unnecessary garbage collection.
• But which specific dynamic storage allocation
  algorithm?

• Solution
• Strategy Pattern
• To support each algorithm
• Thread Specific Pattern
• To make them pluggable.
• Virtual Component
• Dynamic on demand loading.

Pluggable Allocator ZEN
26
ZEN Current Status

• Functional Java-based ORB with POA, GIOP, IDL
  compiler, etc.
• Interoperable with the TAO C ORB
• Missing COS Services, DII/DSI
• Current focus is on
• Factoring out more functionality from the ORB
  core to reduce footprint for embedded systems
• Completing Real-time CORBA support utilizing
  Real-time Java features
• Ahead-of-time Real-time Java native compilation
• Using refection to determine ideal minimal
  configuration
• Using aspects for static custom configuration

27
Concluding Remarks

• ZEN Objectives
• Supporting development of DRE systems
• Faster, easier, more extensible, and more
  portable
• Reducing the footprint
• Providing an infrastructure for DOC middleware
  RD by releasing ZEN in open-source
• Technologies integrated in ZEN
• CORBA and Real-Time CORBA
• Java and Real-Time Java

28
References

• ZEN
• http//www.computer.org/proceedings/isorc/1558/15
  580437abs.htm?SMSESSIONNO
• CORBA-Overview
• http//www.cs.wustl.edu/schmidt/corba-overview.h
  tml
• ZEN-Web
• http//www.zen.uci.edu
• RT-Java Real-time Java (JSR-1)
• http//java.sun.com/aboutJava/communityprocess/js
  r/jsr_001_real_time.html
• Dist-RT-Java Distributed Real-time Java
  (JSR-50)
• http//java.sun.com/aboutJava/communityprocess/js
  r/jsr_050_drt.html
• VirtualComponent
• http//www.cs.wustl.edu/schmidt/PDF/virtual-comp
  onent.pdf
