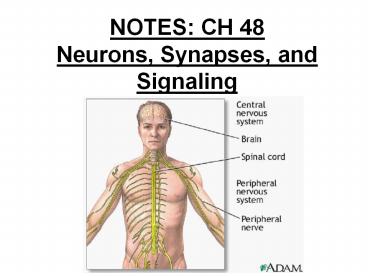

NOTES: CH 48 Neurons, Synapses, and Signaling

1
NOTES CH 48Neurons, Synapses, and Signaling
2
(No Transcript)
3
? A nervous system has three overlapping
functions

• 1) SENSORY INPUT signals from sensory receptors
  to integration centers
• 2) INTEGRATION information from sensory
  receptors is interpreted and associated with
  appropriate responses
•
• 3) MOTOR OUTPUT conduction of signals from the
  integration center to effector cells (muscle
  cells or gland cells)

4
(No Transcript)
5

• CENTRAL NERVOUS SYSTEM (CNS)
• ? integration center
• ? brain and spinal cord

6

• PERIPHERAL NERVOUS
• SYSTEM (PNS)
• ? made up of nerves
• (ropelike bundles
• of neurons)
• ? nerves communicate
• motor and sensory
• signals to and from CNS
• and rest of body

7
(No Transcript)
8
Two Main Classes of Cells

• 1) NEURONS
• ? functional unit of the nervous system
• ? transmits signals from one location to another
• ? made up of cell body, dendrites, axon
• ? many axons are enclosed by an insulating layer
  called the MYELIN SHEATH
• ? include sensory neurons,
• interneurons,
• motor neurons

9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13

• 2) GLIAL CELLS (GLIA) - SUPPORTING CELLS
• ? 10 to 50 times more numerous than neurons
• ? provide structure protect, insulate, assist
  neurons
• ? example Schwann cells and oligodendrocytes
  form myelin sheaths in the PNS and CNS,
  respectively

14
(No Transcript)
15
(No Transcript)
16
MYELIN SHEATH

• ? produced by Schwann cells in the peripheral
  nervous system
• ? gaps between successive Schwann cells are
  called NODES OF RANVIER.
• the 10 term!!! ?

17
NODES OF RANVIER!

• word 10 on my list!!!
• 1) Okazaki fragments
• 2) plasmodesmata
• 3) ???????
• 4) ???????
• 5) ???????
• 6) rubisco
• 7) oxaloacetate
• 8) islets of Langerhans
• 9) Batesian mimicry
• 10) nodes of Ranvier

18

• 2) GLIA (SUPPORTING CELLS)
• ? example astrocytes responsible for
  blood-brain barrier

19
Astrocyte
Nerve cells
20
ACTION POTENTIALS NERVE IMPULSES

• all cells have an electrical charge difference
  across their plasma membranes that is, they are
  POLARIZED.
• ? this voltage is called the MEMBRANE POTENTIAL
  (usually 50 to 100 mV)
•  ? inside of cell is negative relative to outside
•  ? arises from differences in ionic
  concentrations inside and outside cell

21
(No Transcript)
22

• A- group of anions
• including proteins,
• amino acids, sulfate,
• phosphate, etc. large
• molecules that cannot
• cross the membrane
• and therefore provide
• a pool of neg. charge
• that remains in the
• cell

23
How is this potential maintained?

• ? the sodium-potassium pump uses ATP to maintain
  the ionic gradients across the membrane
• (3 Na out 2 K in)

24
(No Transcript)
25

• ? the resting potential
• of a nerve cell is approx.
• 70 mV
•
• ? neurons have special
• ion channels (GATED
• ION CHANNELS) that allow the cell
• to change its membrane potential
• (a.k.a. excitable cells)

26
(No Transcript)
27

• ? when a stimulus reaches a neuron, it causes the
  opening of gated ion channels
• (e.g. light ? photoreceptors in the eye sound
  waves/vibrations ? hair cells in inner ear)

28

• ? HYPERPOLARIZATION membrane potential becomes
  more negative (K channel opens increased
  outflow of K)
•
• ? DEPOLARIZATION membrane potential becomes
  less negative
• (Na channel opens increased inflow
• of Na)
•
• If the level of depolarization reaches the
  THRESHOLD POTENTIAL, an ACTION POTENTIAL is
  triggered.

29

• ACTION POTENTIALS (APs)
• ? the nerve impulse
•
• ? all-or-none event magnitude is independent of
  the strength of the stimulus
•

30
5 Phases of an A.P. 1) Resting state 2)
Depolarizing phase 3) Rising phase of A.P. 4)
Falling phase of AP (repolarizing phase) 5)
Undershoot
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
(No Transcript)
38
(No Transcript)
39

• during the undershoot, both Na channel gates
  are closed if a second depolarizing stimulus
  arrives during this time, the neuron will NOT
  respond (REFRACTORY PERIOD)
•
• ? strong stimuli result in greater frequency of
  action potentials than weaker stimuli

40
(No Transcript)
41
(No Transcript)
42
(No Transcript)
43

• How do action potentials travel along an axon?
• ? the strong depolarization of one action
  potential assures that the neighboring region of
  the neuron will be depolarized above threshold,
  triggering a new action potential, and so on

44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
(No Transcript)
49
Saltatory Conduction
50

• ? SYNAPSE junction between a neuron and another
  cell found between
• -2 neurons
• -sensory receptor
• sensory neuron
• -motor neuron muscle cell
• -neuron gland cell

51
Motor Neuron and Muscle Cell
52
(No Transcript)
53
(No Transcript)
54

• ? Presynaptic cell transmitting cell
• ? Postsynaptic cell receiving cell

55
(No Transcript)
56

• Electrical Synapses allow action potentials to
  spread directly from pre- to postsynaptic cell
• connected by gap junctions (intercellular
  channels that allow local ion currents)
• Most synapses are
• Chemical Synapses cells are separated by a
  synaptic cleft, so cells are not electrically
  coupled a series of events converts
• elec. signal ? chem.signal ? elec.signal
• HOW???...

57

• NEUROTRANSMITTERS intercellular messengers
  released into synaptic cleft when synaptic
  vesicles fuse with presynaptic membrane
•
• ? specific receptors for neurotransmitters
  project from postsynaptic membrane most
  receptors are coupled with ion channels
•
• ? neurotransmitters are quickly broken down by
  enzymes so that the stimulus ends

58
(No Transcript)
59
(No Transcript)
60
(No Transcript)
61

• ? the electrical charge caused by the binding of
  neurotransmitter to the receptor can be
•
• EPSP (Excitatory Postsynaptic Potential)
  membrane potential is moved closer to threshold
  (depolarization)
•
• IPSP (Inhibitory Postsynaptic Potential)
  membrane potential is hyperpolarized (more
  negative)

62
(No Transcript)
63

• ? most single EPSPs are not strong enough to
  generate an action potential
• ? when several EPSPs occur close together or
  simultaneously, they have an additive effect on
  the postsynaptic potential SUMMATION
• -temporal vs. spatial

64
(No Transcript)
65
(No Transcript)
66
Examples of neurotransmitters
epin. norep. also function as hormones fight
or flight response
dop. ser. both affect sleep, mood, attention,
learning LSD mescaline bind to ser. dop.
receptors
67
Neurotransmitters Ach

• ? ACETYLCHOLINE triggers skeletal muscle fibers
  to contract
• ? so, how does a muscle contraction stop???

68
Neurotransmitters Ach

• ? a muscle contraction ceases when the
  acetylcholine in the synapse of the neuromuscular
  junction is broken down by the enzyme..
• wait for it.

69
ACETYLCHOLINESTERASE!!

• Its term 4!!!!!
• ? ACETYLCHOLINESTERASE the enzyme the breaks
  down the neurotransmitter acetylcholine.

70
ACETYLCHOLINESTERASE!

• word 4 on my list!!!
• 1) Okazaki fragments
• 2) plasmodesmata
• 3) ????????
• 4) acetylcholinesterase
• 5) ????????
• 6) rubisco
• 7) oxaloacetate
• 8) islets of Langerhans
• 9) Batesian mimicry
• 10) nodes of Ranvier
