Disorders of the Peripheral Nervous System


Disorders of the Peripheral Nervous System Peripheral Nerve Disorders The spectrum of peripheral nerve disorders includes Mononeuropathies (entrapment, trauma, etc ... – PowerPoint PPT presentation

Number of Views:382
Avg rating:3.0/5.0
Slides: 69
Provided by: DrME150


Transcript and Presenter's Notes

Title: Disorders of the Peripheral Nervous System

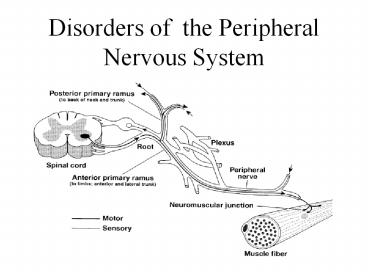

Disorders of the Peripheral Nervous System
Peripheral Nerve Disorders
  • The spectrum of peripheral nerve disorders
  • Mononeuropathies (entrapment, trauma, etc)
  • Mononeuritis multiplex (DM, vasculitis)
  • Plexopathies (immune, neoplastic)
  • Radiculopathies (discs, immune)
  • Peripheral Neuropathies

Peripheral Neuropathies (PN)
  • Peripheral neuropathies may be
  • operationally defined as a
  • generalised disorder of peripheral
  • motor, sensory or autonomic nerves,
  • but excluding single nerve lesions
  • caused by entrapment or trauma (Warlow. 1991)

Peripheral Neuropathies (PN)
  • Peripheral neuropathies are heterogeneous
  • with variation in
  • peripheral nerve components involved,
  • clinical course,
  • pathology
  • and presumed aetiology
  • (Dyck et al. 1996 McLeod. 1995).

Peripheral Neuropathies (PN)
  • gt100 etiological factors have been identified in
    patients with PN (Asbury and Thomas. 1995
    McLeod. 1995)
  • Immune GBS, CIDP, Paraneoplastic, VASCULITIS
  • Vitamin deficiency B1, B6, B12, Vit E
  • Toxins and metals OP, lead, ALCOHOL
  • Endocrine diabetes, thyroid, parathyroid
  • Drugs Vincristine, Isoniazid, phenytoin
  • Genetic HMSN, HLPP, HMN, ALD

Workup of a patient with suspected Peripheral
  • History
  • Time course (acute, subacute,chronic, episodic)
  • Negative numbness
  • Postive tingling, pain
  • Weakness and loss of function
  • Balance
  • Postural dizziness
  • PMH ?DM
  • Medication
  • Social, toxins, diet
  • Family history

Workup of a patient with suspected Peripheral
  • Examination
  • Gait (foot drop, stepage, unsteady Romberg
  • Cranial Nerves (retinopathy facial, bulbar, or
  • weakness, tonic pupils)
  • Limbs
  • Pseudoathetosis, Pes cavus, Clawing, Wasting,
  • Flaccidity, palpable nerves
  • Distal weakness (radiculopathy)
  • Reduced or absent DTRs
  • Glove loss, allodynia (Small or large fibre)
  • Systemic rash, BP

Workup of a patient with suspected Peripheral
  • Neurophysiology
  • Often indicates nerve pathology
  • Demyelination (low velocities, ? latencies)
  • Axonal change (low amp SNAPs and CMAPs)
  • Neuronopathy (very low or absent NAP)
  • Special tests are needed to look at small fibre
  • function

Workup of a patient with suspected Peripheral
  • Bloods
  • FBC, UEs, Ca and LFTs, RBG, B12,
  • Folate, VDRL, TFTs, Autoantibodies (VLCFAs etc)
  • CSF (protein)
  • NERVE BIOPSY (Aetiology not existence of

Guilllain Barre Syndrome (GBS)
  • GBS is defined as
  • a syndrome of acute weakness of the limbs and
    reduced or absent reflexes, with or without
    sensory loss attributable to a disorder of the
    peripheral nerves not due to systemic disease
    (Hughes. 1990).
  • GBS is a clinical diagnosis though there are
    frequently abnormal laboratory features including
    an elevated CSF protein and evidence of
    peripheral nerve demyelination (Hughes. 1994
    Hartung et al. 1998).

Guilllain Barre Syndrome (GBS)
  • GBS is a leading cause of neuromuscular paralysis
  • world-wide (UK annual incidence of 1.0-2.0
  • per 100,000, ?with age, and MgtF)
  • In 1859 Landry described 10pts with an ascending
  • paralysis caused by peripheral nerve dysfunction
  • 1916 Guillain, Barre and Strohl described an
  • monophasic, benign, flaccid paralysis in French
  • in the First World War with trench fever and
    noted an
  • increase in cerebrospinal fluid protein, though
    not cells
  • albuminocytologic dissociation.

Guilllain Barre Syndrome (GBS)
  • GBS is considered an immune-mediated disorder,
  • strong supportive evidence includes
  • Frequent association with preceding infection or
  • vaccination
  • Coexistent auto-immune disease
  • Response to immunomodulatory therapy
  • Activated T cells and humoral responses against
  • antigens

Guilllain Barre Syndrome (GBS)
  • The typical clinical features of GBS reflect
    prominent involvement of motor nerves, and may
    progress for up to four weeks
  • Weakness of all four limbs with a proximal bias,
  • Bilateral facial paralysis, and
  • Weakness of bulbar muscles
  • Weakness of respiratory muscles (VC)
  • Reflexes are gradually reduced and then lost
  • Sensory symptoms and signs (back pain)
  • Autonomic failure is seen in a few (morbidity
    and mortality)

Guilllain Barre Syndrome (GBS)

The laboratory features of GBS also evolve with
time- Initial CSF protein is often normal, but
becomes elevated within 3/52 in over 90 of
patients. Initial electrophysiological studies
are often normal, but become abnormal within
three weeks in the majority of patients
(Abnormalities in motor conduction with proximal
conduction block, prolonged distal motor
latencies or generalised slowing of conduction
are common abnormalities of sensory nerve
conduction are also common)
Guilllain Barre Syndrome (GBS)
  • As GBS is a clinical syndrome it is important to
    exclude both other causes of neuropathy and other
    neurological disorders
  • CNS spinal cord compression, brainstem disorders
    including locked in state
  • PNS myasthenia, polio, tetanus, botulism,
    buckthorn poisoning, malignant meningitis

Guilllain Barre Syndrome (GBS)
  • Immunotherpy (Steroids, IVIG, Exchange)
  • Supportive care
  • Pain
  • Ventilation
  • Communication
  • Prognosis Monophasic, 10-25 significant
    disability at 1yr

The Anatomy of the Neuromuscular Junction
  • Motor neurone terminates as a bouton or
    pre-synaptic nerve terminal separated from the
    muscle by a thin synaptic cleft (Motor endplate)
  • The blood nerve barrier is relatively deficient
    at the NMJ
  • Nerve and muscle are kept in close proximity by
    bridging protein (laminin), with release zones
    and the crests of post synaptic folds aligned
  • The skeletal neuromuscular junction is the most
    studied and best understood synapse

Healthy Neuromuscular Junction
The Physiology of Neuromuscular transmission
  • Neuronal Action potential invades the
    pre-synaptic nerve terminal
  • Depolarisation triggers opening of VGCCs
  • Calcium influx triggers quantal release of ACh
  • ACh binds to post synaptic nAChRs
  • Ca and Na ions influx through nAChR triggering
    muscle membrane depolarisation via VGSCs- CMAP
    and muscle contraction

Spontaneous and Nerve Evoked Endplate Responses
Myasthenia Gravis (MG)
  • MG is the most common disorder of neuromuscular
  • Incidence 2-6 per 106 , prevalence 40 per 106
  • MG is an acquired autoimmune disease
    characterised by the
  • formation of anti- nAChR antibodies
  • MG is common in young women, and older men
  • MG is characterized by fluctuating and fatigable
  • Weakness may be limited to a few muscles, such as
    the extraocular
  • muscles, bulbar, limb or be generalised in
  • As the weakness is often worse with activity and
    improved by rest,
  • it is often worse in the evening

Myasthenia Gravis (MG)
  • Ocular features ptosis, diplopia,
  • Facial weakness esp ob oculi and oris (snarl)
  • Bulbar weakness nasal speech, reduced gag,
  • problems, aspiration (silent), weak neck
  • Limb weakness proximal, fatiguable
  • Reflexes normal
  • Respiratory weakness diaphragm and intercostal

Myasthenia Gravis (MG) Sources of Diagnostic
  • Ocular thyroid, orbital myositis, cavernous
    sinus, III,
  • IV,VI, brainstem lesions, botulism, MFS variant
    of GBS
  • Facial GBS, myopathies
  • Bulbar LMN MND, skull base, polymyositis
  • Neck MG, MND, FSH, IM, GBS
  • Limbs Myopathies, LEMS, Motor Neuropathies

Myasthenia Gravis (MG)
  • MG is a defect of neuromuscular transmission with
  • reduced efficacy of Acetyl Choline at the post
  • motor endplate due to pathogenic antibodies which
  • Block the nAChR,
  • Down regulate the nAChR
  • cause complement dependent destruction of the
    motor endplate

Myasthenia Gravis (MG)
  • The immunopathogenesis of MG is unclear but
  • Genetic factors (HLA B8)
  • Thymus
  • Vast majority of young onset cases are autoimmune
    and associated with thymic hyperplasia
  • Around 10 of patients with MG, often older
    patients) have an associated thymic tumour (oft
    striated muscle Abs)
  • Seronegative (10 gen, 50 OMG)
  • Neonatal MG

Myasthenia Gravis (MG)
  • Diagnosis
  • Typical clinical picture
  • Detection of anti-AChR antibodies in serum (90)
  • Positive Tensilon test (atropine)
  • Repeptitive nerve stimulation at low frequency
    leads to a decrement in compound muscle action
    potential amplitude

Repetitive Nerve Stimulation (Supramaximal 2Hz)
Myasthenia Gravis (MG)
  • Treatment
  • Symptomatic (pyridostigmine oft with
  • Thymectomy
  • Hyperplasia (trans-sternal approach),
  • Thymoma (locally invasive)
  • Immunotherapy
  • steroids, and other agents including Azathioprine
  • plasma exchange,
  • IVIG

Lambert Eaton Myasthenic syndrome (LEMS)
  • A defect of neuromuscular transmission with
    reduced quantal release of Acetyl Choline from
    the presynaptic nerve terminal
  • Pathogenic antibodies directed against voltage
    gated calcium channels (VGCCS) expressed at the
    NMJ and autonomic ganglia
  • 2/3 patients with LEMS have cancer, most commonly
    Small cell lung Ca (express VGCCs)

Lambert Eaton Myasthenic syndrome (LEMS)
  • Clinical features
  • Dry mouth
  • Fatigable weakness of proximal muscles (like MG)
  • Wasting of proximal muscles (X MG)
  • Depressed reflexes (X MG)
  • Ocular and bulbar weakness rare (X MG)

Lambert Eaton Myasthenic syndrome (LEMS)
  • Diagnosis
  • Typical clinical picture
  • Detection of anti-VGCC antibodies in serum
  • Positive Tensilon test (like MG)
  • Repeptitive nerve stimulation at low frequency
    leads to a decrement in compound muscle action
    potential amplitude (like MG)
  • Repeptitive nerve stimulation at high frequency
    leads to a increment in compound muscle action
    potential amplitude (X MG)

Repetitive Nerve Stimulation (Supramaximal 2Hz)
Lambert Eaton Myasthenic syndrome (LEMS)
  • Treatment
  • Treating the underlying lung tumour improves LEMS
  • Treatment for LEMS per se
  • Symptomatic (mestinon, 3-4 DAP)
  • Immunotherapy (steroids, plasma exchange, IVIG)

Muscle Disease
  • Does the patient
  • have a muscle disorder and
  • is it acquired or inherited?

Inherited muscle disease Congenital Myopathies
  • Congenital myopathies
  • Lack of structural proteins e.g. Merosin
  • Ultrastructural appearance
  • Central Core
  • Nemaline Rod

Inherited muscle disease Dystrophy
  • Lack of structural proteins
  • Dystrophinopathies (Becker, Duchenne)
  • Sarcoglycanopathies (4 forms of LGMD)
  • Alteration in muscle enzymes
  • Calpain 3
  • Myotonic dystrophy (DMPK)

Inherited muscle disease Other
  • Defects in muscle energy metabolism
  • glyco(geno)lysis e.g. McArdles
  • lipid oxidation
  • CPT 1, CPT 2
  • carnitine deficiency
  • mitochondrial defects

Acquired muscle disease (i)
  • Drugs (statins, diuretics)
  • Endocrine (PTH,thyroid)
  • Inflammatory (PM, DM, IBM)
  • Infective (pyomyositis, viral myositis)
  • Toxic (venom)
  • Paraneoplastic (DM)

Acquired muscle disease (ii) The spectrum of
inflammatory myopathies
  • Dermatomyositis
  • Childhood
  • Adult
  • Malignancy associated
  • Polymyositis
  • Idiopathic
  • Drug induced
  • Collagen vascular disease
  • Jo-1 and other antibodies
  • Sarcoidosis
  • Others
  • Fascitis
  • Focal myositis
  • Orbital

Inclusion Body Myositis
Clinical features of myopathies
  • Muscle pain
  • Muscle weakness (limb, bulbar, respiratory)
  • Breathlessness (respiratory or cardiovascular)
  • Palpitations (cardiomyopathy or arrthymia)
  • Skin rash and other systemic features
  • Myoglobinuria

Muscle Pain
  • Muscle disorders associated with contractures
    (glycolytic myopathies)
  • Conditions associated with cramps (idiopathic,
    neurogenic etc)
  • Muscle disorders associated with muscle stiffness
    (myotonias, PMR, FM)
  • Muscle disorders causing localised or diffuse
    myalgia (IM, PMR, FM, Mitochondrial)

(Kissel and Miller 1999)
Causes of muscle pain (i)
  • Drug or toxin induced
  • alcohol
  • Via hypokalaemia diuretics
  • Other mechanisms statins, heroine
  • Secondary to systemic disease
  • defects of calcium metabolism hyper or hypo PTH
  • defects of thyroid function hyper or hypo
  • connective tissue diseaseSLE, MTCD, SS, etc

Causes of muscle pain (ii) Primary muscle diseases
  • Inflammatory myopathies
  • polymyositis
  • dermatomyositis
  • IBM
  • Defects in muscle energy metabolism
  • glycogenolysis
  • lipid oxidation
  • mitochondrial defects
  • Dystrophies
  • dystrophinopathy
  • facioscapulohumeral dystrophy
  • Others

Symptoms of muscle weakness
  • Classically muscle disorders produce proximal
  • with difficulties in
  • Reaching for high objects
  • Combing hair
  • Getting up from low chairs
  • Getting up stairs
  • Getting up on to a bus
  • Bulbar symptoms- dysphagia, dysarthria
  • Breathlessness (RS)

History of muscle weakness often distinguishes
acquired or inherited myopathies
  • Pre-natal (foetal movements)
  • Peri-natal (delivery, flat, floppy infant)
  • Motor milestones (sit, crawl, walk, run)
  • School (level of sporting achievement)
  • Occupational hository Armed forces

Muscle Weakness (i)
  • Manual muscle testing and MRC scores
  • Giveway, pain, and fatigue
  • Functional assessments, squat, timed Gowers
  • Hand held dynamometry
  • Quantitative myometry

Muscle Weakness (ii)
  • Classically muscle disorders present with a
    proximal or limb girdle pattern of weakness,
  • BUT
  • Proximal weakness may be due to peripheral
  • Myasthenia produces proximal weakness but not
  • Some myopathies produce distal weakness

Examination of the musculoskeletal system may
distinguish acquired or inherited myopathies
  • Atrophy
  • Hypertrophy (pseudo)
  • Contractures
  • Rigid spine

Myopathy bulbar features
  • Speech may be nasal
  • Swallowing problems
  • Aspiration symptoms
  • Beware silent aspiration
  • Neck weakness

Neurological causes of neck flexion weakness
  • Myopathic disorders
  • FSH
  • Myotonic Dystrophy
  • Inflammatory myopathies
  • Neuropathic disorders
  • GBS
  • CIDP
  • Anterior horn cell disorders
  • MND
  • SMA
  • Neuromuscular disorders
  • Myasthenia Gravis

  • Inflammatory myopathies
  • Glyco(geno)lysis
  • Lipid oxidation defect
  • Mitochondrial disorder
  • Brody syndrome
  • Drugs (heroin)

Respiratory Involvement in Neuromuscular Disease
  • Respiratory problems occur because of
  • Reduced central drive (myotonic dystophy)
  • Weak intercostal muscles
  • Weak diaphragmatic muscles (acid maltase)
  • Involvement of phrenic nerves (GBS)
  • Involvement of neuromuscular junctions of
    intercostal and diaphragmatic muscles

Respiratory Involvement in Neuromuscular Disease
  • Respiratory symptoms of Neuromuscular Disease
  • Breathlessness on exertion and on lying flat
    (diaphragmatic splinting)
  • Nocturnal hypoventilation may result in daytime
    hypersomnolence and early morning headache

Respiratory Involvement in Neuromuscular Disease
  • Neuromuscular Disease reduce lung compliance and
    cause restrictive and NOT obstructive defects in
    lung function tests
  • VCs and not Peak flow are the measure of choice
  • Sniff pressures and diaphragmatic screening
  • Nocturnal oximetry and ear lobe blood gases

Serum Creatine kinase value and limitations
  • The most sensitive enzyme for muscle disease
  • BUT
  • Normal does not exclude muscle disease
  • (mitochondrial, lipid oxidation disorders, ?IM)
  • CK level only approximates the clinical course
  • Slightly abnormal are seen with intramuscular
    injections, liver disease, neurogenic disorders
  • High CK does not equal Inflammatory myopathy

EMG value and limitations
  • EMG (unlike NCS) requires value judgments and is
    investigator dependent
  • EMG is crucial in excluding neuropathic disorders
  • A myopathic EMG occurs in a variety of muscle
  • The significance of EMG findings always depends
    on the clinical context

Muscle biopsy value and limitations
  • Biopsy is straightforward but processing is
    technically demanding
  • Choice of muscle to biopsy (weak, avoid atrophied
    muscles-endstage pathology)
  • Like EMG muscle biopsy evaluation requires value
    judgments and is investigator dependent
  • Biopsy needs to be interpreted within the
    clinical context
  • Avoid over interpretation ragged red fibre, type
    II atrophy
  • If normal on review consider repeating
  • Inflammatory myopathy or myopathy with
  • Polymyositis v dermatomyositis
  • Polymyositis v Inclusion body myositis

Polymyositis (PM) -Clinical Features
  • Adult onset inflammatory myopathy, very rarelt16
  • Femalegtmale
  • Subacute presentation (weeks to months) onset oft
  • Initial myalgia ? muscle tenderness
  • Proximal gt distal weakness
  • Dysphagia, neck and occ respiratory muscle
  • No rash

Dermatomyositis (DM) - Clinical Features
  • Childhood and adult onset inflammatory myopathy
  • Femalegtmale
  • Rash prior to or with muscle weakness
    (amyopathic), skin features can include
  • Heliotrope rash on eyelids ? Facial erythema
  • Erythema of trunk and exposed areas
  • Erythema of knuckles with scaly eruption- Gottron
  • Dilated capillary loops at base of fingernails
  • Cracked, dirty lateral borders of hands
    Mechanics hands
  • Acute or subacute presentation (few weeks)
  • Initial myalgia ? muscle tenderness
  • Proximal gt distal weakness
  • Dysphagia, neck and occ respiratory muscle

PM and DM-Associations
  • Connective tissue disorders
  • PM SLE, Sjogrens, RA
  • DM Scleroderma, MCTD (true overlap)
  • Interstitial lung disease (ILD) DMgtPM
  • Autoimmune-anti-Jo-1
  • Drug induced methotrexate
  • Cardiac disease
  • Myocarditis (rare)
  • Steroids ? hypertension ? heart failure
  • ILD ? pulmonary hypertension ? heart failure
  • Vasculitis (very rare, DMgtPM)
  • Systemic features weight loss, fever, malaise

Polymyositis and Dermatomyositis-Laboratory
  • Normal or elevated CK (X5-50)
  • Raised ESR-but non-specific
  • Myopathic EMG, irritable- myogenic denervation
  • Autoantibodies including Jo-1, ANA, in some
    patients but non-specific
  • Muscle biopsy necrosis, inflammation

PM and DM Immunopathology (i)
  • Strong circumstantial evidence that PM and DM are
  • autoimmune
  • More common in women
  • A range of autoantibodies are commonly detected
  • Myositis may arise or fluctuate in pregnancy
  • Strong assoc with other both organ and non-organ
    specific AI disorders PBC, Psoriasis, MG
  • Can be induced by D-Penicillamine, like MG

PM and DM Immunopathology (ii)
  • PM Muscle biopsies provide evidence of T cell
  • cytotoxic process directed against unknown muscle
  • antigens
  • DM Muscle biopsies provide evidence of Humorally
  • Mediated microangiopathy directed against unknown
  • antigens expressed by muscle capillary endothelium

Treatment of Polymyositis and Dermatomyositis (i)
  • Prednisolone
  • 1mg/kg day 60-100mg/day
  • Response in 4-8 weeks, then taper dose and change
    to alternate day regime
  • Problems include
  • Treatment failure
  • Steroid side effects
  • Steroid myopathy (EMG, muscle biopsy)

Treatment of Polymyositis and Dermatomyositis (ii)
  • Immunosuppressants other than steroids are useful
  • Steroids relatively contraindicated (IDDM etc)
  • Steroid-sparing" effect required because of
    steroid complications
  • Repeated relapses on attempts to reduce steroid
  • Steroids at an adequate dose ineffective after a
    2- to 3-month period
  • Rapidly progressive disease with severe weakness
    and respiratory failure

Treatment of Polymyositis and Dermatomyositis
  • Choice of Immunosuppressants other than steroids
    is largely empirical
  • Azathioprine (1.5-2.0 and rarely 3 mg/kg day)
  • Methotrexate (benefit?, lung fibrosis, RCT
  • Cyclophosphamide and cyclosporin are both
  • Others (Tacrolimus, chlorambucil)
  • Immunomodulation with hIVIG or plasma exchange
  • be useful in rapidly progressive disease (short

Treatment of Polymyositis and Dermatomyositis (iv)
  • Assessing the response to treatment
  • Pain subjective, arthralgia as well as myalgia,
  • Well being steroid effects
  • ESR non specific
  • CK chasing, the chemical cure
  • Weakness clinical exam and myometry
  • (repeat EMG and muscle biopsy)

Treatment of Polymyositis and Dermatomyositis (v)
  • Whilst prognostication is difficult poor
    prognostic features can include
  • Cardiac involvement
  • Acute onset, very chronic course
  • Prominent systemic features (fever, arthritis,
  • Lung fibrosis
Write a Comment
User Comments (0)
About PowerShow.com
