Title: Wall / V 12

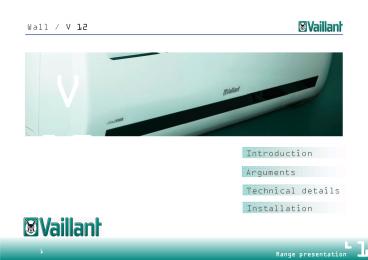

1
Wall / V 12
V 12
Introduction
Arguments
Technical details
Installation
2
V 12 / Introduction
The V 12 range
The V 12 range includes 2.5, 3.5, 5.0 and 6.5 kW
mono split units, as well as 2x1 multi splits.
All of them working with ON-OFF technology. V 12
models have a modern design with a new bright
digital display. Moreover, it includes an
enhanced health air purifying system, and
functions such as Low Noise, Sleep Function and
Light Control.
Type Power Model
Single ON-OFF 025 V 12-025 W
Single ON-OFF 035 V 12-035 W
Single ON-OFF 050 V 12-050 W
Single ON-OFF 065 V 12-060 W
Multi 2x1 ON-OFF 025035 V 12-060 M2W
3
V 12 / Arguments / Features
DC INVERTER
REMOTE CONTROL
HIGH EFFICIENCY
COLORFUL LCD DIGITAL DISPLAY
BIO BACTERIA KILLING
LOW NOISE
TIMER
SLEEP FUNCTION
COLD CATALYST FILTER
2x1 DUST FILTER
VERTICAL AIR SWING
AUTO OPERATION
LIGHT CONTROL
Modern Design The series comes with elegant blue
color display which provides useful information
for the user. Air purifying This series includes
a complete health air purifying system consisting
of three filters a cold catalyst filter, a bio
filter and 2x1 anti dust filter. High
Comfort Customer focused design and improved
functions like Low noise and Vertical air swing
provide more comfort to end users. High
Efficiency The majority of the range is A class
energy efficiency. Our DC Inverter Solution
Inverter Technology High modulating DC Inverter
technology provides high efficiency, low sound
and high comfort.
4
V 12 / Arguments / USPs
Modern design
Easily controlled by remote control With several
functions including green light ON-OFF function
on indoor display.
New display Bright digital display with elegant
blue colour provides users with useful
information such as Operation mode, Sleep
function and Set temperature. It is a clear
differentiation when compared with more simple
LED lamps displays.
5
V 12 / Arguments / USPs
Air purifying
Anti dust 2x1 filter This filter neutralizes and
protects the ambient air from acarus, microbes
and dust through its unique 2 in 1 effect (it is
also antiallergenic and antibacterial).
Bio filter A layer of special material is
installed in the filtration network of the unit.
When the unit starts working, slow release
technology purifies the ambient air, providing
moisturization and improving health effects on
the skin.
Cold catalyst filter This filter has anti-odour
and sterilization effects. It can completely
degrade methyl oxide (which has cancerogenic
effects) from the ambient air. It also
effectively removes odd odours like those of
methyl hydrosulfate, ethyl mercaptan etc.
Compared with optical catalyst filters, the cold
catalyst has the advantage of recycling without
going through the regeneration process.
6
V 12 / Arguments / USPs
Comfort
Customer focused design provides more comfort to
end users. Special functions such as Sleep
function, Auto operation, a complete Health Air
Purifying system, Light control via remote
button, Universal indoor and Low noise are
designed to bring comfort to the final users.
HEALTH AIR PURIFYING
LIGHT CONTROL
AUTO (it is possible to choose the temperature in
this mode)
SLEEP
LOW NOISE
7
V 12 / Arguments / USPs
High efficiency
A Class range provides optimum comfort with
minimum consumption of energy.
More efficient
Cost Savings
Energy
More savings
More efficient
Less efficient
Less efficient
Less savings
8
V 12 / Technical Details / Technical
Specifications
Feature Units Model Model Model Model
Feature Units V 12-025 W V 12-035 W V 12-050 W V 12-060 W
Indoor Unit Indoor Unit V 12-025 HWI V 12-035 HWI V 12-050 HWI V 12-060 HWI
Outdoor Unit Outdoor Unit V 12-025 HWO V 12-035 HWO V 12-050 HWO V 12-060 HWO
Power supply V/Ph/Hz 230/1/50 230/1/50 230/1/50 230/1/50
Cooling capacity kW 2.86 3.21 5.40 6.70
Cooling capacity BTU 9,761 10,955 18,429 22,866
Power Input kW 0.89 1.00 1.68 2.09
EER EER 3.21 3.21 3.21 3.21
Energy level class Energy level class A A A A
Heating capacity kW 2.95 3.43 6.06 7.05
Heating capacity BTU 10,068 11,706 20,682 24,060
Power input kW 0.81 0.94 1.68 2.05
COP COP 3.64 3.65 3.61 3.44
Energy level class Energy level class A A A B
Air flow volume m3/h 355/391/450 391/455/500 672/736/800 708/804/900
Catalogue sound pressure IU dB(A) 28/34/40 29/35/40 32/39/43 33/40/44
Catalogue sound pressure OU dB(A) 50 50 53 53
Compressor type Compressor type Rotary Rotary Rotary Rotary
Expansion system Expansion system Capillary Capillary Capillary Capillary
9
V 12 / Technical Details / Technical
Specifications
Feature Units Model
Feature Units V 12-060 M2W
Indoor Unit 1 2 Indoor Unit 1 2 V 12-025 MHWI V 12-035 MHWI
Outdoor Unit Outdoor Unit V 12-060 M2NHWO
Power supply V/Ph/Hz 230/1/50
Cooling capacity kW 5.80
Cooling capacity BTU 19,794
Capacity by indoor 1 2 kW 2.60 3.20
Power Input kW 1.71
EER EER 3.39
Energy level class Energy level class A
Heating capacity kW 6.38
Heating capacity BTU 21,774
Capacity by indoor 1 2 kW 2.86 3.52
Power input kW 1.86
COP COP 3.44
Energy level class Energy level class B
Air flow volume 1 2 m3/h 300/400/500 300/400/500
Catalogue sound pressure IU 1 2 dB(A) 28/34/40 28/34/40
Catalogue sound pressure OU dB(A) 52
Compressor type Compressor type Rotary
Expansion system Expansion system Capillary
10
V 12 / Technical Details / Temperature range
Model Cooling (ºC) Cooling (ºC) Cooling (ºC) Heating (ºC) Heating (ºC) Heating (ºC)
Model Indoor low Outdoor low Outdoor high Indoor high Outdoor low Outdoor high
V 12-025 W 16 8 43 32 -7 32
V 12-035 W 16 8 43 32 -7 32
V 12-050 W 16 8 43 32 -7 32
V 12-060 W 16 8 43 32 -7 32
V 12-060 M2W 16 8 43 32 -7 32
11
V 12 / Technical Details / Drawings
Indoor dimensions
Outdoor dimensions
Model HxLxD (mm) Weight (kg)
V 12-025 HWI 250x745x195 9
V 12-035 HWI 250x745x195 9
V 12-050 HWI 292x900x215 14
V 12-060 HWI 292x900x215 14
V 12-025 MHWI 280x800x190 10
V 12-035 MHWI 280x800x190 10
Model HxLxD (mm) I/J (mm) Weight (kg)
V 12-025 HWO 500x700x225 260/510 25
V 12-035 HWO 540x795x255 280/510 36
V 12-050 HWO 540x795x255 280/510 38
V 12-060 HWO 605x850x295 305/500 45
V 12-060 M2HWO 645x925x430 400/692 64
12
V 12 / Installation
Mono split
Model Units V 12-025 W V 12-035 W V 12-050 W V 12-060 W
Pipe connection liq/gas inches 1/4 3/8 1/4 3/8 1/4 1/2 1/4 1/2
Max. pipe length m 20 20 25 25
Max. height IU under OU m 10 10 15 15
Max. height OU under IU m 10 10 15 15
Refrigerant type gr R410A R410A R410A R410A
Refrigerant charge gr 560 1,120 1,500 1,900
Additional charge per meter gr 28 28 40 50
Max. Pipe Length a b c a d e Max.
Height IU under OU h2 Max. Height OU under IU
h1
13
V 12 / Installation
Multi split
Model Units V 12-060 M2W
Pipe connection liq/gas IU 1 2 inches 1/43/8 1/41/2
Pipe connection liq/gas OU inches 1/43/8 1/41/2
Max. pipe length m 20 20
Max. height IU under OU m 10
Max. height OU under IU m 10
Refrigerant type gr R410A
Refrigerant charge gr 1,000 1,200
Additional charge per meter gr 30 - 35
Total Max. Length L1 L2 L3 Max. Height IU
under OU h2 Max. Height OU under IU h1
L1 a b c L2 d L3 e f g Max. single
pipe length L1 L2 L3
14
Controls / Remote controls / Description / V 12
Increases/Decreases the temperature by 1ºC and
sets the timer
Switches the device ON-OFF
Selects the mode AUTO/COOL/DRY/HEAT/FAN
Directs the airflow up/down
Directs the airflow up or down
Adapts the temperature during night time
Selects the Timer start-up time
Starts working at maximum fan speed
Activates the ion operation (function not
available)
Switches off the light of the indoor display
Locks the remote control button
