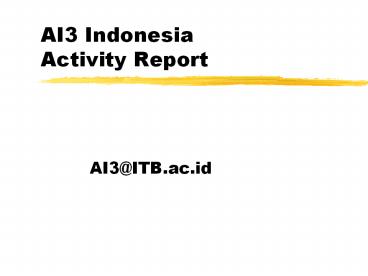

Title: AI3 Indonesia Activity Report


1
AI3 IndonesiaActivity Report
  • AI3_at_ITB.ac.id

2
Focus
  • Existing Implemented Infrastructure.
  • Experience in Building an AII.
  • Low Cost Technology To Educate Indonesia.

Low cost is the real challenge
3
Our situation
  • Develop by University
  • Implemented Run by Education Sector
  • Thanks to AI3, WIDE, JCSAT without whom all of
    these activities never exists!

4
Outline
  • Historical Perspective
  • Current Infrastructure.
  • Brief overview on our research results in
  • physical layer.
  • Network layer.
  • Application layer.

5
Experience in Internet building
  • January 1993 - Suryono (Texas) install a packet
    radio 1200bps to LAPAN.
  • LAPAN 1200bps to BPPT Internet 64Kbps.
  • 286 PC as gateway! to connect the whole ITB
    campus.
  • Software NOS (running on DOS) as gateway.

6
Indonesia Topology Jan.1993
Amateur Packet Radio AX.25 at 1200bps
Starts from simple equipment We grow the community
PC Gateway 286!
7
ITB in 1995
  • Telkom Leased Line at 14.4Kbps
  • RISTI-Telkom to BPPT 64Kbps.
  • ITB uses FreeBSD (UNIX) as Router Server.
  • For the first time ITB sees Web in Internet.
  • ITB learns to build a campus network (how to
    handle the lightning).

8
Typical ITB Campus Net
9
ITB Today ....
  • T1 Satelite link to Japan.
  • 2Mbps link to Indonesia IX.
  • VSAT TDMA SCPC to various universities.
  • 4Mbps Uwave Jakarta-Bandung.
  • 128 Kbps to Jakarta, Surabaya Malang.
  • WaveLAN 2Mbps for Metropolitan Area Network (MAN).

10
ITB Network Operation Center
11
Connection to IIX via RadNet
Connect to 6 Universities
5 Universities / Research Inst
7 Universities via VSAT TDMA
SCPC Connect 3 Universities
gt 10 educational institutions
12
(No Transcript)
13
Key to Success
Involving students in the process!
Gives incentives for education!
The more people the lower the cost
  • Human Resource Development!
  • Self-financing!
  • Community-base development.

14
National Policy / Activities
  • AI3 Indonesia has been connecting 27 educational
    institutions to Internet.
  • AI3 Indonesia is becoming a test bed for
    Indonesia AII.
  • AI3 Indonesia actives at National NII policy
    level at http//n21.ac-id.net/

15
Results in Physical Layer
  • Homebrew 2Mbps CDMA.
  • VSAT TDMA vs. SCPC Network.
  • Low Cost Access for Schools.
  • Internet Access for Amateur Radio

16
VSAT TDMA vs. SCPC
  • VSAT TDMA 128Kbps Outbound
  • VSAT TDMA 64Kbps Inbound
  • VSAT TDMA is not suitable for Internet
    application (especially Web).
  • Tune TDM for 40 byte (originally 256byte packet).
  • Migrate to VSAT SCPC (min) 19.2Kbps.

17
Homebrew 2Mbps CDMA
  • Uses Lucent CDMA 2Mbps card 915MHz 250mW.
  • Run on FreeBSD.
  • Homebrew antenna (cost US150).
  • Max. distance 15km (use PA for more).
  • Most of our high speed MAN using this technology.

18
(No Transcript)
19
Consequences CDMA 2Mbps
  • bypassing local line.
  • We promote different alternative for building
    high speed network.

20
Homebrew 64-256Kbps packet radio
  • We are prototyping 64-256Kbps packet radio
    network in the lab by adnan_at_itb.ac.id.
  • AX.25 link layer protocol is used.
  • GMSK MX 589 one chip modem is used.
  • We drive the modem via parallel port.
  • MMIC Minicircuit is being build for transverter.

21
Block Diagram
22
Homebrew 64-200Kbps Modem
23
TX RX BoardVHF CB Frequency
24
Low Cost Access for Schools
  • AX.25 1200bps Packet Radio Network.
  • Proxy Server.
  • Dial on Demand for Web Interactive Internet
    Access.

25
IntraNet for High Schools
24 hours Packet Radio E-mail
Proxy Dial-on-Demand for Web on Demand
26
(No Transcript)
27
Soundblaster Modem
  • PC running Linux
  • Software Modem Packet Radio for Soundblaster
  • Connect SB-10 to Radio
  • Speed 1200-9600bps.

28
Amateur Radio Network
  • Jakarta
  • Bandung
  • Malang

29
AMPR.ORG NET
ITB GATEWAY
UNIV. MUHAMMADIYAH MALANG
YB2SV (JOS SOEJOSO) SALATIGA
ELEKTRINDO NUSANTARA
30
(No Transcript)
31
Mobile Computing
32
IPv6 Test Bed
  • Background The Internet growth caused there
    is a need for new
  • generation of IP (Internet Protocol)
  • IPv6 Implementation using INRIA Rocquencourts
    IPv6 Implementation
  • which based on FreeBSD (2.2.2-RELEASE and
    2.2.5-RELEASE)
  • The participants are ITB, (Institut Teknologi
    Bandung), UNPAR
  • (Universitas Parahyangan), and UNILA
    (Universitas Lampung)
  • Next step
  • Expand IPv6 Network in AI3-Indonesia Network
  • Connect to 6Bone
  • Develop IPv6 Applications

33
(No Transcript)
34
Reachability
  • IPv6 ping6 5f12bc00a7cd30002c026fffeb049e
    5
  • trying to get source for 5f12bc00a7cd30002c02
    6fffeb049e5
  • source should be 5f12bc00a7cd16000ffff01
  • PING 5f12bc00a7cd30002c026fffeb049e5
    (5f12bc00a7cd30002c026fffeb049e5) 56 data
    bytes
  • 64 bytes from 5f12bc00a7cd30002c026fffeb049
    e5 icmp6_seq0 ttl255 time4.973 ms
  • 64 bytes from 5f12bc00a7cd30002c026fffeb049
    e5 icmp6_seq1 ttl255 time5.359 ms
  • 64 bytes from 5f12bc00a7cd30002c026fffeb049
    e5 icmp6_seq2 ttl255 time4.557 ms
  • òC
  • --- 5f12bc00a7cd30002c026fffeb049e5 ping
    statistics ---
  • 3 packets transmitted, 3 packets received, 0
    packet loss
  • round-trip min/avg/max 4.557/4.963/5.359 ms

35
ExotickA Single-User Network Operating System
Based
  • By
  • Joko Yuliantoro ltjky_at_itb.ac.idgt
  • Computer Network Research Group ITB

36
Traditional Kernel Design
  • Full Hardware Abstraction.
  • Centralized Resource Management.
  • Protection Mechanism / Multiplexing Raw Hardware.

37
Hardware Abstraction
  • Large coverage to make it useful to all
    applications.
  • Planned to accommodate all interfaces from
    application to hardware resources.
  • Trapped in vast small details that make the
    abstraction composed of inefficient codes and
    routines.

38
Impact on Kernel
  • Large Kernel Size.
  • Complex Algorithm.
  • Unreliable.
  • Inflexible.
  • Hard global optimization since too many codes and
    routines are affected.

39
Impact on Applications
  • Inefficient.
  • Complex Algorithm.
  • Can not grealty improve the efficiency since many
    details have been hidden away from application.

40
Exokernel Prototype Design
  • Created and introduced by Dawson R. Engler and M.
    Frans Kaashoek from MIT in January 1995.
  • Main principle is application should manage all
    physical resources.
  • Exokernel should only manage resources to the
    extent required by protection.

41
Exokernel Prototype Design
  • Use distributed resource management.
  • Exokernel concentrate on multiplexing raw
    hardware.

42
Exotick
  • A single-user network operating system based on
    Exokernel design.
  • As a start, planned to be a simple TCP/IP router.
  • Focus on
  • Simple operation programming.
  • Smaller kernel size.
  • Fast response (real time).

43
Exotick
  • Use Assembler language for best size and speed
    fulfillment.
  • Use Netwide Assembler (NASM) version 0.97 as the
    compiler and linker.

44
Exoticks Feature
  • 32-bit OS on Intels architecture.
  • Preemptive multitasking.
  • Flat memory model.
  • Small kernel size.
  • Fast response (real time).
  • Plain text user interface.
  • TCP/IP support.

45
Exotick Project Status
  • The project has been started since August 1998.
  • The project will be completed by the end of 1998.

46
Results in Network Layer
  • Network Monitoring by ismail_at_cnrg.itb.ac.id.
  • Monitor at http//netmon.itb.ac.id/
  • Network Map
  • Sample of traffic by protocol, port, etc.
  • Graph of total traffic.

47
Traffic Distribution Grapher
  • Describes
  • Comparison between Inbound and Outbound Traffic
  • Traffic Distribution by Protocols
  • The Most Active Routers/Hosts by Protocols
  • Daily Usage Trend for some Protocols
  • Weekly Protocol Usage Trend

48
TDG
URL http//netmon.itb.ac.id/
Host
In vs Out
Protokol
Trend
49
Benefits
  • Behaviour of the users in ITB (AI3)
  • Subjects of interest
  • Sites to be visited
  • The rush hours
  • Most actives computer/host
  • Planning the traffic routing, firewalling, etc.

50
Network Monitoring
  • Scotty Map Generator

51
Scotty monitor
Connectivity monitoring
Interface utility monitoring
52
Web screen
Scotty monitor
53
http//netmon.itb.ac.id/map.html
Text Map
Web screen
Timeout alarm
E-mail to Administrator
54
http//netmon.itb.ac.id/map.html
Web screen
Interface Utility Report
55
Results
  • Reconfiguration of VSAT TDMA interface speed for
    better performance.
  • Monitoring the JAMUS (ITB-YWCN) link performance.
  • To Lembong 99.525
  • To Surabaya 85.523
  • To Malang 86.282

56
(No Transcript)
57
System Platform
  • Pentium 100
  • 16 MB RAM
  • 2,1 GB Hard disk
  • Operating System FreeBSD
  • Main Software Scotty/Tkined (FreeWare) and
    TCPDUMP.
  • Under Xfree86 Windows

58
Results in Application Layer
  • Mailing Lists
  • English Technical Writting Course distance
    learning test bed.
  • Cache Cache Monitoring.
  • MPEG-3 Test Bed.
  • RealPublisher NetShow test bed.

59
Cache
  • ITB has set several Parents cache.
  • Cache person is husni_at_itb.ac.id
  • We cache all of our Web traffic.
  • check out http//www.lp.itb.ac.id/cacher/

60
HTTP-Cache What
  • Use of Proxy Server
  • Previously fetched WWW objects are stored in
    Proxy Server
  • Proxy Server gives cached WWW object instead of
    fetches it from WWW server
  • Use of non-persistent caching

61
HTTP-Cache Why
  • Web is the most popular application on The Net
  • Web traffic in byte is about 40
  • WAN link get congested
  • Most WWW objects are static

62
HTTP-Cache Facts
  • HTTP-Cache reduces WAN traffic
  • More Effective than Server mirror

63
Cache Hierarchy
  • Cache-Server mesh
  • Collaborates using parent-sibling relationship
  • Sibling fetches WWW-object only if it is found
    in local cache
  • Parent always fetches requested WWW-object

64
Cache Hierarchy at ITB Network
65
Cache Usage Monitoring
  • Log files
  • Daily statistics
  • Web-based report

66
Cache stats ns1.itb.ac.id
67
Cache stats ns2.itb.ac.id
68
Cache Hit Rate
69
Results
  • Over 1.5Gbytes transferred data at a normal
    work-day
  • Over 400Mbytes transferred data at a weekend-day
  • Reduces upto 19 in HTTP traffic

70
Typical Cache Results
  • Hit requests 53.90
  • Hit bytes 38.79
  • Total requests 406.473
  • Total successfull requests 406.473
  • Average requests /day 695.980
  • Total bytes 582.499.684
  • Average bytes / day 997.383.525

71
Mailing Lists
  • Uses majordomo on FreeBSD
  • Run on Dual Pentium 166MHz 32Mb RAM.
  • More than 220 mailing lists at ITB. (more than
    75 Indonesian mailing lists).
  • More than 10.000 subscribers.
  • We are trying to build the community in Indonesia.

72
Distance Learning
  • ITBs Server
  • http//distance-courses.itb.ac.id/
  • http//virtual-university.itb.ac.id/
  • http//InformationTechnology.ee.itb.ac.id/

73
(No Transcript)
74
(No Transcript)
75
Test Bed Library Network
  • Pustakawan_at_itb.ac.id
  • library_at_itb.ac.id
  • cnrg_at_itb.ac.id

76
(No Transcript)
77
(No Transcript)
78
Large Selection of Catalog
79
(No Transcript)
80
Search Result
81
Java Working Group
  • Lead by team4_at_students.ee.itb.ac.id, namely
    Fira, Raka cs.
  • Their Page is
  • http//students.ee.itb.ac.id/team4/laporan/

82
Video Conference
  • 25 October 1997 1400 Indonesia Time.
  • Three Cities Bandung-Surabaya-Malang
  • CU-SeeMe Its Reflector.
  • Aiming for high school network in Indonesia.
  • July 1997 Panel Discussion on the future of
    higher education (UNU).

83
Video on Demand
  • Supported by Microsoft Progressive Network
    Tools.
  • Splitter for UNFCC COP3 December 1997.
  • Publisher for ITBs Alumny Congress December
    1997.

84
AI3 Indonesia Member Activities
  • YWCN Malang, Surabaya, Denpasar.
  • UNPAR (University of Parahyangan Bandung)
  • UNILA (University of Lampung).

85
Yayasan Widya Caraka Nusantara (YWCN)
86
Vision Making the knowledge more accesible
Mission building the most efficient way
the information network for education community
87
Mission implementation . Regional Network
Distribution Center for AI3-Indonesia in East
Java, Bali and Jakarta. Junction for the
education and research computer network within
the all area of our operation . Internet
socialization for education and research
community. Develop the Indonesian Internet
information contents
88
Socialization program(encouraging demand of the
Internet for education)
  • Scientific seminar
  • Guest lecturing
  • Internet Education panel discussion
  • Study group gt 30 active members
  • Technology exhibition
  • Internet Talk show programme 97-now

89
(No Transcript)
90
(No Transcript)
91
Provide Access and Cooperative Network
Development (1)
  • Dedicated connection
  • . 8 education institution ( gt 2000 users)
  • Non dedicated connection (dial up lines )
  • . Lecturers 120
  • Teachers 75
  • Students 200

92
Provide Access and Cooperative Network
Development (2)
  • Faculty of Economics University Brawijaya -
    Malang
  • FTI - ITS - Surabaya
  • The State University of Malang (in progress)
  • STIE Malang Kucecwara
  • University of Bhayangkara - Surabaya
  • St.Albertus High School - Malang
  • WISH/BTC - Malang
  • University of Muhammadiyah Malang
  • Polytechnic ITS Surabaya

93
Provide Access and Cooperative Network
Development (3)
  • Hosting for the information contents of education
    and research institutes
  • - www and mailing list
  • Joint forces for internet education and training
    programme

94
Equipment
  • 18 x PC based server
  • 2 x Fast Ethernet 10/100 mbps hub
  • 2 x Access Server Telematic
  • Total Storage Capacity 100 GigaByte
  • 6 x Cisco Router
  • 4 x _at_ 16 dial in port

95
Bandwidth
  • Surabaya/Malang - AI3 Indonesia Gateway (ITB
    Bandung) 256 kbps
  • Surabaya/Malang - Indosat (backup link)
  • 64 kbps

96
Applied Research Activities
  • Wireless Network
  • Internet application for education
  • Network operating system integration
  • Network Management

97
Wireless MAN Test for Low Cost Video
Conferencing Oct 97 (1)
  • Link to
  • Malang Metropolitan Area Network (using 2 mbps
    wireless CDMA)
  • . YWCN Malang NOC
  • . St. Albertus High School
  • . FM 102 Broadcasting Station (radio live
    broadcasting)
  • --------------------------------------------------
    ---------------------------------------
  • Surabaya Metropolitan Area Network (using 2 mbps
    wireless CDMA)
  • . YWCN Surabaya NOC
  • . Campus of FTI-ITS Surabaya
  • --------------------------------------------------
    ---------------------------------------
  • Bandung (AI3-ITB) Indonesia gateway
  • --------------------------------------------------
    ---------------------------------------
  • INTERCITY CONNECTED BY LEASED LINE 2 x 128 kbps

98
Wireless MAN Test for Low Cost Video
Conferencing Oct 97 (2)
  • Installed equipment for test
  • Karlbridge router for Wireless CDMA 2 mbps
    located at
  • . YWCN Malang NOC (local center hub)
  • . YWCN Surabaya NOC (local center hub)
  • . St. Albertus High School Malang (venue of
    video conference)
  • . FM 102 Radio Station (radio live
    broadcasting)
  • . FTI-ITS Surabaya (venue of video conference)
  • . AI3-ITB Bandung (venue of video conference)
  • CuSeeMe Reflector at AI3-ITB Bandung
  • . Reflecting all client on all venue and radio
    station

99
(No Transcript)
100
Wireless MAN Test for Low Cost Real Audio
Broadcasting Dec 97
  • Were doing this test during Panel Discussion of
  • Malang Internet Academic Network
  • The panel discussion was broadcasting live
    simultanously to the Internet (video and audio)
    and to the FM radio band (audio only)
  • Installed equipment on this test
  • Karlbridge router for Wireless CDMA 2 mbps
    located at
  • . YWCN Malang NOC (local center hub)
  • . STIE Malang Kucecwara (venue)
  • . FM 102 Radio Station (radio live
    broadcasting)
  • Real Audio Encoder Server located at STIE
    Malang Kucecwara (venue)

101
Wireless MAN Test for Low Cost Real Audio
Broadcasting (2)
  • Installed equipment for test
  • Karlbridge router for Wireless CDMA 2 mbps
    located at
  • . YWCN Malang NOC (local center hub)
  • . STIE Malang Kucecwara (venue)
  • . FM 102 Radio Station (radio live
    broadcasting)
  • Real Audio Encoder Server located at STIE
    Malang Kucecwara (venue)
  • Archive (indonesian) of this panel discussion can
    be reached at
  • http//www.ywcn.or.id/diskusi.html

102
(No Transcript)
103
Wireless MAN Test for Low Cost Real Audio
Broadcasting during AI3 Indonesia 1st Annual
MeetingSurabaya - June 1998
  • Installed equipment for test
  • Karlbridge router for Wireless CDMA 2 mbps
    located at
  • . Venue in Widya Mandala University campus -
    Surabaya
  • . YWCN Surabaya NOC
  • Real Audio Encoder Server located at Widya
    Mandala University campus

104
(No Transcript)
105
- Research -Currently work in progress
  • Building Electronic Commerce
  • . Collaboration with some universities and
    private sector
  • . Collaboration with Internet and Computer
    Network Study Group
  • Combining Internet/Online Marketing and
    International Marketing
  • . Collaboration with Internet and Computer
    Network Study Group
  • . http//www,ywcn.or.id/inmark/
  • Using various low power Wireless CDMA for long
    distance carrier
  • Bandwidth optimization and
  • network management on Ethernet Network

106
University of Lampung (UNILA)
107
University of Lampungs Website
Library and Research Information
Exchange Increasing human resources
qualification Ready to be AI3 gateway for
educational institutions in Sumatra
  • BBS Unilanet
  • University of Lampung

108
Unilas Websiteoffers us about
  • General Information of University of Lampung
  • Journals and Research Report from some faculties
    and department
  • Institutions in Unila and their purposes
  • Students Activities Information
  • Other Activities about science and technology,
    nature conservation, and hobbies
  • Relationship and cooperation with other
    universities in education development project

109
Some Journals online pages
  • Journal of Agrotropika- contains of analysis and
    research in agronomy
  • Journal of Social and Agricultural Economics -
    about social and agricultural economics

110
Some Journals online pages
  • Journal of Komunitas- concern about social
    politics and cultural issues.
  • Journal of Tropical Soils- offers observations
    and research about tropical soils

111
Some Journals online pages
  • Journal of Science and Technology- all about
    research reports of math, natural
    science, and technological
    implementations

112
Interests
  • Wetlands International Indonesia Program- It is
    a part of a global organization which the
    mission is To sustain and restore wetlands,
    their resources and bio-diversity for future
    generations through research, information
    exchange, and conservation activities
  • Kite Aerial Photography- shows the information
    about an implementation of aerodynamics
    technology in aerial photography using kites, how
    to get clearer aerial images with minimum cost.

113
University of Lampung in a Search Engine
  • University of Lampung do participating in the
    global information exchanges

114
University of Parahyangan
115
(No Transcript)
116
UNPAR
  • 176 student users (http//student.unpar.ac.id/cgi-
    bin/userlist)
  • 348 university staff users (http//home.unpar.ac.i
    d/cgi-bin/userlist)

117
UNPAR Traffic
  • From our statistics with SNMP in our router
    (maingtw) showing number of data go out greater
    than data go in (http//www2.unpar.ac.id/traffic/)
    .

118
UNPAR Activities
  • Developing software from public sources (free
    software).
  • User Training
  • Searching information for research.
  • Mailing List / Discussions Platform
  • UNPAR Web at (http//www.unpar.ac.id/)
  • Collect and publish alumni data.

119
Summary
  • ITB has managed to integrate 20 educational
    institutions to Internet.
  • Major IT used
  • 2Mbps CDMA Network.
  • Web based distance learning.
  • Real Publisher / Microsoft NetShow.
  • Key to success
  • Mass Qualified Human Resource

120
References
  • http//ai3.itb.ac.id/
  • http//xxx.itb.ac.id/yc1dav/
  • http//xxx.itb.ac.id/cnrg/
  • http//xxx.itb.ac.id/adnan/
  • http//distance-courses.itb.ac.id/
  • http//virtual-university.itb.ac.id/
  • http//netmon.itb.ac.id/
  • http//nic.itb.ac.id/

121
(No Transcript)
122
(No Transcript)
Write a Comment
User Comments (0)
About PowerShow.com
