Title: Design Patterns


1

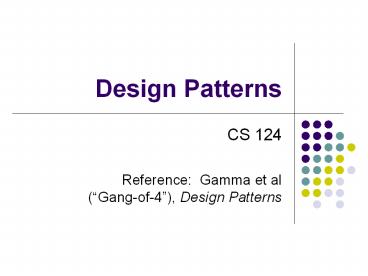

Design Patterns
  • CS 124
  • Reference Gamma et al(Gang-of-4), Design
    Patterns

2
Pattern some definitions
  • a combination of qualities, acts, tendencies,
    etc., forming a consistent or characteristic
    arrangement the behavior patterns of teenagers.
  • an original or model considered for or deserving
    of imitation our constitution has been a pattern
    for those of many new republics.
  • anything fashioned or designed to serve as a
    model or guide for something to be made a paper
    pattern for a dress.
  • Definitions extracted from dictionary.com

3
Design Pattern
  • The notion of pattern as it applies to OO
    software development
  • Solution to a particular kind of problem
  • How to combine classes and methods
  • Based on design experience
  • Use requires understanding of the appropriate
    problem and being able to recognize when such
    problems occur
  • Reuse solutions from the past
  • It is not code reuse, it is experience reuse

4
Patterns in other professions
  • Other professions have developed patterns and
    jargon for these well-tested patterns
  • Example writers/novelists
  • Tragically-flawed hero, romantic novel
  • Other professions
  • Architects/building engineers
  • Con-artists (see Oceans 11 movies)

5
Design Patterns the highest form of reuse and
abstraction
  • Specific concrete Code
  • Code Snippets
  • Functions / Methods
  • Generalized and Reusable Code
  • Classes, Templates, Code library, API
  • Reusable concepts
  • Data Structures, Algorithms
  • Patterns
  • How / When to apply these concepts, Design
    Patterns

6
Design Patterns
  • Name
  • Intent/Problem
  • Situation (problem) and context
  • When to apply the pattern conditions
  • Solution
  • Elements that make up the design, relationships,
    collaboration more a template rather than a
    concrete solution
  • How the general arrangement classes and objects
    solves it
  • UML diagrams (class relationships and
    responsibilities)
  • Consequences
  • variations, tradeoffs, cost-benefit

7
How to select design patterns
  • Consider how the design patterns solve design
    problems
  • Scan intent section
  • Consider how patterns interrelate
  • Study patterns of like purpose
  • Examine cause of redesign
  • Consider what should be variable in design (what
    you might want to change without redesign)
    Encapsulate the concept that varies

8
How to use a design pattern
  • Read up on the pattern
  • Study structure, collaboration, participants
  • Look at sample code
  • Choose names of participants meaningful in the
    application context
  • Define classes
  • Define application specific names for operations
    in the process
  • Implement the operations

9
Some Patterns for Discussion
  • Singleton
  • Factory Method
  • Adaptor
  • Iterator

10
Singleton
  • Intent
  • ensure a class has only one instance, and
    provide a global point of access to it
  • Motivation
  • Important for some classes to have exactly one
    instance. E.g., although there are many printers,
    should just have one print spooler
  • Ensure only one instance available and easily
    accessible
  • global variables gives access, but doesnt keep
    you from instantiating many objects
  • Give class responsibility for keeping track of
    its sole instance

11
Design Solution
  • Defines a getInstance() operation that lets
    clients access its unique instance
  • May be responsible for creating its own unique
    instance

Singleton -uniqueinstance Singleton
data getInstance() Singleton methods
Recall that an underlined method means static
12
Singleton Example (Java)
  • Database

public class Database private static Database
DB ... private Database() ... public
static Database getDB() if (DB null)
DB new Database() return DB ...
Database -Database DB instance
attributes Database getDB() instance methods
In application code Database db
Database.getDB() db.someMethod()
13
Implementation
  • Declare all of class constructors private
  • prevent other classes from directly creating an
    instance of this class
  • Hide the operation that creates the instance
    behind a class operation (getInstance)
  • Variation Since creation policy is encapsulated
    in getInstance, possible to vary the creation
    policy

14
Singleton Consequences
  • Ensures only one (e.g., Database) instance exists
    in the system
  • Can also use this pattern to control fixed
    multiple instances
  • Much better than the alternative global
    variables

15
Factory Method
  • Intent provide an interface for creating objects
    without specifying their concrete classes
  • Example Stacks, Queues, and other data
    structures
  • Want users to not know or care how these
    structures are implemented (separation)
  • Example UI toolkit to support multiple
    look-and-feel standards, e.g., Motif, PM
  • Abstract class for widget, supporting class for
    specific platform widget

16
Design Solution forFactory Method
Factory createProduct()Product
ltltinterfacegtgt Product abstract methods
Client
ConcreteProdA methods
ConcreteProdB methods
Note this is an abbreviated design
17
Participants
  • Factory
  • implements the operations to create concrete
    product objects
  • (Abstract) Product declares an interface for a
    type of product object
  • Concrete Product
  • defines a product object to be created by the
    corresponding concrete factory
  • implements the abstract product interface
  • Client uses only Factory and Abstract Product

18
Factories in Java
  • Stack is an Interface
  • ArrayStack and LinkedStack implement Stack
  • StackFactory returns objects of type Stack
    through its factory methods
  • Select the appropriate concrete Stack class class
  • If using info from requesting client, can
    hardcode selection logic and choice of product
    objects
  • Use Hashed Adapter Pattern to separate selection
    logic for factories from the data it uses to make
    the selection

19
Factory Method Consequences
  • Factory class or method can be altered without
    affecting the application
  • Concrete classes are isolated
  • Factory class can be responsible for creating
    different types of objects
  • e.g., DataStructure factory that returns stacks,
    queues, lists, etc.
  • product families (see Abstract Factory
    pattern)
  • creational logic
  • determining object type based on certain criteria

20
Coupling
  • One of the goals of Design Patterns is the idea
    of loose-coupling or de-coupling
  • reducing or removing class dependencies
    throughout the system
  • For example, Factory removes the dependency on
    the specific subclasses generated by the Factory
    from the rest of the system
  • instead the system is dependent on the single
    interface type that is generated by the Factory
  • Loosely coupled or decoupled code is easier to
    reuse since the code has fewer dependencies on
    other code

21
Kinds of Patterns
  • Singleton and Factory Method are examples of
    Creational Patterns
  • Other kinds of patterns
  • Structural concerns object structuree.g.,
    Adapter
  • Behavioral concerns object interaction and
    distribution of responsibilitiese.g., Iterator

22
Adapter
  • Intent Adapter lets classes work together that
    couldnt otherwise because of incompatible
    interfaces.
  • Motivation Sometimes, a class that is designed
    for reuse isnt reusable only because its
    interface doesnt match the domain-specific
    interface an application requires.
  • e.g. drawing editor that allows users to draw and
    edit shapes. Has a TextShape subclass that is
    hard to implement. Fortunately there are
    pre-existing classes like TextView that
    implements the complexities problem is
    incompatibility.
  • It would not make sense if we have to modify the
    reusable class so as to conform to the client
    interface.
  • Built-in no source code

23
Two forms of the Adapter Pattern
  • Object Adapter pattern
  • Concerned with object composition.
  • Implements the interface that the client expects
    and creates an adaptee instance within the
    adapter class
  • Implements clients methods by making calls to a
    physical instance of the adaptee object.

1
Client
Expected
Adaptee
expectedMethod()
void specificMethod()
1
void expectedMethod() adaptee.specificMetho
d()
ObjectAdapter
- Adaptee adaptee
void expectedMethod()
24
Two forms of the Adapter Pattern
  • Class Adapter Pattern
  • A class adapter uses multiple inheritance to
    adapt one interface to another.
  • Inherits the client interface and the adaptees
    implementation.

1
Client
Expected
Adaptee
expectedMethod()
void specificMethod()
void expectedMethod() specificMethod()
ClassAdapter
void expectedMethod() void
specificMethod()
25
Comparison of Applicability Consequences
  • Use adapter pattern when
  • Using an existing class that does not match with
    the one you need
  • (object adapter only) reusing several existing
    class
  • Impractical to adapt each by subclassing every
    one of them
  • Consequences
  • Class Adapter
  • Class adapter wont work with adaptees
    subclasses
  • Easier to override adaptees behavior, since
    adapter is a subclass of adaptee
  • Can have unforseen consequences, Adapter can be
    placed anywhere the Adaptee can due to inheritance
  • Object Adapter
  • Lets a single adapter work with many adaptees
    (adaptee itself and subclasses)
  • Harder to override adaptee behavior

26
Iterator Pattern
  • Intent provide a way to access the elements of
    an aggregate object sequentially without
    expressing its underlying representation
  • Example iterators for Java collections or C
    STL containers
  • Note that you can have several iterator objects
    for a container and that the iterators are
    separate classes

27
ltltinterfacegtgt Collection
ltltinterfacegtgt IteratorIF
Creates
iterator() IteratorIF
hasNext() boolean next() Item
Fetches from
Collection
Iterator
28
Iterators in Java
  • Iterators are used a lot with Java collection
    objects
  • e.g. Lists, Sets and Maps
  • By calling the iterator() method on the List/Set
    or on the result of Map.values() you can go
    through all the elements via the next() method
  • Note order of insertion is not necessarily going
    to be followed by the iterator, it only
    guarantees that everything will come out.

29
Creational Patterns
  • Abstract Factory
  • Builder
  • Factory Method
  • Prototype
  • Singleton

30
Structural Patterns
  • Adapter
  • Bridge
  • Composite
  • Decorator
  • Façade
  • Flyweight
  • Proxy

31
Behavioral Patterns
  • Chain of Responsibility
  • Command
  • Interpreter
  • Iterator
  • Mediator
  • Memento
  • And a few more

32
Summary
  • Main point to recognize that there are proven
    solutions to problems that a designer/ programmer
    may encounter
  • Solutions are results of others experiences
  • Towards standard approaches
  • Search for such solutions first
  • Although there is some merit attempting to create
    the solution yourself
  • Becoming a design architect
  • Up Next More patterns
About PowerShow.com
