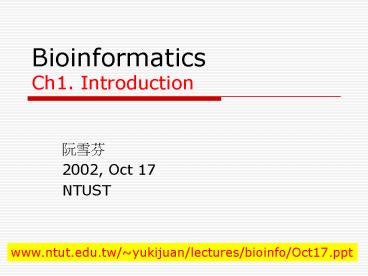

Title: Bioinformatics Ch1. Introduction


1
BioinformaticsCh1. Introduction
  • ???
  • 2002, Oct 17
  • NTUST

www.ntut.edu.tw/yukijuan/lectures/bioinfo/Oct17.p
pt
2
Outline
  • A scenario
  • Life in space and time
  • Dogmas central and peripheral
  • Observable and data archives

3
Traditional and Current Biology
  • Traditionally, biology has been an observational
    science.
  • Now, biology has been converted into deductive
    science.

4
The Data of Bioinformatics
  • Very very large amount
  • Nucleotide sequence databanks contain 16 x 109
    bases
  • The full three-dimensional coordinates of
    proteins of average length 400 residues 16000
    entries
  • Not only are the individual databanks large, but
    their sizes are increasing as a very high rate.

5
GenBank
6
Goals
  • Saw life clearly and saw it whole
  • To interrelate sequence, three-dimensional
    structure, interactions, and function of
    individual proteins, nucleic acids and
    protein-nucleic acid complexes

Understand integrative aspects of the biology of
organisms
7
Goals
  • To deduce events in evolutionary history.
  • To support application to medicine, agriculture
    and other scientific fields.

8
A Scenario
9
Imagine a Crisis (1)
  • A new biological virus creates an epidemic of
    fatal disease in humans or animals

Laboratory scientists will isolate its genetic
material-a molecule of nucleic acid and determine
the sequence.
Computer program will then take over
10
Imagine a Crisis (2)
Screening this new genome against a data bank of
all know genetic messages
Developing antiviral therapies virus contain
protein molecules which are suitable targets, for
drugs that will interfere with viral structure or
function
11
Imagine a Crisis (3)
From the viral DNA sequences
Computer program
Protein sequence
12
Imagine a Crisis (4)
From amino acid sequences
Computer program
Three-dimensional structure
13
Homology Modelling
Data bank will be screened for related proteins
of know structures
Computer program
Structure will be predicted
A
B
14
Ab initio
No related protein of known structure is found
Ab initio
Predicting the structure
15
Design Therapeutic Agents
Knowing the viral protein structure
Design therapeutic agents
16
Life in space and time
17
In Space
  • Biosphere
  • Ecosystem
  • Darwinian selection or genetic drift

Natural mutation
The recombination of genes in sexual reproduction
Direct gene transfer
The generation of variants
18
In Space
Ecosystem
Species
Cell
Nuclei, organelles and cytoskeleton
Molecules
19
In Time
  • A history of life 3.5 billion years

20
Dogmas Central and Peripheral
21
Central Dogmas
  • 1957, Crick??????DNA??RNA,RNA?????
  • ??????????,????????
  • ???RNA??RNA?DNA?RNA?Protein
  • ????
  • ????RNA??????
  • ??????????,??RNA??????
  • ??????????????????????,?????RNA ,????????????

22
????RNA??????
23
??????????,??RNA??????
First identified in plant virus
24
(No Transcript)
25
Purines and Pyrimidines
26
The Strand in the Double-helix are Antiparalle
3
5
5
3
27
(No Transcript)
28
Paradigm
DNA sequence
determines
Protein sequence
determines
Protein structure
determines
Protein function
Most of the organized activity of bioinformatics
has been focused on the analysis of the data
related to these processes
29
Observable and Data Archives
30
A Databank
  • An archive of information
  • A logical organization
  • Structure of that information
  • Tools to gain access to it

31
A Databank in Molecular Biology
  • Archival databanks of biological information
  • DNA and protein sequence
  • Nucleic acid and protein structure
  • Databanks of protein expression

32
A Databank in Molecular Biology
  • Derived Databanks
  • Sequence motifs
  • Mutations and variants in DNA and protein
    sequences
  • Classification and relationships
  • Bibliographic Databanks
  • Databanks of web sites
  • Databanks of databanks containing biological
    information
  • Links between databanks

33
The Mechanism of Access to a Databank is
  • the Set of Tools for answering Question Such as
  • Does the databank contain the information I
    require?
  • How can I assemble information from the databank
    in a useful form?
  • Indices of databanks are useful in asking Where
    can I find some specific piece of information?

34
A Variety of Possible Kinds of Database Queries
Can Arise in Bioinformatics (1)
Give a sequence or fragment of a sequence
Find sequence in the database that are similar to
it
A central problem in bioinformatics
35
A Variety of Possible Kinds of Database Queries
Can Arise in Bioinformatics (2)
Give a protein structure or fragment
Find protein structures in the database that are
similar to it
36
A Variety of Possible Kinds of Database Queries
Can Arise in Bioinformatics (3)
Give a sequence of a protein of unknown structure
Find structures in the database that adopt
similar three-dimensional structures
37
A Variety of Possible Kinds of Database Queries
Can Arise in Bioinformatics (3)
For if two protein have sufficiently similar
sequences
They will have similar structure
38
A Variety of Possible Kinds of Database Queries
Can Arise in Bioinformatics (4)
Give a protein structure
Find sequences in the data bank that correspond
to similar structures
39
A Variety of Possible Kinds of Database Queries
Can Arise in Bioinformatics
  • (1) and (2) are solved problems
  • (3) and (4) are active fields of research

40
Curation, Annotation and Quality Control
  • Older data were limited by older techniques
  • Amino acid sequences of protein used to be
    determined by peptide sequencing.
  • Now, almost al are translated from DNA sequences.

41
Curation, Annotation and Quality Control
  • Distributed error-correction and annotation
  • Dynamic error-correction and annotation
