Title: Foundations of Computer Science Computing

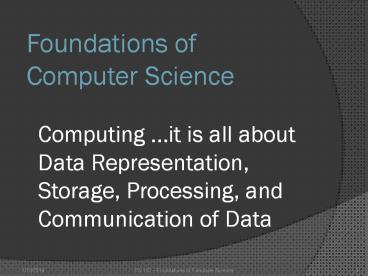

1
Foundations ofComputer Science Computing it
is all about Data Representation, Storage,
Processing, and Communication of Data
2
A Computational Machine
  • What capabilities should a computing machine have
    ?
  • Well..any computational problem involves two
    primary elements
  • Data (numbers, text strings, or images, ...) used
    for input, manipulation and output
  • Instructions (that describes the operations (e.g.
    arithmetic or comparison) that must be performed
    on data pertinent to the problem being solved
  • Von Neumann provided the insight that both data
    and instructions could be stored together in the
    computer

1/19/2016
2
CS 112 Foundations of Computer Science
3
A Computational Machine
  • Thus, the machine must have the following
    capabilities
  • Representation Storage (of both Data, and the
    Instructions that defines operations on data,
    why?)
  • Data Processing (interpret Instructions and carry
    out operations defined by these instructions on
    Data)
  • Data input and Data output (I/O) (why?)
  • Data Communication (optional, if the machine is
    connected to other similar machines via a
    network)

1/19/2016
3
CS 112 Foundations of Computer Science
4
Computer Capabilities
  • A transistor can be set to either on (1) or off
    (0) by controlling the direction of the electric
    current passing through it
  • Hundreds of Millions of transistors can be packed
    into a small compact unit called the integrated
    circuit (IC) (a.k.a chips)

1/19/2016
4
CS 112 Foundations of Computer Science
5
Computer Capabilities
  • Information in the Computer is bits context
  • Both data and instructions are encoded in the
    computer using Bits (Binary digits)
  • Think of a Bit as a code that can be either equal
    to 0 or 1
  • Encoding means that for each data value or
    algorithm instruction you use a code consisting
    of one or more bits to represent it.
  • For example, Street Traffic lights is a form of
    encoding for instructions to motorists (red
    stop, yellow slow down, green go)
  • In computers bits are grouped together in 8-bit
    chunks called Bytes (e.g. 00101010, 11111111,
    and 00000000)

1/19/2016
5
CS 112 Foundations of Computer Science
6
Computer Capabilities
  • Representation the encoding data using
    bits, and the
  • encoding instructions using bits
  • Storage storing bits used to encode
    data and
  • instructions
  • Data Processing for each instruction
  • 1) Interpreting the bits of the
    instruction, and
  • 2) doing the operation specified
    in the
  • instruction on the bits of the
    data specified
  • in the instruction

1/19/2016
6
CS 112 Foundations of Computer Science
7
Computer Capabilities
  • Data Input converting data
    transferred into the machine
  • (say through a keyboard or mouse)
    into bits
  • (and storing these bits)
  • Data Output converting bits of data
    into appropriate format
  • for transfer outside the machine
    (e.g. to the
  • screen)
  • Data Communication Transfer bits of data from one
    computer to
  • another

1/19/2016
7
CS 112 Foundations of Computer Science
8
Computer Capabilities
  • What are some of the different types of data that
    may be encountered?
  • Text (sequences of characters used to represent
    names, descriptions, etc.)
  • Numeric (to represent different quantities, e.g.
    age, length, height, amount of money, growth
    rates)
  • Image (to represent photographic or synthesized
    pictures)
  • Audio (to represent audio signals of humans and
    otherwise)
  • Video (to represent video signals)

1/19/2016
8
CS 112 Foundations of Computer Science
9
Computer Capabilities
  • What are some of the different types of
    instructions that may be used on this data?
  • Text (extracting characters, Concatenating
    characters together, comparing characters)
  • Numeric (arithmetic , -, , ?, comparison among
    other operations)
  • Audio (manipulate pitch, volume, high or low
    frequencies in an audio signal)
  • Image (manipulate pixels properties, e.g. color)

1/19/2016
9
CS 112 Foundations of Computer Science
10
Data Representation Storage
  • Representation by encoding works as follows
  • First you have a value set a fixed set of values
    you want to encode (data values likes numbers,
    characters, instructions to motorists,etc.).
  • You have a symbol set a fixed set of symbols to
    use in constructing codes for these values (for
    computers this is generally the symbols 0,1).
  • Using combinations of the symbols found in the
    symbol set you construct a unique code
    corresponding to each value in the value set.

1/19/2016
10
CS 112 Foundations of Computer Science
11
Data Representation Storage
  • Exercise I
  • To save Money a new traffic light device will be
    deployed where only two colors are available red
    green propose an encoding scheme that allows
    the stop, slow down, and go instructions to be
    given to motorists using this new traffic light
    device
  • Answer
  • Whats the value set ?
  • Whats the symbol set?
  • Whats the encoding scheme?

1/19/2016
11
CS 112 Foundations of Computer Science
12
Data Representation Storage
  • Exercise I
  • To save Money a new traffic light device will be
    deployed where only two colors are available red
    green propose an encoding scheme that allows
    the stop, slow down, and go instructions to be
    given to motorists using this new traffic light
    device
  • Answer
  • Whats the value set ? stop, slow down go
  • Whats the symbol set? red green
  • Whats the encoding scheme? stop red, go
    green
  • slow down red green

1/19/2016
12
CS 112 Foundations of Computer Science
13
Numeric Representation
  • What does 943 mean?
  • As a decimal number

1/19/2016
13
CS 112 Foundations of Computer Science
14
Numeric Representation
  • What does 943 mean?
  • As a decimal number
  • 9 102 9 100 900
  • 4 101 4 10 40
  • 3 100 3 1 3
  • 943
  • called positional notation
  • here represented in base 10

1/19/2016
14
CS 112 Foundations of Computer Science
15
Binary Representation
  • Generally speaking binary representation (base 2)
    of integers will use the symbols 0 1 in a
    positional representation where positions
    represent powers of 2.
  • 24 23 22 21 20 or 16 8 4 2 1
  • thus 11001 16 8 0 0 1 25

1/19/2016
15
CS 112 Foundations of Computer Science
16
Binary Representation
  • Represent the decimal number 125 in binary
  • The standard algorithm
  • (1) Start with your number, here 125, in base 10
  • (2) Divide the number (125) by 2 and record
    the remainder
  • 125 / 2 has a quotient of 62 and a remainder
    of 1
  • (3) If the quotient 0 stop,
  • else
  • Go to step 2 and repeat using the
    quotient as the number
  • (4) Record the remainders recorded from right
    to left

1/19/2016
16
CS 112 Foundations of Computer Science
17
Binary Representation
  • Q R
  • 125 / 2 62 1
  • 62 / 2 31 0
  • 31 / 2 15 1
  • 15 / 2 7 1
  • 7 / 2 3 1
  • 3 / 2 1 1
  • 1 / 2 0 1
  • 12510 11111012

1/19/2016
17
CS 112 Foundations of Computer Science
18
Binary Addition
  • How did we learn to add?
  • ?? Do you remember the tables ??
  • 0 0 0
  • 0 1 1
  • 1 0 0
  • 1 1 10
  • carry (hmmm why didnt they
  • give us this in grade school?)

1/19/2016
18
CS 112 Foundations of Computer Science
19
Binary Addition
  • Example
  • 1 1 1 1 1 carry
  • 1 0 1 1 1 0
  • 1 1 0 1 1
  • 1 0 0 1 0 0 1

1/19/2016
19
CS 112 Foundations of Computer Science
20
Negative Numbers
  • Sign and Magnitude
  • It's what we're used to 17 -45
  • Fortunately there are only two choices for the
    sign and -
  • So why no add a bit, and then use
  • 0 for and 1 for -
  • Thus
  • 1 0100110 -gt - 38
  • sign bit

magnitude
1/19/2016
20
CS 112 Foundations of Computer Science
21
Negative Numbers
  • Among other things this leads to two zeros
  • 0 0000000 0 and 1 0000000 -0
  • that aren't really different numbers.
  • Try instead something called 2s complement

1/19/2016
21
CS 112 Foundations of Computer Science
22
Negative Numbers
  • Might think of as clock arithmetic

0000
0001
1111
0010
1110
1101
0011
0100
1100
1011
0101
0110
1010
0111
1001
1000
1/19/2016
22
CS 112 Foundations of Computer Science
23
Addition and Subtraction
  • 3 2 5 or 0011 0010 0101

1/19/2016
23
CS 112 Foundations of Computer Science
24
Addition and Subtraction
  • 7 - 4 3 or 0111 - 0100 0011

1/19/2016
24
CS 112 Foundations of Computer Science
25
Addition and Subtraction
  • -7 4 -3 or 1001 0100 1101

1/19/2016
25
CS 112 Foundations of Computer Science
26
Negative Numbers
  • 2s Complement
  • Take the 1s complement and add 1
  • 5 -gt 0101 1s comp -gt 1010
  • add 1 1
  • 1011 -gt -5
  • Now go the other way
  • -5 -gt 1011 1s comp -gt 0100
  • add 1 1
  • 0101 -gt 5
  • Thus the 2s complement of a 2s complement is
    the original number (same is true for the
    negative)

1/19/2016
26
CS 112 Foundations of Computer Science
27
Negative Numbers
  • Find -56 using an eight bit representation
  • 56 -gt 00111000
  • 1's comp 11000111
  • add 1 1
  • 11001000 -gt -56
  • What does 10111001 represent?
  • 2's complement it 01000110
  • 1
  • 01000111 -gt 71
  • so the original number must have been -71

1/19/2016
27
CS 112 Foundations of Computer Science
28
Negative Numbers
  • Find -83 using an eight bit representation
  • What does 10010101 represent?
  • What does 11111111 represent?

1/19/2016
28
CS 112 Foundations of Computer Science
29
Need More Bits
  • Positive Numbers Fill new positions to the left
    with 0
  • 7 in four bits 0111
  • 7 in eight bits 0000 0111
  • 7 in sixteen bits 0000 0000 0000 0111
  • Negative Numbers Fill new positions to the left
    with 1
  • -7 in four bits 1001
  • -7 in eight bits 1111 1001
  • -7 in sixteen bits 1111 1111 1111 1001

1/19/2016
29
CS 112 Foundations of Computer Science
30
Addition and Subtraction
  • Addition follow the usual rules
  • 5 2 7 -4 5 1
  • 0101 1100
  • 0010 0101
  • 0111 10001
  • carry out ignored, it means
  • you passed 0

1/19/2016
30
CS 112 Foundations of Computer Science
31
Addition and Subtraction
  • Subtraction can be represented as the addition of
    the negative
  • 7 - 5 -gt 7 (-5)
  • 0111 0111
  • - 0101 1011
  • 10010
  • -4 - 3 -gt -4 (-3)
  • 1100
  • 1101
  • 11001

1/19/2016
31
CS 112 Foundations of Computer Science
32
Addition and Subtraction
  • So is there any concern?
  • Yes no matter how many bits you use there is
    some maximum and some minimum number that can be
    represented.
  • For four bits those are 7 and -8 respectively.
  • 5 6 11 and -6 (-4) -10 are beyond a
    4-bit rep.
  • 0101 1010
  • 0110 1100
  • 1011 10110

1/19/2016
32
CS 112 Foundations of Computer Science
33
Addition and Subtraction
  • So is there any concern?
  • Yes no matter how many bits you use there is
    some maximum and some minimum number that can be
    represented.
  • For four bits those are 7 and -8 respectively.
  • 5 6 11 and -6 (-4) -10 are beyond a
    4-bit rep.
  • 0101 1010
  • 0110 1100
  • 1011 10110
  • two positives added to
  • a negative

1/19/2016
33
CS 112 Foundations of Computer Science
34
Addition and Subtraction
  • So is there any concern?
  • Yes no matter how many bits you use there is
    some maximum and some minimum number that can be
    represented.
  • For four bits those are 7 and -8 respectively.
  • 5 6 11 and -6 (-4) -10 are beyond a
    4-bit rep.
  • 0101 1010
  • 0110 1100
  • 1011 10110
  • two negatives added to
  • a positive

1/19/2016
34
CS 112 Foundations of Computer Science
35
Addition and Subtraction
  • So is there any concern?
  • Yes no matter how many bits you use there is
    some maximum and some minimum number that can be
    represented.
  • For four bits those are 7 and -8 respectively.
  • 5 6 11 and -6 (-4) -10 are beyond a
    4-bit rep.
  • 0101 1010
  • 0110 1100
  • 1011 10110
  • Both cases are called overflow.

1/19/2016
35
CS 112 Foundations of Computer Science
36
Addition and Subtraction
  • Carry out the following if there is overflow
    indicate that if there is no overflow interpret
    your answer in decimal form. Numbers are listed
    in 2's complement.
  • 1001 0011 0111 1111 1010
  • 0101 0110 0011 1000 0011
  • 1001 0011 0111 1111 1010
  • - 0101 - 0110 - 0011 - 1000 - 0011

1/19/2016
36
CS 112 Foundations of Computer Science
37
Addition and Subtraction
  • Carry out the following if there is overflow
    indicate that if there is no overflow interpret
    your answer in decimal form. Numbers are listed
    in 2's complement.
  • 1001(-7) 0011 0111 1111 1010
  • 0101(5) 0110 0011 1000 0011
  • 1110(-2)
  • 1001 0011 0111 1111 1010
  • - 0101 - 0110 - 0011 - 1001 - 0011

1/19/2016
37
CS 112 Foundations of Computer Science
38
Addition and Subtraction
  • Carry out the following if there is overflow
    indicate that if there is no overflow interpret
    your answer in decimal form. Numbers are listed
    in 2's complement.
  • 1001(-7) 0011(3) 0111 1111 1010
  • 0101(5) 0110(6) 0011 1000 0011
  • 1110(-2) 1001(X)
  • 1001 0011 0111 1111 1010
  • - 0101 - 0110 - 0011 - 1001 - 0011

1/19/2016
38
CS 112 Foundations of Computer Science
39
Addition and Subtraction
  • Carry out the following if there is overflow
    indicate that if there is no overflow interpret
    your answer in decimal form. Numbers are listed
    in 2's complement.
  • 1001(-7) 0011(3) 0111(7) 1111 1010
  • 0101(5) 0110(6) 0011(3) 1000 0011
  • 1110(-2) 1001(X) 1010(X)
  • 1001 0011 0111 1111 1010
  • - 0101 - 0110 - 0011 - 1001 - 0011

1/19/2016
39
CS 112 Foundations of Computer Science
40
Addition and Subtraction
  • Carry out the following if there is overflow
    indicate that if there is no overflow interpret
    your answer in decimal form. Numbers are listed
    in 2's complement.
  • 1001(-7) 0011(3) 0111(7) 1111(-1) 1010
  • 0101(5) 0110(6) 0011(3) 1000(-8) 0011
  • 1110(-2) 1001(X) 1010(X) 10111(X)
  • 1001 0011 0111 1111 1010
  • - 0101 - 0110 - 0011 - 1001 - 0011

1/19/2016
40
CS 112 Foundations of Computer Science
41
Addition and Subtraction
  • Carry out the following if there is overflow
    indicate that if there is no overflow interpret
    your answer in decimal form. Numbers are listed
    in 2's complement.
  • 1001(-7) 0011(3) 0111(7) 1111(-1)
    1010(-6)
  • 0101(5) 0110(6) 0011(3) 1000(-8)
    0011(3)
  • 1110(-2) 1001(X) 1010(X) 10111(X)
    1101(-3)
  • 1001 0011 0111 1111 1010
  • - 0101 - 0110 - 0011 - 1001 - 0011

1/19/2016
41
CS 112 Foundations of Computer Science
42
Addition and Subtraction
  • Carry out the following if there is overflow
    indicate that if there is no overflow interpret
    your answer in decimal form. Numbers are listed
    in 2's complement.
  • 1001(-7) 0011(3) 0111(7) 1111(-1)
    1010(-6)
  • 0101(5) 0110(6) 0011(3) 1000(-8)
    0011(3)
  • 1110(-2) 1001(X) 1010(X) 10111(X)
    1101(-3)
  • 1001(-7) 0011 0111 1111 1010
  • 1011(-5) - 0110 - 0011 - 1001 - 0011
  • 10011(X)

1/19/2016
42
CS 112 Foundations of Computer Science
43
Addition and Subtraction
  • Carry out the following if there is overflow
    indicate that if there is no overflow interpret
    your answer in decimal form. Numbers are listed
    in 2's complement.
  • 1001(-7) 0011(3) 0111(7) 1111(-1)
    1010(-6)
  • 0101(5) 0110(6) 0011(3) 1000(-8)
    0011(3)
  • 1110(-2) 1001(X) 1010(X) 10111(X)
    1101(-3)
  • 1001(-7) 0011(3) 0111 1111 1010
  • 1011(-5) 1010(-6) - 0011 - 1001 - 0011
  • 10011(X) 1101(-3)

1/19/2016
43
CS 112 Foundations of Computer Science
44
Addition and Subtraction
  • Carry out the following if there is overflow
    indicate that if there is no overflow interpret
    your answer in decimal form. Numbers are listed
    in 2's complement.
  • 1001(-7) 0011(3) 0111(7) 1111(-1)
    1010(-6)
  • 0101(5) 0110(6) 0011(3) 1000(-8)
    0011(3)
  • 1110(-2) 1001(X) 1010(X) 10111(X)
    1101(-3)
  • 1001(-7) 0011(3) 0111(7) 1111 1010
  • 1011(-5) 1010(-6) 1101(-3) - 1001 - 0011
  • 10011(X) 1101(-3) 10100(4)

1/19/2016
44
CS 112 Foundations of Computer Science
45
Addition and Subtraction
  • Carry out the following if there is overflow
    indicate that if there is no overflow interpret
    your answer in decimal form. Numbers are listed
    in 2's complement.
  • 1001(-7) 0011(3) 0111(7) 1111(-1)
    1010(-6)
  • 0101(5) 0110(6) 0011(3) 1000(-8)
    0011(3)
  • 1110(-2) 1001(X) 1010(X) 10111(X)
    1101(-3)
  • 1001(-7) 0011(3) 0111(7) 1111(-1) 1010
  • 1011(-5) 1010(-6) 1101(-3) 0111(7) - 0011
  • 10011(X) 1101(-3) 10100(4) 10110(6)

1/19/2016
45
CS 112 Foundations of Computer Science
46
Addition and Subtraction
  • Carry out the following if there is overflow
    indicate that if there is no overflow interpret
    your answer in decimal form. Numbers are listed
    in 2's complement.
  • 1001(-7) 0011(3) 0111(7) 1111(-1)
    1010(-6)
  • 0101(5) 0110(6) 0011(3) 1000(-8)
    0011(3)
  • 1110(-2) 1001(X) 1010(X) 10111(X)
    1101(-3)
  • 1001(-7) 0011(3) 0111(7) 1111(-1)
    1010(-6)
  • 1011(-5) 1010(-6) 1101(-3) 0111(7)
    1101(-3)
  • 10011(X) 1101(-3) 10100(4) 10110(6) 10111(X)

1/19/2016
46
CS 112 Foundations of Computer Science
About PowerShow.com
