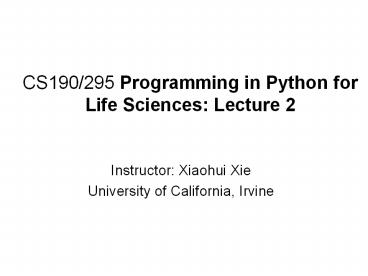

CS190/295 Programming in Python for Life Sciences: Lecture 2

1
CS190/295 Programming in Python for Life
Sciences Lecture 2

• Instructor Xiaohui Xie
• University of California, Irvine

2
Announcements

• Classroom for this course will be moved to DBH
  1500 starting from Jan 17 (next Tuesday).
• Enrollment max cap has been increased to 35 for
  CS295. However, due to limited resource, the
  enrollment cap cannot be further increased.
• First homework assignment will be out before 5pm,
  Friday. Please check the course website.

3
Review of the last lecture
4
Hardware Basics

• CPU (central processing unit) - the brain of
  the machine, where all the basic operations are
  carried out, such as adding two numbers or do
  logical operations
• Main Memory stores programs data. CPU can
  ONLY directly access info stored in the main
  memory, called RAM (Random Access Memory). Main
  memory is fast, but volatile.
• Secondary Memory provides more permanent
  storage
• Hard disk (magnetic)
• Optical discs
• Flash drives
• Input Devices keyboard, mouse, etc
• Output Device monitor, printer, etc

5
Python is an interpreted language

• Start the Python interpreter in an interactive
  mode

• gtgtgt is a Python prompt indicating that the
  interpreter is waiting for us to give a command.
  A complete command is called a statement

6
Inside a Python program

• comments
• any text from through the end of a line
• intended for humans, ignored by the Python
• defining a function called main
• x is variable, used to give a name to a value so
  that we can refer to later
• The statement starting with for is an example of
  a loop
• A loop is a device that tells Python to do the
  same thing over and over again
• The lines indented underneath the loop heading
  form the body of the loop
• x 3.9 x (1-x) is an assignment statement
  the value on the right-hand side is computed, and
  is then stored back (assigned) into the variable
  on the left-and side of .

7
Topic 2 Writing Simple Programs
8
Software development process

• Formulate Requirements Figure out exactly what
  the problem to be solved is
• Determine Specifications Describe exactly what
  your program will do. What will it accomplish?
  What the inputs and outputs of the program?
• Create a Design Formulate the overall structure
  of the program. How will the program achieve the
  desired goals?
• Implement the Design Translate the design into a
  computer language and put it into the computer.
• Test/Debug the Program Try out your program and
  see if it works as expected. If there are any
  errors (often called bugs), then you should go
  back and fix them. The process of locating and
  fixing errors is called debugging a program.
• Maintain the Program Continue developing the
  program in response to the needs of your users.
  Most programs are never really finished they
  keep evolving over years of use.

9
An example temperature converter

• Input the temperature in degrees Celsius (call it
  celsius)
• Calculate fahrenheit 9/5 celsius 32
• Output fahrenheit

10
Elements of Programs Names

• Names (also called identifiers) we give names to

• modules (e.g., convert, chaos)
• functions within modules (e.g., main)
• variables (e.g., celsius, fahrenheit)
• Python rules on identifiers
• must begin with a letter or underscore (_),
  which may be followed by any sequence of letters,
  digits, or underscores.
• cannot contain any spaces
• the names that are part of Python, called
  reserved words, cannot be used as ordinary
  identifiers

11
Elements of Programs Expressions

• Programs manipulate data. The fragments of code
  that produce or calculate new data values are
  called expressions.
• Using a variable that has not been assigned a
  value will result in a NameError.
• More complex expressions can be constructed by
  combining simpler expressions with operators
  (e.g., , -, , /, )
• Spaces are irrelevant within an expression.
  Usually its a good idea to place some spaces in
  expressions to make them easier to read
• Use parentheses to modify the order of evaluation.

12
Output statements

• The syntax of print
• These are templates for using print, using
  notations called meta-languages
• A print statement consists of the keyword print
  followed by zero or more expressions, which are
  separated by commas.
• The angle bracket notation (ltgt) is used to
  indicate slots that are filled in by other
  fragments of Python code. The name inside the
  brackets indicate what is missing expr stands
  for an expression.
• The ellipses (...) indicate an indefinite
  series (of expressions, in this case). You dont
  actually type the dots.
• The fourth version shows that a print statement
  may be optionally ended with a comma.

13
Output statements

• The semantics of print
• Displays information in textual form, with
  expression evaluated left to right
• The resulting values are displayed on a single
  line in a left to right fashion
• A single blank space character is placed between
  the displayed values

14
Assignment statements simple assignment

• The template for the basic assignment statement
• ltvariablegt ltexprgt
• where variable is an identifier and expr is an
  expression
• A variable can be assigned many times. It always
  retain the value of the most recent assignment.

15
Assignment statements assigning input

• The template for the assigning input
• ltvariablegt input(ltpromptgt)
• where prompt is an expression that serves to
  prompt the user for input this is almost always
  a string literal (i.e., some text inside of
  quotation marks).

16
Assignment statements Simultaneous Assignment

• The template for simultaneous assignment
• ltvargt, ltvargt, , ltvargt ltexprgt, ltexprgt, ,
  ltexprgt
• Python evaluate all the expressions on the
  right-hand side and then assign these values to
  the corresponding variables named on the
  left-hand side.

17
Definite Loops

• Programmers use loops to execute a sequence of
  statements several times in succession. The
  simplest kind of loop is called a definite loop.
  This is a loop that will execute a definite
  number of times
• A Python for loop has this general form
• The body of the loop can be any sequence of
  Python statements. The start and end of the body
  is indicated by its indentation under the loop
  heading

18
Topic 3 Computing with Numbers
19
Numeric Data Types
Example output
20
Numeric Data Types

• Whole numbers are represented using the integer
  data type (int for short).Values of type int can
  be positive or negative whole numbers.
• Numbers that can have fractional parts are
  represented as floating point (or float) values.
• The data type of an object determines what values
  it can have and what operations can be performed
  on it.
• The float type only stores approximations. There
  is a limit to the precision, or accuracy, of the
  stored values. By contrast, the int type is
  exact.

21
Numeric Data Types

• Notice how operations on floats produce floats,
  and operations on ints produce ints.

22
Using the Math Library
Python provides many other useful mathematical
functions in a special math library. A library is
just a module that contains some useful
definitions.
Example find the roots of ax2bxc 0
23
Using the Math Library
Python provides many other useful mathematical
functions in a special math library. A library is
just a module that contains some useful
definitions.
24
Accumulating Results Factorial

• In mathematics, factorial is often denoted with
  an exclamation (!). The factorial of a whole
  number is defined as n!n(n-1)(n-2)(1). This
  happens to be the number of distinct arrangements
  for n items. Given six items, we compute 6! 720
  possible arrangements.
• Write a program that will compute the factorial
  of a number entered by the user. The basic
  outline of our program follows an
  Input-Process-Output pattern.
• Basic strategy do repeated multiplications, use
  an accumulator variable a loop structure

Input number to take factorial of, n Compute
factorial of n, fact Output fact
Initialize the accumulator variable Loop until
final result is reached update the value of
accumulator variable
25
Accumulating Results Factorial
Initialize the accumulator variable Loop until
final result is reached update the value of
accumulator variable
For example, suppose we want to calculate
5!54321 We define a variable and initialize
it to be 1 fact 1 for factor in 2,3,4,5
fact fact factor
26
Python range() function

• range(n) produce a sequence of numbers starting
  with 0 and continuing up to, but not including n
• range(start, n) produce a sequence of numbers
  starting with start and continuing up to, but not
  including n
• range(start, n, step) produce a sequence of
  numbers starting with start and continuing up to,
  but not including n, and using step as the
  increment between numbers
• Examples
• gtgtgt range(10)
• 0, 1, 2, 3, 4, 5, 6, 7, 8, 9
• gtgtgt range(5,10)
• 5, 6, 7, 8, 9
• gtgtgt range(5,10,3)
• 5, 8

27
Accumulating Results Factorial

• n!n(n-1)(n-2)(1). Write a program that will
  compute the factorial of a number entered by the
  user.

28
The limits of int
29
Handling Large Numbers Long Ints

• Python provides a better solution for large,
  exact values in the form of a third numeric type
  long int.
• A long int is not a fixed size, but expands to
  accommodate whatever value it holds.
• To get a long int, you put an L suffix on a
  numeric literal.

30
Accumulating Results Factorial

• n!n(n-1)(n-2)(1). Write a program that will
  compute the factorial of a number entered by the
  user.

31
Type Conversions
Note that the value is truncated, not rounded
when using int() or long()
