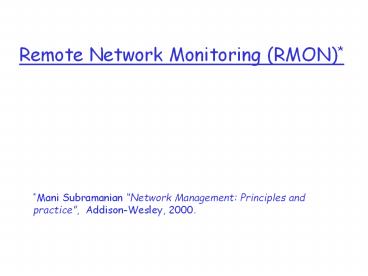

Remote Network Monitoring (RMON)
Mani Subramanian Network Management Principles
and practice, Addison-Wesley, 2000.
2
Outline

• Basic Concepts
• RMON Goals
• Control of Remote Monitors
• Multiple Managers
• Table Management
• Statistics group
• History group
• Host and hostTopN groups
• Matrix group
• Alarm group
• Filter and packet Capture group

3
Basic Concepts

• Extends the SNMP functionality without changing
  the protocol
• Allows the monitoring of remote networks
  (inter-network management)
• MAC-layer (layer 2 in OSI) monitoring
• Defines a Remote MONitoring (RMON) MIB that
  supplements MIB-II
• with MIB-II, the manager can obtain information
  on individual devices only
• with RMON MIB, the manager can obtain information
  on the LAN as a whole

4
Basic Concepts

• called network monitors, analyzers or probes
• A monitor generally can produce summary
  information on
• error statistics, e.g., counts of collisions on
  a LAN
• Performance statistics packets delivered per
  second, packet size distribution, etc.
• A monitor also can store packets for later
  analysis
• A Monitor may also filter data to limit the
  packets counted or captured
• filter based on packet type or characteristics
  (e.g., packets with certain source address,
  erroneous packets)

5
Basic Concepts

• A Monitor is required per subnetwork
• A monitor could either be a standalone device
  whose only job is monitoring and traffic analysis

• or it could also be a device with other
  functionalities (e.g., router, server)
• A monitor usually communicates with one (or more)
  central MS
• RMON essentially is a definition of a MIB
• Standard monitoring functions and interfaces for
  communication between SNMP consoles and remote
  monitors

6
RMON Goals

• Monitoring subnetwork-wide behavior while
  reducing the burden on agents and managers
• Monitors and analyzes locally and relays data
• Continuous off-line monitoring in the presence of
  failures
• RMON should collect fault, performance, and
  configuration information continuously even when
  it is not being polled ? save communication cost
• This information may be retrieved later by a
  manager
• Proactive monitoring
• Continuously runs diagnostics and store network
  performance even in the absence of failures
• Upon a failure, notify the manager and provide
  him with useful info to be able to diagnose the
  fault

7
RMON Goals

• Provide value-added data
• Perform analysis on collected data, thus
  relieving the MS from this responsibility
• Support multiple managers
• Multiple managers improves reliability, provides
  diversity in network management, etc.
• A monitor should be configured to deal with more
  than a manager simultaneously

8
Network with RMONs
9
Control of RMON- Configuration

• RMON is configured for data collection
• RMON MIB contains a number of functional groups
• Each group may contain one or more control
  tables and one or more data tables
• Control tables (read-write) contain parameters
  describing data in data tables (read-only)

• A NMS sets appropriate control parameters to
  configure RMON to collect the desired data
• The parameters are set by adding a new row to the
  control table or by modifying an existing row
• As information is collected, data is stored in
  rows of the corresponding data table

10
Control of RMON- Configuration

• Functions performed by a monitor are defined and
  implemented in terms of table rows
• Control table may contain objects that specify
  the source of data to be collected, the type
  of data, the collection timing, etc.
• Associated with a single control row are one ore
  more rows in one or more data tables

• To modify a particular data collection function
• it is necessary first to invalidate the control
  row
• this causes the deletion of that row and the
  deletion of all associated rows in data tables
• NMS can create a new control row with the
  modified parameters
• NOTE when a row of a control table is deleted,
  associated rows in data tables are also deleted.

11
Multiple Managers

• RMON probe may be subject to management from
  multiple MSs
• Potential conflict and unwanted results
• Simultaneous requests for resources could exceed
  the capability of the monitor
• Monitor resources could be captured by a MS for a
  long time, preventing other MSs from accessing
  desired information
• Resources could be assigned to a MS that crashes
  without releasing resources
• Avoidance and resolution features are required
• Ownership label identifies the owner of a
  particular row of the control table and
  associated function

12
Multiple Managers

• RMON suggests that ownership label contains one
  or more of
• IP address, management station name, network
  managers name, location or phone number
• The ownership label can be used in the following
  ways
• A MS may recognize resources it owns and no
  longer needs
• A network operator can identify the MS that owns
  a particular resource and negotiate its release
• A network operator may have the authority
  unilaterally to free resources
• A MS after experiencing failure or
  re-initialization can recognize resources it had
  reserved in the past and free those it no longer
  needs
• NOTE
• A row in a control table should only then be
  altered by its owner and read by other MSs.

13
Multiple Managers

• Resource sharing to improve efficiency
• If a certain management function has been defined
  by some MS, another MS can share its usage by
  observing the associated read-only data rows
  (see EntryStatus definition)
• However, the MS that owns this control row may
  modify or delete the row at any time (and hence
  the associated data rows)
• Monitors default functions
• These are monitoring functions owned by the
  monitor itself
• By convention, such ownership labels start with
  monitor
• A MS can make use of such resources in a
  read-only fashion

14
Table Management

• The RMON specification includes a set of textual
  conventions and procedural rules for row addition
  and deletion
• Textual conventions 2 new data types
• OwnerString DisplayString
• EntryStatus INTEGER
• valid (1),
• createRequest (2),
• underCreation (3),
• invalid (4)

15
Control Table
16
Data Table
17
Control and Data Table- Example
18
Row Addition and deletion

• Multiple managers attempt for row addition
• multiple requests to create a row with same
  parameters, including index parameters ? conflict
• Conflict arbitration is required
• Only the first request is awarded
• Row Deletion
• is achieved by (the owner) setting the status
  object for that row to invalid
• Row Modification
• is achieved by first invalidating the row and
  then adding the row with new object instance
  values

• A MS uses SNMP messages to add a row into an RMON
  table
• SetRequest-PDU message will contain a list of
  object identifiers for all columns in the table
• When a monitor receives a request
• it must check whether there are any restrictions
  defined in the RMON MIB (object is not currently
  supported by the MIB)
• or any implementation specific restrictions
  (e.g., lack of resources)
• If row addition is not possible
• GetResponse-PDU with badValue error is returned

19
RMON MIB
10 groups

• Each group is used to store data and
• statistics derived from data collected by
• the monitor
• A monitor may have more than one
• physical interface and hence may be
• connected to more than one sub-network

20
Statistics Group

• Basic statistics for each monitored subnetwork
• A single table with one entry for each
  interface
• Variety of counts for each subnetwork, such as
  bytes, packets, errors, frame sizes, etc.
• Provides useful information about the load on a
  subnetwork and its health (counts collisions,
  etc..)

21
History Group

• Sampling function for one or more of the
  interfaces of the monitor
• historyControlTable specifies the interface and
  details of the sampling function
• etherHistoryTable records data
• historyControlTable defines a set of samples at a
  particular sampling interval for a particular
  interface

• historyControlIndex identifies a row in
  the control table
• historyControlDataSource identifies interface or
  subnetwork that is source of data
• historyControlBucketsRequestedrequested
  sampling intervals over which data is saved in
  the data table (default value 50)
• historyControlBucketsGranted actual sampling
  intervals over which data will be saved
• historyControlInterval interval in seconds
  over which data is sampled (default value 1800
  seconds (30 minutes))

22
History Group
etherHistoryIndex
etherHistorySampleIndex
1
x1
1
x2
1
x3
1
xB1
2
y1
2
y2
yB2
2
etherHistoryTable
23
History Group

• etherHistoryTable
• etherHistoryIndex the history of
  which this entry is part (index)
• etherHistorySampleIndex identifies the
  particular sample among all samples associated
  with the same row in control table
• Table contains also some useful counters
• etherStatsOctets of received octets of data
• etherStatsPkts of received packets, etc

• Subnetwork utilization
• ? medium data rate (bps)
• T sampling interval (seconds)
• Pkts etherStatsPkts 2 -
  etherStatsPkts 1
• Octets etherStatsOctets2 -
  etherStatsOctets 1
• ? utilization

NOTE 64-bit preamble, and 96-bit IFG
24
History Group

• For a given subnetwork, historyControlDataSource,
  more than one sampling process is allowed at
  different sampling period historyControlInterval
• Sampling over short period (e.g. 30s) enables the
  monitor to detect sudden changes in traffic
  pattern
• Sampling over long periods (e.g., 30 minutes)
  enables a monitor to observe the steady state
  behavior of certain interface
• After each sampling interval, the monitor adds a
  new row to the etherHistoryTable with the same
  etherHistoryIndex
• When the rows of a history becomes equal to
  historyControlBucketsGranted, as each new row is
  added, the oldest row associated with this
  history is deleted. circular buffer

25
History Group
histroyControlTable
historyControl- DataSource
historyControl- BucketsGranted
historyControl- Index
historyControl- Interval
B1
I1
1
D1
etherHistoryTable
etherHistorySampleIndex
etherHistoryIndex
1
x1
1
x2
26
History Group
histroyControlTable
historyControl- DataSource
historyControl- BucketsGranted
historyControl- Index
historyControl- Interval
B1
I1
1
D1
etherHistoryTable
etherHistorySampleIndex
etherHistoryIndex
1
x1
1
x2
Oldest entry (sample) is deleted
27
host and hostTopN Groups

• host Group
• Gather statistics about specific hosts on the LAN
• hostInPkts, hostOutPkts, etc..
• By observing s-d MAC addresses in monitored
  packets, a monitor can discover new attached
  hosts on the LAN
• hostTopN Group
• To maintain statistics about the set of hosts on
  one subnetwork that top a list based on some
  parameter
• List of the 10 hosts that transmitted the most
  data during a particular day
• List of nodes ordered according to errors theyve
  sent in the last hour

28
Matrix Group

• matrixControlTable
• matrixControlIndex integer uniquely identifies a
  row.
• matrixControlDataSourceInterface that is source
  of traffic
• matrixControlTableSize of rows in data table
  (matrixSDTable) associated with this row
• matrixSDTable
• store statistics on traffic from a source to
  multiple destinations
• matrixSDSourceAddress MAC address of source
• matrixSDDestAddress MAC address of destination
• matrixSDPckts packets transmitted from s- to
  d-
• matrixSDOctets octets in packets transmitted
  from s- to d-

• Record information about traffic between pairs of
  hosts on a subnetwork
• error and utilization, e.g. traffic amount,
  number of errors
• Information is stored in the form of a matrix
• so the operator can retrieve information for any
  pair of network addresses, e.g., to find which
  devices are making the most use of a server

29
alarm Group

• Measuring network performance consists of
  identifying abnormal conditions by the monitor
  and issuing alarms accordingly
• e.g., if there are more than 200 CRC errors (the
  threshold) in any 5-minute period (the sampling
  interval), an alarm is generated and sent to the
  central console.
• Alarm group contains a single table alarmTable,
  each entry
• a variable to be monitored (alarmVariable)
• INTEGER, counter, gauge, TimeTicks
• A sampling interval (alarmInterval)
• most recent sampled value (alarmValue)
• Threshold parameters
• alarmRisingThreshold, and alarmFallingThreshold
• alarmStartupAlarm
• alarm is generated when a row becomes active and
  1st sampled value ? risingThreshold, or ?
  fallingThreshold or both

30
alarm Group

• Mode of operation
• Rising threshold (RT) and Falling threshold (FT)
  are defined
• RT is crossed when current sampled value is
  greater than RT and value of last sampling
  interval was less than threshold
• FT is crossed when current sampled value is less
  than FT and value of last sampling interval was
  greater than threshold
• absoluteValue and deltaValue (difference of 2
  successive intervals). Counter ? use deltaValue

Sampled Object value
Rising threshold
Falling threshold
Time
31
filter Group

• Observing only selected packets on a particular
  interface
• Data filter
• Screen observed packets based on a bit pattern
  that a portion of the packet matches (or fails to
  match)
• Status filter
• Screen observed packets based on their status
  (e.g., valid, CRC errors, etc.)
• Example screen those packets on some interface
  with certain source MAC address!

• The monitor may capture packets that pass the
  filter or simply record statistics based on such
  packets
• Both filters can be combined to form a complex
  test to be applied to incoming packets
• filter test example we wish to accept all
  Ethernet packets with destination address 0xA5
  and that do not have a source address of 0xBB!

capture Group
32
event Group

• eventTable
• eventDescritpion textual description of the
  event
• eventType none(1), log(2), snmp-trap (3)
  log-and-trap(4)
• log an entry is added to the logTable for this
  event
• snmp-trap an SNMP trap is sent to a MS
• eventCommunity identifies the communities of MSs
  to receive the SNMP trap, etc.
• logTable
• logTime value of sysUpTime when this log entry
  was created
• logDescription description of the event that
  activated this entry (implementation-dependent)
• logEventIndex the event that generated this log
  entry

• Supports definition of events (problems, symptoms
  of problems)
• An event is triggered by a condition located
  elsewhere in the MIB
• E.g., monitoring a variable that crossed a rising
  threshold would cause an event to be generated
• Controls the generation and notification of
  events
• An event may cause an SNMP trap message to be
  issued by the monitor

33
RMON2

• Enable probes to look beyond LAN segments
• Analyze traffic passing through the router to
  determine the ultimate source and destination
• Monitor application level traffic (e-mails, file
  transfer, WWW, etc.)
