EE 1105: Introduction to EE Freshman Seminar

1

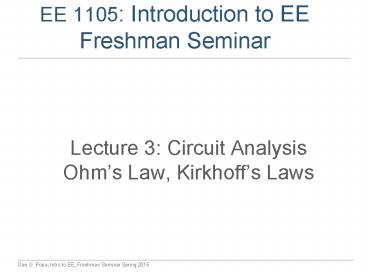

EE 1105 Introduction to EEFreshman Seminar

• Lecture 3 Circuit Analysis
• Ohms Law, Kirkhoffs Laws

2
Voltage and Current

• Voltage is the energy per unit of charge.

• Current is the rate of flow of charge.


Derivative slope, Integral area under curve
3
Power and Energy

• Power associated with a circuit element is
  consumed by that circuit element when the value
  of power is positive.
• Conversely, power is generated, or produced by
  the element if the value consumed is negative.

4
Independent Voltage Source

• Voltage may be constant or time-dependent
• Delivers nominal terminal voltage under all
  conditions

5
Independent Current Source

• Current may be constant or time-dependent
• Delivers nominal terminal current under all
  conditions

6
Passive Sign Convention

• Assign current flow direction according to the
  voltage polarities
• Calculate pvi, plt0 is power supplied by device,
  pgt0 is power delivered to device

7
Ohms Law

• Electrical resistance is the ratio of voltage
  drop across a resistor to current flow through
  the resistor.
• Polarities are governed by the passive sign
  convention.

8
Power and Energy

• Power associated with a circuit element is
  consumed by that circuit element when the value
  of power is positive.
• Conversely, power is generated, or produced by
  the element if the value consumed is negative.

9
Power Consumed by Resistors

• Resistors consume power.
• v and i are both positive or both negative.

10
Conductance Defined

• Conductance is the reciprocal of resistance.
• The units of conductance are called siemens (S)
• The circuit symbol is G

11
Calculating Resistance
When conductor has uniform cross-section
12
Temperature Coefficient of Resistance
Metallic conductors have a linear increase of
resistance with increased temperature.
To is the reference temperature (usually 20oC)
and Ro is the resistance at the reference
temperature. a is the temperature coefficient of
resistance for the material. At 20oC, some
values for a are
Material Alpha _at_ 20oC
Aluminum 0.004308
Copper 0.004041
13
Power and Energy

• Power associated with a circuit element is
  consumed by that circuit element when the value
  of power is positive.
• Conversely, power is generated, or produced by
  the element if the value consumed is negative.

14
Power Consumed by Resistors

• Resistors consume power.
• v and i are both positive or both negative.

15
Conductance Defined

• Conductance is the reciprocal of resistance.
• The units of conductance are called siemens (S)
• The circuit symbol is G

16
Circuits

• Abstraction describing how (the topology)
  electrical or electronic modules are
  interconnected.
• Closely related to a GRAPH.
• Nomenclature
• Nodes, Edges(Branches)
• Voltage drop computed between nodes
• Currents flowing along edges
• Paths (collection of edges with no node appearing
  twice),
• Loops (closed paths), meshes (loop containing no
  other loop).
• Series connection (elements sharing the same
  current)
• Parallel connection (elements sharing the same
  voltage)

17
Example of a Circuit Model w/ Series Connection
18
Kirchhoffs Voltage Law

• The sum of the voltage drops around a closed path
  is zero.
• Example -120 V1 V2 V3 V4 0

19
Kirchhoffs Current Law

• A node is a point where two or more circuit
  elements are connected together.
• The sum of the currents leaving a node is zero.

20
Apply KCL to Example
21
Combine KVL Ohms Law
22
Lamp Voltage Battery Voltage
23
Battery Power and Lamp Power
Loss
Efficiency
24
Resistors in Series
By KCL Is I1 I2
By Ohms Law V1 R1I1 and V2 R2I2
Combine Vs R1I1 R2I2 (R1 R2) Is ReqIs
In General Req R1 R2 Rn
25
Resistors in Parallel (1/2)
By KVL Vs V1 V2
By KCL Is I1 I2
By Ohms Law
and
Combine
26
Resistors in Parallel (2/2)
For two resistors
For many resistors
In terms of conductance
27
Voltage Divider Circuit
28
Loaded Voltage Divider
29
Voltage Divider Equations
Unloaded
Loaded
If RL gtgt R2
30
Using Loops to Write Equations
KVL _at_Loop a
KVL _at_ Loop b
KVL _at_ Loop c
Loop c equation same as a b combined.
31
Using Nodes to Write Equations
KCL _at_ Node x
KCL _at_ Node y
KCL _at_ Node z
KCL _at_ Node w
lt Redundant
32
Combining the Equations

• There are 5 circuit elements in the problem.
• va and vb are known.
• R1, R2 and R3 are known.
• v1, v2 and v3 are unknowns.
• ia, ib, i1, i2 and i3 are unknowns.
• There are 2 loop (KVL) equations.
• There are 3 node (KCL) equations.
• There are 3 Ohms Law equations.
• There are 8 unknowns and 8 equations.

33
Example 1 (1/3)
By KCL
By Ohms Law
34
Example 1 (2/3)
By KVL
Power
35
Example 1 (3/3)
36
Example 2 (1/4)
Find Source Current, I, and Resistance, R.
37
Example 2 (2/4)
Ohms Law 36 V
KVL 48 V
Ohms Law 6 A
38
Example 2 (3/4)
KCL 3 A
Ohms Law 12 V
KVL 60 V
39
Example 2 (4/4)
Ohms Law 3 A
KCL 6 A
KVL 24 V
Ohms Law R3 W
KCL I9 A
40
Homework 3 due next class!!Available online at
course website

• Acknowledgements Dr. Bill Dillon
• Questions?
