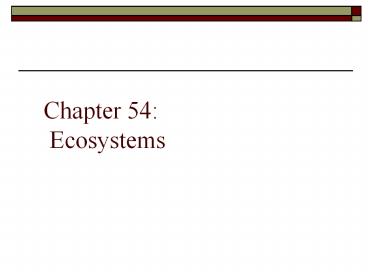

Chapter 54: Ecosystems

1
Chapter 54 Ecosystems
2
Ecosystem

• All the organisms and abiotic factors in a
  community.

3
Ecosystem Studies

• 1. Energy Flow the movement of energy through
  trophic levels.
• 2. Chemical Cycling the movement of matter from
  one part of the ecosystem to another.

4
Trophic Levels

• Division of an ecosystem based on the source of
  nutrition (energy).
• 1. Primary Producers
• 2. Primary Consumers
• 3. Secondary Consumers
• 4. Detritivores

5

6
Primary Producers

• Usually plants, capture energy and store it in
  chemical bonds.
• Are the source of the energy available to an
  ecosystem.

7
Consumers

• Primary Consumers
• Organisms that feed on the producers.
• Ex Herbivores
• Secondary Consumers
• Organisms that feed on the Primary Consumers.
• Ex Carnivores
• Comment
• There may be several layers of Secondary
  Consumers in an ecosystem.

8
Detritivores

• Get their energy from the organic waste produced
  by all levels.
• Ex bacteria and fungi

9
Food Chain

• Linear pathway of who eats who in an ecosystem.

10
Food Webs

• Network showing all the feeding relationships in
  an ecosystem.

11
Primary Productivity

• The rate at which light energy is captured by
  autotrophs or primary producers.
• NPP GPP - Rs
• NPP Net Primary Productivity
• GPP Gross Primary Productivity
• Rs Respiration

12
(No Transcript)
13
Available Energy

• Daily - 1022 joules of solar radiation.
• 1 - captured by Ps.
• About 170 billion tons of organic matter is
  created each year.

14
Primary Producers

• 50 - 90 of GPP is lost to Rs by the primary
  producers.
• NPP 10 - 50
• Animals - use only NPP, which limits the food
  webs.

15
(No Transcript)
16
Limiting Factors

• Material or nutrient that is not present in
  sufficient quantity for the primary producers.
• Ex N, P, K, Mg Light, CO2

17
(No Transcript)
18
Energy Transfers

• Not 100 efficient.
• Why?
• Second law of thermodynamics.
• Waste.
• Materials that cant be digested etc.
• Averages 10 with each Trophic Level change.

19
(No Transcript)
20
Question ?

• Why do most ecosystems have only 3 - 4 trophic
  levels?
• There isnt enough energy passed up through the
  food web to support more levels.

21
Implications

• There has to be fewer high level consumers in a
  food web.
• The higher level consumers usually need a large
  geographical area.

22
Question

• Which would support more humans per area?
• Eating meat?
• Eating plants?

23

24
Pyramids

• Graphical representation of relationships in
  ecosystems.
• Ex
• 1. Productivity
• 2. Biomass
• 3. Numbers

25

26
(No Transcript)
27
Chemical Cycling

• Matter is recycled through ecosystems.
• Ex Biogeochemical Cycles
• Matter Reservoirs
• 1. Organic Materials
• 2. Inorganic Materials
• Available ?? Unavailable

28

29
Representative Cycles

• Water
• Carbon
• Nitrogen
• Know one or more of these cycles for an essay
  question.

30

31
(No Transcript)
32

33
Energy vs Matter

• Energy - flows through ecosystems and is mostly
  lost as heat.
• Matter - cycles in ecosystems.
• Question?
• What is Man's influence on Ecosystems ?
• Humans have had many negative impacts.

34
Hubbard Brook
35
(No Transcript)
36
Biological Magnification

• The concentration of toxins in successive levels
  of a food web.
• Ex DDT Heavy metals (Hg, Cd Pb)

37
(No Transcript)
38
(No Transcript)
39
Causes

• Not broken down by digestion/decomposition.
• Lipophilic.
• Concentrates and effects the upper levels of the
  food web.

40
Greenhouse Effects

• The trapping of heat by the Earth's atmosphere.
  (CO2, H2O etc.).
• Carbon Dioxide Levels
• Prior 1850 - 274 ppm 1958 - 316 ppm
  1992 - 351 ppm
• Point the levels of CO2 are rising. The cause is
  probably due to humans.

41
(No Transcript)
42
Greenhouse Effects

• Causes
• Industrialization.
• Burning of fossil fuels.
• Loss of forests.
• Results
• Earth will heat up.
• Ice caps melt and sea levels will rise.
• Climate shifts.
• Increased Ps (?)

43
Acid Rain

• Caused by air pollution.
• Lowers the pH of rainfall.
• Is seriously damaging many ecosystems.

44
(No Transcript)
45
(No Transcript)
46
Exotic Species

• When transplanted species are too successful and
  upset the ecosystem in new areas.
• Ex Starlings Fire Ants Carp

47
Habitat Destruction

• Worst problem threatening most species today.

48
Comment

• Man has a major impact on the Biosphere.
• Man needs to learn how to work with the Biosphere.

49
Summary

• Know the tropic levels of ecosystems.
• Know an example of a food chain and a food web.
• Know how energy moves through an ecosystem.

50
Summary

• Know how matter moves through an ecosystem.
• Know one or more examples of matter cycling.
• Be able to discuss in detail a human impact
  problem on ecosystems.
