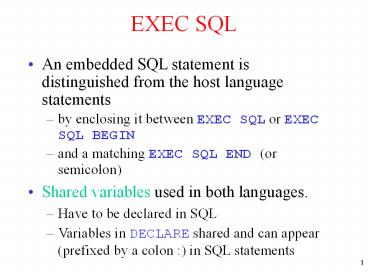

EXEC SQL

1
EXEC SQL

• An embedded SQL statement is distinguished from
  the host language statements
• by enclosing it between EXEC SQL or EXEC SQL
  BEGIN
• and a matching EXEC SQL END (or semicolon)
• Shared variables used in both languages.
• Have to be declared in SQL
• Variables in DECLARE shared and can appear
  (prefixed by a colon ) in SQL statements

1
2
Example Variable Declarationin Language C

• SQLCODE (or SQLSTATE) used to communicate
  errors/exceptions between the database and the
  program
• int loop
• EXEC SQL BEGIN DECLARE SECTION
• varchar dname16, fname16,
• char ssn10, bdate11,
• int dno, dnumber, SQLCODE,
• EXEC SQL END DECLARE SECTION

2
3
En Singleton Select eg Fig 13.2

• Read SSN of Emp, print some information about
  that Emp
• loop 1
• while (loop)
• prompt (Enter SSN , ssn)
• EXEC SQL
• select FNAME, LNAME, ADDRESS, SALARY
• into fname, lname, address, salary
• from EMPLOYEE where SSN ssn
• if (SQLCODE 0) printf(fname, )
• else printf(SSN does not exist , ssn)
• prompt(More SSN? (1yes, 0no) , loop)

3
4
Impedance Mismatch Cursors

• SQL deals with tables with multiple rows
• No such data structure exist in traditional
  programming languages such as C.
• SQL supports a mechanism called a cursor to
  handle this.
• Can declare a cursor on a query statement
• Can open a cursor
• Repeatedly fetch a tuple
• until all tuples have been retrieved.
• Can also modify/delete tuple pointed to by a
  cursor.

4
5
EN Cursor Eg Figure 13.3

• Get name of Dept, give each employee in that Dept
  a raise, amount of raise input by user

5
6
Transaction Support in SQL

• A single SQL statement is always considered to
  be atomic
• Either the statement completes execution without
  error or it fails and leaves the database
  unchanged.
• SKS In number of situations, every SQL
  statement also commits implicitly, if it executes
  successfully
• Implicit commit can be turned off by a database
  directive
• E.g. in JDBC, connection.setAutoCommit(false)

6
7
Transactions in Embedded SQL

• When running embedded SQL statements, different
  statements can be bundled together into a
  transaction
• With embedded SQL, there is no explicit Begin
  Transaction statement.
• Transaction initiation is done implicitly when
  particular SQL statements (eg SELECT, CURSOR,
  CREATE TABLE etc.) encountered.

7
8
Transactions in Embedded SQL

• Every transaction must have one of these explicit
  end statement
• EXEC SQL COMMIT
• EXEC SQL ROLLBACK
• Typical pattern
• SQL STMT, SQL STMT, , COMMIT T1
• SQL STMT, SQL STMT, , COMMIT T2
• SQL STMT, SQL STMT, , COMMIT T3
• If program crashes or ends without a COMMIT or
  ROLLBACK, system dependent default

8
9
Transactions in Embedded SQL

• Locking not done by users/transactions
• i.e. transaction does not request locks or
  release
• done implicitly by DBMS
• Eg strict 2PL
• But user can pick among some options in SQL
• User can go with SERIALIZABLE
• But can also go with a weaker consistency option
• What happen to locks at COMMIT/ROLLBACK ?
• DBMS releases locks held by transaction

9
10
Sample SQL Transaction

• EXEC SQL whenever sqlerror go to UNDO
•  EXEC SQL SET TRANSACTION
• READ WRITE
• ISOLATION LEVEL SERIALIZABLE
•  EXEC SQL INSERT
• INTO EMPLOYEE (FNAME, LNAME, SSN,
  DNO, SALARY)
• VALUES ('Robert','Smith','991004321',
  2,35000)
• EXEC SQL UPDATE EMPLOYEE
• SET SALARY SALARY 1.1
• WHERE DNO 2
• EXEC SQL COMMIT
• GOTO THE_END
• UNDO EXEC SQL ROLLBACK
• THE_END ...

10
11
Allowing non-serializability

• Some applications can live with non-serializable
  schedules. Why ?
• Tradeoff accuracy for performance i.e. if total
  accuracy (consistency) is not important, get
  better performance through more concurrency
• Eg a read-only transaction that wants to get an
  approximate total balance of all accounts
• Eg database statistics computed for query
  optimization can be approximate (why?)
• Such transactions need not be serializable with
  respect to other transactions
• SQL allows this

11
12
Transaction Characteristics SQL

• The more the concurrency, the less a transaction
  is protected from other transactions.
• In SQL, user is allowed to make decide how much
  concurrency to allow by a SET TRANSACTION
  statement
• In this statement, user can specify
• Access mode
• Isolation level

12
13
Transaction Characteristics SQL

• SET TRANSACTION access mode isolation level
• Eg
• SET TRANSACTION
• READ WRITE
• ISOLATION LEVEL READ COMMITTED
• Isolation level can be the following these are
  ordered from more to less concurrency
• READ UNCOMMITTED
• READ COMMITTED
• REPEATABLE READ
• SERIALIZABLE

13
14
Transaction Characteristics SQL

• Access mode
• READ ONLY
• READ WRITE
• The default is READ WRITE
• unless the isolation level of READ UNCOMITTED is
  specified
• in which case READ ONLY is required. Why?
• READ UNCOMITTED is so dangerous (so much
  concurrency) that it is allowed only for T that
  are in READ ONLY mode
• i.e. not allowed to WRITE. Why ?

14
15
Transaction Characteristics SQL

• Suppose T2 is READ UNCOMITTED and is allowed to
  write
• T1 writes x
• T2 reads x
• T2 writes y (y yx)
• T2 commits
• T3 reads y
• T1 aborts. Now what ?
• T2 will have to be aborted but is committed
  transaction which has changed the database
• how can we undo effects of T2

15
16
Nonserializable behaviors dirty read

• Each of the isolation level allows/does not allow
  certain undesirable behaviors
• Allows for more concurrency
• What are these undesirable behaviors?
• Dirty Read T reads a value that was written by
  T which has not yet committed
• We saw this can lead to problems
• Even if T is READ ONLY still can have
  inconsistencies
• Eg Fig 21.3 (c) on next slide

16
17
FIGURE 21.3 (c) The incorrect summary problem.
If one transaction is calculating an aggregate
summary function on a number of records while
other transactions are updating some of these
records, the aggregate function may calculate
some values before they are updated and others
after they are updated.
17
18
Nonserializable behaviors nonrepeatable read
T1 T2 r(y) w (y) commit
r(y)

• Values of y read by T1 are different
• even though T1 has not changed the value of y
• Could not happen in serial execution
• Nonrepeatable Read Allowing another transaction
  to write a new value between multiple reads of
  one transaction.

18
19
Nonserializable behaviors phantoms

• T1 SELECT SSN FROM EMP
• WHERE DNO 3
• Suppose gets back ssn 2345
• T2 INSERT INTO EMP(SSN, DNO)
• VALUES (1234, 3)
• T1 SELECT SSN FROM EMP
• WHERE DNO 3
• Will get back ssn 2345, 1234
• Could not happen with serial execution

19
20
Nonserializable behaviors phantoms

• Why would something like this happen ?
• Suppose T1 gets a lock on all rows of Emp which
  match query, but not on all of Emp
• Between two SELECTs of T1, T2 does an INSERT in
  Emp
• Can do because T1 does not have a lock on entire
  Emp table
• Would not happen if T1 was locking entire Emp
  table
• Or the access path. Eg index

20
21
Nonserializable behaviors phantoms

• Phantoms
• T1 gets some tuples via SELECT statement
• T2 makes changes
• T1 uses the same SELECT statement
• But gets a different result
• Different from unrepeatable read
• Not the particular tuple which T1 read first time
  which is different
• But could have additional tuples or fewer tuples

21
22
Possible violation of serializabilty

• Type of Violation
•
  ___________________________________
• Isolation
  Dirty nonrepeatable
• level
  read read
  phantom
• _____________________ _____ _________
  ____________________
• READ UNCOMMITTED yes yes
  yes
• READ COMMITTED no
  yes yes
• REPEATABLE READ no
  no yes
• SERIALIZABLE no
  no no

22
23
X-locks

• In all cases (including READ UNCOMMITTED)
• Have to get X locks before writing
• X locks are held till the end
• DBMS has to guaranteed that all T are following
  this

23
24
Read uncommitted

• We know that all transactions
• Have to get X locks before writing
• X locks are held till the end
• How could a dirty read take place ?
• T1 writing x
• T1 not committed
• T1 will be holding X lock till commits
• So how could T2 read ?
• T2 does not get S lock before reading

24
25
Read committed

• How to ensure no dirty read ?
• DBMS forces transactions to get S locks before
  reading. Why is this enough ?
• Look at EgT1 writing, T2 reading
• Want to ensure T2 cant read from uncommitted T1
  write
• T2 has to get S lock before reading. Why enough ?
• Combined with fact that T1 holds X lock till end
• T2 will have to wait till get S lock
• Cant do till T1 gives up X lock
• Wont happen till T1 commits
• So T2 cant read till T1 has committed

25
26
Read committed

• But S lock can be released when read is done
• Dont have to wait till commit
• What is the effect of giving up S lock ?
• Unrepeatable read possible. Why ?
• Conflict pairs (r1(y), w2(y)), (w2(y), r1(y))
  possible. How ?
• S1(y), r1(y),U1(y), then ?
• X2(y), w2(y),U2(y),C2, r1(y).
• Two values of y that T1 reads can be different.
• How to prevent this ?

26
27
Repeatable read

• How can we guarantee repeatable read
• All S locks are held till end of T.
• Why does this guarantee repeatable read ?
• Is (r1(y), w2(x)), (w2(y), r1(y)) possible ?
• No. Why ?
• Suppose T1 read y before T2 wrote y
• T1 will keep S-lock till it commits
• T2 cant get X-lock till after T1 commits
• (w2(y), r1(y)) not possible

27
28
Serializable

• Difference between serializable and repeatable
  read ?
• With repeatable read could have phantoms
• How to stop
• Get locks are at a high enough levels
• Eg entire table
• Eg index

28
29
Weak Levels of Consistency SKS

• Degree-two consistency
• S-locks and X-locks may be acquired at any time
• S-locks may be released any time
• X-locks must be held till end of transaction
• Is serializability guaranteed ?
• No similar to Eg we saw earlier
• T1 gets S-lock on y, R1(y), T1 releases S-lock on
  y
• T2 gets X-lock on y, W2(y), T2 commits and
  releases X-lock on y
• T1 gets S-lock on y, R1(y)
• Non-repeatable read, but read committed guaranteed

29
30
Weak Levels of Consistency SKS

• Cursor stability
• For reads, each tuple is locked, read, and lock
  is immediately released
• X-locks are held till end of transaction
• Special case of degree-two consistency
• In SQL standard, serializable is default
• In many DBMS, read committed is default
• explicitly change to serializable when required
• most DBMS implement read committed read committed
  as cursor-stability

30
31
SQL Server Transaction Isolation Levels

• Locking in Microsoft SQL Server, Alexander
  Chigrik
• http//www.mssqlcity.com/Articles/Adm/SQL70Locks.h
  tm
• There are four isolation levels
• READ UNCOMMITTED , READ COMMITTED , REPEATABLE
  READ , SERIALIZABLE
• Microsoft SQL Server supports all of these
  Transaction Isolation Levels
• READ UNCOMMITTED
• When it's used, SQL Server not issue shared locks
  while reading data. So, you can read an
  uncommitted transaction that might get rolled
  back later. This isolation level is also called
  dirty read. This is the lowest isolation level.
• READ COMMITTED
• This is the default isolation level in SQL
  Server. When it's used, SQL Server will use
  shared locks while reading data. It ensures that
  a physically corrupt data will not be read and
  will never read data that another application has
  changed and not yet committed, but it not ensures
  that the data will not be changed before the end
  of the transaction.

32
Oracle Transaction Isolation Levels

• Oracle Database Concepts, 10g Release 2
  http//download.oracle.com/docs/cd/B19306_01/serve
  r.102/b14220/consist.htm
• Oracle provides these transaction isolation
  levels.
• Read-only Read-only transactions see only those
  changes that were committed at the time the
  transaction began and do not allow INSERT,
  UPDATE, and DELETE statements.
• Read committed This is the default transaction
  isolation level. Each query executed by a
  transaction sees only data that was committed
  before the query (not the transaction) began. An
  Oracle query never reads dirty (uncommitted)
  data.
• Because Oracle does not prevent other
  transactions from modifying the data read by a
  query, that data can be changed by other
  transactions between two executions of the query.
  Thus, a transaction that runs a given query twice
  can experience both nonrepeatable read and
  phantoms.
• The default isolation level for Oracle is read
  committed. This degree of isolation is
  appropriate for environments where few
  transactions are likely to conflict. Oracle
  causes each query to run with respect to its own
  materialized view time, thereby permitting
  nonrepeatable reads and phantoms for multiple
  executions of a query, but providing higher
  potential throughput. Read committed isolation is
  the appropriate level of isolation for
  environments where few transactions are likely to
  conflict.
• Serializable Serializable transactions see only
  those changes that were committed at the time the
  transaction began, plus those changes made by the
  transaction itself through INSERT, UPDATE, and
  DELETE statements. Serializable transactions do
  not experience nonrepeatable reads or phantoms.

33
Oracle Transaction Isolation Levels

• Serializable isolation is suitable for
  environments
• With large databases and short transactions that
  update only a few rows
• Where the chance that two concurrent transactions
  will modify the same rows is relatively low
• Where relatively long-running transactions are
  primarily read only
• Serializable isolation permits concurrent
  transactions to make only those database changes
  they could have made if the transactions had been
  scheduled to run one after another.
• Specifically, Oracle permits a serializable
  transaction to modify a data row only if it can
  determine that prior changes to the row were made
  by transactions that had committed when the
  serializable transaction began
• Comparison of Read Committed and Serializable
  Isolation
• Oracle gives the application developer a choice
  of two transaction isolation levels with
  different characteristics. Both the read
  committed and serializable isolation levels
  provide a high degree of consistency and
  concurrency. Both levels provide the
  contention-reducing benefits of Oracle's read
  consistency multiversion concurrency control
  model and exclusive row-level locking
  implementation and are designed for real-world
  application deployment.
• Transaction Set Consistency
• A useful way to view the read committed and
  serializable isolation levels in Oracle is to
  consider the following scenario Assume you have
  a collection of database tables (or any set of
  data), a particular sequence of reads of rows in
  those tables, and the set of transactions
  committed at any particular time. An operation (a
  query or a transaction) is transaction set
  consistent if all its reads return data written
  by the same set of committed transactions. An
  operation is not transaction set consistent if
  some reads reflect the changes of one set of
  transactions and other reads reflect changes made
  by other transactions. An operation that is not
  transaction set consistent in effect sees the
  database in a state that reflects no single set
  of committed transactions.
• Oracle provides transactions executing in read
  committed mode with transaction set consistency
  for each statement. Serializable mode provides
  transaction set consistency for each transaction.

34
Transactions and Constraints

• DNO is a Foreign Key from Emp to Dept
• MGRSSN is a F. Key from Dept to Emp
• Which one of Dept or Emp to enter first ???
• Cant enter either. Why ?
• One of the Foreign Keys violated
• Generally, DBMS checks constraint as soon as SQL
  statement is executed
• But can tell DBMS to wait till end of T to check
  constraint

34
35
Transactions and Constraints

• FOREIGN KEY DNO
• REFERENCES DEPT (DNUMBER) DEFFERED
• Insert into Dept, insert into Emp will be done in
  the same transaction
• Foreign key constraint will be checked only at
  the end of the transaction

35
36
Review The ACID properties

• A tomicity All actions in T happen, or none
  happen.
• C onsistency If each T is consistent, and the
  DB starts consistent, it ends up consistent.
• I solation Execution of one T is isolated from
  that of other T.
• D urability If a T commits, its effects
  persist.
• The Recovery Manager guarantees Atomicity
  Durability.

36
37
Recovery and Atomicity

• T transfers 50 from account A to account B
• goal is either to perform all database
  modifications made by T or none at all.
• Several operations required for T
• failure may occur after one of these
  modifications have been made but before all of
  them are made.
• To ensure atomicity despite failures, what do we
  need ?
• We first output information describing the
  modifications to stable storage
• before modifying the database itself.

37
38
Recovery and Durability

• Durability If the system crashes, what is the
  desired behaviour after the system restarts ?

• T1, T2 T3 should be durable.
• T4 T5 should be rolled back(effects not seen).

crash!
T1 T2 T3 T4 T5
39
Transactions System Concepts

• Transaction For recovery purposes, system needs
  to keep track of when the transaction starts,
  terminates, and commits or aborts.
• Transaction states
• Active state
• Partially committed state finished all ops,
  ready to commit
• Committed state
• Failed state
• Terminated State

40
FIGURE 21.4State transition diagram illustrating
the states for transaction execution.
41
Storage Structure

• Volatile storage
• does not survive system crashes
• examples main memory, cache memory
• Nonvolatile storage
• survives system crashes
• examples disk, tape, flash memory,
• Stable storage
• a mythical form of storage that survives all
  failures
• approximated by maintaining multiple copies on
  distinct nonvolatile media

41
42
Model of Where Data is Stored SKS

• Block a contiguous sequence of sectors from a
  single track
• data transferred between disk, RAM in blocks
• Physical blocks are those blocks residing on the
  disk.
• Buffer blocks are the blocks residing temporarily
  in RAM.
• We assume, for simplicity, that each data item
  fits in, and is stored inside, a single block.

42
43
Blocks

• DBMS tries to minimize block transfers between
  the disk and memory.
• Various kinds of optimizations possible
• Tradeoffs in having small/large blocks?
• Smaller blocks more transfers from disk
• Larger blocks more space wasted due to
  partially filled blocks

43
44
Blocks

• Typical block sizes range from 4K to 16K
• Blocks size fixed by OS during disk formatting
  and cant be changed.
• Hardware Address Physical block address supplied
  to disk I/O hardware. Consists of
• a cylinder number (imaginary collection of tracks
  of same radius from all recoreded surfaces)
• track (surface) number (within the cylinder)
• block number (within track).
• Logical Block Address a block number which is
  mapped by disk controller to hardware address

44
45
How is disk I/O done

• We can reduce disk accesses by keeping as many
  blocks as possible in main memory.
• Buffer portion of main memory available to
  store copies of disk blocks.
• Buffer manager subsystem responsible for
  allocating buffer space in main memory.
• OS provides logical block address and address
  (where block is to go) in RAM to device driver

45
46
Read block Buffer Manager (BM)

• Program calls on BM when needs a block from disk.
• If block already in buffer, BM returns the
  address of the block in main memory. If not in
  buffer ?
• Find space in the buffer for the block. If free
  space, that gets allocated. Otherwise ?
• Replace another block to make space
• Replacement policy
• Reads block from the disk to the buffer, and
  returns the address of block in RAM to requester.

46
47
Model of Where Data is Stored

• Block movements between disk and main memory are
  initiated through the following two operations
• input(B) transfers the physical block B to main
  memory.
• output(B) transfers the buffer block B to the
  disk, and replaces the appropriate physical block
  there.
• Each transaction T has its private work-area in
  which local copies of all data items accessed and
  updated by it are kept.

47
48
Example of Where Data is Stored
buffer
input(A)
Buffer Block A
X
A
Buffer Block B
Y
B
output(B)
read(X)
write(Y)
x2
x1
y1
work area of T2
work area of T1
disk
memory
48
49
Model of Where Data is Stored

• Transaction transfers data items between DBMS
  buffer blocks and its private work-area using the
  following operations
• read(X) assigns the value of data item X to the
  local variable x.
• write(X) assigns the value of local variable x to
  data item X in the buffer block.
• Both read and write may lead to the issue of an
  input(BX) instruction (bring to RAM)
• if BX in which X resides is not already in RAM

49
50
Model of Where Data is Stored

• Transactions perform read(X) while accessing X
  for the first time.
• Subsequent accesses (getting value of X and
  changing value X) are to the local copy x.
• read twice from buffer block if non-repeatable
  read
• When transaction executes a write(X) statement
• Copies local x to data item X in the buffer
  block.
• write(X) may not always be immediately followed
  by output(BX).
• System can perform the output operation when it
  deems fit. Why not always immediately ?
• Efficiency dont want too many disk writes

50
51
How Data is Stored Elmasri

• Who controls when a page from RAM is written back
  (flushed) to DISK
• Typically done by OS in other situations
• We assume DBMS has partial or total control
• by calling low-level OS functions
• DBMS cache collection of RAM buffers kept by
  DBMS for pages of DBMS
• If need to bring in additional pages and buffers
  all used up, DBMS decides which pages to flush
• Could use FIFO, LRU strategy etc.

51
52
How Data is Stored Elmasri

• Cache Manager(CM) controls DBMS cache
• Data items to be modified are first stored into
  database cache by CM
• At some point CM flushes modified items to
  disk.
• Dirty Bit Indicates whether data item has been
  modified or not. Why is this important ?
• If not dirty, dont need to flush
• Pin-Unpin Bit Instructs the operating system not
  to flush the data item. Why useful?
• Eg change made by uncommitted T
• May not want change made to disk block

52
53
When are changes made to disk

• We assume when T writes an item, change is
  immediately made to block in cache (RAM)
• When will this change be reflected in the block
  on disk ? Three possibilities
• As soon as a data item is modified in cache, the
  disk copy could be updated.
• When transaction commits
• Could be at a later time
• Eg after fixed number of transactions have
  committed.

53
54
Recovery Algorithms

• Recovery algorithms are techniques to ensure
  database consistency and transaction atomicity
  and durability despite failures
• Recovery algorithms have two parts
• Actions taken during normal transaction
  processing
• to ensure enough information exists to recover
  from failures
• Actions taken after a failure
• to recover the database contents to a consistent
  state ensures atomicity and durability.

54
55
Assumptions

• Concurrency control is in effect.
• When needed, will assume Strict 2PL
• In-place update The disk version of the data
  item is overwritten by the cache version.
• old data overwritten on (deleted from) the disk.
• Alternative is Shadow update The modified
  version of a data item does not overwrite the old
  disk copy but is written at a separate disk
  location.
• Dont have to worry about undos because original
  is still saved
• We will work with in-place update

55
56
Database Recovery

• Transaction Log
• For recovery from failure, old data value prior
  to modification (BFIM - BeFore Image) and the new
  value after modification (AFIM AFter Image) are
  needed. These values, and other information, is
  stored in a sequential file called Transaction
  log. A sample log is given below. Back P and
  Next P point to the previous and next log records
  of the same transaction.
• In first row, Next P 1 should be a 2

56
57
UNDO/REDO

• Transaction Roll-back (Undo) and Roll-Forward
  (Redo)
• Undo how to do ?
• Undo Restore all BFIMs on to disk (Remove all
  AFIMs).
• Redo How to do?
• Redo Restore all AFIMs on to disk.
• Database recovery is achieved either by
  performing only Undos or only Redos or by a
  combination of the two. These operations are
  recorded in the log as they happen.

57
58
Rollback example

• We show the process of roll-back with the help of
  the following three transactions T1, and T2 and
  T3.
• Strict 2PL not being followed here

T1 T2 T3 read_item (A) read_item (B) read_item
(C) read_item (D) write_item (B) write_item
(B) write_item (D) read_item (D) read_item
(A) write_item (A) write_item (A)
58
59
Rollback example

• Roll-back One execution of T1, T2 and T3 as
  recorded in the log.

• Illustrating cascading roll-back

59
60
Rollback example

• Roll-back One execution of T1, T2 and T3 as
  recorded in the log.
• A B C D
• 30 15 40 20

start_transaction, T3 read_item, T3,
C write_item, T3, B, 15, 12 12 start_transa
ction,T2 read_item, T2, B write_item, T2,
B, 12, 18 18 start_transaction,T1 read_item,
T1, A read_item, T1, D write_item, T1, D,
20, 25 25 read_item, T2, D write_item,
T2, D, 25, 26 26 read_item, T3, A
Abort T3 What should happen with the different
transaction ?

• T3 rolled back and then T2 has to be rolled back
  because T2 read a value (B) written by T3

60
61
Write-Ahead Logging

• When in-place update (old value overwritten by
  new value) is used then log is necessary for
  recovery
• Done by Write-Ahead Logging (WAL) protocol.
• To make sure Undo can be done, what do we need?
• Before a data items AFIM is flushed to the disk
  (overwriting the BFIM)
• Its BFIM must be written to the log
• Log must be saved on disk (force-write the log).
  Why?
• If T writes X, X on disk changed, system crashes
• how will we recover ?

61
62
Write-Ahead Logging

• Need BFIM of X to Undo, will be in log.
• But log in RAM vanishes with system crash
• So need to force write log
• What do we need to for Redo ?
• For Redo Before a transaction executes its
  commit operation
• its AFIMs must be written to log
• log must be force written on disk. Why ?
• Need AFIM of X to Redo, will be in log.
• But log in RAM vanishes with system crash
• So need to force write log

62
63
Checkpoints

• Periodically flush buffers to disk
• Simplifies recovery old stuff guaranteed on
  disk
• When to do ? Under some criteria
• Eg when certain T commit
• Eg at fixed time intervals
• checkpoint carry out following steps
• Suspend execution of transactions temporarily.
• Force write modified buffer data of committed
  transactions to disk
• Write checkpoint record to log
• Save log to disk.
• Resume normal transaction execution.
• During recovery Redo or Undo required only for
  transactions active after last checkpoint.
• Eg next slide

63
64
Immediate Update Concurrent Users
Recovery in a concurrent users environment.

• What actions will have to be taken when the
  system crashes at time t2 ?
• What to do about each of the transactions ? T1 ?
• T1 committed before checkpt do nothing. T4 ?
• T4 not committed when crash UNDO. T5 ?
• T5 not committed when crash UNDO. T3?
• T3 committed after checkpt REDO. T2 ?
• T2 committed after checkpt REDO.

64
65
Steal/No-Steal

• Steal/No-Steal and Force/No-Force Possible ways
  for flushing database cache to disk.
• Issue before T commits, can changes made by T to
  buffer blocks be flushed to disk?
• Eg if Cache Manager needs space to bring in new
  pages.
• Not asking if always flushed, but IF POSSIBLE
• Steal Cache can be flushed before T commits.
• No-Steal Cache cannot be flushed before T
  commits.
• Why called Steal ?

65
66
Steal/No-Steal

• Advantage of No-Steal ?
• Dont have to Undo. Why?
• Pages not written out on disk before commit
• Advantage of Steal ?
• If No Steal, then poor throughput. Why?
• Cache Manager not allowed to write pages till
  commit
• Has to keep all uncommitted writes in buffer
• Buffer space limited, will allow only small T,
  so poor throughput

66
67
Force/No-Force

• Issue when T commits, do pages modified by T
  HAVE TO be immediately flushed out to disk?
• Force Have to flush immediately on commit.
• No-Force Dont have to immediately flush
• CM decides when to flush changes made by
  committed transactions to disk
• Difference between Steal and Force issues
• Steal/No-steal is it possible that pages get
  flushed to disk before commit
• Force/No-force is it guaranteed that pages get
  flushed to disk immediately on commit

67
68
Force/No-Force

• Advantage of Force ?
• No need to redo. Why ?
• On COMMIT, immediately written to disk
• Advantage of No-Force ?
• Less writes to disk . Why ?
• Eg Consider Force and No-Force initially x 2.

• T1 writes x 3, commit. T2 writes x 4, commit.
• With Force will have to do 2 disk writes
• 1 when T1 commits, 1 when T2 commits
• With No-Force maybe 2 or maybe only 1 disk write
• When T1 commits, modified x (x 3) in buffer
• May not be written to disk

68
69
Steal/No-Steal and Force/No-Force

• These give rise to four different ways for
  handling recovery
• No-Steal/Force. In terms of Undo/Redo ?
• (No-undo/No-redo).
• Steal/Force. In terms of Undo/Redo ?
• (Undo/No-redo)
• No-Steal/No-Force. In terms of Undo/Redo ?
• (No-undo/Redo)
• Steal/No-Force. In terms of Undo/Redo ?
• (Undo/Redo)

69
70
Steal/No-Steal and Force/No-Force

• Typical DBMS uses Steal/No Force strategy
• Steal Good throughput
• No Force less disk I/O
• Immediate Update Steal/No Force strategy.
• Have to UNDO/REDO ?
• Steal have to UNDO
• No-Force have to REDO

No Steal
Steal
Force
Trivial
Desired
No Force
71
When is log force-written ?

• What are the different times at which we have to
  force-write log to the disk ?
• At checkpoint
• When commit is issued
• In case of STEAL ?
• When database block gets stolen
• Flushed out to disk
• Why ?
• In case we need to UNDO

71
71
72
Deferred Update

• Deferred Update No-Steal/No-Force
• No-Steal RAM blocks not flushed to disk till T
  commits
• No Undo
• No-Force May not be flushed even when T commits
• How will system recover from system crash ?
• Redo needed for those T for which commit was
  issued and whose changes have not been recorded
  on disk blocks
• After reboot from a failure, log is used to redo
  all the transactions affected by this failure.
• EN covers Deferred Update in detail
• we will not discuss

72
72
