Application of Porous Pavement

1

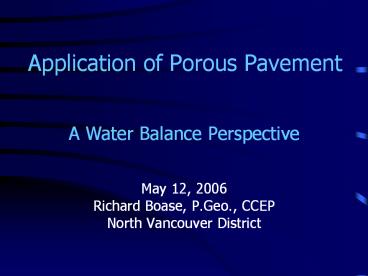

Application of Porous Pavement
A Water Balance Perspective

• May 12, 2006
• Richard Boase, P.Geo., CCEP
• North Vancouver District

2
Why Change at All

• Why is this an issue?
• How do we implement effective change?
• How do we monitor results of decisions
  made?

3
What's the BIG deal?
4
Single Family Rainwater Mgt.

• DNV encompasses 16,237 Ha. (63 mi.2)
• 64.5 Wilderness Area
• 19.5 Residential
• 8.3 Urban Parks
• 3.3 Conservation
• 2.1 Industrial

5
Single Family Rainwater Mgt.

• Population approximately 80,000
• 27,319 dwelling units (incl. M/F)
• 70 detached single family
• 11 increase in dwelling units 1986-1991

6
Single Family Rainwater Mgt.
Science tells us that watershed health begins to
deteriorate as a watershed moves beyond 10 total
impervious surface area.
7
Total lot area 1901 sq. m.
Aging SFD stock gt50 years Lower land
value Different appreciation for space
15 Landscaping
8
Total lot area 1972 sq. m.
28 Landscaping
New SFD stock lt 10 years Higher land
value Different appreciation for space
9
59 increase
88 increase
10
Single Family Rainwater Mgt.
How do we implement change?
11
Single Family Rainwater Mgt.
2005 Rain Data (mm)
We need a new approach
Over 80 of rain small frequent showers lt than
50 mm
12
(No Transcript)
13
Single Family Rainwater Mgt.
Site
Building size Hard surface Landscaping
Watershed Health
14
Single Family Rainwater Mgt.

• Yes we can make a difference if we have
• Policies
• Bylaws
• Standards for greener designs

15
Pervious Paving

• We needed something to give us a nudge

Who would ever have thought it would come from a
simple Council discussion over a routine lane
paving project!
16
Pervious Paving

• Open Graded Asphalt

• Hot mix asphalt with inter-connecting voids
• Developed as a highway safety feature to reduce
  hydroplaning, skidding and tire noise

17
Pervious Paving

• Could we adapt an existing use of open graded
  asphalt?

• Used as a tennis court surface
• Well draining
• More use year round

18
Pervious Paving
19
Pervious Paving

• Geotechnical Assessment First

• Variable permeability rates (50 -135 mm/hr)
• High fines content (18 45 )
• Organic content under existing lane surface

20
Pervious Paving

• Geotechnical Assessment First

• Flat topography
• No ability to raise grade
• Concern about capillary action fines

21
Pervious Paving

• No alternative but to excavate and install a
  suitable sub base layer

• 300 mm thick base course
• 25 mm gravels with lt 5 fines (75µm)
• 75 mm layer open graded asphalt

22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
The End
