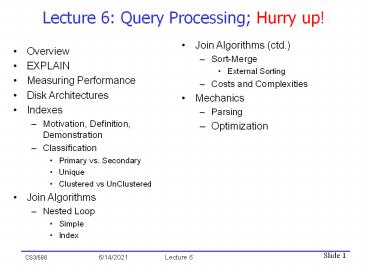

Lecture 6: Query Processing; Hurry up!

1
Lecture 6 Query Processing Hurry up!

• Join Algorithms (ctd.)
• Sort-Merge
• External Sorting
• Costs and Complexities
• Mechanics
• Parsing
• Optimization

• Overview
• EXPLAIN
• Measuring Performance
• Disk Architectures
• Indexes
• Motivation, Definition, Demonstration
• Classification
• Primary vs. Secondary
• Unique
• Clustered vs UnClustered
• Join Algorithms
• Nested Loop
• Simple
• Index

CS3/586 12/16/2015
Lecture 6
2
Learning objectives

• LO6.1 Use SQL to declare indexes
• LO6.2 Determine the I/O cost of finding
  record(s) using a B tree
• LO6.3 Given a join query, calculate the cost
  using each join algorithm Nested loops, Index
  Nested Loops, Sort-Merge
• LO6.4 Parse a query
• LO6.5 Use VP to answer questions about
  optimization

3
Today we will start from the bottom
SQL
Parser
Security
Catalog
Relational Algebra(RA)
Optimizer
Operator algorithms
Executable Plan (RAAlgorithms)
3
Plan Executor
Concurrency
Crash Recovery
2
indexes
Files, Indexes Access Methods
how a disk works
1
Database, Indexes
4
Measuring Query Speed

• Our goal this week is to figure out how to
  execute a query fast.
• But the time a query takes to execute is hard to
  measure or predict.
• Depends on environment
• Simpler, easier to measure and predict Number of
  disk I/Os.
• Good Very roughly proportional to execution time
• Bad Does not take into account CPU time or type
  of I/O
• Therefore we will use number of disk I/Os to
  measure the time it takes a query to execute.
• Like looking under the lamppost.

5
Components of a Disk
Spindle
Disk head
Tracks

• platters are always spinning (say, 7200rpm).
• one head reads/writes at any one time.
• to read a record
• position arm (seek)
• engage head
• wait for data to spin by
• read (transfer data)

Sector
Platters
Arm movement
Arm assembly
6
More terminology
Spindle
Disk head
Tracks

• Each track is made up of fixed size sectors.
• Page size is a multiple of sector size.
• A platter typically has data on
• both surfaces.
• All the tracks that you can reach from one
  position of the arm is called a cylinder
  (imaginary!).

Sector
Platters
Arm movement
Arm assembly
7
Cost of Accessing Data on Disk

• Time to access (read/write) a disk block
• seek time (moving arms to position disk head on
  track)
• rotational delay (waiting for block to rotate
  under head)
• Half a rotation, on average
• transfer time (actually moving data to/from disk
  surface)
• Key to lower I/O cost reduce seek/rotation
  delays! (you have to wait for the transfer time,
  no matter what)
• The text measures the cost of a query by the
  NUMBER of page I/Os, implying that all I/Os have
  the same cost, and that CPU time is free. This
  is a common simplification.
• Real DMBSs (in the optimizer) would consider
  sequential vs. random disk reads because
  sequential reads are much faster and would
  count CPU time.

8
Typical Disk Drive Statistics (2009)
Sector size 512 bytes Seek time
Average 4-10 ms Track to
track .6-1.0 ms Average Rotational Delay -
3 to 5 ms (rotational speed 10,000 RPM to
5,400RPM) Transfer Time - Sustained data
rate 0.3- 0.1 msec per 8K page, or 25-75
Meg/second Density 12-18GB/in2 Rule of
Thumb 100 I-Os/second/page
9
How far away is the data?
From http//research.microsoft.com/gray/papers/Al
phaSortSigmod.doc
10
Block, page and record sizes

• Block According to text, smallest unit of I/O.
• Page often used in place of block.
• My notation is
• Page is smallest I/O for operating system
• Block is smallest I/O for an application
• Block is integral number of units
• typical record size commonly hundreds,
  sometimes thousands of bytes
• Unlike the toy records in textbooks
• typical page size 4K, 8K

11
What Block Size is Faster?

• At times you can choose a block size for an
  application. How?
• In some OS's, e.g., IBM's, you can enforce a
  block size
• Or you can perform several reads at once,
  imitating a large block size. This is called
  asynchronous readahead.
• This is like should I buy one bottle or a case?
• What application will run faster with a large
  block size?
• Goal is for the disk to overlap reads with the
  CPU's processing of records. Potentially running
  twice as fast.
• What application will run faster with a small
  block size?
• Goal is not to waste memory or read time.

12
Time for some Magic

• You are in charge of a production DBMS for the
  FEC.
• Production an enterprise depends on the DBMS for
  its existence.
• Customers will ask queries like find donations
  from 97223. You must ensure a reasonable
  response time.
• If the queries run forever, customers will be
  unhappy and you will be DM.
• The DBMS will grind to a halt. Customers will
  complain to congress, you will be out of a job.
• Wouldn't it be nice to know what plan the
  optimizer will choose, and how long that plan
  will take to execute?
• Rub the magic lantern

13
Postgres EXPLAIN

• Output for
• EXPLAIN SELECT FROM indiv WHERE zip 97223
• Seq Scan on indiv (cost0.00.. 109495.94 rows221
  width166)
• Filter(zip 97223bpchar)
• These values are estimates from sampling.
• Most DBMS's provide this facility.
• Also useful when a query runs longer than
  expected.
• If you are online, try it.
• Actually this includes CPU costs but we will
  call it I/O costs to simplify

Sequential Scan
I/Os to get first row
I/Os to get last row
Rows retrieved
Average Row Width
14
You are now DM

• More than 100K I/Os!
• Response time is 1,000 seconds, or 17 minutes.
• Unacceptable! Customers will complain!
• Is there a faster way than Seq Scan?
• You must do something or you are out of a job!!!

15
To the Rescue Index

• An Index is a data structure that speeds up
  access to records based on some search key
  field(s).
• Indexes are not part of the SQL standard
• Because of physical data independence
• Typical SQL command to create an index
• CREATE INDEX indexname
• ON tablename (searchkeynames)
• For example
• CREATE INDEX indiv_zip_idx ON indiv(zip)
• Nota Bene
• Search key is not the same as a key for the
  table. Attributes in a search key need not be
  unique.

16
Index Demonstration Input, Output

• EXPLAIN SELECT FROM indiv WHERE zip'97223'
• Seq Scan on indiv (cost0.00..109495.94 rows221
  width166) Filter (zip '97223'bpchar)
• CREATE INDEX indiv_zip_idx ON indiv(zip)
• EXPLAIN SELECT FROM indiv WHERE zip'97223'
• Bitmap Heap Scan on indiv (cost6.06..861.32
  rows221 width166)
• Recheck Cond (zip '97223'bpchar)
• -gt Bitmap Index Scan on indiv_zip_idx
  (cost0.00..6.01 rows221 width0)
• Index Cond (zip '97223'bpchar)
• With an index, the I/Os went from 109,495 to 861!
• Thats 17 minutes to 9 seconds!

17
LO6.1 Practice with indexes

• When you declare a primary key, most modern DBMSs
  (including Postgres) create a clustered (sorted)
  index on the primary key attribute (s).
• Give the SQL for creating all possible
  single-attribute indexes on the table Emp(ssn
  PRIMARY KEY, name)
• What are the search keys of each index?

18
Data Entries

• Before we learn about how indexes are built, we
  must understand the concept of data entries.
• Given a search key value, the index produces a
  data entry, which produces the data record in one
  I/O.
• Other real-life indexes will help motivate this
  concept.
• Each of the following indexes speeds up data
  retrieval. What is the search key, data entry,
  and data record for each one?
• Search Key Data Entry Data Record
• Library Catalog
• Google
• Mapquest

19
Essentially all DBMS Indexes are B Trees

• Oracle, SQLServer and DB2 support only BTree
  indexes. Postgres supports hash indexes but does
  not recommend using them.
• B tree indexes support range searches (WHERE
  const lt attribute) and equality searches (WHERE
  const attribute).
• The next page contains a sample B tree index.
  Think of it as an index on the first two digits
  of zip code.
• 28 is a data entry that points to the donations
  from zip codes that start with 28.
• Above the data entries are index entries that
  help find the correct data entry.

20
Example B Tree
Note how data entries in leaf level are sorted

• Find 29? 28? All gt 15 and lt 30
• Insert/delete Find data entry in leaf, then
  change it. Need to adjust parent sometimes.
• And change sometimes bubbles up the tree
• This keeps the tree balanced each data retrieval
  takes the same number of I/Os.
• Each page is always at least half full.

21
LO6.2 I/O Cost in a B Tree
Root
17
27
30
13
5
2
3
39
38
7
5
8
22
24
27
29
14
16
33
34
How many I/Os are required to retrieve data
records with search key values x, 13 lt x lt 27?
Assume x is a unique key. How many I/Os are
required to retrieve data records with search key
values x, 3 lt x lt 15? Assume x is a unique key.
22
B Tree Indexes
Non-leaf
Pages
Leaf
Pages (Sorted by search key)

• Leaf pages contain data entries, and are chained
  (prev next)
• Non-leaf pages have index entries only used to
  direct searches

23
Dont get carried away!

• Now I dont want you to run out and index every
  attribute and set of attributes in all your
  tables!
• If you define an index, you will incur three
  costs
• Space to store the index
• Updates to the search key will be slower why?
• The optimizer will take longer to choose the best
  plan because it has more plans to choose from.
• We will see that sometimes it is better not to
  use an index
• There is one advantage to having an index
• Some queries run faster (better be sure about
  this).

24
Index Classification

• Primary vs. secondary If the indexs search key
  contains the relations primary key, then the
  index is called a primary index, otherwise a
  secondary index.
• The index created by the DBMS for the primary key
  is usually called the primary index.
• Unique index Search key contains a candidate
  key, i.e. no duplicate values of the search key.

25
Clustered vs. Unclustered indexes

• If the order of the data records is the same as,
  or close to, the order of the search key, then
  the index is called clustered.

26
Comments on Clustered Indexes

• If you are retrieving only one record, any index
  will do.
• Retrieve one record in each index and count the
  I/Os.
• Assume the height of the index entry tree is 2.
• If you are retrieving many records with the same
  search key value, a clustered index is almost
  always faster.
• Retrieve 10 records from each index and count the
  I/Os.
• Clustered
• Unclustered
• Lest you get carried away a table can have only
  one clustered index. Why?
• DBMSs make their primary indexes clustered.
• PS DB2, Postgres and MySQL construct clustered
  indexes as we have described on the previous
  slide. Oracle and SQLServer put the data records
  in place of the data entries.

27
Where Are We?

• We've now learned two ways to perform a 1-table
  SELECT query Sequential Scan and Index Scan.
• EXPLAIN tells you which plan/algorithm the
  optimizer will choose which one it thinks is the
  fastest.
• Now we study possible plans/algorithms for
  multi-table join SELECT queries.

28
Join Algorithms Motivation (apocryphal)

• When I was young I was asked to help with a
  charity art auction. At the start I got a big
  stack of bidder cards with bidder IDs and bidder
  information.
• At the end I got a much bigger stack of bought
  cards, each one containing a bidder ID and the
  cost of a painting that a bidder bought.
• Suddenly there was a long line of bidders who
  wanted to go home. For each bidder, I had to
  give the cashier the bidders card with the
  bidders matching bought cards.
• What would you do if you were in this situation?

29
Computer Science Algorithms

• Answers to the previous question will be
  investigated on the following pages. They fall
  into three categories, the three basic algorithms
  of computer science iteration, sorting and
  hashing.
• Nested Loop Join (iteration) comes in two
  versions
• Simple Nested Loop
• Index Nested Loop
• Sort Merge Join
• Hash Join (Will not be covered in this course)

30
Join Algorithms an Introduction

• The text discusses algorithms for every
  relational operator. We study only join
  algorithms since join is so expensive.
• L ? R is very common!
• Notation M pages in L, pL rows per page, N pages
  in R, pR rows per page.
• In our examples, L is indiv and R is comm.
• Our algorithms work for any equijoins.

31
A simple join
SELECT FROM indiv L, comm R WHERE
L.commidR.commid
Review how to compute this join by hand, with the
cl versions of the tables. M 23,224 pages in
L, pL 39 rows per page, N 414 pages in R, pR
24 rows per page. These (estimated) statistics
are stored in the system catalog. In
PostgreSQL, retrieve number of pages with the
function SELECT pg_relation_size('tablename')/819
2 Retrieve rows per page using SELECT
COUNT()/(pages in L or R) FROM L or R
32
The simplest algorithm Nested Loops
Join on commid in L and commid in R foreach row l
in L do foreach row r in R do if rcommid
lcommid then add ltr, sgt to result

• For each row in the outer table L, we scan the
  entire inner table R, row by row.
• Cost M (pL M) N 23,224
  (3923,224)414 I/Os
• 374,997,928 I/Os ? 3,749,979 seconds ? 43 days

Assuming approximately 100 I/Os per second
(86,400 secs/day)
33
Nested Loops Join
Table L on disk
Table R on disk
Memory Buffers
2 ... 12 6 ...
... 2 13
12 27
1 5 27
1 5
34
Nested Loops Join
Table L on disk
Table R on disk
Memory Buffers
2 ... 12 6 ...
2 ... 12 6 ...
... 2 13
... 2 13
12 27
1 5 27
1 5
Query Answer 2 2
35
Nested Loops Join
Table L on disk
Table R on disk
Memory Buffers
2 ... 12 6 ...
2 ... 12 6 ...
... 2 13
... 2 13
12 27
1 5 27
No match Discard!
1 5
Query Answer 2 2
36
Nested Loops Join
Table L on disk
Table R on disk
Memory Buffers
2 ... 12 6 ...
2 ... 12 6 ...
... 2 13
12 27
12 27
1 5 27
No match Discard!
1 5
Query Answer 2 2
37
Nested Loops Join
Table L on disk
Table R on disk
Memory Buffers
2 ... 12 6 ...
2 ... 12 6 ...
... 2 13
12 27
12 27
1 5 27
No match Discard!
1 5
Query Answer 2 2
38
Nested Loops Join
Table L on disk
Table R on disk
Memory Buffers
2 ... 12 6 ...
2 ... 12 6 ...
... 2 13
1 5
12 27
1 5 27
No match Discard!
1 5
Query Answer 2 2
39
Nested Loops Join
Table L on disk
Table R on disk
Memory Buffers
2 ... 12 6 ...
2 ... 12 6 ...
... 2 13
1 5
12 27
1 5 27
No match Discard!
1 5
Query Answer 2 2
40
Nested Loops Join
Table L on disk
Table R on disk
Memory Buffers
2 ... 12 6 ...
2 ... 12 6 ...
... 2 13
... 2 13
12 27
1 5 27
No match Discard!
1 5
Query Answer 2 2
41
Nested Loops Join
Table L on disk
Table R on disk
Memory Buffers
2 ... 12 6 ...
2 ... 12 6 ...
... 2 13
... 2 13
12 27
1 5 27
No match Discard!
1 5
Query Answer 2 2
42
Nested Loops Join
Table L on disk
Table R on disk
Memory Buffers
2 ... 12 6 ...
2 ... 12 6 ...
... 2 13
12 27
12 27
1 5 27
Match!
1 5
And so forth
Query Answer 2 2 12 12
43
Index Nested Loops Join
IF THERE IS AN INDEX ON r.commid foreach row l in
L do use the index to find all rows r in R
where lcommid rcommid for all such r add
ltl, rgt to result

• Cost M ( (MpL) cost of finding matching R
  rows) 23224 ((2322439)3) 2,740,432 I/Os
  ? 27,404 secs ? 8 hours

Cost of finding the rows in R using the index on
commid much cheaper than scanning all of comm!
44
External Sorting

• Many relational operator algorithms require
  sorting a table
• Often the table wont fit in memory
• How do we sort a dataset that wont fit in
  memory?
• Answer External Sort-Merge algorithm
• First pass Read and write a memoryfull of
  (sorted) runs at a time.
• Second and later passes Merge runs to make
  longer runs
• Heres a picture of merging two runs

The merged output is a longer run, on disk
Runs on disk
Merging the runs in memory
45
External Sorting Cost

• Number of passes depends on how many pages of
  memory are devoted to sorting
• Can sort M pages of data using B pages of memory
  in 2 passes if sqrt(M) lt B
• Can sort big files M with not much memory B
• If page size is 4K
• Can sort 4Gig of data in 4Meg of memory
• Can sort 256Gig of data in 32Meg of memory
• Each pass is a read and a write, so if sqrt(M) lt
  B then sort costs (MM)(MM) so can be done in
  4M I/Os
• So its reasonable to assume that sorting M pages
  costs 4M.

46
Sort-Merge Join

• This join algorithm is the one many people think
  of when asked how they would join two tables. It
  is also the simplest to visualize. It involves
  three steps.
• Sort L on lcommid
• Sort R on rcommid
• Merge the sorted L and R on lcommid and rcommid.
• Weve covered the algorithm and cost of steps 1
  and 2 on the previous pages

47
The Merge Step

• What is the algorithm for step 3, the merge?
• Advance scan of L until current L-rows lcommid
  gt current R rows rcommid, then advance scan of
  R until current R-rows rcommid gt current R
  rows lcommid do this until current R rows
  lcommid current R rows rcommid.
• At this point, all R rows with same lcommid and
  all R rows with same rcommid match output ltl,
  rgt for all pairs of such rows.
• Then resume scanning L and R.
• What is the cost of the merge step?
• Normally, MN
• What if there are many duplicate values of
  lcommid and rcommid?
• What if all values of lcommid are the same and
  equal to all values of rcommid?
• Then L ? R L ? R and the cost of the merge step
  is L R.
• BUT, almost every real life join is a foreign key
  join. One of the joining attributes is a key, so
  the duplicate value problem does not occur.

48
Cost of Sort-Merge Join

• Assuming that sorting can be done in two passes
  and that the join is a foreign key join
• Cost (cost to sort L) (cost to sort R)
  (cost of merge)
• 4M 4N (MN) 5(MN)
• For our running example the cost is
• 5(MN) 5(23224414) 118,190 I/Os ? 1,181
  seconds ? 20 minutes
• In reality the cost is much less because of
  optimizations, indexes, and the use of hash join
• Cf. CS587/410

49
Costs for Join Algorithms
Join Algorithm I/O Cost O( ) Time for our example
Nested Loop M PLMN MN 43 Days
Index Nested Loop M PLM(cost of index access) M 8 Hours
Sort-merge, with 2-pass sort for both inputs 5(MN) MN 20 minutes
For homework and exercises you may assume this
is 3 times the number of rows retrieved
50
LO6.3 Costs of Join Algorithms

• Consider this join query
• SELECT
• FROM pas L, comm R
• WHERE L.commid R.commid
• Calculate the cost (in time) of a nested loop,
  index nested loop and sort-merge join.

51
Now we focus on the top of this diagram
Relation Algebra Query
SQL Query
Parser
Query Optimizer
Search for a cheap plan
Relational Operator Algs.
Join algorithms,
Files and Access Methods
Heap, Index,
Buffer Management
Covered in CS587/410
Disk Space Management
DB
52
Detail of the top
Query Parser
SQL Query(SELECT )
Relational Algebra Expression (Query Tree)
Query Optimizer
Plan Generator
Plan Cost Estimator
Catalog Manager
Query Tree Algorithms (Plan)
Plan Evaluator
53
Parsing and Optimization

• The Parser
• Verifies that the SQL query is syntactically
  correct, that the tables and attributes exist,
  and that the user has the appropriate
  permissions.
• Translates the SQL query into a simple query tree
  (operators relational algebra plus a few other
  ones)
• The Optimizer
• Generates other, equivalent query trees
  (Actually builds these trees bottom up)
• For each query tree generated
• Selects algorithms for each operator (producing
  a query plan)
• estimates the cost of the plan
• Chooses the plan with lowest cost (of the plans
  considered, which is not necessarily all possible
  plans)

54
Heres what the parser does
Relational Algebra Tree
SQL Query
SELECT commname FROM comm JOIN indiv USING
commid WHERE indiv.zip97223
?commname
? indiv.zip97223
?
commidcommid
indiv
comm
55
LO6.4 Parse a Query

• Describe the parser's output when the input is
• SELECT candname
• FROM cand JOIN pas
• USING candid
• WHERE amount gt 3000

56
What does the optimizer do?

• Fortunately, a Master's student at PSU, Tom
  Raney, has just added a patch to PostgreSQL (PG)
  that allows anyone to look inside the optimizer
  (PG calls it the planner).
• One of the lead PG developers says its like
  finding Sasquatch.
• Well use Toms patch to see what the PG planner
  does.
• The theory behind the PG planner 668 is shared
  by all DBMS optimizers.
• Except SQL Server, though I won't keep saying
  this.

57
Overview of DBMS Optimizers

• "Optimizing a query" consists of these 4 tasks
• Generate all trees equivalent to the
  parser-generated tree
• Assign algorithms to each node of each tree
• A tree with algorithms is called a plan.
• Calculate the cost of each generated plan
• Using the join cost formulas we learned in
  previous slides
• Choose the cheapest plan
• Statistics for calculating these costs are kept
  in the system catalog.

58
Dynamic Programming

• A no-brainer approach to these 4 tasks could take
  forever. For medium-large queries there are
  millions of plans and it can take a millisecond
  to compute each plan cost, resulting in hours to
  optimize a query.
• This problem was solved in 1979 668 by Patsy
  Selinger's IBM team using Dynamic Programming.
• The trick is to solve the problem bottom-up
• First optimize all one-table subqueries
• Then use those optimal plans to optimize all
  two-table subqueries
• Use those results to optimize all three-table
  subqueries, etc.

59
Consider A Query and its Parsed Form

• SELECT commname
• FROM indiv JOIN comm USING (commid)
• WHERE indiv.zip '96828'

?commname
? indiv.zip96828
I chose 96828 because it is in Hawaii. Wishful
thinking.
?
commidcommid
indiv
comm
60
What Will a Selinger-type Optimizer Do?

• Optimize one table subqueries
• indiv WHERE zip96828 , then comm
• Optimize two-table queries
• The entire query
• Let's use Raney's patch, the Visual Planner, to
  see what PG's Planner does.
• We'll watch PG's Planner in two cases
• noindex.pln no index on indiv.zip
• index.pln a nonclustered index on indiv.zip

61
How to Set Up Your Visual Planner

• Download, then unzip, in Windows or NIX
• cs.pdx.edu/len/386/VP1.7.zip
• Read README.TXT, don't worry about details
• Be sure your machine has a Java VM
• http//www.java.com/en/download/index.jsp
• Click on Visual_Planner.jar
• If that does not work, use this at the command
  line
• java -jar Visual_Planner.jar
• In the resulting window
• File/Open
• Navigate to the directory where you put VP1.7
• Navigating to C may take a while
• Choose noindex.pln

62
Windows in the Visual Planner

• The SQL window holds the (canned) query
• The Plan Tree window holds the optimal plan for
  the query.
• The Statistics window holds statistics about the
  highlighted node of the Plan Tree's plan
• Click a Plan Tree node to see its statistics
• Why is the Seq Scan on the right input, indiv,
  almost the same cost as the Sort?
• Why is there an index scan on the joining
  attribute of comm?
• Why is a merge join the optimal plan?
• Almost no cost to sort the right input
• No cost to sort the left input because the index
  is clustered

63
Visualize Dynamic Programming

• Recall the first steps of Dynamic Programming
  Optimize indiv, then comm.
• Postgres calls these the ROI steps and they are
  displayed in the ROI window of VP.
• In the ROI window, click on indiv to see how the
  PG Planner optimized indiv. What happened?
• In the ROI window, click on comm. What happened?
• The Planner saved the index scan even though it
  was slower than the Seq Scan, because it had an
  interesting order.
• The index scan is ordered on commid, which is a
  joining attribute, so it is an interesting order.

64
The Last Act

• The last step of Dynamic Programming is to
  optimize the entire query, the two-table join.
• Click on indiv/comm in the ROI Window.
• Blue plans are those that have the fastest total
  cost or the fastest startup cost, either overall
  or for some interesting order.
• Red plans are dominated by another plan.
• Dominated means there is a faster plan with the
  same order.
• To see a plan in a separate window, Shift-click
  it.
• Plans are listed in alphabetical order, then in
  order of total cost, then in order of startup
  cost.

65
What Happened in the Last Act?

• The first blue plan is the optimal plan we've
  been looking at.
• Why is the second blue plan there?
• Look at the other Merge Join plans. Why are they
  red?
• Find and describe the most expensive plan. What
  makes it so expensive?

66
Index to the Rescue

• File/Open, navigate to index.pln
• Without the index the optimal plan cost 35,471
• What is the cost of the optimal plan now?
• Why?

67
LO6.2 EXERCISE

• Consider the B-tree index on slide 21. Assume
  none of the tree is in memory and the index is
  unique. Assume that in the data file, every data
  record is on a different page. How many disk
  I/Os are needed to retrieve all records with
  search key values x, 7 lt x lt 16?

68
LO6.3 EXERCISE

• Consider the join query
• SELECT
• FROM comm L, cand R JOIN ON (assoccand candid )
• Calculate the cost of a nested loop, index nested
  loop and sort-merge join.

69
LO6.4 EXERCISE

• Follow the instructions on slide 61 to set up the
  Visual Planner. Open the file noindex.pln
• What is the startup cost and the total cost of
  the left input?
• Open the file index.pln
• Click on the "Bitmap Index Scan". What index is
  being used?
• What is the order of the left input?
