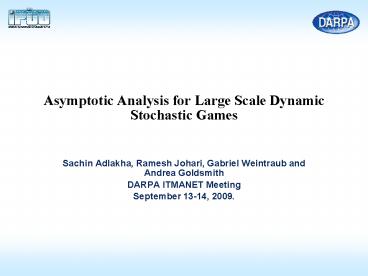

Asymptotic Analysis for Large Scale Dynamic Stochastic Games

1
Asymptotic Analysis for Large Scale Dynamic
Stochastic Games

• Sachin Adlakha, Ramesh Johari, Gabriel Weintraub
  and Andrea Goldsmith
• DARPA ITMANET Meeting
• September 13-14, 2009.

2
Asymptotic Analysis for Large Scale Dynamic
Stochastic Games S. Adlakha, R. Johari, G.
Weintraub, A. Goldsmith

• MAIN RESULT Taxonomy of Stochastic Games
• HOW IT WORKS
• Existence results for competitive model are based
  on continuity arguments.
• AME property for a competitive model is derived
  from the fact that opponents at higher states
  lead to lower payoff.
• ASSUMPTIONS AND LIMITATIONS
• Mean field requires all nodes to interact with
  each other applies to Dense networks only
• Coordination model requires different existence
  proof

• General Framework for interaction of multiple
  devices
• Further, our results
• provide common thread to analyze both
  competitive and coordination models.
• provide exogenous conditions for existence and
  AME for competitive models
• provide results on a special class of
  coordination model linear quadratic tracking
  games.

Many cognitive radio models do notaccount for
reaction of other devicesto a single devices
action. In prior work, we developed a
generalstochastic game model to tractably
capture interactions of many devices.
In principle, tracking state of other
devices is complex. We approximate state of other
devices via a mean field limit.
Provide existence and AME results for general
class of coordination games. Our main goal is
to develop arelated model that applies when a
single node interacts with a small number of
other nodes each period.
New Paradigm for analyzing large scale
competitive and coordination games
3
Modeling Interaction between Devices

• Wireless spectrum sharing
• Nodes interact with each other.
• The environment for a single node comprises of
  active devices.
• Nodes operate in a reactive environment.
• Markov Perfect Equilibrium (MPE)
• Standard solution concept for stochastic games.
• The action of each player depends on the state of
  everyone.
• Problems
• MPE is hard to compute.
• Requires excessive information exchange.

4
Oblivious Equilibrium (OE)

• Mean field equilibrium concept.
• Each device reacts to an average state of other
  players.
• Requires little information exchange.
• Easy to compute and implement.
• Questions
• When does such policies exist?
• How close is OE to MPE in terms of payoff
  received to a device?

5
Taxonomy of Stochastic Games

• Competitive models
• Non-cooperative games
• Payoff characterized by non-increasing
  differences between own state and opponent states
  sub modular structure.
• Opponents at higher state leads to lower payoff.
• Coordination models
• Cooperative games
• Payoff has increasing differences between own
  state and opponent state super modular
  structure.
• Payoff depends on how close are nodes to other
  players.
• Contribution

6
State of the Art

• Generalized the idea of OE to general stochastic
  games Allerton 07.
• Unified existing models, such as LQG games, via
  our framework CDC 08.
• Exogenous conditions for approximating MPE using
  OE for linear dynamics and separable payoffs
  Allerton 08.
• Current Results
• Exogenous conditions on model primitives which
• Prove the existence of an oblivious equilibrium
  for competitive models.
• Show that OE is close to MPE asymptotically for
  competitive models.

7
Our model

• m players
• State of player i is xi action of player i is ai
• State evolution
• Payoff
• where f-i empirical distribution of other
  players states

8
Common Assumptions

• A1 The state transition function is concave in
  state and action and has decreasing differences
  in state and action.
• A2 For any action, is a non-increasing
  function of state, non-decreasing function of
  action and has negative drift at zero action.
• A3 The payoff function is jointly concave in
  state and action and has decreasing differences
  in state and action.
• A4 The first derivative of the payoff function
  w.r.t state becomes negative as the state
  increases.

These assumptions imply that the optimal policy
is non-increasing and asymptotically goes to zero.
9
Competitive Model - Assumptions

• A5 The payoff function has decreasing
  difference between state and f-i and between
  action and f-i .
• Ordering relation on f-i first order stochastic
  dominance.
• A6 The payoff decreases as f increases. That
  is,
• if f1 f2, then ¼(x, a, f1) ¼(x, a, f2).
• A7 The logarithm of the payoff is Gateaux
  differentiable w.r.t. f-i.
• Define
• A8 Assume that the payoff function is such
  that g(y) O(yK) for some K.

10
Main Result Competitive Model

• Under A1-A8, OE exists for competitive models
  and OE payoff is approximately optimal over
  Markov policies, as m ? 1.
• In other words, OE is approximately an MPE.
• The key point here is that no single player is
  overly influential and the true state
  distribution is close to the time averageso
  knowledge of other players policies does not
  significantly improve payoff.
• Advantage
• Each player can use oblivious policy without loss
  in performance.

11
Competitive vs. Coordination Models

• Competitive and coordination models have
  significant differences.
• Existence in competitive models comes from
  continuity arguments.
• For coordination model, assumption A6 does not
  holds - requires different existence proof.
• This dichotomy exists even in single shot games.
• We have results for a special class of
  coordination games linear quadratic tracking
  models (a generalization of model by Caines et.
  al.)

12
Main Contributions and Future Work

• Provide common thread to analyze both competitive
  and coordination model.
• Provide exogenous conditions for existence and
  AME property for competitive model.
• Existence results are important for these models
  to be meaningful.
• Provide results on a special class of
  coordination model linear quadratic tracking
  games.
• Future Work
• Provide exogenous conditions for existence and
  AME property for general coordination games.
• Develop similar models where a single node
  interacts with a small set of nodes at each time
  period.
• Apply these models to interfering transmissions
  between energy constrained nodes.
