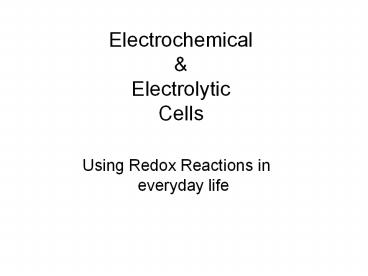

Electrochemical ElectrolyticCells

• Using Redox Reactions in everyday life

2
Uses for Redox Reaction

• Electrochemical or Voltaic Cell redox reactions
  that are utilized to produce electrical energy.
  (Ex. Batteries, fuel cells)

3
Electrons flow downhill

• An electrochemical or voltaic cell can be
  compared to a hydro-electric power plant. In the
  power plant the energy of the water is harnessed
  as the water flows downhill.
• In a electrochemical or voltaic cell, the energy
  of the electrons is harnessed as they flow
  downhill in terms of energy.
• Electrochemical/voltaic cells are spontaneous.
  They are used to produce electricity.

4
Parts of an electrochemical cell

• Cathode the electrode where reduction occurs
  (Cathode and reduction both begin with a
  consonant.)
• Anode the electrode where oxidation occurs
  (Anode and oxidation both begin with a vowel).
• Salt Bridge part of a voltaic cell that
  prevents positive
• or negative charge from building up at the
  electrodes. Ions
• flow through the salt bridge.

5
How to keep them straight!
6
The parts of a voltaic cell
7
The parts identified
8
Electrolytic Cells

• Redox reaction that uses electrical energy to
• produce chemical energy.
• (Ex. Electroplating, re-charging batteries)

9
Pumping electrons uphill

• To continue the analogy to water, the
  electrolytic cell is like pumping water uphill,
  it requires energy.
• In an electrolytic cell the electrons are
  pumped uphill by a power source.
• Electrolytic cells are non-spontaneous. They
  require energy to take place.

10
COMPARISON OF VOLTAIC AND ELECTROLYTIC CELLS
SPONTANEOUS
NON-SPONTANEOUS
11
One use of electrolytic cells is electroplating
where electricity is used to deposit a thin layer
of metal atoms on the surface of an object.
Remember Electrolytic cells are non-spontaneous.
They require a power source to take place.
12
Which way do the electrons flow?

• When two half cells are hooked together, how does
  one determine which one will be oxidized (give
  off electrons) and which one will be reduced
  (gain electrons)?
• The answer to that question can be provided by
  Table J
• The Activity Series

13
Determining the direction the electrons flow in
Voltaic Cells
Electrons flow from the more active metal to the
less active metal
Electrons flow from the less active non-metal to
the more active non-metal
14
A sample problem

• Suppose a Cu/Cu2 half cell and a Ag/Ag half
  cell are connected to form a battery. Which way
  will the electrons flow?
• Based on Table J, Cu is a more active metal than
  Ag. Therefore, the electrons will flow from the
  Cu/Cu2 half-cell to the Ag/Ag half-cell.

15
You try one!

• Suppose a Fe/Fe3 half cell and a Al/Al3 half
  cell are connected to form a battery. Which way
  will the electrons flow?
• Did you say the electrons would flow from the Al
  to the Fe? Thats what Table J tells us!
