Title: Introduction to Algorithms

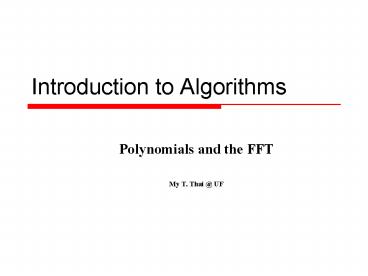

1
Introduction to Algorithms
  • Polynomials and the FFT
  • My T. Thai _at_ UF

2
Polynomials
  • A polynomial in the variable x
  • Polynomial addition
  • Polynomial multiplication
  • where

3
Representing polynomials
  • A coefficient representation of a polynomial
    d of degree bound n is a
    vector of coefficients
  • Horners rule to compute A(x0)
  • Time O(n)
  • Given a , b
  • Sum c a b, takes O(n) time
  • Product c (convolution of a and b),
    takes O(n2) time

4
Representing polynomials
  • A point-value representation of a polynomial A(x)
    of degree-bound n is a set of n point-value pairs
    d
  • All of the xk are distinct

Proof
Da y D
gt a D-1y
Vandermonde matrix
5
Operations in point-value representation
  • A
  • B
  • Addition
  • C
  • Multiplication
  • Extend A, B to 2n points
  • Product

6
Fast multiplication of polynomials in coefficient
form
  • Evaluation coefficient representation ?
    point-value representation
  • Interpolation point-value representation
    ?coefficient form of a polynomial

7
Compute evaluation and interpolation
  • Evaluation using Horner method takes O(n2) gt
    not good
  • Interpolation computing inversion of Vandermonde
    matrix takes O(n3) time gt not good
  • How to complete evaluation and interpolation in
    O(n log n) time?
  • Choose evaluation points complex roots of unity
  • Use Discrete Fourier Transform for evaluation
  • Use inverse Discrete Fourier Transform for
    interpolation

8
Complex roots of unity
  • A complex nth root of unity is a complex number
    such that
  • There are exactly n complex nth roots of unity
  • Principal nth root of unity
  • All other complex nth roots of
  • unity are powers of

9
Properties of unitys Complex roots
  • Proof

10
Halving lemma
  • Proof
  • Cancellation lemma

11
Summation lemma
  • Proof
  • Note
  • k is not divisible by n
  • only when k
  • is divisible by n

12
Discrete Fourier Transform
  • Given
  • The values of A at evaluation points
  • Vector is
    discrete Fourier transform (DFT) of the
    coefficient vector d
    . Denote

13
Fast Fourier Transform
  • Divide A into two polynomials based on the
    even-indexed and odd-indexed coefficients
  • Combine
  • Evaluation points of A0 and A1
  • are actually the n/2th roots of unity

14
Fast Fourier Transform
  • Time

15
Inversion of Vandermonde matrix
  • Proof

16
Interpolation at the complex roots of unity
  • Compute by modifying FFT algorithm
  • Switch the roles of a and y
  • Replace
  • Divide each element by n

17
FFT and Polynomial mutiplication
18
Efficient FFT implementations
  • Line 10 12 change the loop to compute
    only once storing it in t ( Butterfly operation)

Butterfly operation
19
Structure of RECURSIVE-FFT
  • Each RECURSIVE-FFT invocation makes two recursive
    calls
  • Arrange the elements of a into the order in which
    they appear in the leaves ( take log n for each
    element)
  • Compute bottom up

20
An iterative FFT implementation
Time
21
A parallel FFT circuit
