Title: Dr. John (Jizhong) Xiao

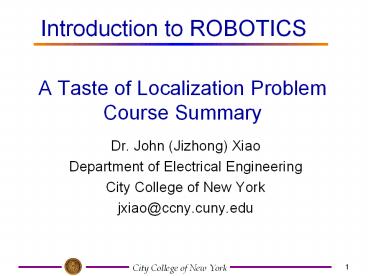

1
A Taste of Localization Problem Course Summary
Introduction to ROBOTICS
  • Dr. John (Jizhong) Xiao
  • Department of Electrical Engineering
  • City College of New York
  • jxiao_at_ccny.cuny.edu

2
Topics
  • Brief Review (Robot Mapping)
  • A Taste of Localization Problem
  • Course Summary

3
Mapping/Localization
  • Answering robotics big questions
  • How to get a map of an environment with imperfect
    sensors (Mapping)
  • How a robot can tell where it is on a map
    (localization)
  • It is an on-going research
  • It is the most difficult task for robot
  • Even human will get lost in a building!

4
Review Use Sonar to Create Map
What should we conclude if this sonar reads 10
feet?
there isnt something here
there is something somewhere around here
10 feet
Local Map
unoccupied
no information
occupied
5
What is it a map of?
Several answers to this question have been tried
cell (x,y) is unoccupied
cell (x,y) is occupied
oxy
oxy
Its a map of occupied cells.
pre 83
What information should this map contain, given
that it is created with sonar ?
Each cell is either occupied or unoccupied --
this was the approach taken by the Stanford Cart.
6
What is it a map of ?
Several answers to this question have been tried
cell (x,y) is unoccupied
cell (x,y) is occupied
oxy
oxy
Its a map of occupied cells. Its a map of
probabilities p( o S1..i ) p( o
S1..i )
pre 83
The certainty that a cell is occupied, given the
sensor readings S1, S2, , Si
83 - 88
The certainty that a cell is unoccupied, given
the sensor readings S1, S2, , Si
The odds of an event are expressed relative to
the complement of that event.
Its a map of odds.
probabilities
evidence log2(odds)
p( o S1..i )
odds( o S1..i )
The odds that a cell is occupied, given the
sensor readings S1, S2, , Si
p( o S1..i )
7
Combining Evidence
  • The key to making accurate maps is combining
    lots of data.

8
Combining Evidence
  • The key to making accurate maps is combining
    lots of data.

p( o S2 ? S1 )
defn of odds
odds( o S2 ? S1)
p( o S2 ? S1 )
p( S2 ? S1 o ) p(o)
.
Bayes rule ()
p( S2 ? S1 o ) p(o)
p( S2 o ) p( S1 o ) p(o)
conditional independence of S1 and S2
.
p( S2 o ) p( S1 o ) p(o)
p( S2 o ) p( o S1 )
.
Bayes rule ()
p( S2 o ) p( o S1 )
previous odds
precomputed values
the sensor model
Update step multiplying the previous odds by a
precomputed weight.
9
Mapping Using Evidence Grids
Evidence Grids...
represent space as a collection of cells, each
with the odds (or probability) that it contains
an obstacle
evidence log2(odds)
Lab environment
likely free space
likely obstacle
lighter areas lower evidence of obstacles
being present
not sure
darker areas higher evidence of obstacles being
present
10
Mobot System Overview
11
Content
  • Brief Review (Robot Mapping)
  • A Taste of Localization Problem
  • Course Summary

12
Whats the problem?
  • WHERE AM I?
  • But what does this mean, really?
  • Reference frame is important
  • Local/Relative Where am I vs. where I was?
  • Global/Absolute Where am I relative to the world
    frame?
  • Location can be specified in two ways
  • Geometric Distances and angles
  • Topological Connections among landmarks

13
Localization Absolute
  • Proximity-To-Reference
  • Landmarks/Beacons
  • Angle-To-Reference
  • Visual manual triangulation from physical points
  • Distance-From-Reference
  • Time of Flight
  • RF GPS
  • Acoustic
  • Signal Fading
  • EM Bird/3Space Tracker
  • RF
  • Acoustic

14
Triangulation
Land
Landmarks
Works great -- as long as there are reference
points!
Lines of Sight
Unique Target
Sea
15
Compass Triangulation
cutting-edge 12th century technology
Land
Landmarks
Lines of Sight
North
Unique Target
Sea
16
Localization Relative
  • If you know your speed and direction, you can
    calculate where you are relative to where you
    were (integrate).
  • Speed and direction might, themselves, be
    absolute (compass, speedometer), or integrated
    (gyroscope, Accelerometer)
  • Relative measurements are usually more accurate
    in the short term -- but suffer from accumulated
    error in the long term
  • Most robotics work seems to focus on this.

17
Localization Methods
  • Markov Localization
  • Represent the robots belief by a probability
    distribution over possible positions and uses
    Bayes rule and convolution to update the belief
    whenever the robot senses or moves
  • Monte-Carlo methods
  • Kalman Filtering
  • SLAM (simultaneous localization and mapping)
  • .

18
Environment Representation
  • Environment Representation
  • Continuos Metric x,y,q
  • Discrete Metric metric grid
  • Discrete Topological topological grid

Continuous metric
Real environment
Discrete Topological
Metric grid
19
Environment Representation
  • Continuous Metric, (x,y,q)
  • Topological (landmark-based, state space
    organized according to the topological structure
    of the environment)
  • Grid-Based (the world is divided in cells of
    fixed size resolution and precision of state
    estimation are fixed beforehand)
  • The latter suffers from computational overhead

20
Probability Review
  • Discrete Random Variables
  • X denotes a random variable.
  • X can take on a countable number of values in
    x1, x2, , xn.
  • P(Xxi), or P(xi), is the probability that the
    random variable X takes on value xi.
  • P( ) is called probability mass function.
  • E.g.

.
21
Probability Review
  • Continuous Random Variables
  • X takes on values in the continuum.
  • p(Xx), or p(x), is a probability density
    function.
  • E.g.

p(x)
x
22
Probability Review
  • Joint and Conditional Probability
  • P(Xx and Yy) P(x,y)
  • If X and Y are independent then P(x,y) P(x)
    P(y)
  • P(x y) is the probability of x given y P(x
    y) P(x,y) / P(y) P(x,y) P(x y) P(y)
  • If X and Y are independent then P(x y) P(x)

23
Law of Total Probability, Marginals
Discrete case
Continuous case
24
Probability Review
  • Law of total probability

25
Conditional Independence
  • equivalent to
  • and

26
Bayes Formula
If y is a new sensor reading
Prior probability distribution
?
Posterior probability distribution
?
Generative model, characteristics of the sensor
?
?
Does not depend on x
27
Bayes Rule with Background Knowledge
28
Markov Localization
  • What is Markov Localization ?
  • Special case of probabilistic state estimation
    applied to mobile robot localization
  • Initial Hypothesis
  • Static Environment
  • Markov assumption
  • The robots location is the only state in the
    environment which systematically affects sensor
    readings
  • Further Hypothesis
  • Dynamic Environment

29
Markov Localization
  • Applying probability theory to robot localization
  • Markov localization uses an explicit, discrete
    representation for the probability of all
    position in the state space.
  • This is usually done by representing the
    environment by a grid or a topological graph with
    a finite number of possible states (positions).
  • During each update, the probability for each
    state (element) of the entire space is updated.

30
Markov Localization
  • Instead of maintaining a single hypothesis as to
    where the robot is, Markov localization maintains
    a probability distribution over the space of all
    such hypothesis
  • Uses a fine-grained and metric discretization of
    the state space

31
Example
  • Assume the robot position is one- dimensional

The robot is placed somewhere in the environment
but it is not told its location
The robot queries its sensors and finds out it is
next to a door
32
Example
The robot moves one meter forward. To account for
inherent noise in robot motion the new belief is
smoother
The robot queries its sensors and again it finds
itself next to a door
33
Basic Notation
Bel(Ltl ) Is the probability (density) that the
robot assigns to the possibility that its
location at time t is l
The belief is updated in response to two
different types of events sensor readings,
odometry data
34
Notation
  • Goal

35
Markov assumption (or static world assumption)
36
Markov Localization
  • Measurement
  • Action

37
Update Phase
a
b
c
38
Update Phase
39
Recursive Bayesian Updating
Markov assumption zn is independent of
z1,...,zn-1 if we know x.
40
Example Closing the door
41
Example Second Measurement
  • P(z2open) 0.5 P(z2?open) 0.6
  • P(openz1)2/3
  • z2 lowers the probability that the door is open.

42
Action Prediction Phase
  • Often the world is dynamic since
  • actions carried out by the robot,
  • actions carried out by other agents,
  • or just the time passing by
  • change the world.
  • How can we incorporate such actions?

43
Modeling Actions
  • To incorporate the outcome of an action u into
    the current belief, we use the conditional pdf
  • P(xu,x)
  • This term specifies the pdf that executing u
    changes the state from x to x.

44
State Transitions
  • P(xu,x) for u close door
  • If the door is open, the action close door
    succeeds in 90 of all cases.

45
Integrating the Outcome of Actions
Continuous case Discrete case
46
Example The Resulting Belief
47
Bayes Filters Framework
  • Given
  • Stream of observations z and action data u
  • Sensor model P(zx).
  • Action model P(xu,x).
  • Prior probability of the system state P(x).
  • Wanted
  • Estimate of the state X of a dynamical system.
  • The posterior of the state is also called Belief

48
Markov Assumption
Measurement probability
?
State transition probability
?
  • Markov Assumption
  • past and future data are independent if one knows
    the current state
  • Underlying Assumptions
  • Static world, Independent noise
  • Perfect model, no approximation errors

49
Bayes Filters
z observation u action x state
50
Summary
  • Measurement
  • Action

51
Content
  • Brief Review (Robot Mapping)
  • A Taste of Localization Problem
  • Course Summary

52
Mobile Robot
53
Mobile Robot Locomotion
Locomotion the process of causing a robot to move
  • Tricycle
  • Differential Drive

Swedish Wheel
  • Synchronous Drive
  • Omni-directional
  • Ackerman Steering

54
Differential Drive
Property At each time instant, the left and
right wheels must follow a trajectory that moves
around the ICC at the same angular rate ?, i.e.,
  • Kinematic equation
  • Nonholonomic Constraint

55
Differential Drive
  • Basic Motion Control

R Radius of rotation
  • Straight motion
  • R Infinity VR VL
  • Rotational motion
  • R 0 VR -VL

56
Tricycle
  • Steering and power are provided through the front
    wheel
  • control variables
  • angular velocity of steering wheel ws(t)
  • steering direction a(t)

d distance from the front wheel to the rear axle
57
Tricycle
Kinematics model in the world frame ---Posture
kinematics model
58
Synchronous Drive
  • All the wheels turn in unison
  • All wheels point in the same direction and turn
    at the same rate
  • Two independent motors, one rolls all wheels
    forward, one rotate them for turning
  • Control variables (independent)
  • v(t), ?(t)

59
Ackerman Steering (Car Drive)
  • The Ackerman Steering equation

60
Car-like Robot
Driving type Rear wheel drive, front wheel
steering
Rear wheel drive car model
forward velocity of the rear wheels
angular velocity of the steering wheels
non-holonomic constraint
l length between the front and rear wheels
61
Robot Sensing
  • Collect information about the world
  • Sensor - an electrical/mechanical/chemical device
    that maps an environmental attribute to a
    quantitative measurement
  • Each sensor is based on a transduction principle
    - conversion of energy from one form to another
  • Extend ranges and modalities of Human Sensing

62
Gas Sensor
Gyro
Accelerometer
Metal Detector
Pendulum Resistive Tilt Sensors
Piezo Bend Sensor
Gieger-Muller Radiation Sensor
Pyroelectric Detector
UV Detector
Resistive Bend Sensors
CDS Cell Resistive Light Sensor
Digital Infrared Ranging
Pressure Switch
Miniature Polaroid Sensor
Limit Switch
Touch Switch
Mechanical Tilt Sensors
IR Sensor w/lens
IR Pin Diode
Thyristor
Magnetic Sensor
Polaroid Sensor Board
Hall Effect Magnetic Field Sensors
Magnetic Reed Switch
IR Reflection Sensor
IR Amplifier Sensor
IRDA Transceiver
IR Modulator Receiver
Radio Shack Remote Receiver
Solar Cell
Lite-On IR Remote Receiver
Compass
Compass
Piezo Ultrasonic Transducers
63
Sensors Used in Robot
  • Resistive sensors
  • bend sensors, potentiometer, resistive
    photocells, ...
  • Tactile sensors contact switch, bumpers
  • Infrared sensors
  • Reflective, proximity, distance sensors
  • Ultrasonic Distance Sensor
  • Motor Encoder
  • Inertial Sensors (measure the second derivatives
    of position)
  • Accelerometer, Gyroscopes,
  • Orientation Sensors Compass, Inclinometer
  • Laser range sensors
  • Vision, GPS,

64
Motion Planning
Path Planning Find a path connecting an initial
configuration to goal configuration without
collision with obstacles
  • Configuration Space
  • Motion Planning Methods
  • Roadmap Approaches
  • Cell Decomposition
  • Potential Fields
  • Bug Algorithms

65
Motion Planning
  • Motion Planning Methodololgies
  • Roadmap
  • Cell Decomposition
  • Potential Field
  • Roadmap
  • From Cfree a graph is defined (Roadmap)
  • Ways to obtain the Roadmap
  • Visibility graph
  • Voronoi diagram
  • Cell Decomposition
  • The robot free space (Cfree) is decomposed
    into simple regions (cells)
  • The path in between two poses of a cell can
    be easily generated
  • Potential Field
  • The robot is treated as a particle acting
    under the influence of a potential field U,
  • where
  • the attraction to the goal is modeled by
    an additive field
  • obstacles are avoided by acting with a
    repulsive force that yields a negative field

Global methods
Local methods
66
Full-knowledge motion planning
Cell decompositions
Roadmaps
visibility graph
exact free space represented via convex polygons
voronoi diagram
approximate free space represented via a quadtree
67
Potential field Method
  • Usually assumes some knowledge at the global
    level

The goal is known the obstacles sensed
Each contributes forces, and the robot follows
the resulting gradient.
68
Thank you!
This Thurday Final Exam Time Dec. 13,
630pm-830pm, Place SH-378 Coverage Mobile
Robot Close-book with 2 pages cheat sheet, but Do
Not Cheat
About PowerShow.com
