Title: Cleanroom Software Engineering

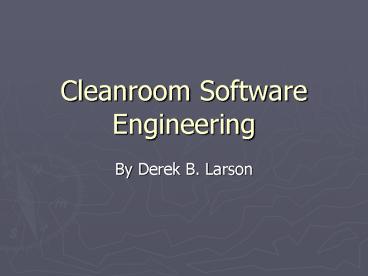

1
Cleanroom Software Engineering
  • By Derek B. Larson

2
Cleanroom Software Engineering
  • What is Cleanroom Software Engineering?
  • Cleanroom Process
  • Waterfall Model into a Cleanroom
  • Case Studies

3
Introduction
  • Developed IBM
  • The stated goal of Cleanroom is software that
    exhibit a zero defect rate.
  • mathematical and statistical methods
  • IBM developed a device controller product using
    Cleanroom Software Engineering that had zero
    failures in three years used at 300 locations.
  • 1

4
Intro Cont.
Hardware cleanrooms keep problems out by keeping
potential contaminating factors from reaching the
product.
5
Why Cleanroom SE
  • The reason to use Cleanroom Software Engineering
    is simple quality
  • Quality improvements of 10 to 20 times have been
    reported when the Cleanroom process was
    demonstrated in industry
  • If defects can cause loss of life or critical
    financial loss
  • Increases in productivity

6
Why Cont.
  • Increases in productivity?
  • Cleanroom is a uniquely defined process that
    decreases required testing, error correction, and
    maintenance.
  • These savings offset any additional overhead
    needed for the quality control
  • Errorless Software Development. If no errors
    enter development, no errors need to be tested or
    debugged. Elimination of testing and debugging
    means faster product development.

7
Reqs for Cleanroom SE
  • Most spend a lot of time and money at the start
    of the project for preventing defects.
  • Most use statistical methods to ensure quality.
  • Most formally state and prove requirement
    needs. (YEAH Z)
  • 2

8
Cleanroom Functions
  • Cleanroom uses three types of functions
  • All code that is developed will follow the basic
    structure of these functions.
  • Because the functions are sound, the code will
    likewise be sound.
  • These functions are called Boxes
  • 1

9
The Three Boxes
  • Black Box
  • State Box
  • Clear Box

10
Black Box
  • Black box is a view of an object that hides the
    implementation process and data .
  • By modeling code as a series of black boxes, we
    can ensure its quality verses our specification
    by ensuring that the actual black box performs
    according to the black box definition.
  • 1

11
Black Box Cont.
  • It will describe how that system will respond to
    stimuli this is done usually in a formal
    specification language.
  • Z (Zed)

Picture from http//uebb.cs.tu-berlin.de/zeta/zeta
distdoc/Z-img13.gif
12
State Box
  • State box is where the view of an object shows
    the data implementation, but does not show the
    implementation process
  • It describes how state information is being
    transformed
  • In essence, the history of the black box is
    replaced by an existing state.
  • 1

13
State Box Cont.
  • This is an abstraction of the history that allows
    us to take a higher-level view of the system
  • Must ensure that there is no history case that
    is unaccounted for.
  • 1

14
Clear Box
  • Clear box shows both the data and process
    implementation
  • The goal is to stepwise refine functions and
    prove them as being correct.
  • Clear boxes show what is actually necessary to go
    between the old state and the new state.
  • 1

15
Clear Box Cont.
  • Sometimes there are multiple paths or multiple
    states that can result from a state box the
    clear box lets us examine and design these
    transitions with flow control.
  • In the clear box, the procedures required to
    implement the state box transition function are
    defined explicitly.
  • 1

16
Cleanroom Approach
  • Requirements Analysis
  • Producing and reviewing informal
    specifications.
  • High-level Design
  • Converting the requirements into state machines
    and functions
  • Detailed Design
  • Further refinement of functions
  • 3

17
Cleanroom Approach Cont.
  • Coding by increment
  • Developing code and verifying it using formal
    methods.
  • Compiling code or unit testing is prohibited
  • Pretest by increment
  • Generation of test cases
  • Statistical Testing by Increment
  • The code is compiled, linked, and tested. Then
    the results are validated.
  • 3

18
Cleanroom Approach Cont.
  • Cleanroom Software Engineering prohibits unit
    testing
  • In a Cleanroom development, correctness
    verification replaces unit testing and debugging
  • After coding is complete, the software
    immediately enters system test with no debugging.
  • 3

19
Cleanroom Approach Cont.
  • All test errors are accounted for from the first
    execution of the program with no private testing
    allowed
  • The role of system testing in the Cleanroom
    process is to certify the quality of the software
    with the systems specifications in mind.
  • Not doing unit testing can only be done if the
    above requirements are followed, that way many of
    the defects are already found and fixed, so when
    the system is done coding it should be close to
    no defects.
  • 3

20
(No Transcript)
21
(No Transcript)
22
Correctness Verification
  • Once a piece of code is developed it goes through
    the Correctness Verification process.
  • correctness verification phase takes the
    developed code and compares it against the
    specification to see if it really does what is
    outlined in the specification.
  • The specifications define the conditions that
    code must meet in order to fulfill the function
    for which it was developed.
  • 1

23
Correctness Verification Cont.
  • Correctness verification uses function-theoretic
    static code analysis to do just that.
  • The term function theoretic implies that there
    is a one-to-one mapping between the code and the
    specifications.

24
Correctness Verification Example
  • function isNumeric(char c)
  • if ((c gt 0) and (c lt 9))
  • return true
  • else
  • return false

25
Example Explanation
  • If the character passed in is in the set
    0,1,2,3,4,5,6,7,8,9 we expect the function to
    return true.
  • Based on what we know about character sets and
    the language used to develop the code if the
    character is in the set then the logic ((c gt
    0) and (c lt 9)) will return true.
  • When the character is not in the set then the
    logic will return false.
  • Both cases result in the expected behavior for
    the entire method, and so the code passes the
    correctness verification. 1

26
Statistical Usage Testing
  • In conjunction with the box structure
    specifications in the pre-development phase,
    usage specifications are created for the
    statistical testing phase.
  • Usage specifications are simply descriptions of
    how the system will be eventually used.
  • Usage models need to be defined for all possible
    scenarios for a given piece of code along with
    the probabilities of each scenario occurring. 1

27
Statistical Usage Testing Cont.
  • Use Markov Chains
  • Markov chains are essentially directed graphs
    with nodes as states of use and arcs as the
    stimuli that cause state transitions.
  • This is the most efficient way to test software,
    since the most destructive problems will be
    eliminated first, and money will not be spent on
    potentially harmless problems if it is not
    available. 1

28
(No Transcript)
29
Waterfall Model into a Cleanroom
  • Waterfall modelwe all know what that is
  • We want to take the Cleanroom model and add some
    milestones to the model.

30
(No Transcript)
31
Waterfall Model into a Cleanroom Milestones
  • Software Specification Review
  • (Historical) Addresses requirements and external
    interfaces
  • (Cleanroom) Remains the same with increment
    plan-mapping requirements to increment.
  • Preliminary Design Review
  • (H) Top-level architecture
  • (Cr) Top-level architecture updated as needed in
    later increments

32
Waterfall Model into a Cleanroom Milestones Cont.
  • Critical Design Review
  • (H) Detailed Design
  • (Cr) Detailed Design of functionality for
    particular increment
  • Qualification Test
  • (H) Verify requirements
  • (Cr) Verify requirements. Performed on final
    increment. Earlier increments have informal QT

33
Case Studies
  • STARS
  • Tank-automotive and Armaments Command

34
STARS
  • Developed by the Department of Defense
  • STARS receives radar data and flight plan
    information and presents the information to air
    traffic controllers on high resolution, 20" x 20"
    color displays allowing the controller to
    monitor, control, and accept hand-off of air
    traffic 4

35
STARS Cont.
STARS is capable of tracking up to 1350 airborne
aircraft simultaneously within a terminal area.
The system interfaces with multiple radars (up to
16 short and long range), 128 controller
positions, 20 remote towers, and a 400 by 400
mile area of coverage. 4
36
STARS Cont.
  • The STARS program emphasized on three main
    points
  • Process-driven
  • Re-use based
  • Integrated software engineering environment
  • STARS evaluated current "traditional" processes.
    Then determined that a quality management
    philosophy (putting decision making in the hands
    of workers, focusing on processes, quantitative
    measurements) is critical and that Cleanroom
    Software Engineering follows this philosophy 4

37
STARS Cont.
  • Cleanroom was combined with the TRW (spiral) Ada
    Process Model
  • Produced software at a rate of 30-40 per line of
    code versus industry averages of 130 per line
    for software of similar complexity and
    development timeframe (the size of the
    application is greater than 300 KLOC) 4

38
STARS Savings
  • 130 - 30 100 per line of code
  • The project is around 300K lines of code
  • So, 100 (around)300K (around) 30,000,000
  • Could buy 30, million dollarhouses
  • Or about one month of Alex Rodriguez playing
    baseball
  • 4

39
Tank-automotive and Armaments Command
  • TACOM generates, provides, and sustains mobility,
    lethality, and survivability for soldiers, other
    U.S. Armed Services, and our allies - all to
    ensure Army readiness today, tomorrow, and beyond

40
Tank-automotive and Armaments Command Cont.
  • After seven project increments (approximately 90K
    lines of code)
  • 4.21 productivity increase
  • 201 return on investment has been documented
  • Projects experienced an overall testing error
    rate (represents all errors found in all testing)
    of 0.5 errors/KLOC 4

41
Summary
  • Cleanroom software development may be a wonderful
    advance in the process of software development or
    may just be a downright weird approach, most
    likely a little of both.
  • Looking at Cleanroom from a theorists point of
    view Cleanroom provides a theoretical foundation
    to software development in its use of
    mathematically based software development and
    statistical quality control.

42
Summary
  • By not introducing errors into the development
    phase there should be no testing requirement in
    the process.
  • Statistical testing provides the benchmark as to
    performance and failure rate and helps verify the
    inputs to the development process by checking its
    outputs.

43
On the other Hand
  • Many people sees Cleanroom as too radical a
    departure from conventional software development.
  • The level of experience and training required to
    have a functional team of Cleanroom developers
    may not cost effective
  • Developers develop code, and Cleanroom is more
    about specifications and statistical models than
    coding.

44
In the End
  • One has to understand the appropriate use of
    Cleanroom software development
  • Cleanroom is suitable for very particular types
    of software where the human and financial risks
    of having errors are too great to be left to
    chance
  • This generally does not fit the mold of
    mainstream software development, in which the
    concentration is often on getting the best price
    in the best time period.
  • From what has been shown, Cleanroom is anything
    but a mainstream development process.

45
References
  1. Cleanroom Software Engineering.
    http//www.criticaljunction.com/werbicki/SENG623/G
    roup/SENG623W03_Cleanroom.pdf
  2. Uta.edu, Cleanroom Software Engineering. Found
    at www.uta.edu/cse/levine/fall99/cse5324/cr/clean
    /page.html
  3. DACS, The Data and Analysis Center for Software.
    Found at www.dacs.dtic.mil/databases/url/key.php?
    keycode64
  4. Carnegie Mellon, Software Engineering Institute.
    Found at www.sei.cmu.edu/str/descriptions/cleanro
    om.html
About PowerShow.com
