Constraint-Based Embedded Program Composition

1

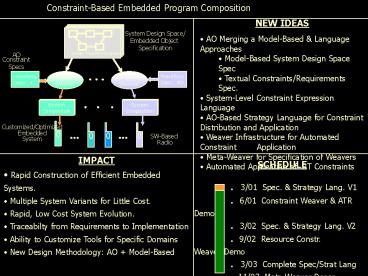

Constraint-Based Embedded Program Composition

• NEW IDEAS
• AO Merging a Model-Based Language Approaches
• Model-Based System Design Space Spec
• Textual Constraints/Requirements Spec.
• System-Level Constraint Expression Language
• AO-Based Strategy Language for Constraint
  Distribution and Application
• Weaver Infrastructure for Automated Constraint
  Application
• Meta-Weaver for Specification of Weavers
• Automated Application of RT Constraints

System Design Space/ Embedded Object
Specification
System SW/HW Description
AO Constraint Specs
Waveform Descr. 1
Constraint Weaver
Waveform Descr. N
Constraint Weaver
System Composition
System Composition
Customized/Optimized Embedded System
SW-Based Radio

• IMPACT
• Rapid Construction of Efficient Embedded
  Systems.
• Multiple System Variants for Little Cost.
• Rapid, Low Cost System Evolution.
• Traceabilty from Requirements to Implementation
• Ability to Customize Tools for Specific Domains
• New Design Methodology AO Model-Based

SCHEDULE . 3/01 Spec. Strategy Lang.
V1 . 6/01 Constraint Weaver ATR Demo .
3/02 Spec. Strategy Lang. V2 . 9/02
Resource Constr. Weaver/Demo . 3/03 Complete
Spec/Strat Lang . 11/03 Meta-Weaver Descr. .
9/04 SW Radio Demo
2
Constraint-Based Embedded Program Composition

• Institute for Software Integrated Systems
• Vanderbilt University
• PI Ted Bapty
• Jeff Gray, Sandeep Neema

3
Project Goals

• Investigate the Interactions between MBSAO
• Extend Existing Model-Based Embedded System
  Design System
• Language-based Constraints,
• Strategy Language for Constraint Distribution
• Customize the tools for Communications
• Demonstrate on Software-Based Radio Application

4
Adaptive Computing Systems Model-Integrated
Design Environment
Graphical Model Builder
Model Analysis Tools
MODELS
Behavioral Models
Multi-Aspect Modeling Environment
Algorithm Models
Resource Models
SW
System Generation
HW
SW
HW
Reconfigurable Runtime Environment
Simulation Environment
5
Model-Integrated Design Environment (MIDE)

• Design Capture for HW/SW Codesign Multiple
  Aspects
• Software/Algorithm Data Flow with Multiple Design
  Alternatives
• Hardware Resources Heterogeneous (DSP,RISC,FPGA)
• Dynamic System Behavior Multi-modal systems
• Constraint Specification Language Link
  SW/HW/Behavior
• Result Comprehensive, Flexible HW/SW System
  Model
• Analysis of Models (Design)
• Design-Space Exploration
• Optimize design, select best configurations from
  alternative designs
• Highly scalable using OBDD
• Numerical/Algorithmic Simulation with Matlab
• Multiple-Resolution Performance Simulation with
  Discrete Event Simulator

6
Model-Integrated Design Environment (MIDE)

• HW/SW System Synthesis
• Generate Real-Time Schedules
• Generate VHDL for FPGA or ASIC
• Generate Interconnection Topology/Communication
  Maps
• Generate Reconfiguration Manager Configuration
• Result Functional HW/SW System w/ Dynamic
  Reconfiguration Capabilities. Compatible with
  Industry-standard VHDL Compilers
• Runtime Support
• Microkernel for Heterogeneous Distributed DSPs
• Virtual Hardware Microkernel for FPGA/ASIC
• Dynamic System Reconfiguration Controller
• Real-Time, reconfiguration support.
• Result Portable, heterogeneous uniform execution
  environment

7
Multiple-View Graphical Modeling/Flexible Design
Space
Behavioral Structural Resource
8
Modeling ParadigmStructural/Algorithmic
Description
Model/Object Hierarchy
Example Model
Primitive
Primitive
Compound
Compound
Primitive
Primitive
Compound
Template
Primitive
Compound
Template
Compound
Software
Compound
Primitive
Hardware
Primitive
Compound
Primitive
Primitive
9
Defining A Design SpaceTemplates for Algorithm
Alternatives
Long Range Track
Algorithm Alternatives
Spatial Domain
Spectral Domain
Sensor
Preprocess
Filter
Preprocess
2D FFT
XCorr
Image DB
Mult
Img Spec DB
Error Comp
Error Comp
Guidance Loss of Track
10
Modeling ParadigmResource Models
Network
ObjectHierarchy
Processor
ASIC
FPGA
Ports
Core
Ports
Core
Ports
ExampleModel
Network
Processor
Processor
ASIC
Processor
FPGA
FPGA
11
Modeling Paradigm Behavioral Description
Hierarchical State Machine
Transition Rules
Mode A
Mode B
Transition Rules
Transition Rules
Transition Rules
Mode C
Attributes Algorithms Performance
Specs Constraints (Power/Size/User Defined)
12
Constraint Modeling
S1
S3
S2
/
hierarchical parallel FSM
e1S21/
/../
(modeS2 implies (Proc.Powrlt10))
Power Constraints
Behavior Model
Behavior and Compatibility Constraints
/../
(mode!S3)implies (Pr2.assignees (P1i or
P2j))and(Pr2Pr2j)
Resource Constraints
(mode(S1 or S2))implies(P1P1i))
P1
P2
Pr2
Pr1
Pr3
P3
hierarchical interconnect alternatives
C1
(D1.time - D2.time) lt 2
Resource Models
Timing Constraints
Processing Structure Models
13
Design Space Exploration
Resource Model
Binary Encoding
BDD Representation
Behavior Mod. (Hier. Par. FSM)
Binary Encoding
BDD Representation
Full Symbolic Design Space
Structural Mod. (Hier. Altern.)
Binary Encoding
BDD Representation
Pruned Design Space
Constraints (OCL)
Binary Encoding
BDD Representation
OBDD Analysis
14
System Synthesis
HOST PC
ASIC
P1
I/O Interfaces
C40 DSP
XC4010 FPGA
Kernel
ASIC IFC
BIDIR IFC
STREAMS IFC - BIDIR
P1
P1
P2
P2
P3
Multiple Data Streams
IN IFC
OUT IFC
Kernel
OUT IFC
IN IFC
DATA I/O
P1
STREAMS IFC OUT
IN IFC
P1
P2
P2
STREAMS IFC IN
OUT IFC
P3
I/O Interfaces
COMM Interfaces
C40 DSP
Altera FPGA
Real-Time Schedules, Communication Maps
VHDL for FPGA Configs
15
Difficulties in ManagingGraphically Specified
Constraints
Change Maintenance???
Multiple Levels of Hierarchy
A
4
Replicated Structures
F
B
4
1
2
c
d
e
Context Sensitive
16
Constraints Are Critical!!

• Define functional properties of system
• Ensure proper component interaction
• Designers leverage to guide synthesis
• Bad Constraint Management Inflexible, unwieldy
  development.

17
Develop Constraint Language
18
Aspect-OrientedConstraint Language

• Develop Language for Specifying Constraints
• Operational
• Mode-dependent behavior
• Performance
• Timing
• Cost Power/Parts /Volume/Weight
• Composibility (Part A Part B, Part C ! Part
  D)
• Resource Process X requires Part D
• Relationships to Modeling Aspects

19
Constraint ApplicationStrategy Language

• Specify how to apply constraints across object
  hierarchy.
• Determines how constraints are divided/responsibil
  ity shared among components.
• Flexible to permit different goals
• Latency optimization
• Throughput optimization
• .

20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
Demonstration Plans
Waveform 1
Waveform 2
Unconstrained SW Radio Real-Time Design
Weaver
Strategy
SW RF Components
Synthesis
Runtime Infrastructure
