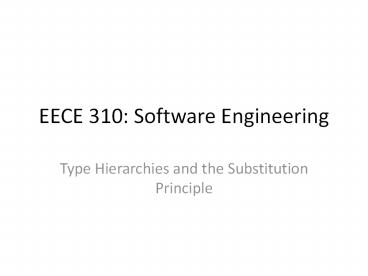

EECE 310: Software Engineering

1
EECE 310 Software Engineering

• Type Hierarchies and the Substitution Principle

2
Objectives

• Apply the Liskov Substitution Principle (LSP) to
  the design of type hierarchies
• Decide when to favor composition over inheritance
  and vice versa

3
NonEmptySet Type

• Consider a subtype of IntSet called non-empty
  set, with the stipulation that it must never be
  empty. i.e., it has at least 1 element always
• Constructor takes the element as an argument and
  adds it to the els vector (the rep)
• insert, size, isIn work as before (no change)
• remove must make sure it never leaves the set
  empty, otherwise it throws an EmptySetException

4
NonEmptySet Remove

• public class NonEmptySet extends IntSet
• public void remove(int x) throws
  EmptySetException
• // EFFECTS If set has at least two elements,
• // then remove x from the set
• // Otherwise, throw the EmptySetException
• .

5
RemoveAny procedure

• public static boolean removeAny(IntSet s)
• // EFFECTS Remove an arbitrary element from
• // the IntSet if the set is not empty, return
  true
• // Otherwise do nothing and return false
• if (s.size() 0) return false
• int x s.choose()
• s.remove(x)
• return true

6
Usage of removeAny

• IntSet s new IntSet()
• // Add elements to s
• while ( removeAny(s) )
• // s is empty at this point

7
What about this one ?

• IntSet s new NonEmptySet(3)
• // Add elements to s
• while ( removeAny(s) )
• // control never reaches here !

Can potentially throw an EmptySet exception !
8
Liskov Substitution principle

• Intuition
• Users can use and reason about subtypes just
  using the supertype specification.
• Definition
• Subtype specification must support reasoning
  based on the super-type specification according
  to following rules
• signature rule
• methods rule
• properties rule

9
Signature Rule

• Every call that is type-correct with the
  super-type objects must also be type-correct with
  the sub-type objects
• Sub-type objects must have all the methods of the
  super-type
• Signatures of the subtypes implementations must
  be compatible with the signatures of the
  corresponding super-type methods

10
Signature Rule in Java

• Subtypes method can have fewer exceptions but
  NOT throw more exceptions
• Arguments and return type should be identical
  (stricter than necessary)
• Foo clone()
• Foo x y.clone()
• Object clone()
• Foo x (Foo) y.clone()
• Enforced by the compiler at compile-time

11
NonEmptySet Remove

• public class NonEmptySet extends IntSet
• public void remove(int x) throws
  EmptySetException
• // EFFECTS If set has at least two elements,
• // then remove x
• // Otherwise, throw the EmptySetException
• .

Violates signature rule will not compile
12
Will this solve the problem ?

• public class NonEmptySet extends IntSet
• public void remove(int x)
• // EFFECTS If set has at least two elements,
• // then remove x
• // Otherwise, do nothing
• .

13
What will happen in this case ?

• IntSet s new NonEmptySet(3)
• // Add elements to s
• while ( removeAny(s) )
• // control never reaches here !

Will loop forever because the set never becomes
empty (why ?)
14
Whats the problem here ?

• The remove method of NonEmptyIntSet has a
  different behavior than the remove method of the
  IntSet ADT (its parent type)
• In the IntSet ADT, after you call remove(x), you
  are assured that x is no longer part of the set
  (provided the set was non-empty prior to the
  call)
• In the NonEmptyIntSet ADT, after you call
  remove(x), you do not have this assurance anymore
  which violates the substitution principle

15
Methods rule

• A sub-type method can weaken the pre-condition
  (REQUIRES) of the parent method and strengthen
  its post-condition (EFFECTS)
• Pre-condition rule presupergt presub
• Post-condition rule presuper postsub gt
  postsuper
• Both conditions must be satisfied to achieve
  compatibility between the sub-type and super-type
  methods

16
Remember

• Weakening of pre-condition REQUIRES less
• Example Parent-type requires a non-empty
  collection, but the sub-type does not
• Example Parent-type requires a value gt 0,
  sub-type can take a value gt0 in its required
  clause
• Strengthening of post-condition DOES more
• Example Sub-type returns the elements of the set
  in sorted order while parent-type returns them in
  any arbitrary order (sorted gt arbitrary)

17
Example of methods rule

• Consider a sub-type of IntSet LogIntSet which
  keeps track of all elements that were ever in the
  set even after they are removed
• public void insert(int x)
• // MODIFIES this
• // EFFECTS Adds x to the set and to the log
• Does this satisfy the methods rule ?

18
Is the methods rule satisfied here ?

• Consider another sub-type PositiveIntSet which
  only adds positive Integers to the set
• public void insert(int x)
• // MODIFIED this
• // EFFECTS if x gt 0 adds it to this
• // else does nothing

19
Back to the NonEmptySet Type

• public class NonEmptySet // Not derived from
  IntSet
• // A Non-empty IntSet is a mutable set of
  integers
• // whose size is at least 1 always
• public void removeNonEmpty(int x)
• // EFFECTS If set has at least two elements,
• // then remove x
• // Otherwise, do nothing
• .

20
Regular IntSet

• public class IntSet extends NonEmptySet
• // Overview A regular IntSet as before
• public void remove(int x)
• // MODIFIES this
• // EFFECTS Removes x from this

21
What happens in this code ?

• public static void findMax (NonEmptySet s)
• int max s.choose()
• iterator g s.elements()
• while (g.hasNext() )

Can throw an exception if IntSet is passed in as
argument
22
Whats the problem here ?

• The IntSet type has an operation remove which
  causes it to violate the invariant property of
  its parent type NonEmptySet
• Calling code may be able to make the set empty by
  calling remove and then pass it to findMax
• Not enough if the derived methods preserve the
  parent-types invariant, the new methods in
  sub-type must do so as well

23
Properties Rule

• Subtype must preserve each property of the
  super-type in each of its methods
• Invariant properties (always true)
• Evolution properties (evolve over time)
• Examples
• Invariant property The set never becomes empty
• Evolution property The set size never decreases

24
Putting it together Substitution Principle

• Signature rule If program is type-correct based
  on super-type specification, it is also
  type-correct with respect to the sub-type
  specification.
• Methods rule Ensures that reasoning about calls
  of super-type methods is valid even if the call
  goes to code that implements a subtype.
• Properties rule Reasoning about properties of
  objects based on super-type specification is
  still valid even when objects belong to the
  sub-type.

25
In-class exercise

• public class Counter
• // Overview Counter should never decrease
• public Counter( )
• // EFFECTS Makes this contain 0
• public int get( )
• // EFFECTS Returns the value of this
• public void incr()
• // MODIFIES this
• // EFFECTS Increases the value of this

26
In class exercise (contd..)

• Now consider a type Counter2 with the following
  methods. Can this be a valid sub-type of Counter?
• public Counter2( )
• // EFFECTS Makes this contain 0
• public void incr( )
• // MODIFIES this
• // EFFECTS Makes this contain twice its value

27
In class exercise (contd..)

• What if you had another sub-type Counter3 with
  two extra operations. Does it satisfy the LSP ?
• public Counter3(int n)
• // EFFECTS makes this contain n
• public void incr(int n)
• // MODIFIES this
• // EFFECTS If n gt 0, add n to this

28
Summary of LSP

• Liskov Substitution Principle (LSP) is a unifying
  way of reasoning about the use of sub-types
• Signature rule Syntactic constraint and can be
  enforced by compiler
• Methods rule and properties rule Pertain to
  semantics (behavior) and must be enforced by
  programmer
• LSP is essential for locality and modifiability
  of programs using types and sub-types

29
Objectives

• Apply the Liskov Substitution Principle (LSP) to
  the design of type hierarchies
• Decide when to favor composition over inheritance
  and vice versa

30
Why do we use sub-types ?

• Define relationships among a group of types
• SortedList and UnsortedList are sub-types of List
• Specification reuse (common interface)
• Using code simply says give me a list
• Implementation reuse (code sharing)
• SortedList need not re-implement all of Lists
  methods
• Modifiability of parent type
• Client need not change if parent class
  implementation changes (if done through public
  interface)

31
Why not to use sub-types ?

• Sub-types are not appropriate in many cases
• Sub-type must satisfy Liskov Substitution
  Principle. In other words, it must not cause
  existing code to break.
• Subtypes implementation must not depend on the
  implementation details of the parent type
• Common rule of thumb Sub-types must model is a
  special kind of relationship
• Not always as simple as we will soon see

32
Example Rectangle

• // A vanilla Rectangle class.
• public class Rectangle
• private double width
• private double height
• public Rectangle(double w, double h)
• width w
• height h
• public double getWidth() return width
• public double getHeight() return height
• public void setWidth(double w) width w
• public void setHeight(double h) height h

33
Example Square Sub-type ?

• Should we model a square as a sub-type of
  rectangle (isnt square a type of rectangle ?)
• We wont need two instance variables, height and
  width, but this is a minor irritant
• Need to override setHeight and setWidth
  operations so that width and height cannot be
  changed independently
• Remember, you cannot change the Rectangle class

34
Example Square

• public class Square extends Rectangle
• private double width
• private double height
• public Square(double s)
• super(s, s)
• public void setWidth(double w)
• super.setWidth(w) super.setHeight(w)
• public void setHeight(double h)
• super.setWidth(h) super.setHeight(h)

35
What is the problem here ?

• void testRectangle(Rectangle r)
• r.setWidth(4)
• r.setHeight(5)
• assert( r.getHeight() r.getWidth() 20 )
• testRectangle( new Square(3) )

36
Problem

• Although Square is a type of rectangle in the
  real world, a square object is NOT a sub-type of
  a rectangle object because it is more constrained
  than the rectangle object
• Which rule of LSP does it break ?
• We should NOT model square as a sub-type of
  rectangle because behaviorally, a square object
  cannot be substituted for a rectangle object.

37
So how do you fix this ?

• Square and rectangle should not be in an
  inheritance relationship with one-another
• They are really doing two different things, just
  so happens they share some (minimal) features
• Do not satisfy the LSP (behavioral substitution)
• But, how to share code between two ADTs which are
  not in inherited from each other ?

38
One Solution Common base class

• public abstract class Quadrilateral
• // Represents a generic square or rectangle
• protected Quad() // do we need this ?
• public int getHeight()
• public int getWidth()
• public abstract void setWidth()
• public abstract void setHeight()

39
Class Exercise

• Distributed as a handout in class

40
Fragile Base Class Problem

• LSP is not the only problem with inheritance.
  Even if LSP is satisfied, there are other issues
• Assume that you add a new method to IntSet
• public void addAll(Collection c)
• // EFFECTS Adds all elements of c to IntSet
• for (int i C ) this.add( i )

41
InstrumentedIntSet

• Consider an example InstrumentedIntSet which
  keeps track of the number of elements ever added
  to the IntSet ADT (different from its size).
  Assume this type inherits from IntSet
• Must add a new field to keep track of count
• Override the add method to increment count
• Override the addAll method to increment count

42
InstrumentedIntSet Inheritance

• public class InstrumentedIntSet extends IntSet

• private int addCount // The number of attempted
  element insertions
• public InstrumentedIntSet() super() addCount
  0
• public boolean add(Object o)
• addCount
• return super.add(o)
• public boolean addAll(Collection c)
• addCount c.size()
• return super.addAll(c)
• public int getAddCount()
• return addCount

43
Whats the problem here ?

• Consider the following code
• IntSet s new InstrumentedIntSet()
• // Assume that array a has 3 int elements
• s.addAll( a )
• int i s.getAddCount( ) // What does it return
  ?

• How will you fix this problem ?
• 1. Modify addAll to not do the increment, but
  what if base class does not call the add method?
• 2. Write your own version of addAll in the
  derived class to do the iteration (no reuse)

44
Solution Use Composition

• Instead of making InstrumentedIntSet a sub-type
  of IntSet, make it contain an IntSet
• In Java, it holds a reference to an IntSet rather
  than a copy, so be careful to not expose it
• Do not have to worry about substitution principle
  (though that is not a problem in this example)
• Make both classes implement a common Set
  interface if you want to use one in place of
  another (why not use abstract base class ?).

45
InstrumentedIntSet Composition-1

• public class InstrumentedIntSet implements Set
• private IntSet s
• private int addCount
• public InstrumentedIntSet( )
• addCount 0
• s new IntSet()

46
InstrumentedIntSet Composition-2

• public class InstrumentedIntSet implements Set
• public void add(int element)
• addCount addCount 1
• s.add(element)
• public void addAll(Collection c)
• addCount addCount c.size()
• s.addAll( c )

47
Inheritance Vs. Composition

• Inheritance

• Composition

• Every A-object is a B-object.
• Calling A-objects methods automatically
  executes Bs code, unless overridden (implicit
  code reuse).
• Call to overridden method from inherited method
  executes As version.
• As method code can see Bs protected internals.

• Every A-object has a B-object.
• A must implement all methods, but may delegate
  actual work to the internal B-object (explicit
  code-reuse).
• Call to non-delegated method from delegated
  method runs Bs version.
• Bs internals hidden from A
• Interface may help if you want to substitute one
  for another

48
Should B be a subtype of A ?
Do we need to use B in place of A ?
Start
NO
YES
Does B satisfy the LSP ?
Do B and A need to share any code ?
NO
NO
YES
YES
Make B and A independent types (common interface
if necessary)
Make B a sub-type of A, but try to use the public
interface of A in B if possible and efficient
Make B contain an object of type A (common
interface if necessary)
49
Class Exercise

• Consider the NonEmptySet type that we saw
  earlier. Can you rewrite it to use an IntSet
  rather than be derived from an IntSet ?
• How will you make them inherit from a common base
  class ?

50
Summary of Sub-typing

• Inheritance is often over-used without regard for
  its consequences (e.g., Java class library)
• Not always straightforward to ensure behavioral
  substitutability of parent-type with sub-type
• Subtle dependencies of sub-type on parent types
  implementation details can cause fragility
• Use composition instead of inheritance whenever
  possible (with interfaces if necessary)
