Title: Operator Control


1

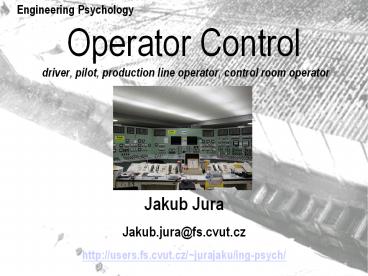

Operator Control
Engineering Psychology
  • driver, pilot, production line operator, control
    room operator

Jakub Jura Jakub.jura_at_fs.cvut.cz http//users.fs.c
vut.cz/jurajaku/ing-psych/
2
Outline of this lesson Human-machine system
operation
  • Model of the operator
  • Information theory
  • Types of operator control task
  • Demand-Resource Theory
  • Flow phenomena
  • Reacting time measuring

3
Fukushima
4
Model of the Automatic Control
Control system
action
Sensors
Actors
Controled System
output
5
Model of Operator Control
Human Decision
action
SS
MS
Controled System
output
6
Model of operator control
Operator
Sensoric processes
Motoric processes
Internal proceses
Sensation Perception
Behaviour, Motoric func.
Thinking, decision making, problem solving.
Handlers
Pilot lamps
Controled system
Actors
Sensors
Function and principles of controled sys.
7
Cognitive model of the operator
8
EME power station control room
9
FukushimaNuclear power station
10
Stokehold
11
Highway Dispatching
12
(No Transcript)
13
Information Theory in Operator Control
  • A mathematical tool for quantification of the
    informations flow.
  • What is information?
  • Reduction of uncertainty

Information channel
Receiver
Receiver
Sender
Sender
IS Sended information IR Received
information IT Transmited information
14
Information Theory in Operator Control real
model
  • IS Sended information
  • IR Received information
  • IT Transmited information
  • IL Lost information
  • INo Nois information

Sender
Receiver
15
Quantification of information
  • I -log2 (pi),
  • pi is the probability of occurrence of event i

16
Simonovovs theory of emotions
  • E Strenght of the emotion
  • M Strenght of the motivation
  • In Information necessary
  • Ia Information accessible
  • E M(In-Ia)
  • In lt Ia -E negative (unhedoné emotion)
  • In gt Ia E positive (hedone emotion)

17
Demand-Resource Theory
  • Overload
  • reduce demand
  • increase resources
  • Underload
  • increase demand
  • reduce resources

Flow zone
anxiety fear distress
Demands
Axy
Y
Ayy
Axx
X
boredom
Resources
y
x
18
Example of over and under-load of Operator
19
Observability of over and under-load
  • Stress or boredom behaviour.
  • Uneven rhytm of work.
  • Analysis of the pushing of the vigilance
    button.

http//www.prototypy.cz/sergeje/techpop.php
20
(No Transcript)
21
Reacting time
  • Basic reaction to basic stimulus.
  • Types of stimulus
  • Auditive mean value µ(RT-aud) 150 ms
  • Visual mean value µ(RT-vis) 200 ms
  • Target and nonTarget stimulus
  • More reactiones to more stimuluses.
  • Reacting with choice
  • Plus cca 50 ms to a one choice.

22
Basic task of operator control
Operator
Sensoric proceses
Motorické procesy
Internal proceses
Perception of a signal
Push the button
Decision push the button
Button
Lamp
Controled system
Aktors
Sensors
Functional principles of controled sys.
23
Reacting time measuring schemaSimple signal ?
simple reaction
Reaction time
Signal
Button
24
Reacting time measuring schemaTarget end
nonTarget signal ? simple reaction
Reaction time
Non Target Signal
Target Signal
Button
Non Target Signal
25
Reacting time measuring schemaTarget end non
Target signal ? simple reaction
Reaction time
Signal A
Signal B
Button B
Button A
Signal C
Button C
26
  • http//www.humanbenchmark.com/tests/reactiontime/i
    ndex.php

27
Cognitive disonance (Leon Festinger )
B
Incline to B
Inconsistent contentents
Incline to A
A
C
Add the integrate concept
  • Holding conflicting ideas simultaneously.
  • People have a motivational drive to reduce
    dissonance.
  • Dissonance is reduced by
  • changing attitudes, beliefs
  • justifying, blaming, denying
  • The Fox and the Grapes  fox sees some
    high-hanging grapes and wishes to eat them. When
    the fox is unable to think of a way to reach
    them, he surmises that the grapes are probably
    not worth eating, as they must not be ripe or
    that they are sour.

28
Decision Making
  • typy rešení problému (problem solving) Kostr
  • vedomí proces, pri kterém redukujeme rozdíl mezi
    existující a požadovanou situací.
  • programové
  • neprogramové
  • Modes of inquiry (kognitivní aktivity)
  • silný analytický experiment (fyzika) zjištování
    neznámých okolností
  • stredne silný analytický experiment (biologie,
    psychologie, sociologie, zemedelství) používá
    logiku a statistickou inferenci
  • slabý analytický experiment kavaziexperimenty,
    prehledová šetrení
  • silné kvaziracionální usuzování stat. analýza,
    MSM, analýza usuzování
  • stredne slabé kvaziracionální usuzování
    intuitivní užívání poznatku
  • slabé kvaziracionální usuzování laické rešení
    nakonec vubec nevíme jakými postupy jsme došli
    k rešení, implicitní logika, nemanipulujeme
    s promennými, nejasná datová základna.
  • 1,2,3 aktivní pristup k manipulaci s promennými
  • Postup
  • identifikace problému
  • generování alternativních rešení
  • výber rešení
  • aplikace rešení a jeho hodnocení

29
Confusion
  • Percept and concept stroop efect
  • Say the word loudly.
  • Say the word whisper loudly.

30
Stroop efect
  • Blue

31
  • Green

32
  • white

33
  • Yellow

34
  • mangeta

35
  • Blue

36
  • Green

37
  • Green

38
Industrial acident
  • Chemical
  • Bhopal
  • Minamata
  • Seveso
  • Nuclear
  • Fukushima
  • Chernobyl
  • Three Mile Island
  • Windscale
  • Explosive
  • D
  • D

39
  • Stroopuv efekt
  • Pokud ctu název barvy, bez ohledu na barvu textu
    je reakcní cas kratší, než když ríkám název
    barvy , v které je text napsán bez ohledu na
    obsah textu.
  • Determinace zkušenosti a ucení.
  • Stroopuv pokus-interference ctení s barvou
  • Stroopuv efekt-Roberta Klatzky 1935-analýza
    procesu obs.automatizované složky,
    automatizace-vulí neovlivnitelná-pri dešifrování
    predmetu a slov-barva slova- tento jev pri
    soubehu pomal a rychlého procesu
  • Badatelka americka se zabyva procesy vnimani,
    ktere jsou nepristupne nasi vedome zkusenosti.
    Analyza procesu obsahujicich automatizovane
    slozky (dovednosti).Takove automatizaci nelze
    volni regulaci zamezit, muzeme sledovat pri
    desifravanipredmetu a slov-Stroopuv efekt.

40
  • osobní casová rovnice
  • casové diskrepance pri Wundtových (Lipsko)
    komplikacních pokusech.. ZO má pri zazvonení
    zvonku udat polohu rucicky na ciferníku. ZO
    obvykle udávají drívejší polohu rucicky, než jaká
    byla pri úderu zvonku, to znamená že dochází
    k casovému posunutí
  • Rozdíly mezi polohou rucicky a údajem ZO vykazují
    znacnou individuální variabilitu.
  • Zachycuje zmeny v casovém prubehu cinnosti
  • Dále se na pozornosti zkoumá 1. intenzita, 2.
    kolísání, 3. odklonitelnost.
  • Stern vliv minulých zkušeností na soucasné
    prožívání casu.

41
  • závislost x nezávislost na poli Witkun 1948, 1962
  • Jedná se o kognitivní styl field independece /
    dependece
  • Úcinnost nápovedí z vnitrního a vnejšího
    prostredí.
  • RFT (Rod-and-Frame-Test) je svítící pruh ve
    vertikální poloze v rámu. Rám i ZO mení plánovite
    svou polohu.
  • Prokázalo se, že lépe se pri pilotáži v mlze
    osvedcují nezávislí na poli. Ženy a deti bývají
    více závislé na poli. Lidé závislí na poli mají
    vetší tendenci orientovat se na spolecenské
    prostredí.

42
  • podprahové vnímání
  • Podnet nevede ke zjistitelné (uvedomitelné)
    reakci.
  • Vernon vedomí je jen okrajové
  • Miller pokus se Zennerovými kartami (kolecko,
    krížek, vlnovka,..Vubec jsi to nezaregistroval,
    ale byl jsi schopen odpovedet co na karticce
    bylo.
  • Napríklad na tachistoskopu (nestihne
    zaregistrovat), nebo pri nutnosti rozdelit
    pozornost
