Queues

1

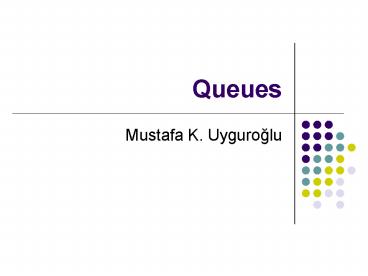

Queues

• Mustafa K. Uyguroglu

2
DEFINITION OF QUEUE

• A Queue is an ordered collection of items from
  which items may be deleted at one end (called the
  front of the queue) and into which items may be
  inserted at the other end (the rear of the
  queue).
• The first element inserted into the queue is the
  first element to be removed. For this reason a
  queue is sometimes called a fifo (first-in
  first-out) list as opposed to the stack, which is
  a lifo (last-in first-out).

3
Queue
itemsMAXQUEUE-1 .
. .
. .
. .
items2 C Rear2
items1 B
items0 A Front0
4
Declaration of a Queue

• define MAXQUEUE 50 / size of the queue items/
• typedef struct
• int front
• int rear
• int itemsMAXQUEUE
• QUEUE

5
QUEUE OPERATIONS

• Initialize the queue
• Insert to the rear of the queue
• Remove (Delete) from the front of the queue
• Is the Queue Empty
• Is the Queue Full
• What is the size of the Queue

6
INITIALIZE THE QUEUE

• The queue is initialized by having the rear set
  to -1, and front set to 0. Let us assume that
  maximum number of the element we have in a queue
  is MAXQUEUE elements as shown below.

itemsMAXQUEUE-1
.
.
.
items1
items0 front0
rear-1
7
Queue

• a new item (D) is inserted at the Rear of the
  queue

itemsMAXQUEUE-1
. .
. .
items3 D Rear3
items2 C
items1 B
items0 A Front0
8
Insert Operation

• void insert(QUEUE qptr, int x)
• if(qptr-gtrear MAXQUEUE-1)
• printf("Queue is full!")
• exit(1)
• else
• qptr-gtrear
• qptr-gtitemsqptr-gtrearx

9
Queue

• an item (A) is removed (deleted) from the Front
  of the queue

itemsMAXQUEUE-1
. .
. .
items3 D Rear3
items2 C
items1 B Front1
items0 A
10
Remove Operation

• int remove(struct queue qptr)
• int p
• if(qptr-gtfront gt qptr-gtrear)
• printf("Queue is empty")
• exit(1)
• else
• pqptr-gtitemsqptr-gtfront
• qptr-gtfront
• return p

11
INSERT / REMOVE ITEMS

• Remove two items from the front of the queue.

itemsMAXQUEUE-1
. .
. .
items3 D FrontRear3
items2 C
items1 B
items0 A
12
INSERT / REMOVE ITEMS

• Assume that the rear MAXQUEUE-1

itemsMAXQUEUE-1 X rearMAXQUEUE-1
. .
. .
items3 D front3
items2 C
items1 B
items0 A

• What happens if we want to insert a new item into
  the queue?

13
INSERT / REMOVE ITEMS

• What happens if we want to insert a new item F
  into the queue?
• Although there is some empty space, the queue is
  full.
• One of the methods to overcome this problem is to
  shift all the items to occupy the location of
  deleted item.

14
REMOVE ITEM
itemsMAXQUEUE-1
. .
. .
items3 D Rear3
items2 C
items1 B
items0 A
itemsMAXQUEUE-1
. .
. .
items3
items2 D Rear2
items1 C
items0 B
15
Modified Remove Operation

• int remove(struct queue qptr)
• int p,i
• if(qptr-gtfront gt qptr-gtrear)
• printf("Queue is empty")
• exit(1)
• else
• pqptr-gtitemsqptr-gtfront
• for(i1iltqptr-gtreari)
• qptr-gtitemsi-1qptr-gtitemsi
• qptr-gtrear--
• return p

16
INSERT / REMOVE ITEMS

• Since all the items in the queue are required to
  shift when an item is deleted, this method is not
  preferred.
• The other method is circular queue.
• When rear MAXQUEUE-1, the next element is
  entered at items0 in case that spot is free.

17
Initialize the queue.
itemsMAXQUEUE-1 frontrearMAXQUEUE-1
.
.
items3
items2
items1
items0
18
Insert items into circular queue

• Insert A,B,C to the rear of the queue.

itemsMAXQUEUE-1 frontMAXQUEUE-1
.
.
items3
items2 C rear2
items1 B
items0 A
19
Remove items from circular queue

• Remove two items from the queue.

itemsMAXQUEUE-1
.
.
items3
items2 C rear2
items1 B front1
items0 A
20

• Insert D,E to the queue.

itemsMAXQUEUE-1
.
items4 E rear4
items3 D
items2 C
items1 B front1
items0 A
21

• Insert items (rear0)

itemsMAXQUEUE-1 X
.
items4 E
items3 D
items2 C
items1 B front1
items0 Y rear0
22

• Insert Z to the queue. (queue is full!)

itemsMAXQUEUE-1 X
. .
items4 E
items3 D
items2 C
items1 ?? frontrear1
items0 Y
23
Declaration and Initialization of a Circular
Queue.

• define MAXQUEUE 10 / size of the queue items/
• typedef struct
• int front
• int rear
• int itemsMAXQUEUE
• QUEUE
• QUEUE q
• q.front MAXQUEUE-1
• q.rear MAXQUEUE-1

24
Insert Operationfor circular Queue

• void insert(QUEUE qptr, int x)
• if(qptr-gtrear MAXQUEUE-1)
• qptr-gtrear0
• else
• qptr-gtrear
• if(qptr-gtrear qptr-gtfront)
• printf("Queue overflow")
• exit(1)
• qptr-gtitemsqptr-gtrearx

25
Remove Operationfor circular queue

• int remove(struct queue qptr)
• if(qptr-gtfront qptr-gtrear)
• printf("Queue underflow")
• exit(1)
• if(qptr-gtfront MAXQUEUE-1)
• qptr-gtfront0
• else
• qptr-gtfront
• return qptr-gtitemsqptr-gtfront

26
Example

• Following program is an example of circular queue
  insertion and deletion operation.

27
include ltstdlib.hgt include ltstdio.hgt define
MAXELEMENTS 50 define TRUE 1 define FALSE
0 typedef struct int itemsMAXELEMENTS
int front , rear QUEUE void
qinsert( QUEUE , int) int qdelete(QUEUE )
int empty(QUEUE )
28
int main() char operation int x QUEUE q
q.front q.rear MAXELEMENTS - 1 do
printf("s\n","Insert Operation type I(nsert)
D(elete) or E(xit) ") scanf("\nc",operation)
switch (operation) case 'I' case
'i'printf("s\n","Insert an element")
scanf("\nd",x) qinsert(q , x)
break case 'D' case 'd'xqdelete(q)
printf("\n d is deleted \n",x) break
default printf(Incorrect Opeartion type\n)
break while (operation
! 'E'operation!'e') return 0
29
int empty(QUEUE qptr) return((qptr-gtfront
qptr-gtrear) ? TRUE FALSE) int qdelete(QUEUE
qptr) if (empty(qptr)) printf("Queue
underflow ") exit(1) qptr-gtfront(qptr-gtfr
ont1)(MAXELEMENTS) return(qptr-gtitemsqptr-gtfron
t) void qinsert(QUEUE qptr , int x) /
make room for new element / printf("\n d is
inserted \n",x) qptr-gtrear(qptr-gtrear1)(MAXELE
MENTS) if (qptr-gtrear qptr-gtfront)
printf("Queue overflow") exit(1)
qptr-gtitemsqptr-gtrear x return
30
PRIORITY QUEUES

• The priority queue is a data structure in which
  intrinsic ordering of the elements determines the
  results of its basic operations.
• An ascending priority queue is a collection of
  items into which items can be inserted
  arbitrarily and from which only the smallest item
  can be removed. On the other hand a descending
  priority queue allows only the largest item to be
  removed.

31
PRIORITY QUEUES

• How do we implement insert and delete?
• Remember that members of a queue need not be
  numbers or characters which can be compared
  directly.

32
Array implementation of PQ

• Insertion
• note order of insertion is not tampered with
• Deletion
• requires a search for the element of highest
  priority
• what happens if we delete an element in the
  centre of the array

33
Possible Solutions

• An empty indicator replaces deleted elements.
  When the array is full compact the array to the
  front. Inefficient in search.
• Use the empty indicator and insert into the empty
  slots. Inefficient in insert.
• On each deletion move elements up the array,
  decrementing rear.
• Maintain array as an ordered circular array
