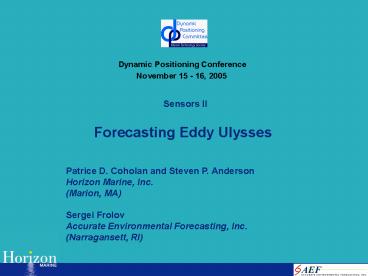

Forecasting Eddy Ulysses

1
Dynamic Positioning Conference
November 15 - 16, 2005
Sensors II
Forecasting Eddy Ulysses
Patrice D. Coholan and Steven P. Anderson Horizon
Marine, Inc. (Marion, MA) Sergei Frolov Accurate
Environmental Forecasting, Inc. (Narragansett, RI)
2
When will the Loop/eddy hit our site?
?
?
W O C
Waiting On Currents.
When will it go away?
?
How long will it shut us down?
3
LOOP CURRENT/EDDY MODEL FORECAST
Frontal boundary
Cyclone
Center
4
EDDY FORECAST SYSTEM COMPONENTS
OBSERVATIONAL DATA
INITIALIZATION COMPONENT
HISTORICAL KNOWLEDGE
PHYSICAL PRINCIPLES
NOWCAST
FORECAST
PREDICTION COMPONENT
5
TYPICAL OCEAN FORECAST SYSTEM
AUTOMATED DATA ASSIMILATION
SATELLITE ALTIMETRY
MODEL
NOWCAST
FORECAST
6
SATELLITE ALTIMETRY ANALYSIS 15 SEPTEMBER 2004
EDDY WATCH GULF CHART 15 SEPTEMBER 2004
MC
GC
WR
Courtesy of R. Leben CU-CCAR
7
AEF- HORIZON EDDY FORECAST SYSTEM
ALL OBSERVATIONAL DATA AVAILABLE IN REAL TIME
INTELLIGENT DATA ANALYSIS
INITIALIZATION PROCEDURE
INITIAL CONDITIONS (NOWCAST)
MODEL
FORECAST
8
OBSERVATIONAL DATA

• Drifting buoys
• Airborne eXpendable BathyThermographs
  (AXBTs)
• Ocean current surveys
• Rig mounted Acoustic Doppler Current
  Profilers (ADCPs)
• SST and ocean color
• Rig and pilot observations
• Altimetry

9
FAR HORIZON DRIFTING BUOYS

• EXPERIENCE
• Over 1700 FHDs successfully deployed at sea
• Eddy Watch GOM (1705)
• Eddy Watch Trinidad (69)
• Hurricane
• Oil Spill
• Search Rescue
• Ring Eddy Surveys
• Vessel Tracking
• Instrument Recovery
• Plankton Studies, etc.

10
AIR-DEPLOYED EXPENDABLE BATHYTHERMOGRAPH (AXBT)
Temperature
11
OCEAN CURRENT SURVEYS
RIG-MOUNTED ADCPs EDDYNET
EDDY ULYSSES
LOOP CURRENT
SATELLITE IMAGERY
12
EDDY WATCH GOM CHART
GULF of MEXICO 09 September 2004 EDDY WATCH REPORT
CE
EDDY ULYSSES
WE
CE
LOOP CURRENT
TITANIC EDDY
13
EDDY WATCH CENTRAL GULF CHART
GULF of MEXICO 09 September 2004 EDDY WATCH REPORT
CE
EDDY ULYSSES
CE
LC
14
IDENTIFICATION OF EDDY FEATURES

• Eddy size
• Eddy shape
• Rotation and migration
• Vertical density structure
• Swirl speed
• Surrounding cyclonic eddies

15
INITIALIZATION COMPONENT

• Analysis of observational data
• Identification of significant eddy features
• Initialization component
• Formulation of a nowcast
•

• Model forecast

16
COMPARISON OF TYPICAL OCEAN FORECAST SYSTEM
NOWCAST
AUTOMATED DATA ASSIMILATION
SATELLITE ALTIMETRY
MODEL
FORECAST
.WITH AEF-HMI EDDY FORECAST SYSTEM
ALL OBSERVATIONAL DATA AVAILABLE IN REAL TIME
INITIALIZATION PROCEDURE
INTELLIGENT DATA ANALYSIS
INITIAL CONDITIONS (NOWCAST)
FORECAST
MODEL
17
09 SEPTEMBER 2004 CENTRAL GULF CHART
09 SEPTEMBER 2004 NOWCAST
18
15 SEPTEMBER 2004 CENTRAL GULF CHART
15 SEPTEMBER 2004 FORECAST
19
THUNDER HORSE FORECAST
Thunder Horse
20
BP THUNDER HORSE ADCP vs EDDY FORECAST
21
LOOP CURRENT FORECAST
22
3-D MODEL OF EDDY ULYSSES
23
SUMMARY

• New Loop Current/Eddy forecasting system
  now available
• Skill in predicting currents out 1 month
• Advance knowledge of currents answers
  questions

24
