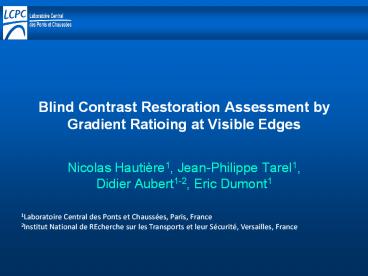

Blind Contrast Restoration Assessment by Gradient Ratioing at Visible Edges

1
Blind Contrast Restoration Assessment by Gradient
Ratioing at Visible Edges

• Nicolas Hautière1, Jean-Philippe Tarel1, Didier
  Aubert1-2, Eric Dumont1

1Laboratoire Central des Ponts et Chaussées,
Paris, France 2Institut National de REcherche sur
les Transports et leur Sécurité, Versailles,
France
2
Presentation Overview

1. Problematic
2. Visibility Model
3. Visible Edges Ratioing
4. Visual Properties of Fog
5. Contrast Restoration
6. Visible Edges Segmentation
7. Contrast Restoration Assessment
8. Conclusion

3
Problematic

• There is a lack of methodology to assess the
  performances of fog degraded images restoration.
• Since fog effects are volumetric, fog can not be
  considered as a classical image noise or
  degradation which might be added and then
  removed.
• Consequently, compared to image quality
  assessment or image restoration areas, there is
  no easy way, synthetic images from 3D models put
  aside, to have a reference image.
• We propose such a contribution.

4
Visibility Model

• Visibility can be related to the contrast C,
  defined by
• For suprathreshold contrasts, the Visibility
  Level (VL) of a target can be quantified by the
  ratio

• As Lb is the same for both conditions, then this
  equation reduces to
• ?Lthreshold depends on many parameters and can be
  estimated using Adrians empirical target
  visibility model (Adrian, 1989).

5
Visible Edges Ratioing

• To assess the performances of a contrast
  restoration method, we compute, for each pixel
  belonging to a visible edge in the restored
  image, the ratio
• ?Io is the gradient in the original image.
• ?Ir is the gradient in the restored image.

• Assuming a linear camera response function
• An object is composed of edges, r becomes
• where ?Lthreshold would be given by Adrians
  model.
• Finally, we have

Hautière N, Dumont E (2007). Assessment of
visibility in complex road scenes using digital
imaging. In The 26th session of the CIE
(CIE07), Beijing, China.
6
Visual Properties of Fog
Daylight
Atmospheric veil
Direct transmission
Scattering

• Koschmieders law gives the apparent luminance L
  of an object located at distance d to the
  luminance L0 measured close to this object
• where L8 is the atmospheric luminance and ß is
  the extinction coefficient of fog.

• Duntley developed a contrast attenuation law
• The CIE defined a standard dimension called
  meteorological visibility distance

7
Contrast Restoration Fog Density Estimation

• Assuming a linear camera response function,
  Koschmieders law becomes in the image plane
• Assuming a flat world scene, it is possible to
  estimate (ß, A8) thanks to the existence of an
  inflection point on this curve
• where ? depends on camera parameters and vh
  denotes the horizon line.

Hautière N, Tarel JP, Lavenant J, Aubert D
(2006b). Automatic Fog Detection and Estimation
of Visibility Distance through use of an Onboard
Camera. Machine Vision and Applications Journal
17820.
8
Contrast Restoration Principle

• To restore the contrast, we propose to reverse
  Koschmieders law. In this way, R can be
  estimated directly for all scene points from
• The remaining problem is the depth d of each
  pixel. For pixels not belonging to the sky
  region, i.e IltA8, a scene model is proposed
• d1 models the depth of pixels belonging to the
  road plane and d2 models the depth of the
  vertical surroundings.
• where c is a clipping plane, ? gt ? controls the
  relative importance of the flat world against the
  vertical surroundings.

u
v

9
Contrast Restoration Algorithm

• One method aims at restoring the contrast of the
  road surface, while enhancing contrast on
  vertical objects without distorting them.
• We seek the best scene maximizes the contrast and
  minimizes the number of distorted pixels, i.e.
  the optimal values of ? and c.
• The problem can be formulated as a minimization
  process
• where Q is an image quality attribute, the norm
  of the local normalized correlation between the
  original image I and the restored image R

Hautière N, Tarel JP, Aubert D (2007). Towards
fog-free in-vehicle vision systems through
contrast restoration. In IEEE Computer Society
Conference on Computer Vision and Pattern
Recognition (CVPR07), Minneapolis, USA.
10
Contrast Restoration Results
11
Visible Edges Segmentation Principle and
Implementation

• By fog, the visible edges are the set of edges
  having a local contrast above 5.
• LIP model (Jourlin and Pinoli, 2001) defined the
  contrast associated to a border F which separates
  two adjacent regions
• where C(x,y)(f) denotes the contrast between two
  pixels x and y of the image f

• To implement this definition of contrast,
  Köhlers segmentation method has been used
  (Köhler, 1981).
• Instead of using this method to binarize images,
  we use it to measure the contrast locally

Hautière N, Aubert D, Jourlin M (2006a).
Measurement of local contrast in images,
application to the measurement of visibility
distance through use of an onboard camera.
Traitement du Signal 2314558.
12
Visible Edges Segmentation Results
13
Restoration Assessement Final Results

• The computation of r enables thus to compute the
  increase of visibility level VL produced by the
  contrast restoration method.
• e denotes the percentage of new visible edges,
  i.e. Cgt5.

Proposed method
Histogram stretching
14
Conclusion

• In this paper, we proposed
• An efficient contrast restoration method,
• A methodology to assess its performances by
  gradient ratioing at visible edges,
• A method to extract edges having a local contrast
  above 5 based on LIP model.
• In the future, we want to tackle
• The detection of other meteorological phenomena
  such as rain, night-fog,
• The restoration of other types of image
  degradation.
