Pavement Analysis and Design

1

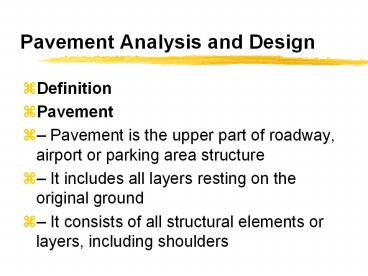

Pavement Analysis and Design

• Definition
• Pavement
• Pavement is the upper part of roadway, airport
  or parking area structure
• It includes all layers resting on the original
  ground
• It consists of all structural elements or
  layers, including shoulders

2

• What is Design?
• Conceived/developed plan for something to serve
  a specific function.
• What is a pavement design?
• It is the process by which the structural
  components a road segment are determined taking
  into account the nature of the subgrade, density
  and traffic composition.

3
(No Transcript)
4
Functions of the Pavement

• Reduce and distribute the traffic loading so as
  not to damage the subgrade
• Provide vehicle access between two points under
  all-weather conditions
• Provide safe, smooth and comfortable ride to
  road users without undue delays and excessive
  wear tear
• Meet environmental and aesthetics requirement
• Limited noise and air pollution
• Reasonable economy

5
Pavement Design Phases

• Highway design consists of three stages
• Geometric design (route selection or alignment
  design)
• Capacity design (number of lanes to meet
  traffic demand)
• Structural design to withstand loads and
  environment
• Structural design consists of 3 steps
• Selection of materials (types of pavement)
• Proportioning of materials
• Layer thickness design

6
Requirement of pavement structure

• 1. Sufficient thickness to spread loading to a
  pressure intensity tolerable by subgade
• 2. Sufficiently strong to carry imposed stress
  due to traffic load
• 3. Sufficient thickness to prevent the effect of
  frost susceptible subgade
• 4. Pavement material should be impervious to
  penetration of surface water which could weaken
  subgade and subsequently pavement
• 5. Pavement mat. shd be non-frost susceptible
• 6. Pavement surface shd. be skid resistant

7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
Types of Pavement Failure

• Failure criteria
• Flexible Pavements
• Fatigue Cracking,
• Rutting,
• Thermal Cracking,
• Rigid Pavements
• Fatigue Cracking,
• Pumping or Erosion
• Others Faulting, spalling, joint deterioration

25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
Stresses and Strains in Asphalt Pavements
35
Stresses and Strains inFlexible Pavements

• Pavement response to applied wheel load
• Stress strain are produced in each layer
• Pavement vertically deflects
• Location and magnitude of responses determine
  type and extent of pavement deterioration and the
  rapidity of deterioration.
• Determined using the theory of elasticity
  (Hooks Law)

36
Pavement Responses

• Stresses, Strains, Deflections
• Load-Related
• Vertical
• Shear
• Tensile
• Compression
• Non-Load-Related
• Tensile

37
Structural Response Models

• Help determine pavement responses as a function
  of applied load (traffic or environmental)
• Stress, Strain , Deflection

38

• Responses are needed for two reasons
• 1. Material characterization, and
• 2. Predicting pavement distress.

39
(No Transcript)
40
(No Transcript)
41
(No Transcript)
42
(No Transcript)
43
(No Transcript)
44
(No Transcript)
45
(No Transcript)
46
Tension
Compression
47
Stresses and Strains Flexible Pavements

• Sources of Stress and Strain
• - Load related
• Vertical Stress and strain (rutting)
• Shear Stresses and strain
• Radial stresses and strain
• Shrinkage stresses and strain (cracking)
• Temperature-Induced Stresses and strains
  (cracking)

48
