New Design Criteria Post 9/11

1

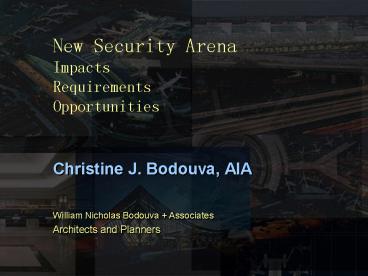

New Security ArenaImpacts RequirementsOpportuni
ties
Christine J. Bodouva, AIA William Nicholas
Bodouva Associates Architects and Planners
2
William Nicholas Bodouva Assoc. Experience

• Design Priorities for These Projects was
• Optimal Functionality
• The Passenger Experience

3
Current WNBA Aviation WorkExperiencing New
Security Criteria

• Focus Post 9/11
• Increased Security Criteria
• Optimal Functionality
• Passenger Experience
• Port Authority NY NJ / Jetblue Domestic
  Terminal
• Manchester Airport Expansion

4
Traditional Terminal Concepts

• Driving forces of design concept
• Manned Ticket Counters
• Ticket counter queue drove the size of the ticket
  lobby

5
BWI International Pier
6
Pre 9/11 Design Concepts

• Driving forces of design concepts
• Advent of e-ticketing Smaller Ticket Lobby
• Ticketing kiosks take up less area
• Less queuing space required
• Less staff

7
Pre 9/11 Design Concepts
Security Check-point
Security Queue
E-ticket kiosks
Ticketing
Ticketing
Ticketing Queue
Ticketing Queue
8
Post 9/11 Effects
Terminal One - JFK
9

• Passengers are arriving 2 3 hours early
• More passengers in the terminal to process
• More ticketing positions needed
• More Security Check-point positions needed
• More holdroom space needed
• More concessions needed
• More support spaces needed
• More baggage in the system
• More restrictive carry-on mandates
• More passengers are checking-in at ticket counter
• Passengers are checking in more bags
• The security process is taking 2 and 3 times
  longer from added procedures
• At ticket counter
• At security check-point

10

• Increased bag screening mandates
• Additional screening of selectees at gate
• Screening of employees needed
• Screening small/cargo packages needed
• Screening for flight catering needed
• Screening of visitors to allow access to
  concessions - recapture lost revenues
• Resulting in
• Long lines
• Crowded spaces
• Overloaded systems
• New spaces and functions added to terminals
• Terminal need reconfiguring

11
Post 9/11 Design Concepts Existing Terminals

• Biggest Challenge faced
• Implementing 100 Bag Screening

12
Manchester Airport, NHTSA Regional Airport Pilot
Program
13
Manchester Airport, NHTSA Regional Airport Pilot
Program
14
Manchester Airport, NHTSA Regional Airport Pilot
Program
15
Manchester Airport, NHTSA Regional Airport Pilot
Program
16
Manchester Airport, NHTSA Regional Airport Pilot
Program
17
Changing Security Mandates Whats
Ahead? Design Ideas for New Terminals
18
New Design ConceptIn-Line EDS In the Ticket Lobby
Secure Terminal
Required Frontage
Secure Terminal
Ticketing, Security Check-point, and EDS
functions combined into one process at front of
terminal
19
New Design ConceptIn-Line EDS In the Ticket Lobby
Secure Terminal
Magnetometer
Bag Search
X-ray
Explosive Detection System (EDS)
Ticketing
Queue
Required Frontage
More Cost Effective Option Fewer
check-in/security positions , but more space for
queuing
20
New Design ConceptEDS Machines in the Bag Room
X-ray
Secure Terminal
Video surveillance of level 3 manual bag search
may eliminate the need for passengers to be
present to open bags
21
New Design ConceptEDS Machines in the Bag Room
Secure Terminal
Magnetometer
Queue
X-ray
Concessions Before Security Check-Point
Ticketing
If Well wishers are prohibited beyond security
check-point then it may be advantageous to place
concessions before check-point
22
Function / Costs / Customer Satisfaction



Design Team / Financial Team / Airport-Airline
Team We Need to Work Together To Find the
Balance Investigate and Share New Ideas
Turn Challenges into Opportunities
