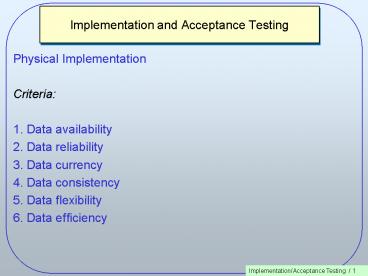

Implementation and Acceptance Testing

1
Implementation and Acceptance Testing

• Physical Implementation
• Criteria
• 1. Data availability
• 2. Data reliability
• 3. Data currency
• 4. Data consistency
• 5. Data flexibility
• 6. Data efficiency

2
Implementation and Acceptance Testing

• 1. Data availability The required data and
  relationships are stored
  in the database
• 2. Data reliability Data will not be lost nor
  corrupted
• 3. Data currency The data value is the latest
  value of the data item

3
Implementation and Acceptance Testing

• 4. Data consistency The same data values will
  be obtained for the
  same item in different queries at
  the same time
• 5. Data flexibility Extension can be made to
  meet new requirements without
  rebuilding the
  database
• 6. Data efficiency Storage and retrieval are at
  minimum cost

4
Implementation and Acceptance Testing

• The major components of the implementation model
  are
• 1. A data model structure
• 2. Data definition languages to define the data
  model structure
• 3. The data access commands. Access
  specifications are embedded in programs, views,
  reports
• 4. Physical structures - based on volumes, usage,
  frequency of use, response times required, number
  of concurrent users..

5
Implementation and Acceptance Testing

• The Enterprise Model
  Data Model Structure
•
  Programs and enquiries
• Access Specifications to
  access the database
•
  Logical data
  model structure
• Database Specification
  Physical database structures
• Quantitative data

6
Implementation and Acceptance Testing

• 4 fundamental capabilities of a DBMS
• 1. The DBMS must provide a natural interface of
  user data
• 2. The interface must be independent of any
  physical storage structures
• 3. Different users should be able to access the
  same database using different views of the
  database
• 4. Changes to the database to be made without
  affecting programs which make no use of the change

7
Implementation and Acceptance Testing

• The Operational Environment
• Specialised use by one or a few people
• The database is an integral part of a business
  operation and must be accessible to a large
  number of users who may be spread over many
  locations, and work in different time zones

8
Implementation and Acceptance Testing

• Other considerations
• Concurrency control
• Access controls
• Recovery systems
• Database privacy

9
Implementation and Acceptance Testing

• A suggested Test Specification outline
• Test the functional areas
• Maintenance
• Analysis
• Tools
• Exit Procedures
• Overall operation - menu navigation, forms
  opening, forms closing, button operation.
• Transition to a new or former state

10
Implementation and Acceptance Testing

• Maintenance data entry
• Forms navigation
• Valid data entries
• Valid / correct calculations
• Tools - probably searching and sorting

11
Implementation and Acceptance Testing

• Test each attribute in forms, views, reports
• Order of presentation / appearance of input
  attributes
• Navigation around or through forms - Tab key,
  Enter key
• Is the progression accurate ? - what you expected
  ?
• - smooth ?
• What is the user reaction ? - the Quality
  Reviewer in your team is an excellent user.
• Indicate actions, Expected results, Actual
  results or OK.

12
Implementation and Acceptance Testing

• Test forwards and reverse cursor movements
• What error messages occur ?
• What triggers them ?
• How are they cleared - not a full restart ?
• Do you have standard error messages or is there
  a clear indication of the cause and correction of
  the error ?
• Are attributes type protected ? Size protected ?

13
Implementation and Acceptance Testing

• Do you have data presentation rules ?
• e.g. - the first character of a string in
  Capitals
• - punctuation
• - signs or identifiers on numeric values
  displayed
• - decimal points included and positioned
  correctly
• - dates in British form e.g. 12/09/2002 or
  12-October-2002
• How are empty attributes presented ? Blank, ??,
  no value displayed ?

14
Implementation and Acceptance Testing

• What is your policy on deletions ? Tag and
  retain, release, archive ?
• Are there any warning messages ?
• Is referential integrity affected ?
• Are deletions logged or archived ?
• Who can delete ?
• Is there a choice to proceed to deletion or not ?

15
Implementation and Acceptance Testing

• How do you intend to record
• successful tests
• problems in tests
• the action taken and the result of a re-test
• who took part in the test
• who prepared the data
• who prepared the control output
• who ran the test
• who investigated the fault, if any

16
Implementation and Acceptance Testing

• What does the user expect to see ?
• Is the user impressed ?
• Does the user require changes (terms,
  progression, colours, positioning ..) (Quality
  reviewer possibly the team coordinator) ?
• When were the various tests performed ?
• What was the equipment / software configuration ?
• Is it compatible with the end-users equipment
  and operating system ?

17
Implementation and Acceptance Testing

• What are the criteria for a
• a successful test
• an unsuccessful test
• Do you intend for a team walkthrough before a
  test is made or a revision test is made
• Who certifies the test result
• Who organises the test schedule - who monitors it
  ?

18
Implementation and Acceptance Testing

• Do you intend to include a glossary of terms in
  your Acceptance Test Specification - which terms
  ?
• Could these be superceded by a training session
  with the
• user ?
• What if the user leaves, gets another job,
• What form of certification are you going to
  present to the end-user ?

19
Implementation and Acceptance Testing

• What is the recommended method of recovery ?
• Does it work ?
• Is it automated or will the end user need to run
  through a series of keyboard operations
• How clear are the instructions - is it likely
  that the end user will overwrite critical data ?
• Will you train the user as part of your delivery
  package ?

20
Implementation and Acceptance Testing

• What are the security provisions ?
• Who will administer them ?
• How secure are they ?
• What risk is there to the end user when the
  system fails ?
• Is there any fall back position / procedure ?

21
Implementation and Acceptance Testing

• Are you able, or do you intend that the end user
  will have access to ongoing support ?
• How ?
• What are your suggestions to the end user
  regarding
• software upgrades (e.g. Windows2000 to WindowsXP)
• hardware upgrades
• on line connections to the system
• on line customer/account tracking (e-commerce)
• customer on line access
• service and support

22
Implementation and Acceptance Testing

• How do you intend to load the initial working
  data for
• the client ?
• Who supplies the effort and meets the cost ?
• How many rows / records are involved ?
• Is there going to be a delay time prior to the
  system being operable ?
• How would this gap be controlled - e.g.
  transactions occurring but not able to update ?

23
