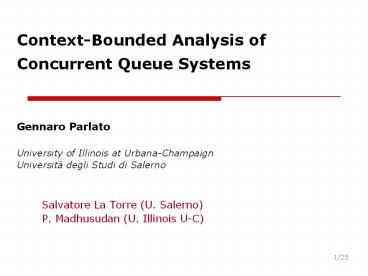

Context-Bounded Analysis of Concurrent Queue Systems

1
Context-Bounded Analysis of Concurrent Queue
Systems

• Gennaro Parlato
• University of Illinois at Urbana-Champaign
• Università degli Studi di Salerno
• Salvatore La Torre (U. Salerno)
• P. Madhusudan (U. Illinois U-C)

2
Queue Systems

• Architecture
• A node is a process
• Finite control
• Recursive (call-stack)
• An edge is a FIFO channel
• Unbounded capacity queue
• Finite message alphabet
• Finite shared memory

shared memory
p2
p1
Self-loops not allowed!
3
Queue Systems

• A configuration
• C ( LS1, ...,LSn, SM, St1, ..., Stn,
  Q1, ..., Qm )
• LSi local states
• SM shared memory
• Sti stack content of process pi
• Qi content of queue i
• An action for a process pi
• internal (changes LSi / SM )
• push or pop from its own stack
• send or receive a message from a queue

4
A natural model

• Asynchronous or event-driven programs
• Multi-core systems
• Libasync-smp (Zeldovich et al,
  USENIX03)
• Single-processor systems (e.g. Java, web service
  design)
• Callbacks
• NesC
  (Gay et al, PLDI03)
• Distributed systems communicating via FIFO
  message channels
• Distributed communication protocols

5
Model-Check Queue Systems

• Reachability problem for queue systems
• Given a set of global control states T,
• is any state in T reachable?
• Reachability is undecidable
• Weakening the model to tackle undecidability
• Lossy channels
  (Abdulla-Jonsson, LICS93)
• Model queues as bags (Sen-Viswanathan,
  CAV06)
•
  (Jhala-Majumdar, POPL07)
• Our contribution a new way to curb
  undecidability
• where queues are modeled
  accurately

6
Bounded context-switch reachability

• In a context
• only one process evolves
• dequeue only from one queue
• it can enqueue on all outgoing queues
• Well-queuing (for recursive processes)
• Dequeue only when stack is empty

• Bounded context-switch reachability problem
• Given
• k?N
• a set of global control states T,
• Is T reachable within k context-switches?

7
Context-Bounded analysis for concurrent systems

• Introduced by
• Context-Bounded Model Checking of Concurrent
  Software
•
  (Qadeer-Rehof, TACAS05)
• Experimental results Large state coverage with
  few contexts
• Iterative context bounding for systematic testing
  of multithreaded programs
  (Musuvathi-Qadeer, PLDI07)
• CHESS at MSR
• Context-bounded analysis for otherwise
  intractable systems
• Reachability Analysis of Multithreaded Software
  with Asynchronous Communication
• (Bouajjani-Esparza-Kiefe
  r-Schwoon, FSTTCS05)
• Context-Bounded Analysis of Multithreaded
  Programs with Dynamic Linked Structures
  (Bouajjani-Fratani-Qadeer, CAV07)
• A Robust Class of Context-Sensitive Languages
• (La
  Torre-P.Madhusudan-Parlato, LICS07)

8
Our Results

• Bounded Context-Switch Reachability is decidable
• for non-recursive queuing processes
• for well-queuing recursive processes
• Precise characterization of architectures that
  admit a decidable (unbounded) reachability
  problem
• with shared memory is undecidable for simple
  architectures)
• no shared memory well-queuing recursive
• directed forest
  architectures
• no shared memory non recursive
• underlying undirected graph is a forest
• Decidability reduction to BCS reachability
  problem

9
Outline of the talk

• Overview
• Solving Bounded Context-Switch Reachability
• Unbounded context-switching reachability Precise
  characterization of decidable architectures
• Conclusions

10
Bounded-phase multi-stack pushdown automataLa
Torre, P.Madhusudan, Parlato, LICS07)

• Finite set of states Q
• An initial state qo?Q
• Actions
• internal move
• push onto one stack
• pop from one stack

• Bounded-Phase Reachability Problem
• Given
• k ? N
• a set of control states T,
• is any state of T reachable with at most k
  phases?
• Theorem
• Bounded-phase reachability is decidable.
• Complexity
• time exponential in Q
• double-exponential in k.

finite control

• Multiply nested structures
• MSO on multiply nested structures to MSO on trees
• Quite complex proof

• A phase is a sub-run where only
• A unique stack can be popped
• all stacks can be pushed onto

11
Bounded context-switch reachability for
Non-Recursive processes

• Theorem
• The bounded context-switch reachability for
  non-recursive QS
• is decidable
• Complexity
• 2-Exptime in the number of context-switches
• Exptime in the size of the system

Proof. Reduction to bounded-phase reachability
for multi-stack systems.

. ?
12
Proof (non-recursive case)

• We define a MSPS that simulates the QS



• Simulation
• of a context
• Sending m to queue q
• ? push onto stq
• Receiving m from q
• ? pop from red stack
• of a context-switch
• (p,q) ? (p,q)
• Reverse stack q
• Reverse stack q

13
Proof (recursive case)

• Simulate incoming queue and
• call-stack using a single stack!
• (exploit well-queuing assumption)

14
Removing conditions gives undecidability

• BCS reachability is undecidable for
• non well-queuing recursive processes

• BCS reachability is undecidable if we allow to
  dequeuing from two queues in the same context

q1
p1
p3
q2
p2
15
Outline of the talk

• Overview
• Solving Bounded Context-Switch Reachability
• Unbounded context-switching reachability Precise
  characterization of decidable architectures
• Conclusions

16
Decidable Architectures with shared memory
is undecidable

• With shared memory reachability is undecidable
  even for simple architectures
• (reduction from the membership problem for
  Turing machines )
• Non-recursive
• Two non-recursive processes
• One queue
• Recursive
• Two recursive processes
• No queues

• p1 p2

• p1 p2
• s1 s2

17
Decidable Architectures
recursive processes no shared memory

• Theorem
• An architecture admits decidable reachability

• for well-queuing QSs with no shared memory
• iff
• it is a directed forest
• Complexity
• in 2-Exptime in the number of processes
• in Exptime in the size of the QS

18
Decidable Architectures recursive processes
no shared memory

• Reachability is decidable on directed forests
• reduction to bounded context-switch reachability
• Fix an order over the processes such that p gt
  parent(p)
• p1, p2, p3, p4,
  p5
• In the context i process pi evolves

19
Undecidable Architectures recursive
processes no shared memory

• Reachability is undecidable for all other
  architectures.

• Reduction from the emptiness of the intersection
  of two CFLs

• reduction from the membership problem for Turing
  machines
• (even for non-recursive)

20
Decidable Architectures
non-recursive processes no shared memory
Theorem An architecture admits decidable
reachability for non-recursive QSs with no
shared memory iff the undirected
architecture graph is a forest Complexity
Pspace-complete
21
Decidable Architectures
non-recursive processes no shared memory

• Reachability is decidable when the undirected
  underlying graph is a forest
• Algorithm
• Reverse edges
• Solvable using bounded context-switch
  reachability
• Better solution
• bounded size queue (1 message)
• leads to a Pspace procedure
• Complexity
• Pspace-complete

q
p1
p2
p2
q
p1
22
Undecidable Architectures non-recursive
processes no shared memory

• Reachability is undecidable when the undirected
  underlying graph there is a cycle

• Precise characterization
• Non-recursive processes
• No shared memory
• undirected architecture graph is a forest

p1 p2
23
Outline of the talk

• Overview
• Solving Bounded Context-Switch Reachability
• Unbounded context-switching reachability Precise
  characterization of decidable architectures
• Conclusions

24
Conclusions

• Bounded Context-Switch Reachability decidable in
• 2-EXPTIME
• Unbounded context-switching reachability
• Precise characterization of decidable
  architectures

Well-queuing Recursive processes
Non-Recursive processes
Undecidable Undecidable
Decidable iff directed forest (in 2-EXPTIME) Decidable iff undirected forest (Pspace-complete)
Shared Memory
No Shared Memory
25
A Future Direction

• Practical algorithm for
• - non recursive processes
• - no-shared memory
• undirected forest architectures
• We proposed a Pspace algorithm
• Each queue can be considered only of bounded size
  (one message)
• This can be modeled as a finite state transition
  system
• Implementations using standard model checkers
•
  (like NuSMV)

Approximate schemes to solve bounded context
switching reachability for recursive queue
systems - a la Jhala-Majumdar,POPL07 for
Sen-ViswanathanCAV06
