This is a PowerPoint presentation on fundamental math

1

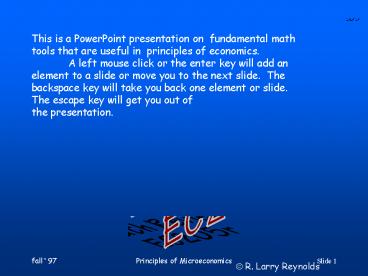

This is a PowerPoint presentation on fundamental
math tools that are useful in principles of
economics. A left mouse click or the enter
key will add an element to a slide or move you
to the next slide. The backspace key will take
you back one element or slide. The escape key
will get you out of the presentation.
ã R. Larry Reynolds
2
Math Review

• Mathematics is a very precise language that is
  useful to express the relationships between
  related variables
• Economics is the study of the relationships
  between resources and the alternative outputs
• Therefore, math is a useful tool to express
  economic relationships

3
Relationships

• A relationship between two or more variables can
  be expressed as an equation, table or graph
• equations graphs are continuous
• tables contain discrete information
• tables are less complete than equations
• it is more difficult to see patterns in tabular
  data than it is with a graph -- economists
  prefer equations and graphs

4
Equations

• a relationship between two variables can be
  expressed as an equation
• the value of the dependent variable is
  determined by the equation and the value of the
  independent variable.
• the value of the independent variable is
  determined outside the equation, i.e. it is
  exogenous

5
Equations cont . . .

• An equation is a statement about a relationship
  between two or more variables
• Y fi (X) says the value of Y is determined by
  the value of X Y is a function of X.
• Y is the dependent variable
• X is the independent variable
• A linear relationship may be specified Y a
  mX the function will graph as a straight
  line
• When X 0, then Y is a
• for every 1 unit change in X, Y changes by m

6
Y 6 - 2X

• The relationship between Y and X is determined
  for each value of X there is one and only one
  value of Y function
• Substitute a value of X into the equation to
  determine the value of Y
• Values of X and Y may be positive or negative,
  for many uses in economics the values are
  positive we use the NE quadrant

7
Given the relationship, Y 6 - 2X,
(Left click mouse to add material)
when X 0 then Y 6 this is Y-intercept
Y
sets of (X, Y)
A line that slopes from upper left to lower right
represents an inverse or negative relationship,
when the value of X increases, Y decreases!
(0, 6)
when X 1 then Y 4
(1, 4)
(2, 2)
(3, 0)
When X 2, then Y 2
The relationship for all positive values of X and
Y can be illustrated by the line AB
When X 3, Y 0, this is X-intercept
X
8
(Left click mouse to add material)
Given a relationship, Y 6 - .5X
(0,6)
(1,5.5)
(2, 5)
(4,4)
(6,3)
For every one unit increase in the value of X, Y
decreases by one half unit. The slope of
this function is -.5! The Y-intercept is 6.
What is the X-intercept?
9
For a relationship, Y 1 2X
When X0, Y1 (0,1)
When X 1, Y 3
slope 2
(1,3)
When X 2, Y 5
(2,5)
This function illustrates a positive
relationship between X and Y. For every one unit
increase in X, Y increases by 2 !
for a relationship Y -1 .5X
This function shows that for a 1 unit increase
in X, Y increases one half unit
(Left click mouse to add material)
10
Problem

• Graph the equation Y 9 - 3X
• What is the Y intercept? The slope?
• What is the X intercept? Is this a positive
  (direct) relationship or negative (inverse)?
• Graph the equation Y -5 2X
• What is the Y intercept? The slope?
• What is the X intercept? Is this a positive
  (direct) relationship or negative (inverse)?

11
Equations in Economics

• The quantity Q of a good that a person will buy
  is determined partly by the price P of the
  good. Note that there are other factors that
  determine Q.
• Q is a function of P, given a Price the
  quantity of goods purchased is determined.
  Q fp (P)
• A function is relationship between two sets in
  which there is one and only one element in the
  second set determined by each element in the
  first set.

12
Relationship cont . . .

• Q fp (P) Q is a function of P
• Example Q 220 - 5P
• If P 0, then Q 220
• If P 1, then Q 215
• for each one unit increase in the value of P, the
  value of Q decreases by 5

13
Q 220 - 5P

• This is an inverse or negative relationship
• as the value of P increases, the value of Q
  decreases
• the Y intercept is 220, this is the value of Q
  when P 0
• the X intercept is 44, this is the value of P
  when Q 0
• This is a linear function, i.e. a straight
  line
• The slope of the function is -5
• for every 1 unit change in P, Q changes by 5 in
  the opposite direction

14
The equation provides the information to
construct a table. However, it is not possible to
make a table to include every possible value of
P. The table contains discrete data and
does not show all possible values!
15
For the relationship, Q 220 - 5P, the
relationship can be graphed ...
PRICE
When the price is 44, 0 unit will be bought at
a price of 0, 220 units will be bought.
44
Notice that we have drawn the graph backwards,
Pindependent variable is placed on the Y-axis.
This is done because we eventually want to put
supply on the same graph and one or the other
must be reversed! Sorry!
QUANTITY
(Left click mouse to add material)
16
Slopes and Shifts

• Economists are interested in how one variable
  the independent causes changes in another
  variable the dependent
• this is measured by the slope of the function
• Economists are also interested in changes in the
  relationship between the variables
• this is measured by shifts of the function

17
Slope of a function or line

• The slope measures the change in the dependent
  variable that will be caused by a change in the
  independent variable
• When, Y a m X m is the slope

18
Slope of a Line
Y 6 -.5X
as the value of X increases from 2 to 4,
the value of Y decreases from 5 to 4
DY is the rise or change in Y caused by DXin
this case, -1
so, slope is -1/2 or -.5
DX is the run 2,
19
Shifts of function

• When the relationship between two variables
  changes, the function or line shifts
• This shift is caused by a change in some variable
  not included in the equation
• the equation is a polynomial
• A shift of the function will change the
  intercepts and in some cases the slope

20
(Left click mouse to add material)
Given the function Y 6 - .5X,
21
Shifts in functions

• In Principles of Economics most functions are
  graphed in 2-dimensions, this means we have 2
  variables. The dependent and independent
• Most dependent variables are determined by
  several or many variables, this requires
  polynomials to express the relationships
• a change in one of these variables which is not
  shown on a 2-D graph causes the function to
  shift

22
Slope and Production

• The output of a good is determined by the amounts
  of inputs and technology used in production
• example of a case where land is fixed and
  fertilizer is added to the production of
  tomatoes.
• with no fertilizer some tomatoes, too much
  fertilizer and it destroys tomatoes

23
The maximum output of T possible with all
inputs and existing technology is 10 units with 6
units of F
tons of tomatoes
With the 3rd unit of F, T increases to 9
With 2 units of F, the output of T increases to 8
With 1 unit of Fertilizer F, we get 6 tons
The increase in tomatoes DT caused by DF is
3, this is the slope
With no fertilizer we get 3 tons of tomatoes
use of more F causes the tomatoes to burn and
output declines
(Left click mouse to add material)
FERTILIZER
24
Slope and Marginal Product

• Since the output of tomatoes T is a function of
  Fertilizer F , the other inputs and technology
  we are able to graph the total product of
  Fertilizer TPf
• From the TPf, we can calculate the marginal
  product of fertilizer MPf
• MPf is the DTPf caused by the DF

25
Given T f (F, . . . ), MPf DTPf/DF
DTPf 1, DF 3 1/3 _at_ .33 this is
an approximation because DFgt1
DTPf -1, DF 2 -1/2 -.5
Fertilizer F Tomatoes T 0 3
MPf slope 3
technically, this is between 0 and the first
unit of F
1 6
2 8
2
3 9
1
6 10
.33
rise/run 3
8 9
-.5 a negative slope!
DTPf 3, DF 1 3/1 3 slope 3
DTPf 2, DF 1 2/1 2
DTPf 1, DF 1 1/1 1
26
Given a functional relationship such as Q 220
- 5P, we can express the equation for P as a
function of Q
Think of an equation as a balance scale, what
you do to one side of the equation you must do to
the other in order to maintain balance
Q 220 - 5P
subtract 220 from both sides
-220 Q -5P
divide every term in both sidesby -5
or, P 44 - .2 Q
The equation P 44 - .2Q is the same as
Q 220 - .5P
(Left click mouse to add material)
27
Slope Calculus

• In economics we are interested in how a change in
  one variable changes another
• How a change in price changes sales. How a
  change in an input changes output. How a change
  in output changes cost. etc.
• The rate of change is measured by the slope of
  the functional relationship
• by subtraction the slope was calculated as rise
  over run where rise DY Y1 - Y2 and run
  DX X1 - X2,

28
DerivativeThere are still more slides on this
topic

• When we have a nonlinear function, a simple
  derivative can be used to calculate the slope of
  the tangent to the function at any value of the
  independent variable
• The notation for a derivative is written

29
Summary

• a derivative is the slope of a tangent at a point
  on a function
• is the rate of change, it measures the
  change in Y caused by a change in X as the change
  in X approaches 0
• in economics jargon, the slope or rate of
  change is the marginal

30
(No Transcript)
31
Can slope vary along a curve?

• Yes, the slope of a curve can vary along the curve

32
Y
4
3
A
2
Y2
1
X
X30
10
20
30
40
33
Y
20
15
A
Y
10
-10
5
X
X50
25
50
75
100
34
END
