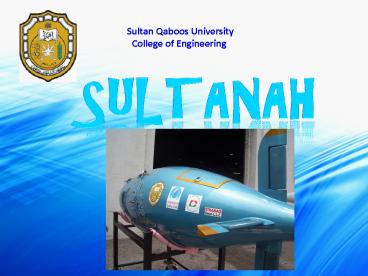

SULTANAH

1
Sultan Qaboos University College of
Engineering
SULTANAH
2
OUR TEAM

• 4th team working on the submarine
• 1st team
• 3 members
• Hull Design and general setup of the Submarine
• 2st team
• 3 members
• MAIN FRAME
• 3nd team
• 4 members
• Mechanical Components
• 4rd team
• Mechanical component, fixing, and testing

3
Members

• 5 members Senior Mechanical Engineering
  Students
• Members
• Haifa Al-Salmi
• Hamed Al-Amri
• Hussein Al-Rashdi
• Ishaq Al-Hassani(Rider)
• Khaleel Al-Riyami
• Khalid Al-Sawwafi (leader)
• Supervisors
• Dr.Jamil Abdo
• Dr.Nabeel Al-Rawahi

4
Goals

• Team
• To be the first team from the Arabic world to
  participate in the ISR
• Try our best to achieve one of the top places in
  the race, and if not the benefit from the
  experience as a whole is a prize itself
• Gain valuable team building experience
• Having Fun
• Submarine
• Create an innovative submarine
• Design with high priority for the safety of the
  pilot
• To achieve maximum speed by using an optimized
  hull form and reducing pilot workload ,we are
  aiming for a speed of 8 knots (approx 4m/s)
• To design a control system which will provide the
  maximum and smoothest control possible

5
Sultanah

• SULTANA was the first ship from the Sultanate of
  Oman to visit the New World
• In 1839 Sayyid Said bin Sultan ruler of Oman
  ordered his ship the SULTANA to set sail for
  America on a trade mission.
• Started its journey on February 1840 and arrived
  on 30 April 1840 to New York.
• The voyage was not a commercial success but its
  marks the point of successful friendly relations
  between the two countries that continue to this
  day.

6
Overview

• Elliptical shaped hull
• Window at front
• 4 fins with Alerions
• 2 bladed propeller
• Weight 105kg
• Diameter 0.760 0.002 m
• Length 3.300 0.03 m

7
Design philosophy

• Gain valuable team building experience
• Split the tasks and make each person in charge of
  a task
• And making sure that everyone in the team
  understands what's going on
• Conducting many brain storming sessions
• Learning from previous designs

8
Design and Fabrication
9
Sultanahs hull

• An elliptical shape was selected, then
  modifications have been carried in order to
  reduce the drag force further.
• Using one of the best standards National
  Advisory Committee for Aeronautics NACA
  shapes.gt NACA shapes divided into different
  groups, each one called series.
• 6-series in NACA shape found to be the most
  appropriate for our situation in designing the
  submarine.
• First a sketch of the desired shape was generated
  using Design Foil software.
• Then Microsoft math was used to come up with 2-D
  cross section drawing for the submarine.
• Finally, inventor was used to generate the 3-D
  model of the hull.

10
Material selection for the hull
11
Sultanahs hull
gtgt Hull was fabricated using the process of
molding
12
PropulsionSystem
13
Pedaling system and chain
The pedals
The crank set
The chain
The freewheel
14
Gearbox

• Spiral Bevel Gears
• Ratio 31
• Weight 2 Kg
• Combined Chain and Gearbox provides a ratio of
  61.

15
Shaft

• 3 dimensions for the aluminum shafts were
  selected and compared
• 20mm Aluminum solid shaft(max stress329,574)
• 20mm outer diameter 15mm inner diameter aluminum
  hollow shaft (max stress365,199)
• 20mm outer diameter 18inner diameter aluminum
  hollow shaft(max stress832,750)
• All the shafts are 780mm in length
• Yield strength Al414Mpa
• 15-20H was chosen since the results are very
  close to the solid shaft but the weight is much
  more less .

16
Propeller

• Two-bladed configuration
• Professional software, JAVAProp, was used to
  design the propeller.
• The program inputs are the targets for designing
  the propeller which are velocity, RPM, and power.
  velocity 4.12 m/sRPM 300 Power 294 w
• The outputs are efficiency, thrust and pitch. We
  tried different blade angle for the same angle of
  attack. The highest efficiency, 86, and thrust,
  272.5 N,

17
Control(Steering system)

• The main function is to move submarine in the up,
  and down, left, and right directions.
• The material used for the steering system is
  Aluminum.
• The system is controlled by cables

18
Control(Steering system)

• Manual Steering by cables
• Advantages
• Easy to connect
• Easy to maintain
• Low cost
• Disadvantages
• Needs high energy to overcome friction
• Needs to be maintained more regularly
• Slightly slow response
• After taking into consideration all the
  advantages and the disadvantages the manual
  steering system was chosen over the hydraulic
  system.

19
Control
20
Life Support System

• Aluminum 80 SCUBA tank
• Tank allows more than 2/3 leftover air volume at
  the end of one run
• Spare air bottle, attached to the riders weight
  belt.

21
Safety

• Submarine Safety Markings
• Hatches
• Control Surfaces
• Control Surface Guard
• Propeller
• Strobe Light
• Visible 360
• Emergency Buoy
• Alerts crew to injured pilot

22
Design door locks
23
Strobe Light Mechanism of Emergency Buoy
24
Testing and Training (Training)

• 5 days of training to get the Open water diving
  license
• At a diving school located in Sidab(Diving
  knight)
• In addition to diving ,fitness trainings were
  regularly done by the crew members

25
Journal and Budget
Item Cost(Omani Rial) Cost(US Dollars) Notes
1 Construction of the submarine Hull 3,500 9,117
2 Other Submarine material 4,000 10,419
3 Diving lessons and certificates 600 1,563
4 Diving equipment's 4,100 10,680 For 5 students
5 Miscellaneous 100 260
  TOTAL 13,200 34,385
26
Sponsorship

• 3 Sponsors
• Qalhat LNG SAOC
• DryDocks Oman
• STRABAG Oman L.L.C

27
Conclusion

• We built the first submarine from Asia
• Hull is made from fiber glass
• It is a one man propulsion system
• Proplusion system made of pedals, chain, gearbox,
  shaft, and finally propeller
• Manual steering system
