Transactional Middleware

1
Transactional Middleware

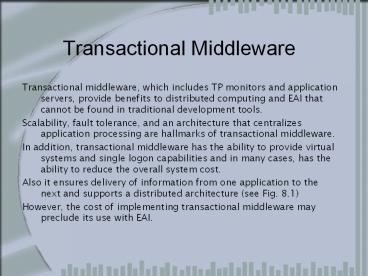

• Transactional middleware, which includes TP
  monitors and application servers, provide
  benefits to distributed computing and EAI that
  cannot be found in traditional development tools.
• Scalability, fault tolerance, and an architecture
  that centralizes application processing are
  hallmarks of transactional middleware.
• In addition, transactional middleware has the
  ability to provide virtual systems and single
  logon capabilities and in many cases, has the
  ability to reduce the overall system cost.
• Also it ensures delivery of information from one
  application to the next and supports a
  distributed architecture (see Fig. 8.1)
• However, the cost of implementing transactional
  middleware may preclude its use with EAI.

2

• Fig. 8.1 Transactional
  Middleware

3

• There are some limitations to what transactional
  middleware can accomplish within most of the EAI
  problem domains. None of the TP monitors or
  application servers that exist today support
  either out-of-the-box content transformation or
  message transformation services, at least not
  without programming.
• What transactional middleware excels at is
  method-level EAI or, at least the sharing of
  common business logic to promote EAI.
• But Message Brokers or traditional,
  message-oriented middleware are much better tools
  for the simple sharing of information at the data
  level or the application interface level.
• Transactional middleware requires that complex
  applications be divided into small size units
  called transactions. Transactional middleware
  controls transactions from their beginning to
  their end, from the client to the resource server
  and then back again.

4

• Fig. 8.2 Using Transactions to tie
  together back-end users

5

• The ACID Test
• A transaction has ACID properties
• Atomic ? refers to all or nothing quality of
  transactions. In other words the transaction
  either completes or aborts and there is no middle
  ground.
• Consistent ? refers to the fact that the system
  is always in a consistent state, regardless of
  whether or not it completes the transaction.
• Isolated ? refers to the transactions ability to
  work independently of other transactions that may
  be running in the same TP monitor environment.
• Durable ? means that the transaction, once
  committed and complete can survive system
  failures.

6

• Scalable Development
• Transactional middleware processes transactions
  on behalf of the client or node and can route
  transactions through many diversified systems,
  depending on the requirements of the EAI problem
  domain.
• It also provides load balancing, thread pooling,
  object recycling and the ability to automatically
  recover from typical system problems.
• Database Multiplexing ?is one of the main
  benefits of transactional middleware. It has the
  ability to multiplex and manage transactions that
  result in the reduction of the number of
  connections and processing loads that larger
  systems place on a database.
• With transactional middleware in the
  architecture, it is possible to increase the
  number of clients without increasing the size of
  the database server.
• By funneling the clients requests, transactional
  middleware removes the process per client
  requirements (see Fig. 8.4)

7

• Fig. 8.4
  Database Multiplexing
• In this scenario, a client simply invokes the
  transaction services that reside on the TP
  monitor, and those services can share the same
  database server connections (threads and
  processes)

8

• Load Balancing ? When the number of incoming
  client requests surpasses the number of shared
  processes that the system is able to handle,
  other processes start automatically.
• Some transactional middleware can distribute the
  process load over several servers at the same
  time dynamically or distribute the processing
  over several processors in multiprocessing
  environments.
• This load balancing feature of transactional
  middleware also enables transactional middleware
  to prioritize.
• Fault-Tolerant ? Transactional middleware was
  built from the ground up to provide a robust
  application deployment environment with the
  ability to recover from any number of system
  related problems.
• Transactional middleware provides high
  availability by employing redundant systems.

9

• The transactions work through a two-phase-commit
  protocol to ensure that the transactions complete
  and to guard against transactions becoming lost
  electrons when hardware, operating systems, or
  network fail.
• Communications ? Transactional middleware
  provides a good example of middleware that uses
  middleware, which includes message brokers. It
  communicates in a variety of ways, including
  RPCs, distributed dynamic program links (DPLs),
  inter-process communications, and MOM.
• Because transactional middleware is simply an API
  within an application, developers have the
  flexibility to mix and match all sorts of
  middleware layers and resource servers to meet
  the requirements of an application or EAI problem
  domain.

10

• XA and X/Open
• The standards that define how transactional
  middleware functions are the International
  Standards Organizations (ISO) and X/Opens
  Distributed Transaction Process (DTP)
  specifications.
• The outcome was XA Interface which defines how a
  transaction manager and a resource manager (such
  as a database) can communicate.
• The XA Interface is a set of function calls,
  split between the transaction manager and the
  resource manager. Among the features XA provides
  are those functions provided by the transaction
  manager, which allow the resource manager to
  tell the transaction manager whether it is ready
  to work with a transaction or whether it is in a
  resting state and unable to respond.

11

• Building Transactions
• Building transaction services simply requires
  that you programmatically define the functions
  that the service will perform when accessed by
  the required TP monitor APIs.
• Application Servers
• They not only provide a location for application
  logic, they also coordinate many resource
  connections. Application servers were created
  for web based transactions and application
  development, but their usefulness to EAI is
  obvious, given the back end integration
  capabilities (their ability to bind together
  several source and target applications through a
  series of connectors provided by the applications
  server vendors-for example SAP, PeopleSoft,
  relational databases and middleware)

12

• Fig. 8.5
  Application Servers

13

• Evolving Transactions
• The benefit of applications servers is clear. By
  placing some, or most, of the application logic
  on a middle tier, the developer can insert
  increased control over the application logic
  through centralization. Such a placement
  increases the ability to scale the application
  through a set of tricks, such as database
  multiplexing and load balancing.
• The end result is a traditional 3-tier
  client/server computing model.
• Fig. 8.6 Application Architecture,
  using an application server

14

• Enterprise Java Beans
• Application servers are different from
  traditional transactional middleware (such as TP
  monitors) in that they are able to function
  around the notion of transactional components.
• Almost all applications servers using this
  transactional component type architecture are
  looking to employ EJB as the enabling standard.
• The EJB specifications define a server side
  component model for JavaBeans. EJB represent
  specialized JavaBeans that run on a remote server

• EJB look very similar to distributed objects such
  as COM and CORBA at least from the point of view
  of architecture.
• Using the same architecture as traditional
  JavaBeans, EJB can be clustered together to
  create a distributed application with a mechanism
  to coordinate the processing that occurs within
  JavaBeans.

15

• Fig. 8.8 EJB define server-side
  component model
• The EJB model supports the notion of implicit
  transactions. The EJB model defines the
  relationship between an EJB component and EJB
  container system. The EJB execution system is
  called EJB Server and it provides a standard
  set of services to support EJB components.

16

• Future of Transactional Middleware
• TP monitors will remain the dominant
  transactional middleware because they provide the
  best mix of standards, scaling features and
  reputations
• Traditional TP monitor environments, as well as
  the new line of Java-enabled application servers,
  will provide to be the best place for EJB.
• Integration problem domains that need to support
  transactions between applications, share logic as
  well as data, and are willing to incur cost of
  changing all connected applications, are perfect
  for transactional middleware-type solutions.

17
RPC Messaging

• Message-Oriented Middleware (MOM) and RPCs based
  middleware tend to be traditional, point-to-point
  middleware. Because of that, they are not
  effective solutions for most integration
  projects.
• Middleware itself is a common point of
  integration for source and target systems.
  Despite the limitations of this technology for
  EAI solutions, the appropriate tradeoffs in both
  technology and product decisions may make the
  inclusion of this middleware important to a
  particular integrationproblem domain.
• RPCs
• RPCs are a method of communicating with a remote
  computer, in which the developer invokes a
  procedure on the server by making a simple
  function call on the client

18

• Fig. 9.1 Using
  RPCs

19

• The client process that calls the function must
  suspend itself until the procedure is completed.
• This blocking of an application might become a
  problem for the performance of that application.
  Also there is a high level of network
  communication between the client and the server
  when using RPCs, thus the RPC architecture
  requires a high-speed network.
• RPCs were the base middleware layers of the early
  client/server systems. In addition to many
  database-oriented middleware layers, they are
  capable of running network operating systems,
  such as Suns NFS (Network File System) and DCE
  (from Open Software Foundation)
• Distributed object technology, such as COM and
  CORBA, leverage RPCs effectively in order to
  provide object-to-object communications.

20

• DCE
• DCE is complex (but effective) middleware
  solution. It was developed by OSF and it makes
  many diverse computers function as a single
  virtual system excellent for distributed
  computing.
• Fig. 9.2 The
  DCE Architecture

21

• Because the heart of DCE is a classic RPC
  mechanism, every limitation inherent in RPCs -
  including blocking and the need for a high speed
  network also exist in DCE.
• But, DCE allows developers to reach across
  platforms to access many types of application
  services, including database, distributed
  objects, and TP monitors.
• DCE also provides a sophisticated naming service,
  a synchronization service, a distributed file
  system, and built-in network security. Another
  plus is that DCE is available on almost any
  platform.
• MOMs
• If the required bandwidth is not available for
  use with an RPC middleware, or in the situation
  where a server cannot be depended upon to always
  be up and running, message-oriented middleware
  (MOM) is more advisable than any other type of
  middleware.

22

• Fig. 9.3
  Using MOMs

23

• Like RPCs, MOM provides a standard API across
  hardware, operating system platforms and
  networks. It is also able to guarantee that
  messages will reach their destination, even when
  the destination is not available (meaning the
  server is not on line, the application is not
  started, application crushed, etc)
• MOM utilizes one of the two macro-messaging
  models
• Process-to-Process ? both the sending and
  receiving processes must be active for messages
  to be exchanged
• Message Queuing ? allows messages to be stored in
  a queue, so only one process needs to be active
  (the sender process). This method is the most
  beneficial when communication is taking place
  between computers that are not always up and
  running, over networks that are not always
  dependable, or when there is a limitation on
  bandwidth.

24

• Unlike RPCs, MOM is asynchronous, thus it doesnt
  block the application from processing when the
  middleware API is invoked.
• MOM message functions can return immediately even
  though the request has not actually been
  completed. This allows the application to
  continue processing, assured that it will know
  when the request is completed.
• The queuing model is the most useful from
  transactions-oriented EAI applications that must
  transverse multiple platforms.
• Unlike DCE, the platform does not have to be up
  and running for an application to request
  services. If the server is down the request
  remains in queue. When the server comes back
  online, the request will be processed.
• In addition to these features, MOM provides
  concurrent execution features, allowing the
  processing of more than one request at the same
  time.

25

• In conclusion, MOM is a good fit for
  store-and-forward communications or when dealing
  with applications that are not expected to be
  reachable at the same time.
• MOM is also good for defensive communication,
  or when the network between applications fails a
  lot. Also its a good option for when
  communications between processes need to be
  logged.
• MOM and messaging tend to be better EAI fits
  than RPC based middleware, but MOM alone does not
  provide all the infrastructure necessary for EAI.
• Message Brokers add value to traditional MOM
  products by providing data and schema
  transformation function, as well as intelligent
  routing and event-driven processing to move
  information on an enterprise network. (see Fig.
  9.4)

26

• Fig. 9.4 Message
  Brokers using MOM

27

• Microsoft Message Queue (MSMQ)
• Its a Windows NT/2000 based and COM enabled MOM.
  It is also a key product for Microsoft as it
  joints the Microsoft Transaction Server (MTS),
  Internet Information Server (IIS), SQL Server,
  and Microsofts Active Platform.
• MSMQ provides a set of Active X components that
  implements an API to all MSMQ features. Active X
  allows these other Microsoft products to access
  MSMQ.
• MSMQ can guarantee the delivery of messages by
  utilizing disk based intermediary storage and
  log-based recovery techniques. Some of the
  protocols MSMQ works well with are IPX/SPX and
  TCP/IP. Using MSMQ as a common translation
  mechanism these protocols can even be mixed and
  matched.
• MSMQ is tightly integrated with MTS and MTS
  services participate in the MSMQ transaction.

28

• Some of the MSMQ features are
• On time, in order delivery of messages from
  source to destination
• Message-routing services, which give the EAI
  applications the ability to send messages to
  their destination using least-cost routing
• Notification services, which informs the sender
  that the message was received and processed.
• Message priorities, which allow developers to
  assign priorities to messages.
• Journaling, which maintains copies of the
  messages moving in the system.

29

• Using MSMQ
• When an application needs to place a message in
  the queue, it uses the MSMQ Open API, which has
  an Active X control wrapped around it. By passing
  in, the name and destination queue, a queue
  handle is created, allowing the MSMQ to identify
  the destination queues to the MSMQ server sending
  the message.
• Once a queue handle has been created, the next
  step is to create a message by allocating local
  memory and adding information to the message. At
  this step, parameters (time-out values, names of
  response queues, priorities, etc) can be added.
  The message is then sent through the MSMQ Send
  API. Finally the application closes the queue
  handle using the MSMQ Close API function
  (MQCloseQueue).
• The receiver application requires the Open API,
  along with queue identification information, to
  create the queue handle. When calling the MSMQ
  Receiver API, MSMQ will pass back a pointer with
  control information to the message.

30

• After receiving the information, the application
  will close the connection to the queue.
• Fig. 9.5 The
  Architecture of MSMQ

31

• IBM MQSeries
• IBM has over 65 of the middleware market and
  although is not the best of the message
  middleware software, the IBMs MQSeries is at the
  top of the EAI world as the preferred messaging
  layer for moving information through an
  enterprise network.
• MQSeries support a variety of platforms working
  with IBM OS/390, Pyramid, Open VMS, IBM AIX, NCR
  UNIX, Solaris, Windows NT, MacOS, etc.
• MQseries supports all the features of MSMQ,
  including support for transactions, journaling,
  message routing and priorities. It also provides
  a common API for use across a variety of
  development environments and on a variety of
  platforms.
• The interesting thing is that MQSeries provides a
  single multiplatform API, so messages can be sent
  from a Windows 2000 computer and routed via UNIX,
  VMS, etc, before reaching their final
  destination.

32

• MQSeries can also be used as a transactional
  recovery method and a mail transport mechanism,
  assuring the delivery of the message.
• Fig. 9.6 MQSeries
  MOM

33

• MQSeries supports what IBM calls advanced
  message framework, a framework that consists of
  3 layers
• Customer Application Options
• Trusted Messaging Backbone
• Comprehensive Communications Choices
• Fig. 9.7 The 3 Layers
  of MQSeries

34

• Customer Application Options ? provide services
  such as basic messaging, transactional messaging,
  workflow computing, mail messaging, option
  messaging, cooperative processing, data
  replication and mobile messaging.
• Trusted Messaging Backbone ? guarantees that
  messages are delivered to their destinations and
  that the information encapsulated in those
  messages is secure.
• Comprehensive Communications Choices ? allow
  MQSeries to leverage any number of protocols and
  networks for message traffic.
• MQSeries Features
• Database-message resource coordination (DMRC)
• Smart message distribution
• Supports NT/2000 OS/2
• SQL support
• Ability to support large message
