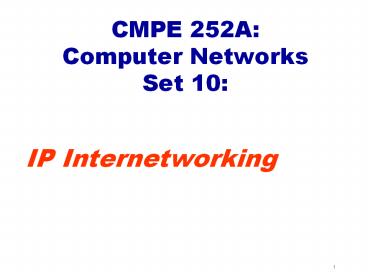

CMPE 252A Computer NetworksSet 10
  • IP Internetworking

2
Internetworking
  • Arbitrary collection of physical networks
    interconnected to provide an end-to-end
    (host-to-host) packet delivery service.
  • Networks differ in many ways
  • Service offered datagrams vs connections
  • Protocols and mechanisms used
  • Address space
  • Topology and physical media
  • An internetwork should make all these differences
    transparent to end nodes.

3
IP Internetworking
  • Based on Cerfs catenet model
  • V.G. Cerf, The Catenet Model for
    Internetworking, IEN 48, July 1978.
  • Basic premises
  • Heterogeneous transmission media
  • Heterogeneous hardware and OS in hosts and
    gateways
  • Common protocol for network interconnection runs
    in all gateways and hosts!
  • Common protocol used for data transfer and
    signaling
  • Common address space used to identify where a
    host or router is in the internetwork
  • An address states at which network a node
    attaches to the internetwork

4
Catenet Model
  • A network is the address of a host in the
    internet
  • A single address space, with addresses that are
    globally unique
  • A single protocol for delivering all user and
    control data
  • Common protocol runs in all gateways and hosts
  • A common definition of services

5
Catenet Model
  • Routing within each network is transparent to
    internet protocol
  • Internet protocol is transparent to
    intra-network routing

6
Service Model Theory and Practice
  • The Internet Protocol (IP) evolved from the
    catenet model.
  • Theory Datagram Delivery is assumed, so that
    packets can get lost, out of order, and multiple
    copies can be delivered.
  • Practice
  • TCP needs in-order delivery of packets to work
    efficiently, and (as we will see) Internet
    routing protocols provide a single path for each
    destination and do not adapt very rapidly.
  • Too many destinations!

7
IP Internet today
  • A single path to each destination, link costs
    are static.
  • Starting with NSFNET, routers run IP and the
    Internet is based on routers running IP
    interconnecting autonomous systems.

8
Internet Control Protocols
  • In addition to packet forwarding and keeping
    routing tables correct, sending IP packets
    requires a number of control protocols
  • Host must be given an IP address (DHCP)
  • Application in host has the name of an intended
    destination, and an IP address has to be found
    for that name.
  • The application calls a resolver in the Domain
    Name System (DNS) or uses a static hosts file
    (e.g., /etc/hosts)
  • Host determines if destination IP address is the
    same or different.
  • If different, packet is sent to an attached
    (default) IP router.
  • If same, the IP address must be converted to a
    MAC address (ARP).
  • Destination router must also map IP address to
    MAC address (ARP).
  • Errors may have to be reported to the source of
    an IP packet using a protocol (ICMP).

9
IP Internet Today
A Success tale of two worlds with a little glue
Networking is independent of processing and
storage of content.
10
IP Internet Approach
  • Datagram switching (using IP) that
  • - Optimizes link utilization by means of
    short-term storage of packets
  • - Applies the same limited instruction set on all
    packets
  • - Assumes that destinations are points of
    attachment to Internet (host_at_net)
  • - Assumes that the context for switching a packet
    is stated in its encapsulated headers
  • - Assumes that physical connectivity between
    switch and destination exists

Great if link bandwidth is scarce and storage and
processing are very expensive.
11
IP Internet Approach
  • Mapping of application-friendly names to
    globally-unique identifiers linked to the
    topology (IP addresses)
  • - Early binding of end points is inefficient
  • - DNS is prone to attacks
  • - Globally-unique addressing is inefficient
  • - Mapping is inefficient if hosts move or many
    hosts can map to the same application-friendly
    name
  • - Mapping introduces long latencies and is prone
    to configuration errors
  • (35 of DNS queries fail many of them due to
    configuration errors Jung et al, sigcomm IMW01)

12
IP Internet Approach
Reliable connections (using TCP) for reliable
byte delivery between two hosts
  • Reliable content delivery via connections
    between specific hosts is wasteful (gt99 use of
    todays networks is for entities to acquire named
    chunks of data (like web pages or email messages)
  • Popular sites are hotspots and prone to
    congestion
  • Poor reliability from dependence on a channel to
    the data source
  • Poor utilization of computing and storage
    resources in the network
  • End-to-end connectivity may not be there

Connection requires connectivity and a
bandwidth-delay product that permits
feedback. Flow and congestion control assumes a
sender-receiver session against all others.
13
IP Internet Approach
  • Good
  • The glue provided by IP.
  • Interoperability attained with common packet
    format model
  • Bad
  • The network behaves as if storage and processing
    were still very expensive!
  • End-to-end, we still emulate pipes similar to
    those of the telephone network!

applications
IP
transmission media
14
The Opportunity A New Kind of Network
A richer instruction set for packet switching
that takes advantage of context New routers
store and process content Names of content, not
host addresses, used as the entities for
routing Consumers and providers of content
collaborate based on their context
15
Designing Communication Protocols
16
Research Areas
  • Naming
  • No DNS, no IPv6, tell the network what you want,
    not where it should be
  • Whats a name, whats an object?
  • Content dissemination search
  • No need for e-t-e connectivity, routing tables
    become distributed search engine for content
  • R.T. conversations as objects, rather than
    reserved pipes
  • No need for large pkt headers stating context in
    each pkt context establishment is part of
    distributed storage processing
  • Handling billions of objects
  • Devices
  • No host/router divide exploit devic context
  • Security
  • Protect information objects and expressed
    interests for content wherever they may be
  • New apps, no servers!
  • New packet switching models
  • Others New team-oriented retransmission
    congestion control schemes

17
Hierarchical Routing
  • Scale 100s millions of destinations
  • Routing table cannot store an entry for each
    destination!
  • Routing table exchange would swamp links.
  • Administrative autonomy
  • Internet is a network of networks
  • Each network administrator may want to control
    routing in its own network.

18
Hierarchical Routing
  • Aggregate routers into regions, autonomous
    systems (AS)
  • Routers in same AS run same routing protocol
  • intra-AS routing protocol
  • Routers in different AS can run different
    intra-AS routing protocol
  • Special routers in AS
  • Run intra-AS routing protocol with all other
    routers in AS
  • Responsible for routing to destinations outside
    AS
  • run inter-AS routing protocol with other gateway
    routers

19
Intra-AS and Inter-AS Routing
  • Gateways
  • Perform inter-AS routing amongst themselves
  • Perform intra-AS routers with other routers in
    their AS

b
c
a
a
C
b
B
d
A
network layer
inter-AS, intra-AS routing in gateway A.c
link layer
physical layer
20
Intra-AS and Inter-AS Routing
b
c
Host D
a
a
C
b
B
d
Intra-AS routing within AS B
A
Host S
Intra-AS routing within AS A
21
Layers in Internet Routing
APPLICATION
APPLICATION
Routing Protocol
Routing Protocol
Routing Table
Routing Table
PRESENTATION
PRESENTATION
SESSION
SESSION
TRANSPORT (TCP or UDP)
TRANSPORT
NETWORK
NETWORK
Routing Table
Routing Table
IP
IP
LINK
LINK
PHYSICAL
PHYSICAL
22
IPv4 Packet Information
0
23
31
3
7
15
version
HLen
TOS
length
flags
identifier
offset
TTL
protocol
checksum
source address
destination address
pad (variable)
Options (variable)
data
  • Typically no options and header is 20 bytes

23
IPv4 Datagram Format
IP protocol version number
32 bits
total datagram length (bytes)
header length (words)
type of service
head. len
ver
length
for fragmentation and reassembly
fragment offset
type of data
flgs
16-bit identifier
max number remaining hops (decremented at each
router)
upper layer
time to live
Internet checksum
32 bit source IP address
32 bit destination IP address
upper layer protocol to deliver payload to
e.g., timestamp, record route taken,
specify list of routers to visit.
Options (if any)
  • how much overhead with TCP?
  • 20 bytes of TCP
  • 20 bytes of IP
  • 40 bytes app layer overhead

data (variable length, typically a TCP or UDP
segment)
24
IPv4 Addresses
  • IP addresses are global and, unlike MAC
    addresses, they are hierarchical.
  • IP address has a network part and a host part and
    specifies host_at_network
  • A host has an address for each network to which
    it attaches.
  • IP addresses are denoted using the dotted-decimal
    notation Each byte of the address is written in
    its decimal form and is separated by a dot from
    the other bytes, e.g.,
  • 5.7.2.1 gt 00000101 00000111 00000010 00000001

25
IPv4 Addresses
223.1.1.1
  • IP address 32-bit identifier for host, router
    interface
  • Interface connection between host or router and
    physical link
  • Routers typically have multiple interfaces
  • Host may have multiple interfaces
  • IP addresses associated with each interface

223.1.2.9
223.1.1.4
223.1.1.3
223.1.1.1 11011111 00000001 00000001 00000001
223
1
1
1
26
IPv4 Addresses
  • Routing table entries referring to destinations
    in the same AS refer to networks only.

223.1.1.
27
IPv4 Addressing Problems
  • There were too few networks left due to the class
    structure used in IP address assignments!
  • There are many more IP devices and appliances
    coming.
  • Routing tables cannot have millions of entries.
  • Solutions
  • Aggregation of addresses without classes (CIDR)
  • New and much bigger global address space (IPv6)
  • Locally unique addresses (NAT and other
    techniques)

28
Class-based IPv4 Addresses (past)
8
16
24
31
0
network
host
0
Class A
16 million
host
network
Class B
10
65,534
host
network
110
Class C
254
multicast address
Class D
1110
reserved address
Class E
11110
29
IP Addressing CIDR
  • Classful addressing
  • Inefficient use of address space, address space
    exhaustion.
  • A class B address has enough addresses for 65K
    hosts, even if only a few more than 256 hosts
    are located in that network
  • CIDR Classless InterDomain Routing
  • Eliminate the strict assignment of address
    portion in class-full addressing.
  • Enable a network portion of address of arbitrary
    length.
  • CIDR Address Format
  • a.b.c.d/x, where x is bits in network
    portion of address

30
Assigning IP Addresses to Hosts
  • Hard-coded by system administrator in a file
  • Wintel
  • control-panel-gtnetwork-gtconfiguration-gt
  • tcp/ip-gtproperties
  • UNIX /etc/rc.config
  • Obtain address from as server dynamically
  • (plug-and-play)
  • This is the purpose of
  • DHCP Dynamic Host Configuration Protocol

31
Assigning Network Portion of IP Address to a
Network
  • An ISP obtains a block of the address space.
  • Net is allocated portion of its provider ISPs
    address space.

ISP's block 11001000 00010111 00010000
00000000 200.23.16.0/20 Organization 0
11001000 00010111 00010000 00000000
200.23.16.0/23 Organization 1 11001000
00010111 00010010 00000000 200.23.18.0/23
Organization 2 11001000 00010111 00010100
00000000 200.23.20.0/23 ...
..
. . Organization 7
11001000 00010111 00011110 00000000
200.23.30.0/23
32
Assigning Blocks of Addresses to ISPs
  • IANA Internet Assigned Numbers Authority
  • Domain names Manage the DNS root, .int, .arpa
    domains.
  • Number resources Coordination of global pool of
    IP and AS numbers via Regional Internet
    Registries
  • Protocol assignments Manage Internet protocol
    numbering systems together with standards bodies.
  • Operated by Internet Corporation for Assigned
    Names and Numbers (ICANN) under a US Department
    of Commerce contract
  • http//www.iana.org/
  • http//www.icann.org/
  • Take a look and remind yourselves how it works.

33
Hierarchical Addressing for Route Aggregation
Allow efficient advertisement of routing
information
Organization 0
Organization 1
Send me anything with addresses beginning
200.23.16.0/20
Organization 2
My-ISP
Internet
Organization 7
Send me anything with addresses beginning
199.31.0.0/16
Another-ISP
34
Hierarchical Addressing and More Specific Routes
Another-ISP has a more specific route to
Organization 1
Organization 0
Send me anything with addresses beginning
200.23.16.0/20
Organization 2
My-ISP
Internet
Organization 7
Send me anything with addresses beginning
199.31.0.0/16 or 200.23.18.0/23
Another-ISP
Organization 1
35
Internet Routing Protocols
  • Itra-domain routing
  • RIP, OSPF, EIGRP
  • Single-path routing protocols, static link costs
  • Performance (shortest path)
  • Inter-domain routing
  • Border Gateway Protocol (BGP)
  • Single path
  • Policy based

36
RIP
  • Based on DBF
  • Used in small internets
  • Problems Counting to infinity and looping,
    single-path routing, link cost should be 1 or
    infinity
  • Update specifies only a destination network and a
    distance to it hence, no variable subnet masks
    are allowed in local internet and a static
    subnetting convention must be used for all
    routers
  • Router sends its routing table to its neighbors
    every 30 sec. or when it must update its routing
    table.
  • Runs on top of UDP.

37
RIPv2
  • Adds the next hop to a destination and subnet
    mask in each update.
  • Variable subnets are allowed.
  • Performance does not improve much.

38
OSPF Open Shortest Path First
  • Dijkstras SPF used to compute shortest paths
    locally based on topology map.
  • Flooding is used to disseminate topology maps.
  • Sequence numbers and age fields are used to
    validate link-state updates.
  • Runs on top of IP and implements its own reliable
    transmission of link-state updates.
  • Designated routers are used to reduce overhead
    within a LAN, and areas connected by a backbone
    are used to reduce overhead across LANs.
  • A handshake is used to reduce overhead of sending
    large portions of the topology map between
    neighbors.
  • HELLOs used to identify neighbors.

39
OSPF
A2
A3
A4
  • Areas must be connected by a connected backbone
    (area 0)

40
OSPF
EA1 EA2 EAn
41
OSPF
  • Areas need unique IDS, an IP address.
  • Zero or more address ranges can be reached in an
    area.
  • Different types of routers have different views
    of topology.
  • End result is a hybrid of link-state and distance
    information.

42
Topology Information at Backbone Router
A2
A1
EA1 EA2 EAn
A3
A4
43
Topology Information at Area Border Router
R
R
R
R
R
44
Topology Information atInternal Router
A2
A1
R
R
R
EA1 EA2 EAn
R
R
A4
A3
45
OSPF
R
R
R
R
  • In a broadcast LAN, designated router eliminates
    too many link state updates.
  • LSUs, HELLOs and topology updates sent unicast to
    designated router, which keeps all routers in LAN
    updated.

46
Differences between Intra- and Inter-AS Routing
  • Policy
  • Inter-AS admin wants control over how its
    traffic routed, who routes through its net.
  • Intra-AS single administration, so no policy
    decisions needed (usually changing with traffic
    engineering)
  • Scale
  • Hierarchical routing saves table size, reduced
    update traffic
  • Performance
  • Intra-AS can focus on performance
  • Inter-AS policy dominates over performance

47
Inter-AS routing in the Internet BGP
48
BGP
  • BGP (Border Gateway Protocol) the de facto
    standard for Internet inter-AS routing.
  • Path Vector protocol
  • Similar to Distance Vector protocol
  • Each Border Gateway broadcast to neighbors
    (peers) entire path (i.e., sequence of ASs) to
    destination
  • BGP routes to networks (ASs), not individual
    hosts
  • e.g., Gateway X may send its path to dest. Z
  • Path (X,Z) X,Y1,Y2,Y3,,Z

49
BGP
  • Gateway X send its path to peer gateway W
  • W may or may not select path offered by X
  • cost, policy (dont route via competitors AS),
    loop prevention reasons.
  • If W selects path advertised by X, then
  • Path (W,Z) w, Path (X,Z)
  • Note X can control incoming traffic by
    controlling its route advertisements to peers
  • e.g., if X does not want to forward traffic to Z
    then do not advertise any routes to Z

50
Controlling Who Routes to You

legend

provider

B

network

X

W

A

customer

network

C

Y
  • A,B,C are provider networks
  • X,W,Y are customer (of provider networks to which
    they attach directly)
  • X is dual-homed attached to two networks
  • X does not want to forward from B via X to C
  • .. so X will not advertise to B a route to C

Figure 4.5
-
BGPnew
a simple BGP scenario

51
Controlling Who Routes to You

legend

provider

B

network

X

W

A

customer

network

C

Y
  • A advertises to B the path AW
  • B advertises to X the path BAW
  • Should B advertise to C the path BAW?
  • No... B gets no revenue for routing CBAW
    since neither W nor C are Bs customers
  • B wants to force C to route to W via A
  • B wants to route only to/from its customers!

Figure 4.5
-
BGPnew
a simple BGP scenario

52
BGP Operation
  • Receiving and filtering route advertisements from
    directly attached neighbor(s).
  • Route selection.
  • To route to destination X, which path )of several
    advertised) will be taken?
  • Sending route advertisements to neighbors.

53
BGP Messages
  • BGP messages exchanged using TCP.
  • BGP messages
  • OPEN opens TCP connection to peer and
    authenticates sender
  • UPDATE advertises new path (or withdraws old)
  • KEEPALIVE keeps connection alive in absence of
    UPDATES also ACKs OPEN request
  • NOTIFICATION reports errors in previous msg
    also used to close connection

54
Additional Control
  • More than just route computation and forwarding!

55
Sending Datagrams from Source to Destination
  • IP datagram remains unchanged, as it travels
    from source to destination

source IP addr
misc fields
dest IP addr
data
56
Sending Datagrams from Source to Destination
misc fields
data
223.1.1.1
223.1.1.3
  • Starting at A, send IP datagram addressed to B
  • Look up net. address of B in forwarding table
  • Find B is on same net as A
  • Link layer sends datagram directly to B inside
    link-layer frame
  • B and A are directly connected

57
Sending Datagrams from Source to Destination
misc fields
data
223.1.1.1
223.1.2.2
  • Starting at A, dest. E
  • Look up network address of E in forwarding table
  • E is on a different network
  • A, E not directly attached
  • Routing table next hop router to E is 223.1.1.4
  • Link layer sends datagram to router 223.1.1.4
    inside link-layer frame
  • Datagram arrives at 223.1.1.4

58
Sending Datagrams from Source to Destination
misc fields
Forwarding table at router
223.1.1.1
223.1.2.3
data
  • Arriving at 223.1.4, destined for 223.1.2.2
  • Look up network address of E in routers
    forwarding table
  • E on same network as routers interface 223.1.2.9
  • Router and E are directly attached
  • Link layer sends datagram to 223.1.2.2 inside
    link-layer frame via interface 223.1.2.9
  • Datagram arrives at 223.1.2.2

59
Fragmentation
  • Packet length is in bytes and includes header
    maximum length is then 65,535 bytes
  • MAC protocol my not support such long packets,
    and an IP packet may have to be fragmented.
  • Ethernet accepts frames of up to 1500 bytes and
    FDDI of up to 4500 bytes
  • Each fragment is a self-contained datagram.
  • Fragmentation is handled with
  • The packet ID, which is the same for all fragment
  • The offset, which states the byte (position) of
    the fragment
  • A flag indicating that there a more fragments for
    the same ID coming.

60
Fragmentation Example
Length 3980 B ID 50
D
ID 50 length 1480B flag 1 (more)
S
ID 50 length 1480B flag 1 (more)
ID 50 length 1020B flag 0 (last)
  • Each datagram has a 20-byte header.
  • Re-assembly done at IP module of destination D.
  • Fragmentation is avoided in general by limiting
    the size of TCP segments to 536 B, because all
    data-link protocols must support MTUs of 576 B.
    (536 20 of IP header 20 of TCP header).

61
IPv4 Header
  • TTL (time to live indicates how long the packet
    can stay in the network it is specified in hops
    and is decremented each time the packet is
    forwarded.
  • Default is 64 hops nodes can play with the field
    to limit the scope
  • Protocol specifies the type of payload
  • Checksum is computed considering the entire
    header as a sequence of 16-bit words, adding them
    up with 1s complement arithmetic and taking the
    1s complement of the result.
  • This checksum is NOT as powerful as a CRC but is
    simple to do in software.
  • Why this way? Because it is done at each hop
    (software)
  • What if we process headers in hardware?

62
Error Reporting
  • In general, errors can be reported to the origin
    of a packet or to intermediate relays or both.
  • In the IP Internet, errors are reported to the
    source using ICMP (internet control message
    protocol).
  • The choice stems from using IP for all signaling
    and user data transfer in the Internet.
  • ICMP messages are encapsulated in IP.
  • An IP packet specifies the source and destination
    and not the relays (options are not supported in
    general)

63
ICMP Internet Control Message Protocol
Type Code description 0 0 echo
reply (ping) 3 0 dest. network
unreachable 3 1 dest host
unreachable 3 2 dest protocol
unreachable 3 3 dest port
unreachable 3 6 dest network
unknown 3 7 dest host unknown 4
0 source quench (congestion
control - not used) 8 0
echo request (ping) 9 0 route
advertisement 10 0 router
discovery 11 0 TTL expired 12 0
bad IP header
  • Used by hosts and routers for
  • Error reporting unreachable host, network, port,
    protocol
  • Echo request/reply (used by ping)
  • Network-layer above IP
  • ICMP messages are carried in IP datagrams
  • ICMP message type, code plus first 8 bytes of IP
    datagram causing error

64
Address Resolution Protocol
  • Goal Enable a host to build a table of mappings
    between IP addresses and MAC addresses in a
    dynamic manner.
  • Mappings are called ARP cache or ARP table.
  • Approach
  • ARP is designed assuming a fully connected,
    broadcast link layer (LAN) and the requestor is
    responsible for persisting.
  • Hosts and routers broadcast requests and
    responses and listen to requests and responses
    from any other node in the LAN.
  • Different approach would be needed in a multihop
    LAN.

65
ARP
8
16
24
31
0
protocol type
hardware type
sender MAC address

target MAC address
sender IP address
target MAC address
target IP address
  • Hardware type hardware interface type (e.g.,
    Ethernet is 1)
  • HLEN and PLEN length of MAC address and
    high-level protocol address
  • Protocol type type of high-level protocol
    address (e.g., IP)
  • OPERATION ARP request (1), ARP response (2),
    RARP request (3), RARP response (4).

66
ARP
  • Implementation considerations
  • Minimize the number of ARP requests sent
  • Queue requests for the same IP address
  • Learn form requests from others
  • Only one node is the target of an ARP
  • A node can act as a proxy for others
  • Reverse ARP (RARP) provides the requestor with
    its own IP address
  • Nodes responding should play response avoidance
    using randomized timers

67
Dynamic Host Configuration
  • Host must be assigned an IP address, because it
    is not committed to hardware as a MAC address.
  • Configuring hosts with proper IP addresses is
    involved.
  • DHCP (dynamic host configuration protocol) is a
    solution to this configuration and management
    problem.
  • DHCP is intended to support manual, automatic and
    dynamic configurations
  • DHCP is designed to work with no pre-configured
    addresses of servers and across networks.

68
DHCP
Derived from BOOTP Host knows nothing, relay is
configured with IP address of server Sever
assigns IP addresses statically or
dynamically Relies on end-to-end level datagrams
(UDP) UDP specifies DHCP
my IP???
69
DHCP Dynamic Host Configuration Protocol
  • Goal Allow host to dynamically obtain its IP
    address from network server when it joins
    network.
  • Can renew its lease on address in use
  • Allows reuse of addresses (only hold address
    while connected an on
  • Support for mobile users who want to join network
    (more shortly)
  • DHCP overview
  • host broadcasts DHCP discover msg
  • DHCP server responds with DHCP offer msg
  • host requests IP address DHCP request msg
  • DHCP server sends address DHCP ack msg

70
Special IP Addresses
  • All 0s IP address means This host
  • Address with net.host 0.host means
  • host in this network
  • All 1s IP address means
  • Broadcast on this network
  • Address with net.host net.1111 means
    broadcast on net
  • 127.anything means loopback

71
DHCP Client-Server Scenario
223.1.2.1
DHCP

223.1.1.1
server

223.1.1.2
223.1.2.9
223.1.1.4
223.1.2.2
arriving DHCP client needs address in
this network
223.1.1.3
223.1.3.27

223.1.3.2
223.1.3.1

72
DHCP Client-Server Scenario
arriving client
DHCP server 223.1.2.5
DHCP offer
src 223.1.2.5, 67 dest 255.255.255.255,
68 yiaddrr 223.1.2.4 transaction ID
654 Lifetime 3600 secs
DHCP request
src 0.0.0.0, 68 dest 255.255.255.255,
67 yiaddrr 223.1.2.4 transaction ID
655 Lifetime 3600 secs
time
DHCP ACK
src 223.1.2.5, 67 dest 255.255.255.255,
68 yiaddrr 223.1.2.4 transaction ID
655 Lifetime 3600 secs
73
NAT Network Address Translation
74
NAT Network Address Translation
rest of Internet
local network (e.g., home network) 10.0.0/24
10.0.0.1
10.0.0.4
10.0.0.2
138.76.29.7
10.0.0.3
Datagrams with source or destination in this
network have 10.0.0/24 address for source,
destination (as usual)
All datagrams leaving local network have same
single source NAT IP address 138.76.29.7, differe
nt source port numbers
75
NAT Motivation
  • Local network uses just one IP address as far
    as outside world is concerned
  • No need to be allocated range of addresses from
    ISP - just one IP address is used for all
    devices
  • Can change addresses of devices in local network
    without notifying outside world
  • Can change ISP without changing addresses of
    devices in local network
  • Devices inside local net not explicitly
    addressable, visible by outside world (a security
    plus).

76
Functions of NAT Router
  • Outgoing datagrams
  • Replace (source IP address, port ) of every
    outgoing datagram to (NAT IP address, new port )
  • . . . remote clients/servers will respond using
    (NAT IP address, new port ) as destination addr.
  • Remember (in NAT translation table)
  • every (source IP address, port ) to (NAT IP
    address, new port ) translation pair
  • Incoming datagrams
  • Replace (NAT IP address, new port ) in dest
    fields of every incoming datagram with
    corresponding (source IP address, port ) stored
    in NAT table

77
NAT Example
NAT translation table WAN side addr LAN
side addr
138.76.29.7, 5001 10.0.0.1, 3345

10.0.0.1
10.0.0.4
10.0.0.2
138.76.29.7
10.0.0.3
4 NAT router changes datagram dest addr
from 138.76.29.7, 5001 to 10.0.0.1, 3345
3 Reply arrives dest. address 138.76.29.7,
5001
78
NAT Issues
  • 16-bit port-number field
  • 60,000 simultaneous connections with a single
    LAN-side address!
  • NAT is controversial
  • Routers should only process up to layer 3
  • Violates end-to-end argument
  • NAT possibility must be taken into account by app
    designers, e.g., P2P applications
  • Should address shortage be solved using IPv6
    instead? (a new address space of globally unique
    IDs)
About PowerShow.com
